NOTE:
The information contained in this Instruction Manual is designed to assist you in the safe operation and
maintenance of the power tool.
NEVER operate, or attempt any maintenance on the tool unless you have first read and understood all safety
instructions contained in this manual.
Some illustrations in this Instruction Manual may show details or attachments that differ from those on your
own power tool.

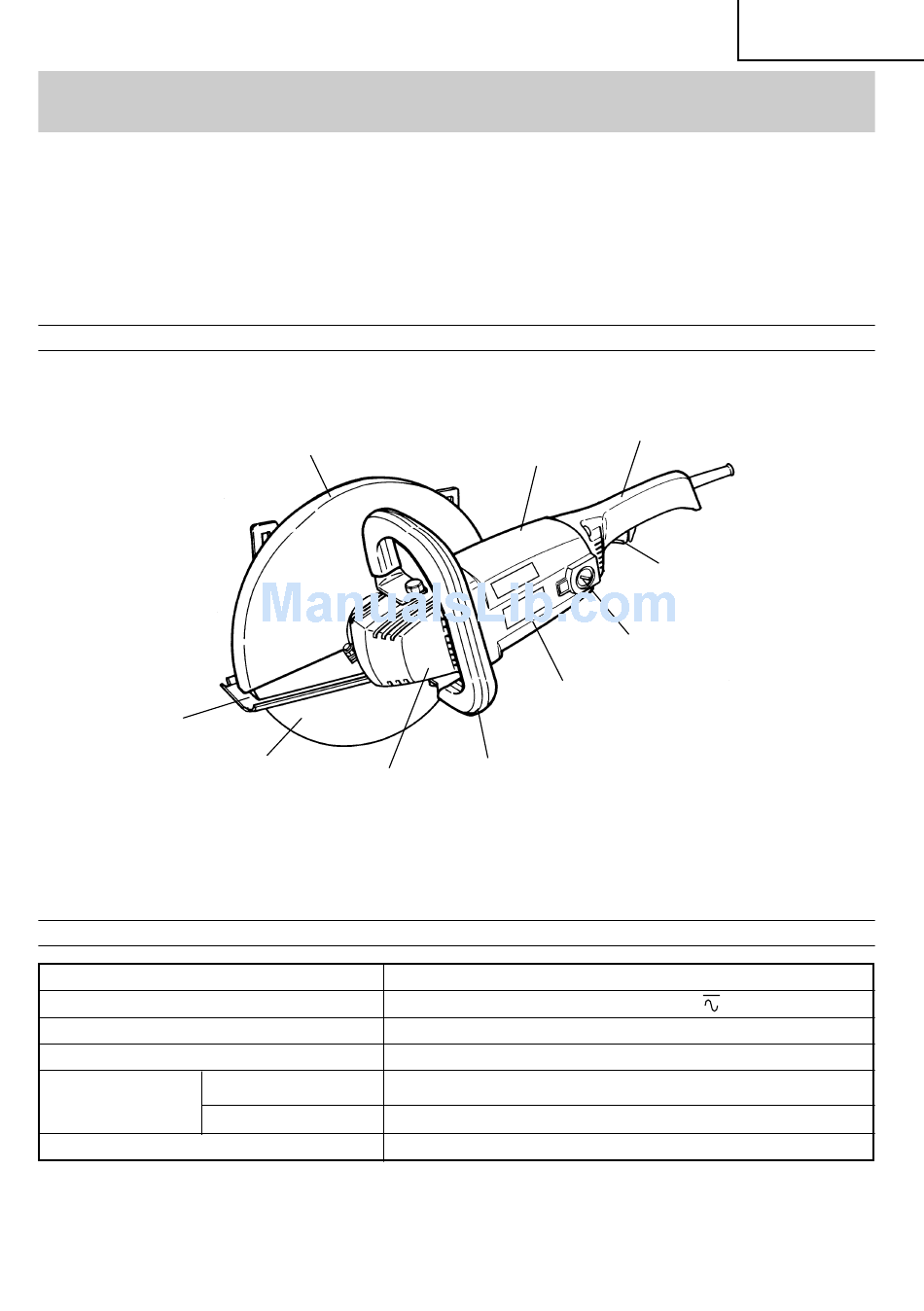

NAME OF PARTS

Base
Cutting wheel

SPECIFICATIONS

Motor
Power Source
Current
No-Load Speed
Wheel
Weight

FUNCTIONAL DESCRIPTION

Wheel guard
Gear cover
outer dia. × hole dia.
peripheral speed
Housing
Brush cap
Nameplate
Pipe handle
Fig. 1
Single-Phase Series Commutator Motor
Single-Phase 120 V
12" (305 mm) × 1" (25.4 mm)
16,000 ft/min (4,800 m/min)
24 lbs (10.8kg)
Handle
Switch
15 A
5,000/min
