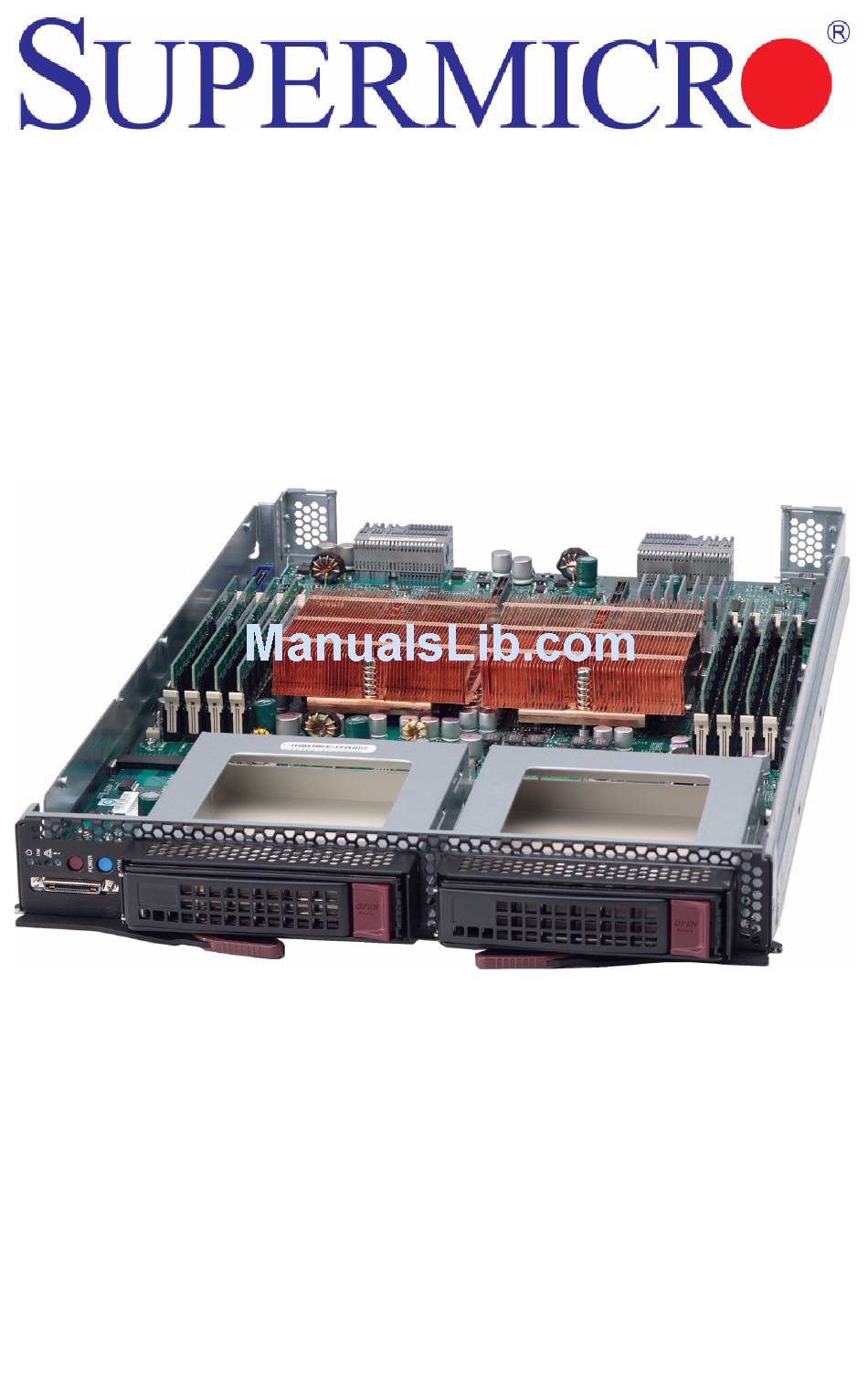

  • Page 1 SBA-7121M-T1Blade Module BIOS Setup Manual Revison 1.0...
  • Page 2 Please Note: For the most up-to-date version of this manual, please see our web site at www.supermicro.com. Super Micro Computer, Inc. (“Supermicro”) reserves the right to make changes to the product described in this manual at any time and without notice. This product, including software, if any, and documentation may not, in whole or in part, be copied, photocopied, reproduced, translated or reduced to any medium or machine without prior written consent.

  • Page 3: Running Setup

    Bios Setup Manual Introduction This document describes the Phoenix BIOS™ Setup utility for the SBA-7121M-T1 AMD Blade Module. The Phoenix ROM BIOS is stored in a flash chip and can be easily upgraded using a floppy disk-based program. See Chapter 9 of the AMD SuperBlade User’s Manual (MNL-0975) for further details.

  • Page 4: System Time/System Date

    BIOS Setup Manual Items that use sub-menus are indicated with the icon. With the item highlighted, press the <E > key to access the submenu. NTER The BIOS setup utility uses a key-based navigation system called hot keys. Most of these hot keys (<F1>, <F10>, <E >, <ESC>, <A >...

  • Page 5: Boot Features

    BIOS Setup Manual BOOT Features The menu options in the BOOT S submenu and their ETTINGS ONFIGURATION descriptions are shown in Table Table 1. BOOT Features Menu Option Description If E , this option will skip certain tests during POST to reduce the time NABLED Quick Boot needed for the system to boot up.

  • Page 6: Cpu Configuration

    BIOS Setup Manual Table 1. BOOT Features (Continued) Menu Option Description This setting is used to E or Disable the W function. It must NABLE ATCH IMER Watch Dog Timer be used in conjunction with the W jumper. ATCH I2C Switch Auto or D the I2C switch.
  • Page 7 BIOS Setup Manual Table 3. SATA Configuration submenu (Continued) Menu Option Description Primary IDE This displays the status of Auto detection of IDE devices. Master Type Select the type. Options include: Auto, CD/DVD and ARMD LBA/Large Mode Sets LBA Large Mode. Options are D and Auto.

  • Page 8: Pcipnp Configuration

    BIOS Setup Manual PCI/PnP Configuration The menu options in the PCI/P submenu and their descriptions are ONFIGURATION shown in Table Table 4. PCI/PnP Configuration submenu Menu Option Description Clear NVRAM Select Y to clear NVRAM during boot-up. The options are Y and No.

  • Page 9: Super Io Configuration

    BIOS Setup Manual Super IO Configuration The menu options in the S IO C submenu and their descriptions are UPER ONFIGURATION shown in Table Table 5. Super IO Configuration submenu Menu Option Description This option specifies the base I/O port address and Interrupt Request address of serial port 1.
  • Page 10 BIOS Setup Manual Table 7. NorthBridge Configuration submenu (Continued) Menu Option Description Enables channel memory interleaving. Options include: Disabled, A DDRESS BITS Channel 6, A 12, R , XOR [20:16, 6], XOR DDRESS BITS ESERVED DDRESS BITS Interleaving [20:16, 9]. DDRESS BITS Enable Clock to Use this setting to enable unused clocks to all DIMMs, even if some DIMM slots...
  • Page 11 BIOS Setup Manual SouthBridge/MCP55 Configuration The menu options in the S /MCP55 C submenu and their OUTH RIDGE ONFIGURATION descriptions are shown in Table Table 8. SouthBridge/MCP55 Configuration submenu Menu Option Description CPU/LDT Spread Enables spread spectrum for the CPU/LDT. Options are Center Spread, D Spectrum or D PREAD...

  • Page 12: Event Log Configuration

    BIOS Setup Manual Event Log Configuration The menu options in the E submenu and their descriptions are VENT ONFIGURATION shown in Table Table 9. Event Log Configuration submenu Menu Option Description View Event Log Highlight this item and press <E >...

  • Page 13: System Health Monitor

    BIOS Setup Manual Table 11. Remote Access Configuration submenu (Continued) Menu Option Description VT-UTF8 Combo Key Allows you to Enable or D VT-UTF8 combination key support for ANSI/ ISABLE Support VT100 terminals. Sredir Memory Use this setting to set the delay in seconds to display memory information. Display Delay Options are No Delay, 1 and 4...

  • Page 14: Security Menu

    BIOS Setup Manual Table 13. Boot menu Menu Option Description Specifies the boot sequence for the 1st Removable Drive. The options are USB: 2nd Drive PeppCMM Virtual Disc 1, USB: P CMM V 2 and D IRTUAL ISABLED This feature allows the user to specify the boot sequence from available CD or CD/DVD Drives DVD disc drives.

  • Page 15: Exit Menu

    BIOS Setup Manual Exit Menu Select the E tab from AMI BIOS S screen to enter the E BIOS S ETUP TILITY ETUP screen. The options for the E menu are shown in Table 15. You may also additionally press <E >...
  • Page 16 BIOS Setup Manual Notes...
