SBA-7121M-T1
Blade Module
User's Manual
Revison 1.0a

Advertisement

Table of Contents
loading

Related Manuals for Supermicro SBA-7121M-T1

Summary of Contents for Supermicro SBA-7121M-T1

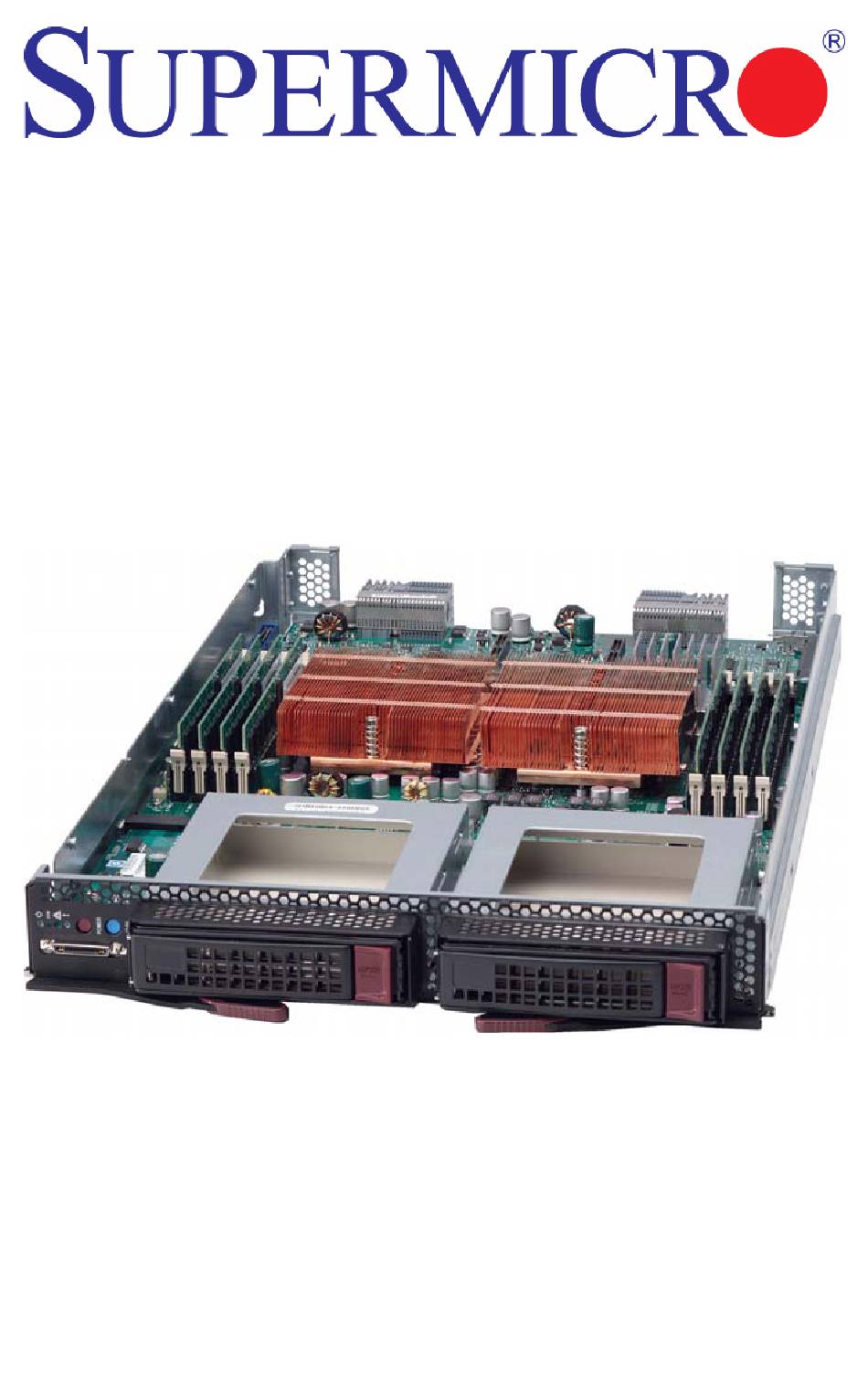

  • Page 1 SBA-7121M-T1 Blade Module User’s Manual Revison 1.0a...
  • Page 2 Please Note: For the most up-to-date version of this manual, please see our web site at www.supermicro.com. Super Micro Computer, Inc. (“Supermicro”) reserves the right to make changes to the product described in this manual at any time and without notice. This product, including software, if any, and documentation may not, in whole or in part, be copied, photocopied, reproduced, translated or reduced to any medium or machine without prior written consent.
  • Page 3 Blade Module. Chapter 3: Setup and Installation Refer to this chapter for details on installing the SBA-7121M-T1 Blade Module into the SuperBladeSuperBlade chassis. Other sections cover the installation and placement of memory modules and the installation of hard disk drives into the blade module.
  • Page 4 SBA-7121M-T1 Blade Module User’s Manual Notes...

  • Page 5: Table Of Contents

    ........1-1 1-3 Blade Module Features ..............1-2 Processors ....................1-2 Memory ....................1-2 Storage....................1-3 Density ....................1-3 1-4 Contacting Supermicro ..............1-4 Chapter 2 System Safety ..............2-1 2-1 Electrical Safety Precautions ............2-1 2-2 General Safety Precautions .............
  • Page 6 SBA-7121M-T1 Blade Module User’s Manual 3-8 Management Software ..............3-10 3-9 Configuring and Setting up RAID ..........3-11 Chapter 4 Blade Module Features ..........4-1 4-1 Control Panel ..................4-2 Power Button ..................4-3 KVM Button..................... 4-3 LED Indicators ..................4-3 KVM Connector..................
  • Page 7 6-4 Boot Menu ..................6-11 6-5 Security Menu .................. 6-12 6-6 Exit Menu ..................6-13 Appendix A BIOS POST Codes ............A-1 A-1 BIOS POST Messages ..............A-1 A-2 BIOS POST Codes ................A-3 Recoverable POST Errors ..............A-4 Terminal POST Errors................A-4...
  • Page 8 SBA-7121M-T1 Blade Module User’s Manual Notes viii...
  • Page 9 Figure 4-1. SBA-7121M-T1 Blade Unit Front View ........... 4-1 Figure 4-2. Blade Control Panel................ 4-2 Figure 4-3. BHDME Mainboard................. 4-4 Figure 4-4. NVidia MCP55 Pro Chipset: Block Diagram for SBA-7121M-T1 ..4-5 Figure 4-5. Exploded View of SBA-7121M-T1 Blade Module ......4-6...
  • Page 10 SBA-7121M-T1 Blade Module User’s Manual Notes...
  • Page 11 Table 4-2. Blade Control Panel ................. 4-2 Table 4-3. Blade Module LED Indicators ............4-3 Table 4-4. BHQME Mainboard Layout .............. 4-5 Table 4-5. Main Components of SBA-7121M-T1 Blade Unit ......4-7 Table 6-1. BOOT Features................6-3 Table 6-2. CPU Configuration Submenu............6-4 Table 6-3.
  • Page 12 SBA-7121M-T1 Blade Module User’s Manual Notes...

  • Page 13: Chapter 1 Introduction

    The SBA-7121M-T1 blade module is a compact self-contained server that connects into a pre-cabled enclosure that provides power, cooling, management and networking functions. One enclosure for the SBA-7121M-T1 blade module can hold ten blade units. In this manual, “blade system” refers to the entire system (including the enclosure and blades units), “blade”...

  • Page 14: Blade Module Features

    Please note that you will need to check the detailed specifications of a particular blade module for a list of the CPUs it supports. Details on installation of the processor into the SBA-7121M-T1 blade module are found Chapter 3: "Setup and Installation" on page 3-1.

  • Page 15: Storage

    Chapter 1: Introduction Storage The SBA-7121M-T1 blade module can have two 3.5-inch SATA (Serial ATA) hard disk drives in front-mounted easy removable carriers. See Chapter 3: "Setup and Installation" on page 3-1 for storage installation details. Density A maximum of ten blade modules may be installed into a single blade enclosure. Each blade enclosure is a 7U form factor, so a standard 42U rack may accommodate up to six enclosures with 60 blade modules, or the equivalent of 60 1U servers.

  • Page 16: Contacting Supermicro

    SBA-7121M-T1 Blade Module User’s Manual Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 marketing@supermicro.com (General Information) Email: support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: Super Micro Computer B.V.

  • Page 17: Chapter 2 System Safety

    Chapter 2 System Safety Electrical Safety Precautions Basic electrical safety precautions should be followed to protect yourself from harm and the SuperBlade from damage: • Be aware of how to power on/off the enclosure power supplies and the individual blades as well as the room's emergency power-off switch, disconnection switch or electrical outlet.

  • Page 18: General Safety Precautions

    SBA-7121M-T1 Blade Module User’s Manual General Safety Precautions Follow these rules to ensure general safety: • Keep the area around the SuperBlade clean and free of clutter. • Place the blade module cover and any system components that have been removed away from the system or on a table so that they won't accidentally be stepped on.

  • Page 19: Chapter 3 Setup And Installation

    This chapter covers the setup and installation of the blade module and its components. Installing Blade Modules Up to ten SBA-7121M-T1 blade modules may be installed into a single blade enclosure (depending upon your enclosure and blad). Blade modules with Windows and Linux operating systems may be mixed together in the same blade enclosure.

  • Page 20: Removing/Replacing The Blade Cover

    SBA-7121M-T1 Blade Module User’s Manual Removing a Blade Unit from the Enclosure 1. Power down the blade unit (see "Powering Down a Blade Unit" above). 2. Squeeze both handles to depress the red sections then pull out both handles completely and use them to pull the blade unit from the enclosure.

  • Page 21: Figure 3-1. Inserting A Blade Into The Enclosure

    Chapter 3: Setup and Installation Figure 3-1. Inserting a Blade into the Enclosure Figure 3-2. Locking the Blade into Position...

  • Page 22: Processor Installation

    SBA-7121M-T1 Blade Module User’s Manual Processor Installation One or two processors may be installed to the mainboard of each blade unit. See Chapter 1 for general information on the features of the blade unit and the Supermicro web site for further details including processor, memory and operating system support.

  • Page 23: Onboard Battery Installation

    Chapter 3: Setup and Installation 8. Place the heatsink on the processor then tighten two diagonal screws until snug, then the other two screws. 9. When all four screws are snug, tighten them all to secure the heatsink to the mainboard.

  • Page 24: Memory Installation

    SBA-7121M-T1 Blade Module User’s Manual Memory Installation The mainboard of each blade unit must be populated with DIMMs (Dual In-line Memory Modules) to provide system memory. The DIMMs should all be of the same size and speed and from the same manufacturer due to compatibility issues.

  • Page 25: Dimm Installation

    Chapter 3: Setup and Installation Table 3-1. Populating 8 Memory Slots and 2 CPUs for Interleaved Operation CPU0 CPU1 Number Channel Channel Channel Channel DIMMS 1A 1B 2A 2B 1A 1B 2A 2B Figure 3-5. 8-slot DIMM Numbering CPU2 CPU1 Center of Board Edge of Board DIMM Installation...

  • Page 26: Usb Memory Stick Installation

    SBA-7121M-T1 Blade Module User’s Manual 4. Insert each DIMM vertically into its slot, paying attention to the notch along the bottom of the module to prevent inserting the module incorrectly (see Figure 3-6). Insert first into the 1A slot(s), then the 1B slot(s), then the 2A slot(s) and 2B slot(s).

  • Page 27: Installing The Operating System

    An operating system (OS) must be installed on each blade module. Blades with Microsoft Windows OS and blades with Linux OS can both occupy and operate within the same blade enclosure. Refer to the SuperMicro web site for a complete list of supported operating systems.

  • Page 28: Installing With An External Usb Cd-Rom Drive

    SBA-7121M-T1 Blade Module User’s Manual Installing with an External USB CD-ROM Drive The most common method of installing the OS is with an external USB CD-ROM drive. Take the following steps to install the OS to a blade module: WARNING: Installing the OS from an external CD-ROM drive may take several hours to complete.

  • Page 29: Configuring And Setting Up Raid

    Chapter 3: Setup and Installation an administrator with a comprehensive set of functions and monitored data to keep tabs on the system and perform management activities. Refer to the manuals on your SuperBlade CD-ROM for further details on the various functions provided by these management programs.
  • Page 30 SBA-7121M-T1 Blade Module User’s Manual Notes 3-12...

  • Page 31: Chapter 4 Blade Module Features

    Chapter 4 Blade Module Features Figure 4-1. SBA-7121M-T1 Blade Unit Front View This chapter describes the SBA-7121M-T1 blade unit. Installation and maintenance should be performed by experienced technicians only. Figure 4-1 for a front view of the blade unit and Table 4-1 for its features.

  • Page 32: Control Panel

    SBA-7121M-T1 Blade Module User’s Manual Control Panel Each blade has a similar control panel (Figure 4-2) with power on/off button, a KVM connector, a KVM button and four LEDs on the top front of the unit. The numbers mentioned in...

  • Page 33: Power Button

    Chapter 4: Blade Module Features Power Button Each blade has its own power button so that individual blade units within the enclosure may be turned on or off independently of the others. Press the power button (#1) to turn on the blade server. The power LED (#3) will turn green. To turn off, press and hold the power button for >4 seconds and the power LED will turn orange.

  • Page 34: Mainboard

    SBA-7121M-T1 Blade Module User’s Manual Mainboard The mainboard of the SBA-7121M-T1 blade unit is a proprietary design, which is based on the NVidia MCP55 Pro chipset. See Figure 4-4 for a block diagram of this chipset, Figure 4-3 for a view of the BHDME Mainboard and...

  • Page 35: Jumpers

    Gbx Connectors (for power and logic to backplane) MCP55 chip Onboard Battery KVM Module BIOS Chip SIMBL Slot USB Port Figure 4-4. NVidia MCP55 Pro Chipset: Block Diagram for SBA-7121M-T1 1 GHz HT CPU1 CPU0 DDR2 Memory Slot (x4) DDR2 Memory Slot (x4) Link...

  • Page 36: Blade Unit Components

    Short the CMOS pads with a metal object such as a small screwdriver. 3. Replace the cover, install the blade back into the enclosure and power it on. Blade Unit Components Figure 4-5. Exploded View of SBA-7121M-T1 Blade Module...

  • Page 37: Memory Support

    SATA Hard Drives (2 per blade module) DIMMs (system memory) CPU Heatsinks Top Cover Memory Support The SBA-7121M-T1 blade module supports up to 64 GB of ECC Registered DDR2-800/ 667/533 SDRAM in eight DIMM sockets. See Section 3-5 for further details on mainboard memory installation.
  • Page 38 SBA-7121M-T1 Blade Module User’s Manual...

  • Page 39: Chapter 5 Raid Setup Procedure

    Any blade module that supports two or more hard drives may be used to create a RAID RAID array. For Supermicro AMD processor SuperBlade modules, only the SBA-7121M-T1 blade module with two hard drives installed works for this purpose. Preparing for Setup Before you begin the installation, verify the following: 1.
  • Page 40 SBA-7121M-T1 Blade Module User’s Manual 3. For the D selection, use the arrow keys to add drives to the A section. You ISKS RRAY must select and add at least two drives to the A section for RAID to work on the RRAY module.

  • Page 41: Chapter 6 Bios

    Often a text message will accompany it. NOTE: The BIOS has default text messages built in. SuperMicro retains the option to include, omit, or change any of these text messages.

  • Page 42: System Time/System Date

    SBA-7121M-T1 Blade Module User’s Manual Items that use sub-menus are indicated with the icon. With the item highlighted, press the <E > key to access the submenu. NTER The BIOS setup utility uses a key-based navigation system called hot keys. Most of these hot keys (<F1>, <F10>, <E...

  • Page 43: Boot Features

    Chapter 6: BIOS BOOT Features The menu options in the BOOT S submenu and their ETTINGS ONFIGURATION descriptions are shown in Table 6-1. Table 6-1. BOOT Features Menu Option Description If E , this option will skip certain tests during POST to reduce the time NABLED Quick Boot needed for the system to boot up.

  • Page 44: Cpu Configuration

    SBA-7121M-T1 Blade Module User’s Manual Table 6-1. BOOT Features (Continued) Menu Option Description This setting is used to E or Disable the W function. It must NABLE ATCH IMER Watch Dog Timer be used in conjunction with the W jumper.
  • Page 45 Chapter 6: BIOS Table 6-3. SATA Configuration Submenu (Continued) Menu Option Description Primary IDE This displays the status of Auto detection of IDE devices. Master Type Select the type. Options include: Auto, CD/DVD and ARMD LBA/Large Mode Sets LBA Large Mode. Options are D and Auto.

  • Page 46: Pci/Pnp Configuration

    SBA-7121M-T1 Blade Module User’s Manual PCI/PnP Configuration The menu options in the PCI/P submenu and their descriptions are ONFIGURATION shown in Table 6-4. Table 6-4. PCI/PnP Configuration Submenu Menu Option Description Clear NVRAM Select Y to clear NVRAM during boot-up. The options are Y and No.

  • Page 47: Super Io Configuration

    Chapter 6: BIOS Super IO Configuration The menu options in the S IO C submenu and their descriptions are UPER ONFIGURATION shown in Table 6-5. Table 6-5. Super IO Configuration Submenu Menu Option Description This option specifies the base I/O port address and Interrupt Request address of serial port 1.
  • Page 48 SBA-7121M-T1 Blade Module User’s Manual Table 6-7. NorthBridge Configuration Submenu (Continued) Menu Option Description Enables channel memory interleaving. Options include: Disabled, A DDRESS BITS Channel 6, A 12, R , XOR [20:16, 6], XOR DDRESS BITS ESERVED DDRESS BITS Interleaving [20:16, 9].

  • Page 49: Southbridge/Mcp55 Configuration

    Chapter 6: BIOS SouthBridge/MCP55 Configuration The menu options in the S /MCP55 C submenu and their OUTH RIDGE ONFIGURATION descriptions are shown in Table 6-8. Table 6-8. SouthBridge/MCP55 Configuration Submenu Menu Option Description CPU/LDT Spread Enables spread spectrum for the CPU/LDT. Options are Center Spread, D Spectrum or D PREAD...

  • Page 50: Event Log Configuration

    SBA-7121M-T1 Blade Module User’s Manual Event Log Configuration The menu options in the E submenu and their descriptions are VENT ONFIGURATION shown in Table 6-9. Table 6-9. Event Log Configuration Submenu Menu Option Description View Event Log Highlight this item and press <E >...

  • Page 51: System Health Monitor

    Chapter 6: BIOS Table 6-11. Remote Access Configuration Submenu (Continued) Menu Option Description VT-UTF8 Combo Key Allows you to Enable or D VT-UTF8 combination key support for ANSI/ ISABLE Support VT100 terminals. Sredir Memory Use this setting to set the delay in seconds to display memory information. Display Delay Options are No Delay, 1 and 4...

  • Page 52: Security Menu

    SBA-7121M-T1 Blade Module User’s Manual Table 6-13. Boot Menu Menu Option Description Specifies the boot sequence for the 1st Removable Drive. The options are USB: 2nd Drive PeppCMM Virtual Disc 1, USB: P CMM V 2 and D IRTUAL ISABLED...

  • Page 53: Exit Menu

    Chapter 6: BIOS Exit Menu Select the E tab from AMI BIOS S screen to enter the E BIOS S ETUP TILITY ETUP screen. The options for the E menu are shown in Table 6-15. You may also additionally press <E >...
  • Page 54 SBA-7121M-T1 Blade Module User’s Manual Notes 6-14...

  • Page 55: Appendix Abios Post Codes

    Appendix A BIOS POST Codes BIOS POST Messages During the Power-On Self-Test (POST), the BIOS will check for problems. If a problem is found, the BIOS will activate an alarm or display a message. The following is a list of such BIOS messages.
  • Page 56 SBA-7121M-T1 Blade Module User’s Manual Table A-1. BIOS POST Messages (Continued) BIOS Message Description Previous POST did not complete successfully. POST loads default values and offers to run Setup. If the failure was caused by incorrect values and they are not corrected, the next boot Previous boot incomplete - Default will likely fail.
  • Page 57 Table A-1. BIOS POST Messages (Continued) BIOS Message Description Where nnnn is the amount of RAM in kilobytes successfully nnnn kB Extended RAM Passed tested. Where nnnn is the amount of system cache in kilobytes nnnn Cache SRAM Passed successfully tested. Where nnnn is the amount of shadow RAM in kilobytes nnnn kB Shadow RAM Passed successfully tested.

  • Page 58: Recoverable Post Errors

    SBA-7121M-T1 Blade Module User’s Manual Recoverable POST Errors When a recoverable type of error occurs during POST, the BIOS will display an POST code that describes the problem. BIOS may also issue one of the following beep codes: • One long and two short beeps – video configuration error •...
  • Page 59 Table A-2. Terminal POST Errors (Continued) Post Code Description 1-3-1-3 Test 8742 Keyboard Controller Auto size DRAM Initialize POST Memory Manager Clear 512 kB base RAM 1-3-4-1 RAM failure on address line xxxx* 1-3-4-3 RAM failure on data bits xxxx* of low byte of memory bus Enable cache before system BIOS shadow Test CPU bus-clock frequency Initialize Phoenix Dispatch Manager...
  • Page 60 SBA-7121M-T1 Blade Module User’s Manual Table A-2. Terminal POST Errors (Continued) Post Code Description Test RAM between 512 and 640 kB Test extended memory Test extended memory address lines Jump to UserPatch1 Configure advanced cache registers Initialize Multi Processor APIC...
  • Page 61 Table A-2. Terminal POST Errors (Continued) Post Code Description Build MPTABLE for multi-processor boards Install CD ROM for boot Clear huge ES segment register 1-2 Search for option ROMs. One long, two short beeps on check-sum failure Check for SMART Drive (optional) Shadow option ROMs Set up Power Management Initialize security engine (optional)

  • Page 62: Table A-3. Boot Block Flash Rom Terminal Post Errors

    SBA-7121M-T1 Blade Module User’s Manual Table A-2. Terminal POST Errors (Continued) Post Code Description Initialize system error handler PnPnd dual CMOS (optional) Initialize note dock (optional) Initialize note dock late Force check (optional) Extended checksum (optional) Redirect Int 15h to enable remote keyboard...
  • Page 63 Table A-3. Boot Block Flash ROM Terminal POST Errors (Continued) Post Code Description Initialize video Initialize System Management Manager Output one beep Clear Huge Segment Boot to Mini DOS Boot to Full DOS If the BIOS detects error 2C, 2E, or 30 (base 512K RAM error), it displays an additional word-bitmap ( ) indicating the address line or bits that failed.
  • Page 64 SBA-7121M-T1 Blade Module User’s Manual Notes A-10...
