SuperServer
®
ARS-221GL-NR
USER'S MANUAL
Revision 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SuperServer ARS-221GL-NR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Supermicro SuperServer ARS-221GL-NR

Summary of Contents for Supermicro SuperServer ARS-221GL-NR

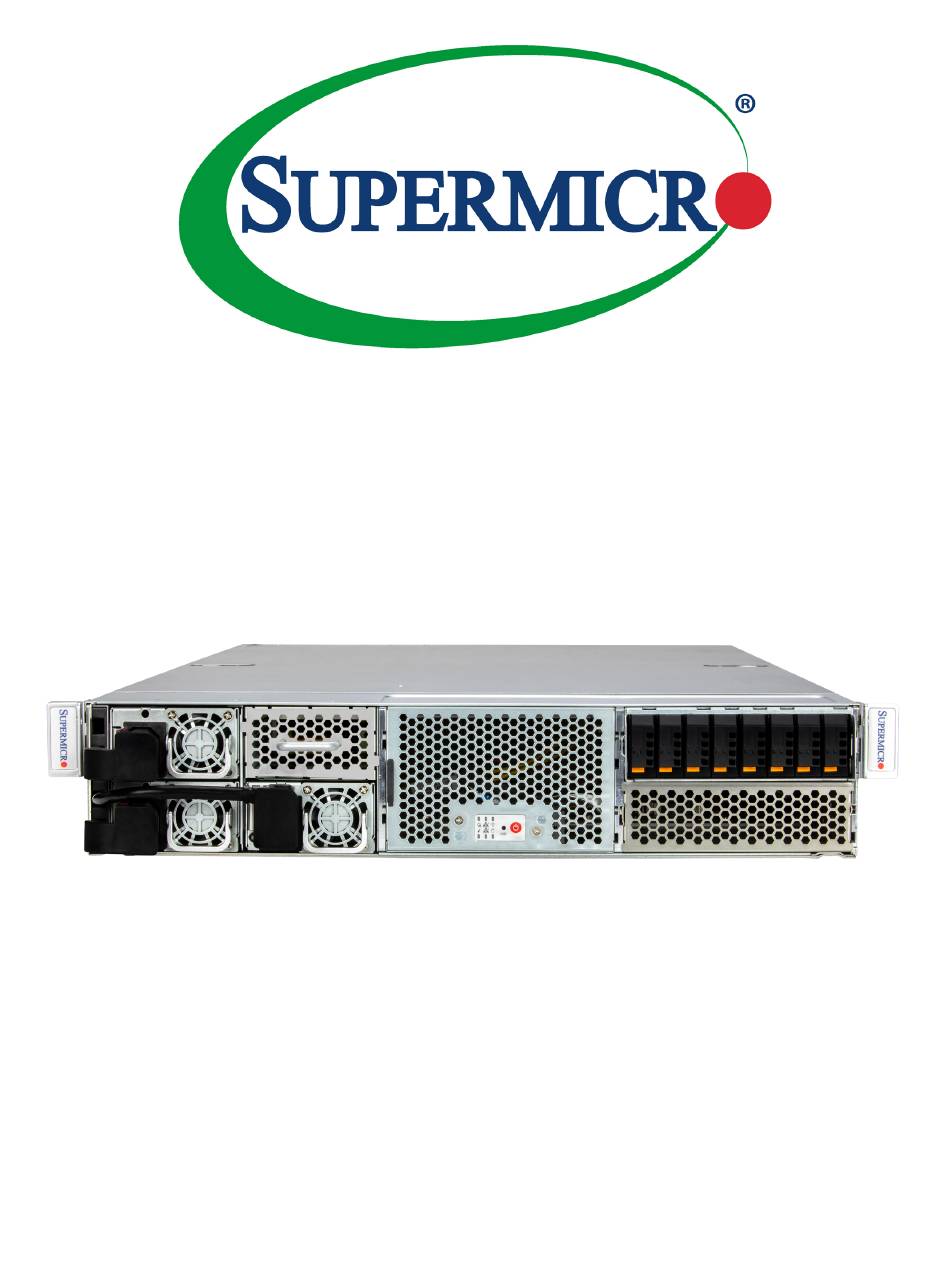

  • Page 1 SuperServer ® ARS-221GL-NR USER’S MANUAL Revision 1.0...
  • Page 2 State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
  • Page 3 I f y o u h a v e a n y q u e s t i o n s , p l e a s e c o n t a c t o u r s u p p o r t t e a m a t : support@supermicro.com This manual may be periodically updated without notice. Please check the Supermicro website for possible updates to the manual revision level.

  • Page 4: Table Of Contents

    Preface Contents Contacting Supermicro ......................7 Chapter 1 Introduction 1.1 Overview ..........................8 1.2 System Features ........................9 Front View ...........................9 Power Supply Status Indicators ..................10 Drive Carrier Indicators ....................10 Control Panel .........................11 Rear View ..........................12 Input/Output Panel ......................13 Top View ..........................14 1.3 Motherboard Layout ......................15 Quick Reference Table ......................16...
  • Page 5 Preface 2.3 Installing the System into a Rack..................23 Separating the Sections of the Rack Rails ...............23 Releasing the Inner Rail....................24 Installing the Inner Rails on the Chassis .................25 Installing the Outer Rails on the Rack ................26 Installing into the Rack ......................27 Removing the Chassis from the Rack ................28 Removing the Outer Rails from the Rack .................29 Chapter 3 Maintenance and Component Installation...
  • Page 6 7.6 Where to Get Replacement Components ................78 7.7 Reporting an Issue ......................78 Technical Support Procedures ..................78 Returning Merchandise for Service ...................79 Vendor Support Filing System ..................79 7.8 Feedback ..........................79 7.9 Contacting Supermicro .......................80 Appendix A Standardized Warning Statements for AC Systems Appendix B System Specifications...

  • Page 7: Contacting Supermicro

    San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) Sales-USA@supermicro.com (Sales Inquiries) Government_Sales-USA@supermicro.com (Gov. Sales Inquiries) support@supermicro.com (Technical Support) RMA@supermicro.com (RMA Support) Webmaster@supermicro.com (Webmaster) Website: www.supermicro.com Europe Address: Super Micro Computer B.V.

  • Page 8: Chapter 1 Introduction

    2U rackmount; 17.25" (W) x 3.46" (H) x 35.43" (D) (438.4 x 88 x 900 mm) Notes: A Quick Reference Guide can be found on the product page of the Supermicro website. The following safety models associated with the ARS-221GL-NR have been certified as compliant with UL and CSA: GP201-R20X13.

  • Page 9: System Features

    Chapter 1: Introduction 1.2 System Features The following views of the system display the main features. Refer to Appendix B for additional specifications. Front View PSU #3 Control Panel PSU #1 PSU #2 Drives Service/Asset Tag Figure 1-1. Front View (Default Configuration) System Features: Front Feature Description...

  • Page 10: Power Supply Status Indicators

    Indicates that the power supply has a warning condition and continues to operate. Indicates that the power supply is plugged in, and is in an abnormal state. Solid Amber The system might need service. Please contact Supermicro technical support. No AC power to modules Drive Carrier Indicators Each E.1 SSD has two LED indicators: an activity indicator and a status indicator.

  • Page 11: Control Panel

    Chapter 1: Introduction Control Panel UID Button Power LED NIC2 LED Power Fail LED Power Button Information LED NIC1 LED Storage LED Figure 1-2. Control Panel Control Panel Features Features Description The main power switch applies or removes primary power from the power supply to the Power Button server but maintains standby power.

  • Page 12: Rear View

    Chapter 1: Introduction Rear View Power Plugs Input/Output Panel Figure 1-3. System: Rear View System Features: Rear Feature Description Four PCIe 5.0 expansion slots for GPUs (FHFL, double width) Three PCIe 5.0 expansion slots (FHFL, single width) The power modules are located in front of the chassis, however the power cables are Power Plugs (Female) routed to the rear.

  • Page 13: Input/Output Panel

    Chapter 1: Introduction Input/Output Panel LAN Port DP Mini Port UID Switch/LED USB Ports Figure 1-4. Input/Output Panel Input/Output Panel Feature Description The unit identification (UID) button turns on or off the blue light function of the UID Switch/LED/BMC Button Information LED and a blue LED on the rear of the chassis.

  • Page 14: Top View

    Chapter 1: Introduction Top View I/O Bays GPUs Processors/ Heatsinks M.2 Slots Power Supplies E1.S hot-swap NVMe drive bays Figure 1-5. Motherboard Tray: Top View System Features: Top Feature Description GPUs Slots 1 - 4 provides up to four FHFL double width GPUs (e.g. L40, L40S, H100, A100) I/O Bays Slots 5 - 7 provides up to three FHFL single width PCIe 5.0 expansion slots Processors...

  • Page 15: Motherboard Layout

    Chapter 1: Introduction 1.3 Motherboard Layout Below is a layout of the G1SMH motherboard with jumper, connector, and LED locations shown. See the table on the following page for descriptions. For detailed descriptions, pinout information and jumper settings, refer to Chapter 4 or the Motherboard Manual.

  • Page 16: Quick Reference Table

    Chapter 1: Introduction Quick Reference Table Description Status ACT_LED1 M.2 Activity Green Blinking: M.2 is active ACT_LED2 M.2 Activity Green Blinking: M.2 is active HB_LED1 CPLD Initialization Green Blinking: CPLD initialized PWR_LED1 Motherboard Power Solid green after pressing PWRBTN1 LED1 EROT Detected Yellow Solid: EROT is detected LED2...

  • Page 17: Grace Cpu Superchip

    PCIe Links Up to 8 xPCIe Gen5 x16 option to bifurcate Module Thermal Design Power (TDP) 500 W TDP with memory Form Factor Superchip module Grace CPU Superchip Thermal Solution Air cooled or liquid cooled Better Faster Greener™ © 2023 Supermicro...

  • Page 18: Motherboard Block Diagram

    Chapter 1: Introduction Motherboard Block Diagram Figure 1-7. Motherboard Block Diagram Note: This is a general block diagram and may not exactly represent the features on your motherboard. See the previous pages for the actual specifications of your motherboard.

  • Page 19: Chapter 2 Server Installation

    Chapter 2: Server Installation Chapter 2 Server Installation This chapter provides advice and instructions for mounting your system in a server rack. If your system is not already fully integrated with processors, system memory, etc., refer to Chapter 3 for details on installing those specific components. Read the precautions and considerations noted in this chapter and in Appendix 2.1 Unpacking the System...

  • Page 20: Server Precautions

    Chapter 2: Server Installation • In single rack installations, stabilizers should be attached to the rack. In multiple rack in- stallations, the racks should be coupled together. • Always make sure the rack is stable before extending a server or other component from the rack.

  • Page 21: Circuit Overloading

    Chapter 2: Server Installation Circuit Overloading Consideration should be given to the connection of the equipment to the power supply circuitry and the effect that any possible overloading of circuits might have on overcurrent protection and power supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.

  • Page 22: Particulate And Gaseous Contamination Limits

    Chapter 2: Server Installation Particulate and Gaseous Contamination Limits Data centers should meet the following requirements to maintain proper air quality. Particulate Contamination Specifications All sources of dust inside data centers should be reduced or eliminated. Dust having a deliquescent relative humidity of less than the maximum allowable relative humidity should be filtered out.

  • Page 23: Installing The System Into A Rack

    Chapter 2: Server Installation 2.3 Installing the System into a Rack This section provides information on installing the GP201 chassis into a rack unit with the quick-release rails provided. There are a variety of rack units on the market, which may mean the assembly procedure will differ slightly.

  • Page 24: Releasing The Inner Rail

    Chapter 2: Server Installation Releasing the Inner Rail It is necessary to release the inner rail from the middle and outer rails before installing the inner rail on the chassis. Releasing the Inner Rail from the Middle and Outer Rails 1.

  • Page 25: Installing The Inner Rails On The Chassis

    Chapter 2: Server Installation Installing the Inner Rails on the Chassis Installing the Inner Rails 1. Confirm that the left and right inner rails have been correctly identified. 2. Place the inner rail firmly against the side of the chassis, aligning the pins on the side of the chassis with the slotted thru holes in the inner rail.

  • Page 26: Installing The Outer Rails On The Rack

    Chapter 2: Server Installation Installing the Outer Rails on the Rack Installing the Outer Rails 1. Confirm that the left and right outer rails have been correctly identified. 2. Release the small locking lever on the inside of the middle rail and push the middle rail back into the outer rail.

  • Page 27: Installing Into The Rack

    Chapter 2: Server Installation Installing into the Rack After the rails are installed on the chassis and on the rack, the server can be installed in the rack. It is heavy and requires two to three people to lift. Installing the Chassis into a Rack 1.

  • Page 28: Removing The Chassis From The Rack

    Chapter 2: Server Installation Removing the Chassis from the Rack Caution: The chassis is heavy and requires two to three people to lift it out. Removing the Chassis 1. Lift the right and left front latches which are just below the LED control panels on the front edges of the chassis.

  • Page 29: Removing The Outer Rails From The Rack

    Chapter 2: Server Installation Removing the Outer Rails from the Rack In the uncommon event that it is necessary to remove the outer rails from the rack, follow these instructions. The chassis must be out of the rack. Releasing the Outer Rails 1.

  • Page 30: Chapter 3 Maintenance And Component Installation

    Chapter 3: Maintenance and Component Installation Chapter 3 Maintenance and Component Installation This chapter provides instructions on installing and replacing main system components. To prevent compatibility issues, only use components that match the specifications and/or part numbers given. Installation or replacement of most components require that power first be removed from the system.

  • Page 31: Accessing The System

    Chapter 3: Maintenance and Component Installation 3.2 Accessing the System The chassis features a removable top cover for access to the internal components. When performing service on components inside the system, remove the system from the rack and place it on a work bench or desk. Do not service with the system extended from the rack. Removing the Top Cover 1.

  • Page 32: Processor And Heatsink Installation

    • Make sure to install the motherboard into the chassis before you install the heatsink. • Refer to the Supermicro website for updates on the Superchip support. • Processors and heatsinks must be installed by the manufacturer.
  • Page 33 Chapter 3: Maintenance and Component Installation Installing the Superchip onto the Motherboard 1. Align the Superchip with its guide pins to the holes circled in red on the motherboard. Superchip Bottom View Superchip Top View Top view...
  • Page 34 Chapter 3: Maintenance and Component Installation 2. Before the springs underneath the Superchip are compressed, check the alignment of the guide pins and the holes on the motherboard again. 3. Fasten the four screws by using a T15 screwdriver with a torque of 3 lb-in to complete the Superchip installation.
  • Page 35 Chapter 3: Maintenance and Component Installation 4. Place the thermal pads on the location where the heatsinks will go. See the chart below. Thermal Interface Materials Size Quantity Gap 285-1036-000 TGP3500PT, 7.0 x 29.0 x 2.0 mm 285-1037-000 TGP3500PT, 6.0 x 17.0 x 2.0 mm 285-1038-000 TGP3500PT, 5.0 x 13.5 x 2.0 mm 285-1039-000...
  • Page 36 Chapter 3: Maintenance and Component Installation 5. Peel off the thermal pad protector underneath each heatsink.
  • Page 37 Chapter 3: Maintenance and Component Installation 6. Place the heatsinks on top of the Superchip. 7. Using a torque of 3 lb-in, secure the heatsinks onto the Superchip with four screws.

  • Page 38: Memory

    Chapter 3: Maintenance and Component Installation Un-installing the Superchip and Heatsinks 1. Remove the heatsinks attached to the top of the Superchip by reversing the installation procedure. 2. Remove the screws from the Superchip. 3. Lift the Superchip off from the motherboard. 3.4 Memory The G1SMH supports up to 240/480/960 GB of LPDDR5 ECC with 1 TB/second throughput.

  • Page 39: Motherboard Battery

    Chapter 3: Maintenance and Component Installation 3.5 Motherboard Battery The motherboard uses non-volatile memory to retain system information when system power is removed. This memory is powered by a lithium battery residing on the motherboard. Replacing the Battery Begin by removing power from the system.

  • Page 40: Storage Drives

    Two M.2 SSDs are installed by the manufacturer. NVMe drives are supported using optional parts that are sold separately. Refer to the optional parts list for more details. Note: Enterprise-level storage modules are recommended for use in Supermicro servers. For compatible storage drives, see the ARS-221GL-NR product page.

  • Page 41: Checking The Temperature Of An Nvme Drive

    Chapter 3: Maintenance and Component Installation Push to Unlock E1.S SSD Modules Figure 3-4. E1.S SSD Module Assembly Checking the Temperature of an NVMe Drive There are two ways to check using the BMC Dashboard. Checking a Drive • BMC Dashboard > Server Health > NVMe SSD – Shows the temperatures of all NVMe drives.

  • Page 42: Hot-Swap For Nvme Drives

    Chapter 3: Maintenance and Component Installation Hot-Swap for NVMe Drives Supermicro servers support NVMe surprise hot-swap. For even better data security, NVMe orderly hot-swap is recommended. NVMe drives can be ejected and replaced remotely using the BMC Dashboard. Ejecting a Drive 1.

  • Page 43: System Cooling

    Chapter 3: Maintenance and Component Installation 3.7 System Cooling Fans The chassis contains six 60-mm high-performance counter-rotating fans. Fan speed is controlled by the BMC depending on the system temperature. If a fan fails, the remaining fans will ramp up to full speed. The system will continue to run with a failed fan, although it may shut down if the heat gets too great.

  • Page 44: Power Supply

    • Solid Amber: When illuminated, indicates that the power supply is plugged in, and is in an abnormal state. The system might need service. Please contact Supermicro technical support. Power Supply: PWS-2K09F-1R 2000W redundant Titanium level power supply Dimension 73.5 x 40 x 185 mm (W x H x L)
  • Page 45 Chapter 3: Maintenance and Component Installation Replacing a Power Supply 1. Unplug the AC cord from the module to be replaced. 2. Push the release tab on the front of the power supply as illustrated. 3. Pull the power supply out using the handle provided. 4.

  • Page 46: Installing Pcie Cards/Gpu

    Chapter 3: Maintenance and Component Installation 3.9 Installing PCIe Cards/GPU The system provides seven PCIe expansion slots that each supports four double-width PCIe cards or GPUs and three single-width PCIe cards. GPUs must be installed by the manufacturer. Figure 3-9. GPU or PCIe Bays Installing an Expansion Cards 1.
  • Page 47 Use the CPU air shroud to satisfy thermal requirements. GPU support conditions depend on CPU TDP and server configuration. Please check the GPU matrix on the product page contact Supermicro representative for details. Fastest GPU communication is accomplished using NVIDIA NVLINK.

  • Page 48: Chapter 4 Motherboard Connections

    Chapter 4: Motherboard Connections Chapter 4 Motherboard Connections This section describes the connections on the motherboard and provides pinout definitions. Note that depending on how the system is configured, not all connections are required. The LEDs on the motherboard are also described here. A motherboard layout indicating component locations may be found in Chapter 1.
  • Page 49 Port 80 connection. Use this header to enhance system performance and data security. Refer to the table below for pin definitions. Please go to the following link for more information on the TPM: http://www.supermicro.com/manuals/other/TPM.pdf. Trusted Platform Module Header Pin Definitions...

  • Page 50: Headers And Connectors

    Chapter 4: Motherboard Connections Expansion Slots The motherboard can support seven expansion slots via a PCIe Gen 5 riser card. The table below describes each slot's type and speed. Expansion Slots Name Description LWIO Left-hand riser card slot supports PCIe 5.0 x16 RWIO Right-hand riser card slot supports PCIe 5.0 x16 AIOM1...

  • Page 51: Front Control Panel

    JFP1 contains header pins for various buttons and indicators that are normally located on a control panel at the front of the chassis. These connectors are designed specifically for use with Supermicro chassis. See the figure below for the location of JFP1. MH14...

  • Page 52: Front Control Panel Pin Definitions

    Chapter 4: Motherboard Connections Front Control Panel Pin Definitions Power LED The Power LED connection is located on pins 8 and 9 of JFP1. Refer to the table below for pin definitions. Power LED Pin Definitions (JF1) Pin# Definition Standby Power LED- Normal Power LED- Drive Activity LED The Drive Activity LED connection is located on pin 7 of JFP1.
  • Page 53 Chapter 4: Motherboard Connections UID LED The UID LED is on pin 3 of JFP1. Connect the front panel UID LED to this header to indicate when the rear UID switch is turned on. Refer to the table below for pin definitions. UID LED Pin Definitions (JFP1) Pin#...

  • Page 54: Led Indicators

    Chapter 4: Motherboard Connections 4.3 LED Indicators UID LED (UID_LED1) The UID LED is located next to two buttons at one of the corners of the motherboard. One of the buttons is the UIDBTN1 button. Press this button and the LED will blink blue to show that the UID is active.
  • Page 55 Chapter 4: Motherboard Connections M.2 Activity LEDs ACT_LED1 and ACT_LED2 are onboard M.2 LEDs. When these LEDs are blinking green, the M.2 SSD is active. M.2 Activity LEDs LED Color State Definition None M.2 Inactive Green Blinking M.2 Active EROT Detected LEDs (LED1 and LED2) The EROT Detected OK LED (LED1) and the EROT Detected Fail LED (LED2) shows the status of the Root-of-Trust (RoT).

  • Page 56: Solid State Drive Installation

    Chapter 4: Motherboard Connections 4.4 M.2 Solid State Drive Installation Installing Dual M.2 SSDs 1. Disconnect power from the motherboard or system. 2. Refer to the motherboard layout and locate the M.2 dual slot (JM2A and JM2B). 3. Insert lower M.2 sideways into the connector so that it lays flat, then follow the instructions below from 4.

  • Page 57: Chapter 5 Software

    Chapter 5: Software Chapter 5 Software After the hardware has been installed, you can boot the Operating System (OS). 5.1 Ubuntu Server 22.04 ISO Installation ® Prerequisites: The repositories can be accessed from the internet. If you are using a proxy server, follow the instructions in the Ubuntu Server Installation Guide to ensure that the system...
  • Page 58 Chapter 5: Software 3. Set up the ISO image as virtual media. From the left hand menu, expand Operations. Select Virtual media. Click Add file, navigate to the downloaded ISO image, and select it. To begin serving the ISO image to the target server, click Start. 4.
  • Page 59 Chapter 5: Software...
  • Page 60 Chapter 5: Software...
  • Page 61 Chapter 5: Software Installing Ubuntu Server Prerequisites: This section assumes you have already booted the Ubuntu ISO image. 1. After booting the ISO image, the GRUB boot menu will appear. The menu will time out after 60 seconds. If no action is taken, it will proceed with booting the default selection (Try or Install Ubuntu Server).
  • Page 62 Chapter 5: Software To boot, click Ctrl+X or press F10. The kernel will display output messages to the console after it begins to boot. Stop the Virtual Media device from the BMC web browser console. The kernel will load the Ubuntu Server ISO from the network and start the installer.
  • Page 63 Chapter 5: Software 6. Select the Keyboard configuration. 7. Select the base for the installation.
  • Page 64 Chapter 5: Software 8. Configure the network connections, proxy settings, and Ubuntu archive mirror.
  • Page 65 Chapter 5: Software 9. Select a storage configuration and confirm the destructive action.
  • Page 66 Chapter 5: Software...
  • Page 67 Chapter 5: Software 10. Select the system hostname and create a username and password. 11. Select or decline Ubuntu Pro option for extended support from Canonical.
  • Page 68 Chapter 5: Software 12. Select the system SSH server and settings. 13. Select the featured Ubuntu server snaps.
  • Page 69 Chapter 5: Software 14. System installation begins, wait for the Install Complete banner and the Reboot Now option before proceeding to the next step.
  • Page 70 Chapter 5: Software 15. Once the installation has completed, do not reboot. 16. Use the tab key to navigate to the Help menu and press Enter to display the menu. From the menu, select Enter shell. 17. From the shell, to display the grub menu during boot, create /target/etc/default/grub.d/menu.cfg with the following content: GRUB_TIMEOUT_STYLE=menu GRUB_TIMEOUT=5...
  • Page 71 Chapter 5: Software 18. From the shell, to update grub and install the NVIDIA optimized Ubuntu kernel variant, run the following commands: mount --bind /dev /target/dev cp /etc/resolv.conf /target/run/systemd/resolve/stub-resolv.conf chroot /target mount -t proc none /proc mount -t sysfs none /sys mount -t devpts none /dev/pts apt update apt install linux-nvidia-64k-hwe-22.04 -y...

  • Page 72: Ipmi

    There are several BIOS settings that are related to IPMI. Supermicro ships standard products with a unique password for the BMC ADMIN user. This password can be found on a label on the motherboard.

  • Page 73: Chapter 6 Optional Components

    It enables the motherboard to deny access if the TPM associated with the storage drive is not installed in the system. Details and installation procedures are at: http://www.supermicro.com/manuals/other/TPM.pdf. • AOM-TPM-9672V-O...

  • Page 74: Chapter 7 Troubleshooting And Support

    Chapter 7: Troubleshooting and Support Chapter 7 Troubleshooting and Support 7.1 Information Resources Website A great deal of information is available on the Supermicro website. Figure 7-1. Supermicro Website • Specifications for servers and other hardware are available by clicking Products option. •...

  • Page 75: Baseboard Management Controller (Bmc)

    Security Center for recent security notices Supermicro Phone and Addresses 7.2 Baseboard Management Controller (BMC) The system supports the Baseboard Management Controller (BMC). BMC is used to provide remote access, monitoring, and management. There are several BIOS settings that are related to BMC.

  • Page 76: Crash Dump Using The Bmc Dashboard

    In the event of a processor internal error (IERR) that crashes your system, you may want to provide information to support staff. You can download a crash dump of status information using the BMC Dashboard. The BMC manual is available at https://www.supermicro.com/manuals/other/BMC_IPMI_X13_H13.pdf. Check Error Log 1. Access the BMC web interface.

  • Page 77: Cmos Clear

    Chapter 7: Troubleshooting and Support 7.4 CMOS Clear JBT1 is used to clear CMOS, which will also clear any passwords. Instead of pins, this jumper consists of contact pads to prevent accidentally clearing the contents of CMOS. To Clear CMOS 1.

  • Page 78: Where To Get Replacement Components

    Before contacting Technical Support, please take the following steps. Also, please note that as a motherboard manufacturer, Supermicro also sells motherboards through its channels, so it is best to first check with your distributor or reseller for troubleshooting services. They should know of any possible problems with the specific system configuration that was sold to you.

  • Page 79: Returning Merchandise For Service

    For issues related to Red Hat Enterprise Linux, since it is a subscription based OS, contact your account representative. 7.8 Feedback Supermicro values your feedback as we strive to improve our customer experience in all facets of our business. Please email us at techwriterteam@supermicro.com to provide feedback on our manuals.

  • Page 80: Contacting Supermicro

    San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) Sales-USA@supermicro.com (Sales Inquiries) Government_Sales-USA@supermicro.com (Gov. Sales Inquiries) support@supermicro.com (Technical Support) RMA@supermicro.com (RMA Support) Webmaster@supermicro.com (Webmaster) Website: www.supermicro.com Europe Address: Super Micro Computer B.V.

  • Page 81: Appendix A Standardized Warning Statements For Ac Systems

    Supermicro's Technical Support department for assistance. Only certified technicians should attempt to install or configure components. Read this appendix in its entirety before installing or configuring components in the Supermicro chassis. These warnings may also be found on our website at http://www.supermicro.com/about/...
  • Page 82 Appendix A: Warning Statements Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut. Suchen Sie mit der am Ende jeder Warnung angegebenen Anweisungsnummer nach der jeweiligen Übersetzung in den übersetzten Sicherheitshinweisen, die zusammen mit diesem Gerät ausgeliefert wurden.
  • Page 83 Appendix A: Warning Statements . ٌ ‫ا ك ً ف حالة و ٌ يك أى تتسبب ف اصابة جسذ ة ٌ هذا الزهز ع ٌ خطز !تحذ ز‬ ‫قبل أى تعول عىل أي هعذات،يك عىل علن بالوخاطز ال ا ٌجوة عي الذوائز‬ ٍ...
  • Page 84 Appendix A: Warning Statements Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen. ¡Advertencia! Lea las instrucciones de instalación antes de conectar el sistema a la red de alimentación. Attention Avant de brancher le système sur la source d'alimentation, consulter les directives d'installation. .‫יש...
  • Page 85 Appendix A: Warning Statements Warnung Dieses Produkt ist darauf angewiesen, dass im Gebäude ein Kurzschluss- bzw. Überstromschutz installiert ist. Stellen Sie sicher, dass der Nennwert der Schutzvorrichtung nicht mehr als: 250 V, 20 A beträgt. ¡Advertencia! Este equipo utiliza el sistema de protección contra cortocircuitos (o sobrecorrientes) del edificio.
  • Page 86 Appendix A: Warning Statements Power Disconnection Warning Warning! The system must be disconnected from all sources of power and the power cord removed from the power supply module(s) before accessing the chassis interior to install or remove system components (except for hot-swap components). 電源切断の警告...
  • Page 87 Appendix A: Warning Statements ‫אזהרה מפני ניתוק חשמלי‬ ‫!אזהרה‬ ‫יש לנתק את המערכת מכל מקורות החשמל ויש להסיר את כבל החשמלי מהספק‬ ‫.לפני גישה לחלק הפנימי של המארז לצורך התקנת או הסרת רכיבים‬ ‫يجب فصم اننظاو من جميع مصادر انطاقت وإ ز انت سهك انكهرباء من وحدة امداد‬ ‫انطاقت...
  • Page 88 Appendix A: Warning Statements Attention Seul le personnel autorisé et le personnel de maintenance qualifié doivent être autorisés à installer, remplacer ou entretenir cet équipement.. !‫אזהרה‬ ‫.יש לאפשר רק צוות מורשה ואנשי שירות מוסמכים להתקין, להחליף או לטפל בציוד זה‬ ‫.ينبغي...
  • Page 89 Appendix A: Warning Statements Warnung Diese Einheit ist zur Installation in Bereichen mit beschränktem Zutritt vorgesehen. Der Zutritt zu derartigen Bereichen ist nur mit einem Spezialwerkzeug, Schloss und Schlüssel oder einer sonstigen Sicherheitsvorkehrung möglich. ¡Advertencia! Esta unidad ha sido diseñada para instalación en áreas de acceso restringido. Sólo puede obtenerse acceso a una de estas áreas mediante la utilización de una herramienta especial, cerradura con llave u otro medio de seguridad.
  • Page 90 Appendix A: Warning Statements Battery Handling Warning! There is the danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions 電池の取り扱い...
  • Page 91 Appendix A: Warning Statements ‫هناك خطر من انفجار يف حالة اسحبذال البطارية بطريقة غري صحيحة فعليل‬ ‫اسحبذال البطارية‬ ‫فقط بنفس النىع أو ما يعادلها مام أوصث به الرشمة املصنعة‬ ‫جخلص من البطاريات املسحعملة وفقا لحعليامت الرشمة الصانعة‬ 경고! 배터리가 올바르게 교체되지 않으면 폭발의 위험이 있습니다. 기존 배터리와 동일하거나 제 조사에서...
  • Page 92 Appendix A: Warning Statements ¡Advertencia! Puede que esta unidad tenga más de una conexión para fuentes de alimentación. Para cortar por completo el suministro de energía, deben desconectarse todas las conexiones. Attention Cette unité peut avoir plus d'une connexion d'alimentation. Pour supprimer toute tension et tout courant électrique de l'unité, toutes les connexions d'alimentation doivent être débranchées.
  • Page 93 Appendix A: Warning Statements Backplane Voltage Warning! Hazardous voltage or energy is present on the backplane when the system is operating. Use caution when servicing. バックプレーンの電圧 システムの稼働中は危険な電圧または電力が、 バックプレーン上にかかっています。 修理する際には注意く ださい。 警告 当系统正在进行时，背板上有很危险的电压或能量，进行维修时务必小心。 警告 當系統正在進行時，背板上有危險的電壓或能量，進行維修時務必小心。 Warnung Wenn das System in Betrieb ist, treten auf der Rückwandplatine gefährliche Spannungen oder Energien auf.
  • Page 94 Appendix A: Warning Statements ‫هناك خطز مه التيار الكهزبايئ أوالطاقة املىجىدة عىل اللىحة‬ ‫عندما يكىن النظام يعمل كه حذ ر ا عند خدمة هذا الجهاس‬ 경고! 시스템이 동작 중일 때 후면판 (Backplane)에는 위험한 전압이나 에너지가 발생 합니다. 서비스 작업 시 주의하십시오. Waarschuwing Een gevaarlijke spanning of energie is aanwezig op de backplane wanneer het systeem in gebruik is.
  • Page 95 Appendix A: Warning Statements ‫תיאום חוקי החשמל הארצי‬ !‫אזהרה‬ .‫התקנת הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים‬ ‫تركيب املعدات الكهربائية يجب أن ميتثل للقىاويه املحلية والىطىية املتعلقة‬ ‫بالكهرباء‬ 경고! 현 지역 및 국가의 전기 규정에 따라 장비를 설치해야 합니다. Waarschuwing Bij installatie van de apparatuur moet worden voldaan aan de lokale en nationale elektriciteitsvoorschriften.
  • Page 96 Appendix A: Warning Statements Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent. ‫סילוק המוצר‬ !‫אזהרה‬ .‫סילוק סופי של מוצר זה חייב להיות בהתאם להנחיות וחוקי המדינה‬ ‫التخلص...
  • Page 97 Appendix A: Warning Statements Warnung Gefährlich Bewegende Teile. Von den bewegenden Lüfterblätter fern halten. Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt.
  • Page 98 Verbindungskabeln, Stromkabeln und/oder Adapater, die Ihre örtlichen Sicherheitsstandards einhalten. Der Gebrauch von anderen Kabeln und Adapter können Fehlfunktionen oder Feuer verursachen. Die Richtlinien untersagen das Nutzen von UL oder CAS zertifizierten Kabeln (mit UL/CSA gekennzeichnet), an Geräten oder Produkten die nicht mit Supermicro gekennzeichnet sind.
  • Page 99 ‫.قيرح وأ لطع يف ببستي دق ىرخأ تالوحمو تالباك يأ مادختسا .ميلسلا سباقلاو لصوملا مجح‬ ‫ لبق نم ةدمتعملا تالباكلا مادختسا تادعملاو ةيئابرهكلا ةزهجألل ةمالسلا نوناق رظحي‬UL ‫ وأ‬CSA ‫( ةمالع لمحت يتلاو‬UL/CSA) ‫ لبق نم ةددحملاو ةينعملا تاجتنملا ريغ ىرخأ تادعم يأ عم‬Supermicro.
  • Page 100 사항을 준수하여 제공되거나 지정된 연결 혹은 구매 케이블, 전원 케이블 및 AC 어댑터를 사용하십시오. 다른 케이블이나 어댑터를 사용하면 오작동이나 화재가 발생할 수 있습니다. 전기 용품 안전법은 UL 또는 CSA 인증 케이블 (코드에 UL / CSA가 표시된 케이블)을 Supermicro 가 지정한 제품 이외의 전기 장치에 사용하는 것을 금지합니다. Stroomkabel en AC-Adapter...

  • Page 101: Appendix B System Specifications

    Appendix B: System Specifications Appendix B System Specifications Processors NVIDIA Grace™ CPU Superchip via four Mirror Mezz connectors Embedded 240/480/960 GB ECC LPDDR5 with up to 1 TB / second throughput Note: Refer to the motherboard specifications pages on our website for updates to supported processors. Chipset System on Chip BIOS...
  • Page 102 Appendix B: System Specifications Operating Environment Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF) Non-operating Temperature: -40ºC to 60ºC (-40ºF to 140ºF) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) Regulatory Compliance FCC, ICES, CE, VCCI, RCM, UKCA, NRTL, CB Applied Directives, Standards EMC/EMI: 2014/30/EU (EMC Directive) Electromagnetic Compatibility Regulations 2016...
  • Page 103 Appendix B: System Specifications General Data Center Environmental Specifications Particulate contamination specifications Air filtration: Data centers must be kept clean to Class 8 of ISO 14644-1 (ISO 2015). The air entering the data center should be filtered with a MERV 11 filter or better. The air within the data center should be continuously filtered with a MERV 8 filter or better.
