USER GUIDE

27885R4

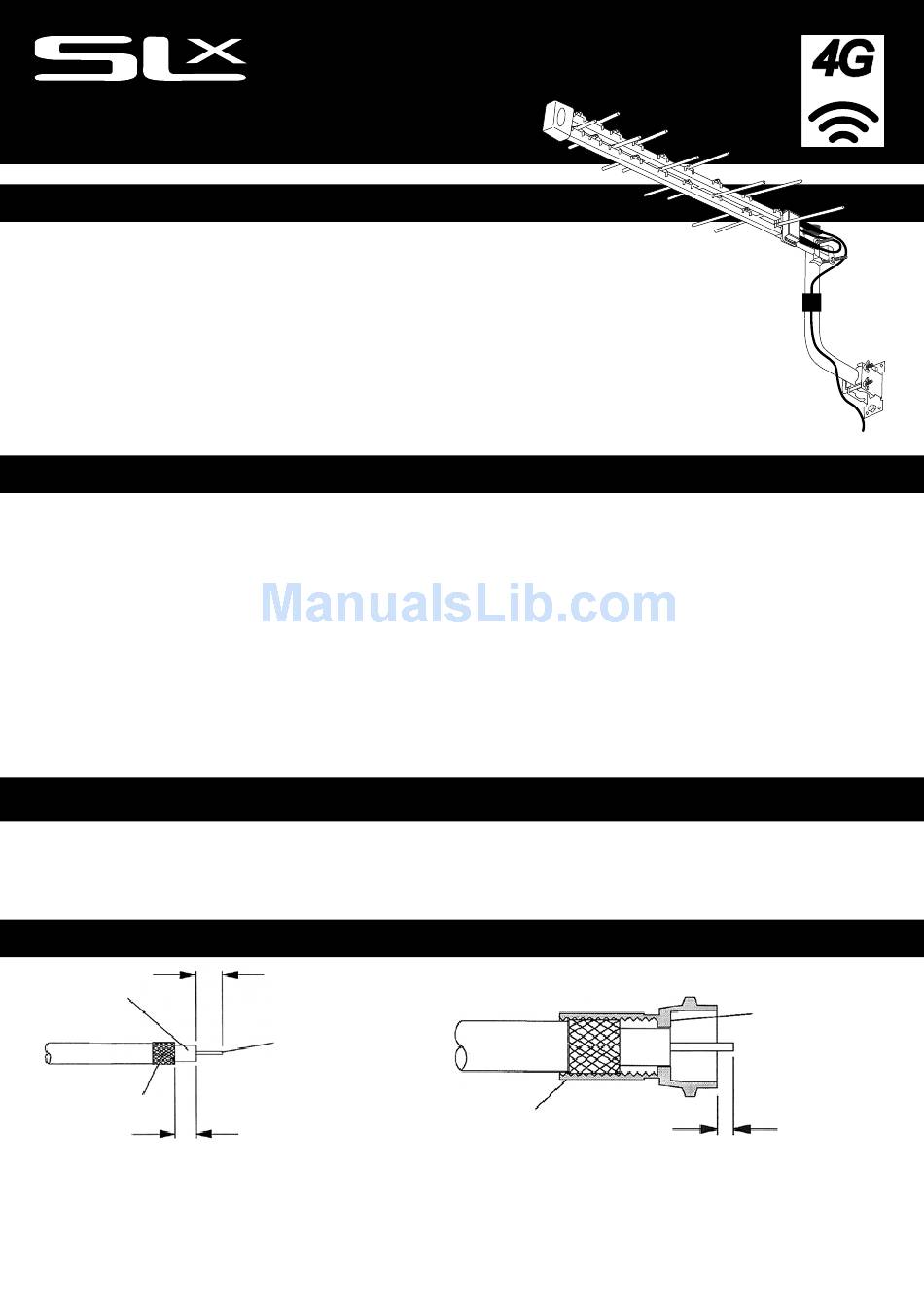

Introduction
The ultra compact Megaboost aerial with it's built-in
signal booster offers a quick and economic method of
providing good digital signals to your TV/set top box.
Suitable for outdoor or loft installation, it can be
mounted on a 1"-1½" mast or on to masonry/brickwork
or wood using the bracket, pole and fixings supplied.
This aerial is suitable for use in most areas of the UK, with
the exception of areas with very low or very high signal
strength.
General Safety
The risk of accidents can be greatly reduced by planning
before starting a project.
•
Before starting installation check structure is sound and
check for hidden wiring or plumbing.
•
When working on an installation outside, beware of over
head power lines.
•
Observe safe working practices, tread carefully on roofs
and ensure adequate lighting is available if working in
loft or roof space.
•
Before making any connections switch electricity off at
the mains.
•
Always follow manufacturer's operating and safety
instructions before using tools and/or equipment.
Selecting mounting position
Select a mounting position for the aerial. The position
should be as high as possible and chosen to give a clear
'view' towards the transmitter. Avoid alignments through
trees and or other buildings if possible.
Preparing downlead cable
Fig. 1
cut or tear
away foil
fold braid back
over sheath
Measure cable run first and cut cable to fit with a bit to
spare. Slide one the weather boots provided over the
aerial end of the cable. Prepare both ends of the cable
as shown in Fig. 1. Fold the braid wires of the cable back
over the sheath and fit one of the screw-on type-F plugs.
Megaboost Amplified Aerial
8mm
inner
wire
6.5mm
This aerial is also 4G ready
- the booster has a built in filter
to prevent interference & channel loss
on your TV caused by signals from
4G transmitters.
For optimum reception of digital signals
the kit contains high quality RG6
digital cable.
•
Only carry out work outdoors at height if competent
in the use of ladders and related access equipment.
•
Always read and follow the manufacturer's instruction
label affixed to the ladder.
•
To avoid injury always route cables or wiring carefully.
Ensure cable is correctly routed before fixing into
position, taking care not to over tighten cable clips.
•
This product may contain small parts - keep out of reach
of children.
•
After installation make regular maintenance checks for
wear and tear.
Loft mounting will degrade reception performance
considerably and is only recommended for strong
signal areas. Digital reception with a loft aerial may be
affected by electrical interference from mains wiring.
Fig. 2
screw connector
body onto cable
The inner wire of the cable should protrude about 2 mm
beyond the nut end of the plug.
WARNING: To avoid a short circuit you must make
absolutely sure that no braid or foil can come into
contact with the inner wire.
Ready
end of
insulation
should be
flush with
this face
2mm approx.
