SLX 27823HSR User Manual

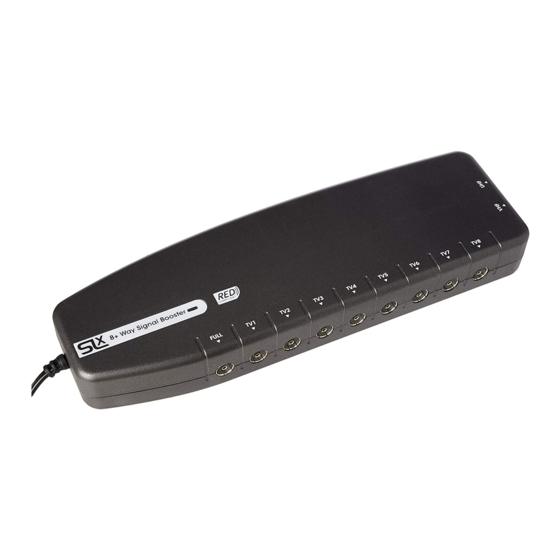

6+ and 8+ Way
Signal Boosters
27823HSR/27824HSR
User Guide
Introduction
Congratulations on the purchase of your new
SLx Booster. SLx is renowned for producing
high quality electrical accessories and
signal distribution products. Slx Boosters
have a number of features that assist quality
distribution of your TV and/or Radio signals
around your home, including:
• More efficient Switch-Mode Power Supply -
these run cooler saving energy whilst also
making them safer in your home
• Improved gain flatness delivering a better
balance across the performance range
• Lower noise figure for optimimum picture
and sound quality
• Greater signal handling capacity to cope
with more channels
• 4G Filtering – provides a typical 45dB
protection from 4G mobile phone signal
interference
• Coaxial connectors – simple to plug in to
standard aerial connections
We are sure you will enjoy using your SLx
booster it's easy to install and incorporates
the latest technology for energy efficient,
long-term, continuous use.
If you have any queries please get in touch
with our technical department at
www.slxtechnology.com/support
Additional Features
Dual Inputs – With separate inputs for UHF TV
and VHF (FM and or DAB) Radio and a built-
in signal combiner your signal distribution
system can easily be expanded to include
high quality radio signals in every room.
If you have a long cable run from the aerial
to the booster you can use a masthead
pre-amp near the aerial which the Auto Line-
Power will detect and supply 12V to power it.
The FULL gain outlet has 18dB of gain which
can be used to compensate for losses in very
long cable runs or allows for the signal to be
split to feed up to 8 additional rooms.
All SLx aerial boosters comply with RED
(The Radio Equipment Directive 2014/53/EU).
Support: www.slxtechnology.com/support
4G
2
Filtering
Inputs
ALP
FULL
Auto Line Output
Powering
