28100HSG
Introduction
Special features include:
•
This signal booster is 4G Ready - which means it
removes interference and channel loss from your
TV caused by 4G mobile phone signals
•
Flat gain response across the full frequency
spectrum ensures optimum digital reception
•
Surge protection
•
Side mounted terminals provide easy cable
management
•
Full VHF compatibility for TV and FM/DAB
Installation for TV and Radio Signal Distribution
Note: If you are plugging your SLx Gold
booster into a twin socket it is
recommended that it is plugged into
the right hand socket so that connected
flyleads do not obstruct the other socket.
WARNING: Do not plug appliances
into the booster mains socket which
are rated at more than 13A or 3000W.

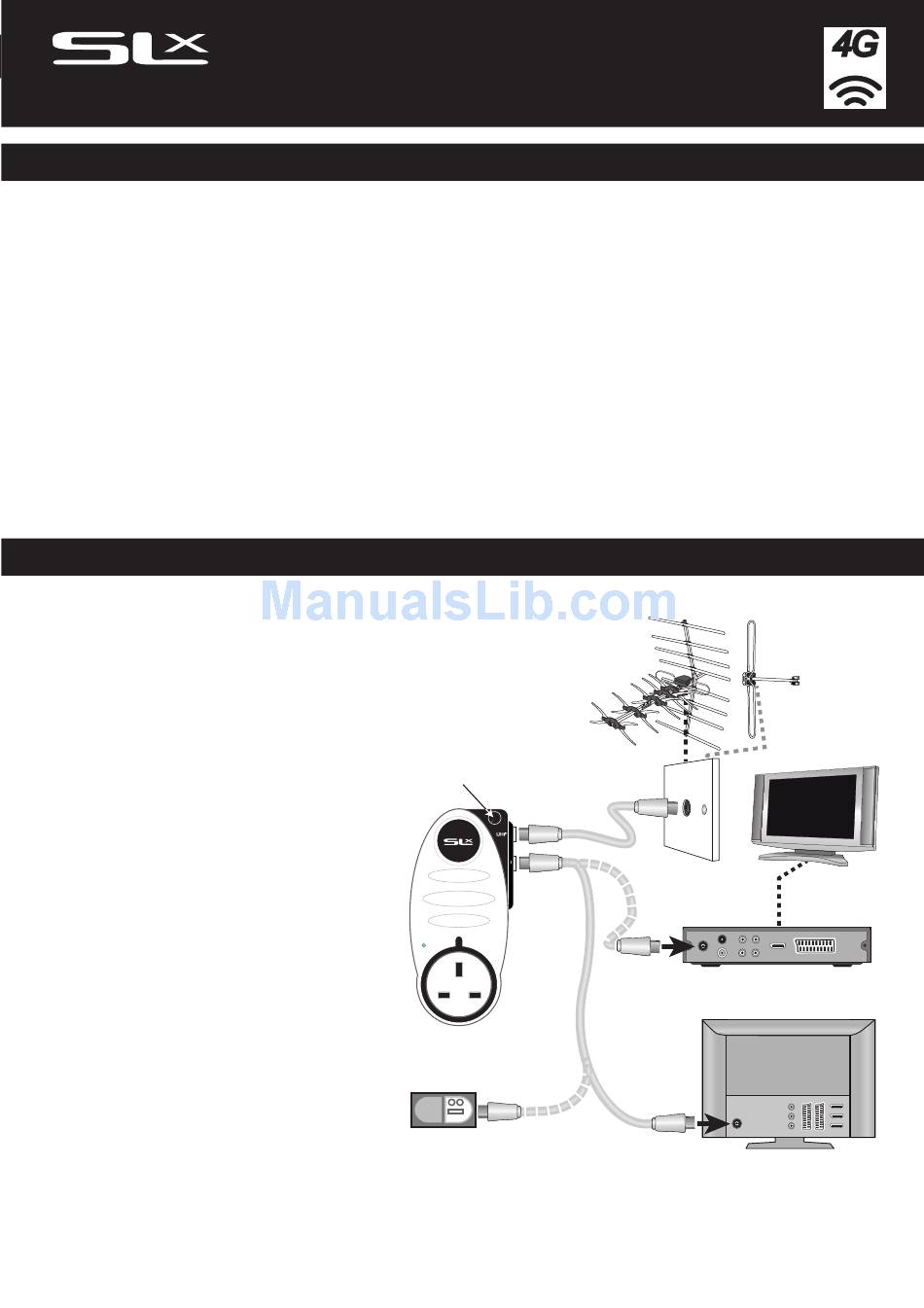

TV Signal Distribution
1. Connect your UHF aerial downlead
flylead from aerial outlet to the INPUT
socket on the booster.
2. Connect your TV or set top box to
socket 1 (TV Output) on the booster.
FM/DAB Signal Distribution
1. Connect your radio aerial downlead
(either FM or DAB) to the INPUT
socket on the booster.
2. Connect your FM radios/tuners or
your DAB radios/tuners to socket 1
on the booster.
Plug-through Aerial Signal Booster
USER GUIDE
DAB Radio/
This SLx Gold aerial signal booster is designed to
improve picture and sound quality by amplifying
weak UHF, VHF, DAB and FM radio signals.
Outdoor
Aerial
Variable
Coax Aerial
Gain
Lead
SURGE
Tuner
Coax leads shown
are not supplied
Aerial
Outlet
ANT IN
Freeview™
Receiver or PVR
Coax Aerial
Lead
ANT IN
TV with built-in
Freeview™ Receiver
Ready
DAB
Aerial
TV
TV
