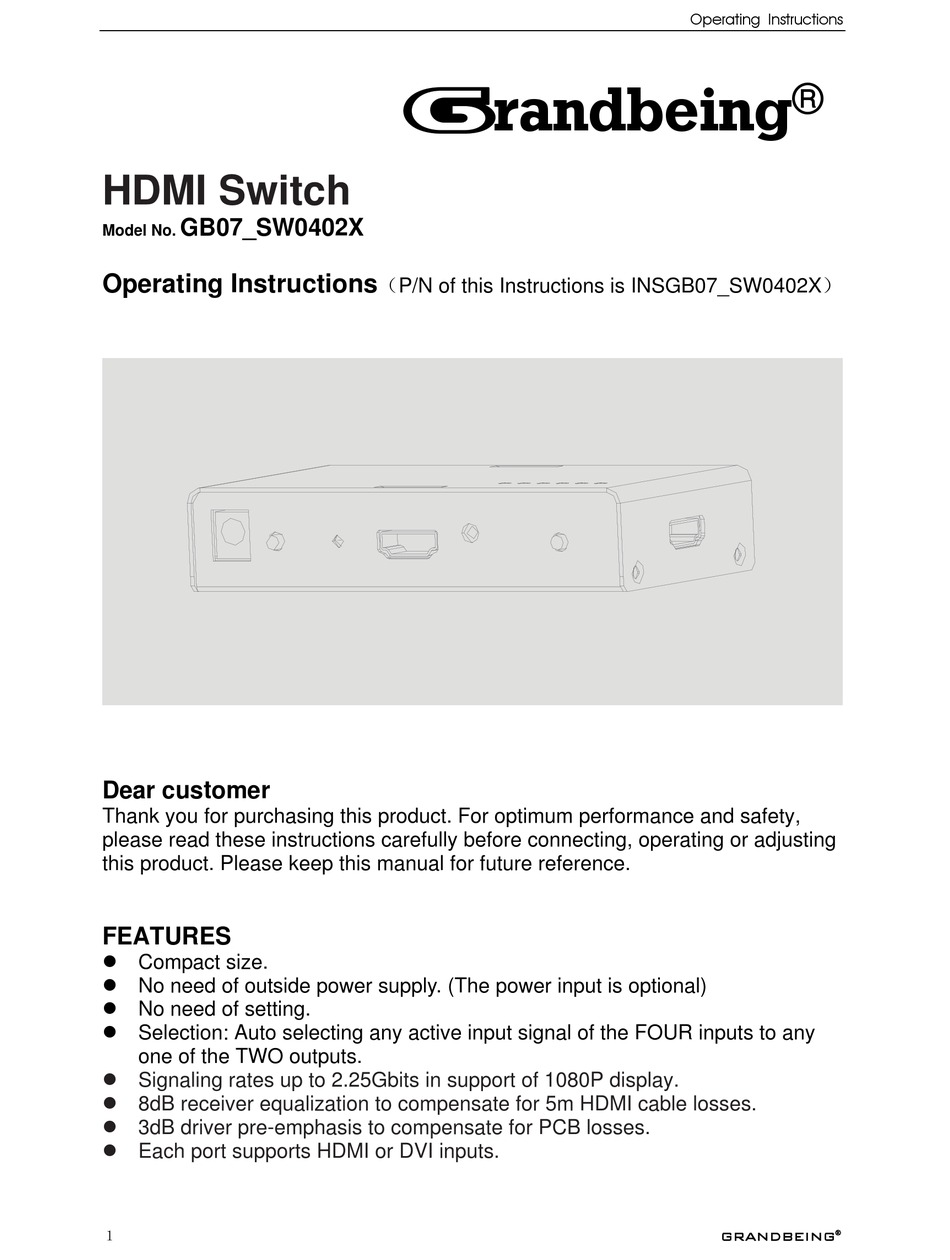

HDMI Switch
GB07_SW0402X
Model No.
Operating Instructions
Dear customer
Thank you for purchasing this product. For optimum performance and safety,
please read these instructions carefully before connecting, operating or adjusting
this product. Please keep this manual for future reference.
FEATURES
Compact size.
No need of outside power supply. (The power input is optional)
No need of setting.
Selection: Auto selecting any active input signal of the FOUR inputs to any
one of the TWO outputs.
Signaling rates up to 2.25Gbits in support of 1080P display.
8dB receiver equalization to compensate for 5m HDMI cable losses.
3dB driver pre-emphasis to compensate for PCB losses.
Each port supports HDMI or DVI inputs.
１
Grandbeing
（P/N of this Instructions is INSGB07_SW0402X）
Operating Instructions
®
®
GRANDBEING
Advertisement
Table of Contents
Related Manuals for Grandbeing GB07_SW0402X
Summary of Contents for Grandbeing GB07_SW0402X
- Page 1 Operating Instructions ® Grandbeing HDMI Switch GB07_SW0402X Model No. Operating Instructions （P/N of this Instructions is INSGB07_SW0402X） Dear customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product.
- Page 2 Operating Instructions HDCP compliant. NOTICE Grandbeing Inc. reserves the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice. TABLE OF CONTENTS Introduction Package Contents Panel Descriptions Connecting Operating Specifications Typical Application Maintenance Product Service...
- Page 3 HDMI inputs to the two HDMI outputs(The two outputs work alternatively). These four inputs and two outputs are auto switching.(Smart function) GB07_SW0402X has the ability of equalization and amplification to ensure HDMI signal’s transmission through long cable without quality loss. GB07_SW0402X offers solutions for residential consumers, HDTV retail and...
- Page 4 Operating Instructions ® ４ GRANDBEING...
- Page 5 （such as：HD-DVD、PS3、STB etc.） into GB07_SW0402X. 2) Connect the HDMI outputs into GB07_SW0402X. ( such as : HD-LCD、HD-DLP） 3) Power on the input source you want to show. (Keep the unused input power off, otherwise it may interfere the normal display.) 4) Power on the display you need to watch.
-
Page 6: Specifications
Display2 ： Such as HDMI LCD TV HDMI Signal Source4 （Such as HD-DVD） DC5V Display1 ： Such as HDMI LCD TV HDMI Signal Source3 （Such GB07_SW0402X as PS3） HDMI Signal Source2 （Such as PS3） HDMI Signal Source1（Such as PS3） ® ６... -
Page 7: Product Service
WARRANTY If your product does not work properly because of a defect in materials or workmanship, Grandbeing Company (referred to as “the warrantor”) will, for the （Parts (1) Year， Labor(90) Days） length of the period indicated as below, which starts with the date of original purchase (“Limited Warranty period”), at its option... - Page 8 3) PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR RESPONSIBILITY. Customer Services Directory Grandbeing Technology Co., Ltd Address: 6C, Jialitai Building, No. 6 Yanshan Road, Nanshan District Shenzhen , P.R. China Post Code:518067 Tel:86-755-26678449 Fax:86-755-26678549 Email:sales@grandbeing.com, sales@grandbeing.biz,...
