HDMI Switch
GB07SW0201
Model No.
Operating Instructions
Dear customer
Thank you for purchasing this product. For optimum performance and safety,
please read these instructions carefully before connecting, operating or adjusting
this product. Please keep this manual for future reference.
FEATURES
Compact size: only of 6.7cm by 8.8cm.
No need of outside power supply. (The power input is optional)
No need of setting.
Selection: Auto selecting any active input signal of the two to the output.
Signaling rates up to 2.25Gbits in support of 1080P display.
8dB receiver equalization to compensate for 5m HDMI cable losses.
3dB driver pre-emphasis to compensate for PCB losses.
１
Grandbeing
（P/N of this Instructions is INSGB07SW0201）
Operating Instructions
®
®
GRANDBEING
Advertisement
Table of Contents
Related Manuals for Grandbeing GB07SW0201
Summary of Contents for Grandbeing GB07SW0201

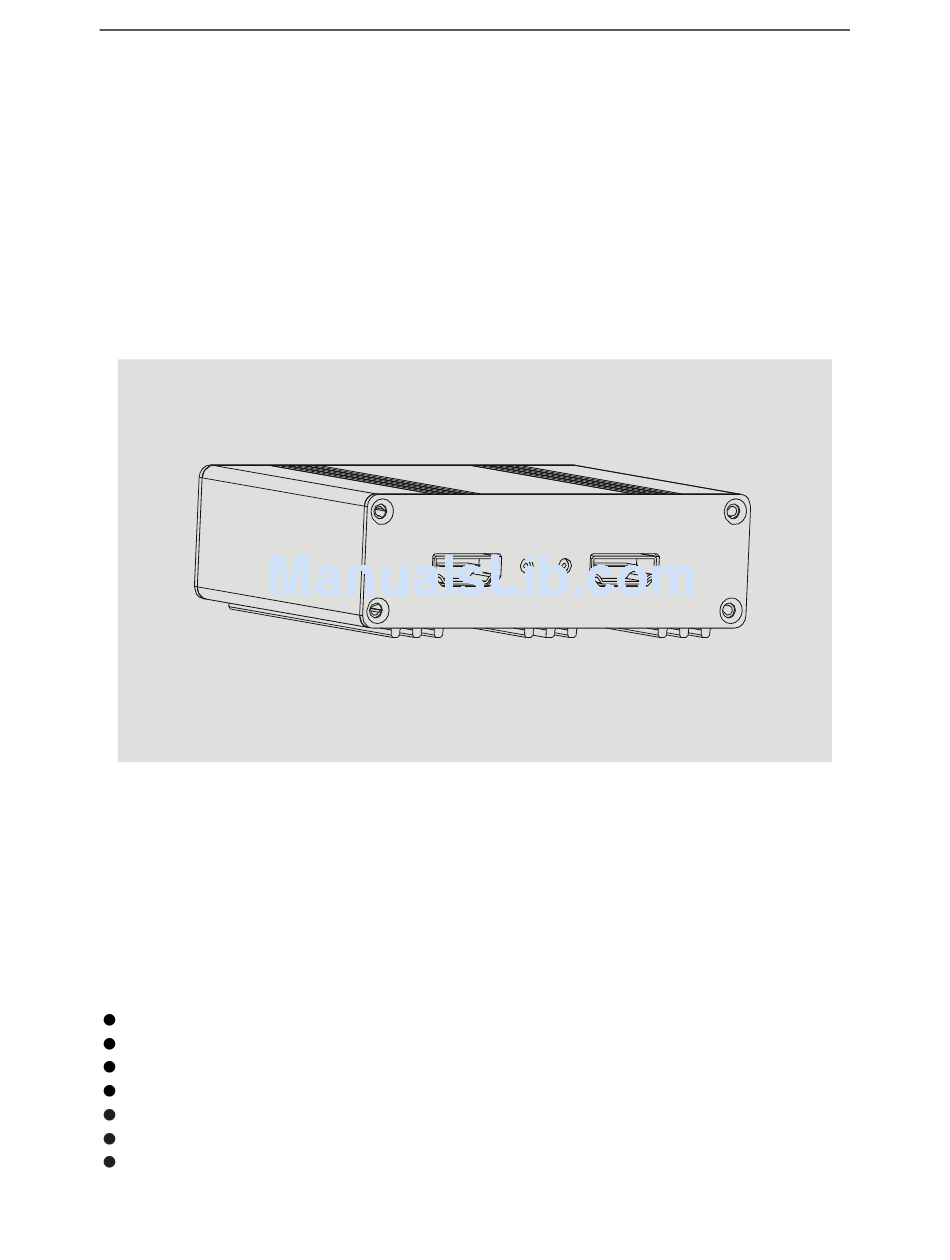

- Page 1 Operating Instructions ® Grandbeing HDMI Switch GB07SW0201 Model No. Operating Instructions （P/N of this Instructions is INSGB07SW0201） Dear customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product.
- Page 2 Operating Instructions Each port supports HDMI or DVI inputs. HDCP compliant. NOTICE Grandbeing Inc. reserves the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice. TABLE OF CONTENTS Introduction Package Contents Panel Descriptions...
- Page 3 Operating Instructions INTRODUCTION Grandbeing’s GB07SW0201 is a two-input HDMI switch. It switches the two HDMI inputs to the output. These two inputs are auto switching.(Smart function) GB07SW0201 has the ability of equalization and amplification to ensure HDMI signal’s transmission through long cable without quality loss.
- Page 4 （such as：HD-DVD、PS3、STB etc.） into GB07SW0201. 2) Connect the HDMI output into GB07SW0201. ( such as : HD-LCD、HD-DLP） 3) Power on the input source you want to show. (Keep the unused input power off, otherwise it may interfere the normal display.) 4) Power on the display.
- Page 5 Signal Source1 （Such DC5V as HD-DVD） Display ： Such as Input1 Output HDMI LCD TV GB07SW0201 HDMI Signal Source2 （Such as PS3） Input2 MAINTENANCE Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzine to clean this unit.
- Page 6 Operating Instructions If your product does not work properly because of a defect in materials or workmanship, Grandbeing Company (referred to as “the warrantor”) will, for the （Parts (1) Year， Labor(90) Days） length of the period indicated as below, which starts with the date of original purchase (“Limited Warranty period”), at its option...
- Page 7 Operating Instructions 3) PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR RESPONSIBILITY. Customer Services Directory Grandbeing Technology Co., Ltd Address: 6C, Jialitai Building, No. 6 Yanshan Road, Nanshan District Shenzhen , P.R. China Post Code:518067...
