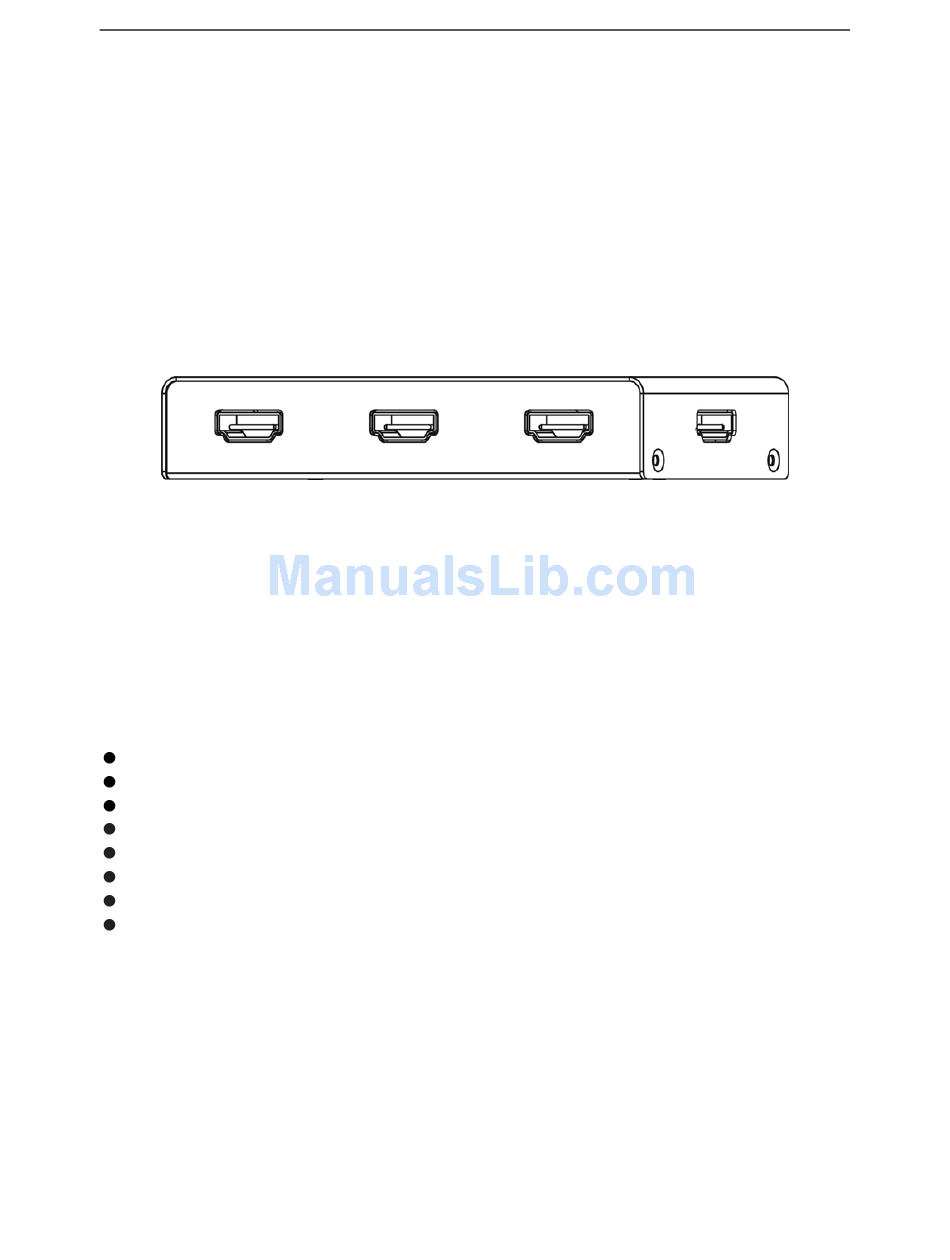

HDMI Switch
GB07SW0501
Model No.
Operating Instructions
Dear customer
Thank you for purchasing this product. For optimum performance and safety,
please read these instructions carefully before connecting, operating or adjusting
this product. Please keep this manual for future reference.
FEATURES
Compact size.
No need of remote.
Switching: Auto selecting any active input signal of the five to the output.
Signaling rates up to 2.25Gbits in support of 1080P display.
8dB receiver equalization to compensate for 5m HDMI cable losses.
3dB driver pre-emphasis to compensate for PCB losses.
Each port supports HDMI or DVI inputs.
HDCP compliant.
NOTICE
Grandbeing Inc. reserves the right to make changes in the hardware, packaging
and any accompanying documentation without prior written notice.
１
Grandbeing
（P/N of this Instructions is INSGB07SW0501）
Operating Instructions
®
®
GRANDBEING
Advertisement
Table of Contents
Related Manuals for Grandbeing GB07SW0501
Summary of Contents for Grandbeing GB07SW0501
- Page 1 3dB driver pre-emphasis to compensate for PCB losses. Each port supports HDMI or DVI inputs. HDCP compliant. NOTICE Grandbeing Inc. reserves the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice. ® GRANDBEING...
- Page 2 MANUFACTURER. 10) REFER ALL SERVICING TO QUALIFIED SERVICE PERSONNEL. INTRODUCTION Grandbeing’s GB07SW0501 is a five-input HDMI switch. It switches the five HDMI inputs to the output. These five inputs are auto switching, no remote is needed.(Smart function) GB07SW0501 has the ability of equalization and amplification to ensure HDMI signal’s transmission through long cable without quality loss.
-
Page 3: Package Contents
HDTV, STB, DVD and Projector factories, noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments. PACKAGE CONTENTS 1) Main unit. P/N_GB07SW0501 2) 5VDC Power Supply.P/N_VDC0501 Operating Instructions. P/N_INSGB07SW0501 *PART NUMBER (Abbreviation as P/N) PANEL DESCRIPTIONS ® GRANDBEING ３... - Page 4 GB07SW0501. 2) Connect the HDMI output into GB07SW0501. ( such as : HD-LCD、HD-DLP） 3) Power on the input source you want to show. (Keep the unused inputs power off, otherwise they may interfere the normal display.) 4) Power on the display.
-
Page 5: Specifications
TYPICAL APPLICATION HDMI Signal Source5 （Such as PC） HDMI Signal Source4 （Such Input5 DC5V as HD-DVD） Input4 Selection Button GB07SW0501 HDMI Signal Source2 （Such Display ： Such as HDMI LCD TV as PS3） Output Input3 HDMI Signal Source2 （Such Input2 as STB）... -
Page 6: Product Service
WARRANTY If your product does not work properly because of a defect in materials or workmanship, Grandbeing Company (referred to as “the warrantor”) will, for the （Parts (1) Year， Labor(90) Days） length of the period indicated as below, which starts with the date of original purchase (“Limited Warranty period”), at its option... - Page 7 3) PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR RESPONSIBILITY. Customer Services Directory Grandbeing Technology Co., Ltd Address: 6C, Jialitai Building, No. 6 Yanshan Road, Nanshan District Shenzhen , P.R. China Post Code:518067 Tel:86-755-26678449 Fax:86-755-26678549 Email:sales@grandbeing.com, sales@grandbeing.biz,...
