HDMI Switch
SW0201-M
Model No.
Operating Instructions
Dear customer
Thank you for purchasing this product. For optimum performance and safety,
please read these instructions carefully before connecting, operating or adjusting
this product. Please keep this manual for future reference.
FEATURES

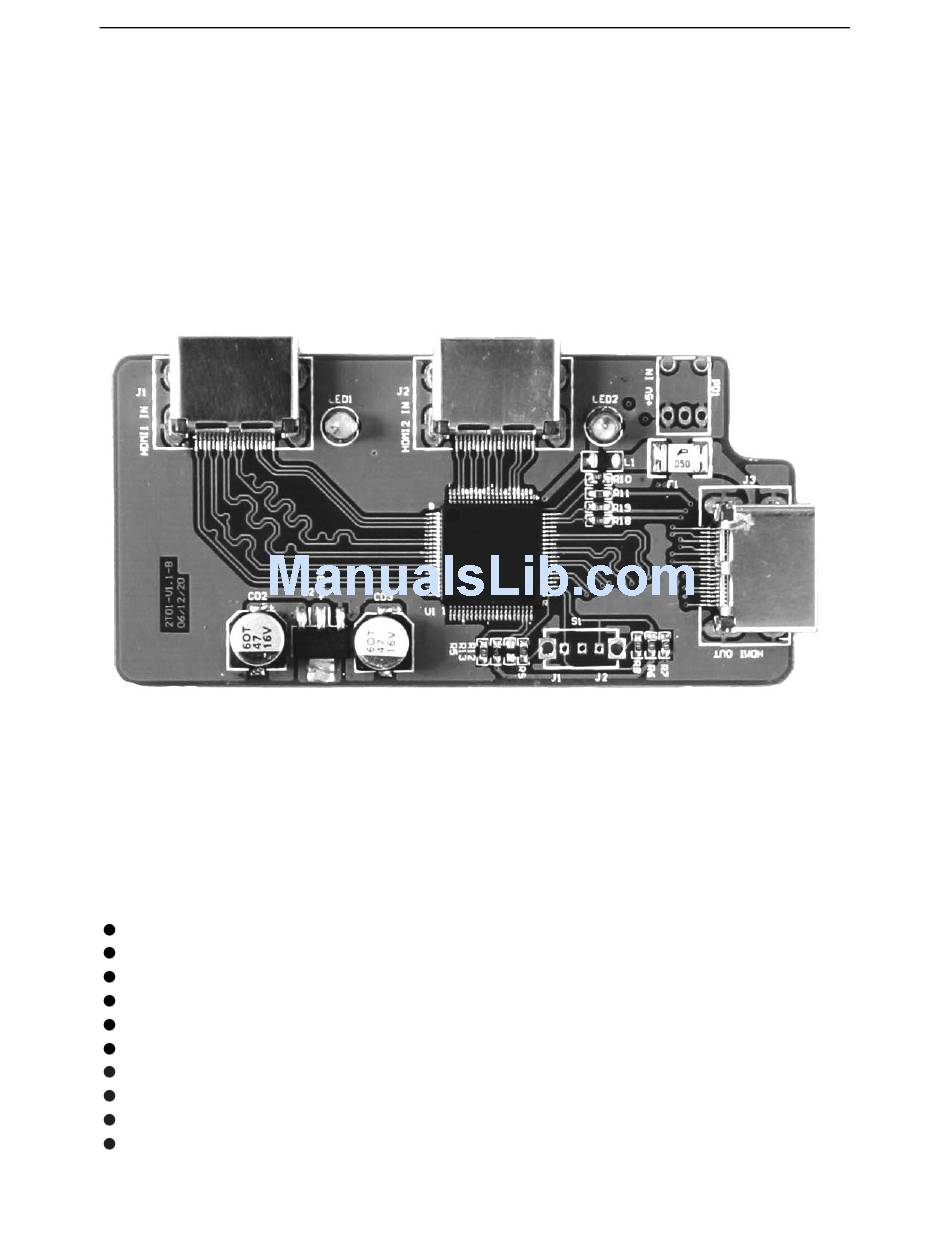

Compact size: only of 4cm by 8cm.
No need of outside power supply. (The power input is optional)
No need of setting.
Switching: Auto switching functions, no buttons or switches on the board.
Two forms of PCB could be selected by the customer.
HDMI cable could be soldered directly onto the board.
Signaling rates up to 1.65Gbps in support of UXGA and 1080P display.
8dB receiver equalization to compensate for 5m HDMI cable losses.
3dB driver pre-emphasis to compensate for PCB losses.
Each port supports HDMI or DVI inputs.
１
Grandbeing
（P/N of this Instructions is INSSW0201-M）
Operating Instructions
®
GRANDBEING
®
Advertisement
Table of Contents
Related Manuals for Grandbeing SW0201-M
Summary of Contents for Grandbeing SW0201-M
- Page 1 Operating Instructions ® Grandbeing HDMI Switch SW0201-M Model No. Operating Instructions （P/N of this Instructions is INSSW0201-M） Dear customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product.
- Page 2 Operating Instructions NOTICE Grandbeing Inc. reserves the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice. TABLE OF CONTENTS Introduction Package Contents Panel Descriptions Connecting Operating Specifications Typical Application Maintenance Product Service Warranty...
- Page 3 Operating Instructions Grandbeing’s SW0201 is a two-way HDMI selector. User could select any HDMI input by a remote or switch button on the front panel of the main unit. SW0201 has the functions of equalization and pre-emphasis. It could achieve long-distance transmission of HDMI signal to more than 15 meters.
- Page 4 Maximum Single Link Range..…..…........UXGA, 1080P Output Video…………………………………………….…..HDMI1.2a+HDCP1.0/1.1 Power Consumption.....…......... 120 mWatts (max.) Dimensions........…......40mmW x 80mmH x 15mmD Mass........…..…………..........10 gs Note: Specifications are subject to change without notice. Mass and dimensions are approximate. TYPICAL APPLICATION ® ４ GRANDBEING...
-
Page 5: Product Service
WARRANTY If your product does not work properly because of a defect in materials or workmanship, Grandbeing Company (referred to as “the warrantor”) will, for the （Parts (1) Year， Labor(90) Days） length of the period indicated as below, which starts with the date of original purchase (“Limited Warranty period”), at its option... - Page 6 The items listed are not exclusive, but are for illustration only.) 3) PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR RESPONSIBILITY. Grandbeing Technology Co., Ltd 6C, Jialitai Building, No.6 Yanshan Rd. Nanshan District, Shenzhen , P.R. China Post Code:518067...
