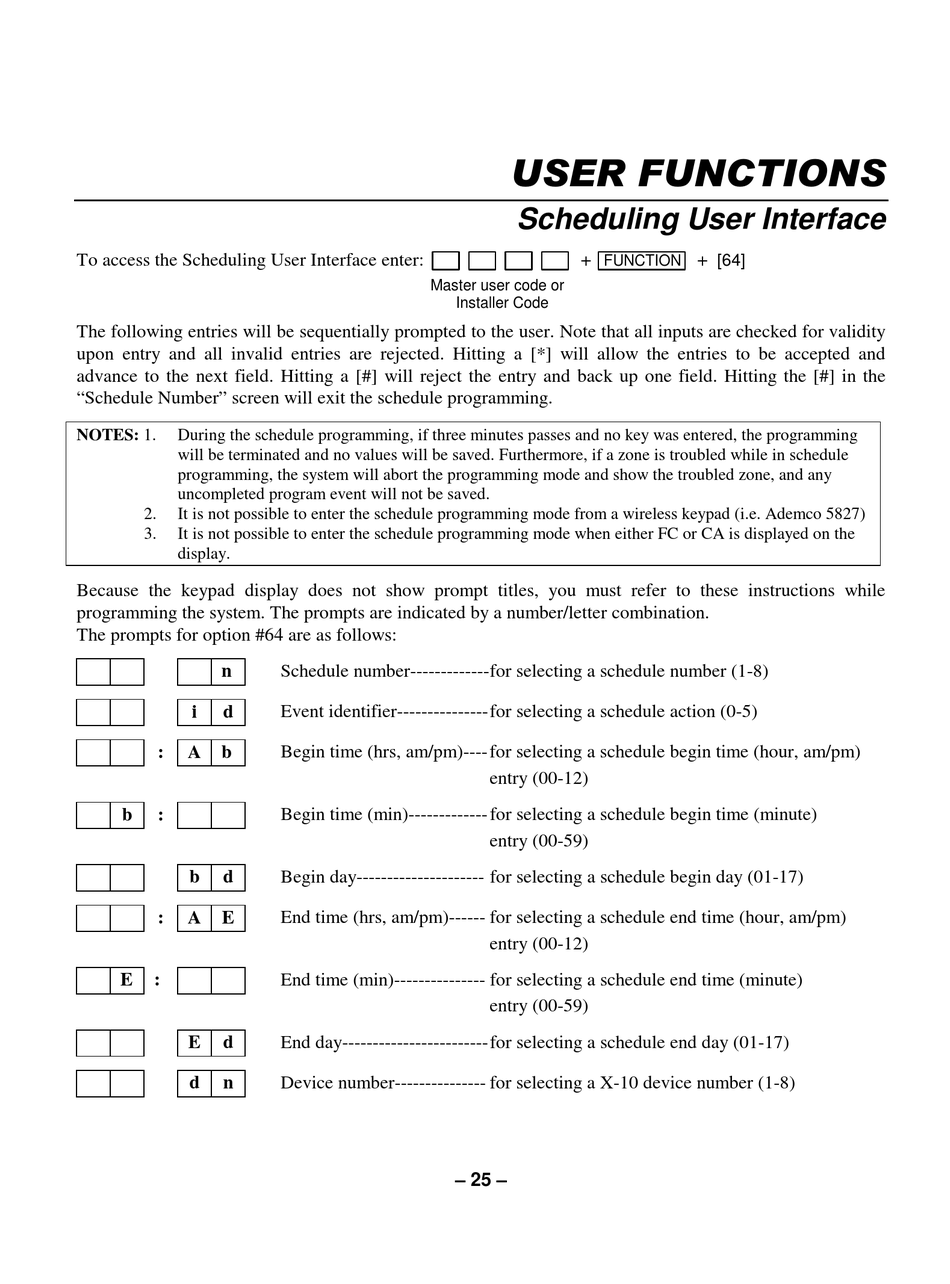

To access the Scheduling User Interface enter:
The following entries will be sequentially prompted to the user. Note that all inputs are checked for validity
upon entry and all invalid entries are rejected. Hitting a [*] will allow the entries to be accepted and
advance to the next field. Hitting a [#] will reject the entry and back up one field. Hitting the [#] in the
"Schedule Number" screen will exit the schedule programming.
NOTES: 1. During the schedule programming, if three minutes passes and no key was entered, the programming
will be terminated and no values will be saved. Furthermore, if a zone is troubled while in schedule
programming, the system will abort the programming mode and show the troubled zone, and any
uncompleted program event will not be saved.
2. It is not possible to enter the schedule programming mode from a wireless keypad (i.e. Ademco 5827)
3. It is not possible to enter the schedule programming mode when either FC or CA is displayed on the
display.
Because the keypad display does not show prompt titles, you must refer to these instructions while
programming the system. The prompts are indicated by a number/letter combination.
The prompts for option #64 are as follows:
n
i d
: A b
b :
b d
: A E
E :
E d
d n
Master user code or
Installer Code
Schedule number------------- for selecting a schedule number (1-8)
Event identifier--------------- for selecting a schedule action (0-5)
Begin time (hrs, am/pm)---- for selecting a schedule begin time (hour, am/pm)
Begin time (min)------------- for selecting a schedule begin time (minute)
Begin day--------------------- for selecting a schedule begin day (01-17)
End time (hrs, am/pm)------ for selecting a schedule end time (hour, am/pm)
End time (min)--------------- for selecting a schedule end time (minute)
End day------------------------ for selecting a schedule end day (01-17)
Device number--------------- for selecting a X-10 device number (1-8)
– 25 –
86(5)81&7,216

Scheduling User Interface

+
FUNCTION
entry (00-12)
entry (00-59)
entry (00-12)
entry (00-59)
+
[64]
