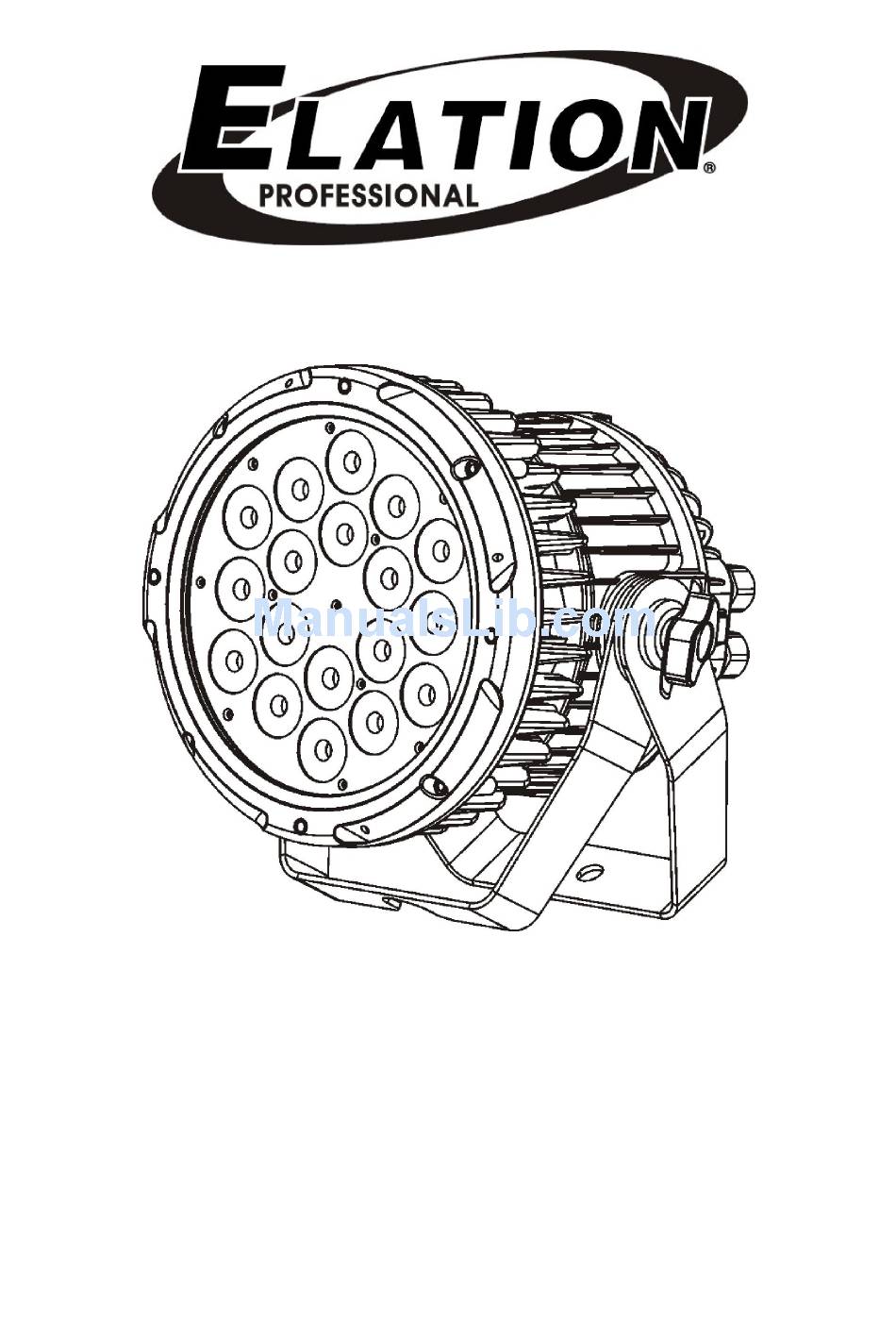

ELAR 162 TRI PAR
Elation Professional™
6122 S. Eastern Ave.
Los Angeles, Ca 90040
www.elationlighting.com
Rev. 09/14/2011 – visage
Version 1.0

Advertisement

Table of Contents
loading

Related Manuals for Elation ELAR 162 TRI PAR

Summary of Contents for Elation ELAR 162 TRI PAR

  • Page 1 ELAR 162 TRI PAR Elation Professional™ 6122 S. Eastern Ave. Los Angeles, Ca 90040 www.elationlighting.com Rev. 09/14/2011 – visage Version 1.0...
  • Page 2 ELAR 162 TRI PAR ™ ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...

  • Page 3: Table Of Contents

    ELAR 162 TRI PAR ™ TABLE OF CONTENS General Information……………………………………………………………………… 3 a. Introduction………………………………………………………………………. 3 b. Unpacking………………………………………………………..…………..… 3 c. Customer Support…………………………………………….………………… 3 d. Warranty Registration……………………………………………………..…… 3 Safety Instructions………………………………………………………..…………. 5 Features……………………………………………………………………………………7 General Guidelines………………………………………………………………………. 8 Fixture Overview…………………………………………………………………………. 9 Mounting and Installation………………………………………………………….……. 12 Understanding DMX……………………………………………………………………... 15 a.

  • Page 4: General Information

    INTRODUCTION: Congratulations, you have just purchased one of the most innovative and reliable LED fixtures on the market today! The ELAR 162 TRI PAR™ has been designed to perform reliably for years when the guidelines in this booklet are followed. Please read and understand the instructions in this manual carefully and thoroughly before attempting to operate this unit.

  • Page 5: Warranty Registration

    Please do not discard the shipping carton in the trash. Please recycle whenever possible. WARRANTY REGISTRATION: The ELAR 162 TRI PAR™ carries a two-year (730 days) limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items whether under warranty or not, must be freight pre-paid and accompany a return authorization (R.A.) number.

  • Page 6: Safety Instructions

    4. For safe operation, follow the Installation guide described in chapter six of this manual. Operating the ELAR 162 TRI PAR™ without suited safety aids such as safety cables or clamps can increase the risk of damage and/or personal injury.
  • Page 7 ELAR 162 TRI PAR ™ 12. Always disconnect from main power before performing any type of service or any cleaning procedure. 13. Only handle the power cord by the plug. Never pull out the plug by tugging the wire portion of the cord.

  • Page 8: Features

    4 DMX channels 6 DMX channels 8 DMX channels (default) • DMX-control via standard DMX-controller • Upgradable firmware via Elation “E-Loader” Data Pack • Electronic Switching Power Supply 100v~240v • Flicker-free operation for television and film • Compact design: fits in 12” box truss •...

  • Page 9: General Guidelines

    ELAR 162 TRI PAR ™ 4. GENERAL GUIDELINES This fixture is a professional lighting effect designed for use on stage, in nightclubs, in theatres, and other types of architectural installations. Do not attempt operation or installation without a proper knowledge on how to do so.

  • Page 10: Fixture Overview

    ELAR 162 TRI PAR ™ 5. FIXTURE OVERVIEW ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
  • Page 11 PAR™. Please do not daisy chain power for more than 16 fixtures. To maintain the integrity of the IP rating, only use proper Elation IP rated power cables. 4. DMX Out Lead – This lead is used to send an incoming DMX signal to the next fixture in the DMX chain.
  • Page 12 ™ cable that converts a standard Edison 3-prong to the IP rated twist lock connector. When jumping from fixture to fixture be sure to only use Elation IP rated power connectors to maintain the IP rating. 11. DMX In Lead – This lead is the main DMX input lead. When the unit is the first in a...

  • Page 13: Mounting And Installation

    ELAR 162 TRI PAR ™ 6. MOUNTING AND INSTALLATION Cautions: For added protection mount the fixtures in areas outside walking paths, seating areas, and away from areas were unauthorized personnel might reach the fixture. Before mounting the fixture to any surface, make sure that the installation area can hold a minimum point load of 10 times the device’s weight.
  • Page 14 See the image below. Clamp Mounting The ELAR 162 TRI PAR™ provides a unique mounting bracket assembly that allows the unit to stand on a flat surface or to be hung on truss via a clamp in any safe position (see the illustration above).
  • Page 15 See illustrations below. Securing the ELAR 162 TRI PAR™ Always be sure to secure your fixture with a safety cable when suspending the unit from truss or other means. The fixture provides a built-in rigging point for a safety cable as illustrated above.

  • Page 16: Understanding Dmx

    1 to that fixture no matter where it is located in the DMX chain. The ELAR 162 TRI PAR™ can be controlled via DMX-512 protocol. The ELAR 162 TRI PAR™ is a fixture that can operate in 3, 4, 6, or 8 DMX channels (see pages 28-35 for the different DMX traits). The DMX address is set electronically using the controls on the LED menu.

  • Page 17: Dmx Terminator

    2 and 3 of a male XLR connector (DATA + and DATA -). This fixture is inserted in the female XLR connector of the last fixture in your daisy chain to terminate the line. Using a line terminator (Elation part: DMX T PACK) will decrease the possibilities of erratic behavior.

  • Page 18: Fixture Dmx Addressing

    (DMX channels) of each fixture. That means changing the settings of one channel will only affect the selected fixture. In the case of the ELAR 162 TRI PAR™, which is up to a three...
  • Page 19 7 (3 + 4), and so on. Note: During start-up the ELAR 162 TRI PAR™ will automatically detect whether a DMX data signal is being received or not. If a DMX data signal is being received, the display will show "A.XXX" (XXX representing the actual DMX address). If the fixture is not receiving a DMX signal the display will flash "A.XXX"...
  • Page 20 ™ 8. DISPLAY LED INDICATOR. The ELAR 162 TRI PAR ™ has a LED indicator on the display. This indicator is designed to give a quick visual indication of the fixtures’ DMX status. The illustration below details the functionality of the LED indicators.

  • Page 21: Display Menu

    ELAR 162 TRI PAR ™ 9. DISPLAY MENU Default settings shaded. A001~AXXX (AXXX) VALU DMX address setting <ADDR> SLAV ON/OFF Set as Slave RDMX ON/OFF Change address via DMX <RUN> AUTO ALON/MAST Run Auto program VALU D-XX D-00(DXXX) Display DMX value...
  • Page 22 ELAR 162 TRI PAR ™ Remarks: 1) If the fixture does not receive a DMX signal the menu display will flash repeatedly. 2) TIME: Adjust the hold time for each scene in built-in chase programs. 3) FADE: Adjust the fade time between each scene in the built-in programs.
  • Page 23 ELAR 162 TRI PAR ™ see Section 10/Page 25 of this manual “Remote DMX addressing.” 9.1.2 <RUN> - Internal Program Settings This function allows the internal programs to run in either stand-alone or master/salve mode. In “Master” mode the fixture will send DMX data to other fixtures connect via the DMX chain.
  • Page 24 ELAR 162 TRI PAR ™ order to deactivate the keylock status, press the Mode/Esc-button for 3 seconds. 1. Access the main menu. 2. Tap the UP button until “DISP” is displayed. 3. Press ENTER, the display will show “VALU”. 4. Tap the UP button until ”LOCK” is displayed and tap the ENTER button.
  • Page 25 ELAR 162 TRI PAR ™ <VER> Software Version This function will display the current firmware version. 9.3 “MANL” – Manual Fixture Settings: This function allows the each of the eight DMX channels to be controlled manually. This will allow the fixture to be preset to a specific color or built-in program without the use of a DMX console.
  • Page 26 ELAR 162 TRI PAR ™ 9.5.1 Select program – This function allows the user to select one of ten of the user defined built-in programs. This program is then accessed in “Function Mode” under “Program Run.” 9.5.2 Edit program – This function allows the user to edit the built-in programs.
  • Page 27 ELAR 162 TRI PAR ™ 9. Once all the channels are completed, the display will begin to flash “TIME,” this indicates the time needed to run this scene. 10. Press ENTER to edit the time needed, the display shows “TXXX”, “XXX”...

  • Page 28: Dmx Addressing

    ELAR 162 TRI PAR ™ 10. DMX ADDRESSING Setting the DMX address - After the fixture is turned “ON” it will immediately complete a reset process that test all the fixture’s functions. When the reset process concludes the LCD will display the fixture’s current DMX address. If the fixture is not receiving a DMX signal, the display will flash continuously.
  • Page 29 ELAR 162 TRI PAR ™ 6. Press ENTER to confirm. 7. Press MODE/ESC to return to the main menu. Controller Settings: 1. Set the DMX value of channel 1 to a value of 7. 2. Set the DMX value of channel 2 to a value of 7 or 8. When channel 2 is set to "7"...

  • Page 30: Dmx Traits

    ELAR 162 TRI PAR ™ 11. DMX TRAITS DMX Operation Notes: The fixture will function in DMX mode whenever the unit is receiving a DMX signal. Please note that this will override all manual settings. This unit will keep and retain the last DMX command in the event of DMX signal failure. To reset the fixture you must turn the power off.
  • Page 31 ELAR 162 TRI PAR ™ 80-87 Color Macro 11 88-95 Color Macro 12 96-103 Color Macro 13 104-111 Color Macro 14 112-119 Color Macro 15 120-127 Color Macro 16 128-135 Color Macro 17 136-143 Color Macro 18 144-151 Color Macro 19...
  • Page 32 ELAR 162 TRI PAR ™ General dimming/speed: 0-255 dimming( 0-Black , 255- 100% ) speed from slow to fast /when running internal programs speed from slow to fast /when running gradient effect ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...

  • Page 33: Working With Built-In Programs

    ELAR 162 TRI PAR ™ 12. WORKING WITH BUILT-IN PROGRAMS The fixture comes equipped with a built-in DMX recorder that allows custom programs to be installed and recalled directly from the fixture’s control board. Programs can be created and stored using the fixture’s control board or by using an external DMX controller. The following instructions will detail the procedures for using the on-board system menu as well as using a DMX compliant controller.
  • Page 34 ELAR 162 TRI PAR ™ lock the value into the scenes memory. You can repeat the procedure for all functions listed below: “Auto Program” – Allows access to all of the fixture’s DMX traits. “Red” – adjust all of the red LED values “Green”...
  • Page 35 ELAR 162 TRI PAR ™ “ENTER” button to add a scene to the program. Tapping the “Enter” button will automatically lock the selected scene into the programs’ memory. Repeat the process until all the desired scenes have been added to the program. Each program can store a maximum of 64 scenes.

  • Page 36: Lens Replacement

    ™ 13. LENS REPLACEMENT The ELAR 162 TRI PAR comes with a removable front cover that allows the lens assembly to be changed out to achieve different beam angles. Lens cover is held in place by four ¼ turn locking fasteners. To remove the cover; 1) Turn the locking fasteners in a counter-clockwise direction.

  • Page 37: Cleaning And Maintenance

    ELAR 162 TRI PAR ™ 14. CLEANING AND MAINTENANCE Consider the following points during normal service and inspection: 1. Be sure all screws and fasteners are securely tightened at all times. Lose screws may fall out during normal operation resulting in damage or injury as larger parts could fall.

  • Page 38: Warranty

    ® defective parts at its expense, and will absorb all expenses for warranty service and repair labor by reason of defects in material or workmanship. The sole responsibility of Elation Professional under this warranty shall be limited to the repair of the product, or replacement ®...
  • Page 39 ® liable for any loss or damage, direct or consequential, arising out of the use of, or inability to use, this product. G. This warranty is the only written warranty applicable to Elation Professional Products ® and supersedes all prior warranties and written descriptions of warranty terms and conditions heretofore published.

  • Page 40: Photometric Data

    ELAR 162 TRI PAR ™ PHOTOMETRIC DATA ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...

  • Page 41: Dimensional Drawings

    ELAR 162 TRI PAR ™ DIMENSIONAL DRAWINGS ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...

  • Page 42: Circuit Schematic

    ELAR 162 TRI PAR ™ CIRCUIT SCHEMATIC ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...

  • Page 43: Technical Specifications

    ELAR 162 TRI PAR ™ TECHNICAL SPECIFICATIONS Power supply: AC 100V-277V~ ,50 Hz / 60Hz Power consumption: Maximum 150W LED Configuration: 54 x 3 Watt (18 x Red, 18 x Green, 18 x Blue) IP Rating: IP65 DMX Channels: 3, 4, 6, or 8 Channel mode...
  • Page 44 Elation Professional 6122 S. Eastern Ave. Los Angeles, CA. 90040 323-582-3322 / 323-832-9142 fax www.ElationLighting.com / Info@ElationLighting.com Rev. 09/14/2011 – visage Version 1.0...
