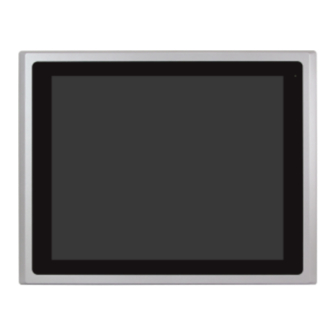

Arcdis-1**a series, 12.1”, 15”, 15.6”, 17”, 18.5”, 19”, and 21.5” front panel ip66 / ip69k option, aluminum die-casting chassis display with ad board
Hide thumbs Also See for ARCDIS-112APRG:
Table of Contents

Advertisement

Quick Links

Download this manual
ARCDIS-1XXA Series
12.1", 15", 15.6", 17", 18.5", 19", and 21.5" Front Panel IP66 / IP69K(option)
Aluminum Die-casting Chassis Display with TB-6029 AD Board

User Manual

Release Date
Revision
Dec. 2017
V1.4
®2017 Aplex Technology, Inc.
All Rights Reserved.
Published in Taiwan
Aplex Technology, Inc.
15F-1, No.186, Jian Yi Road, Zhonghe District, New Taipei City 235, Taiwan
Tel: 886-2-82262881
Fax: 886-2-82262883
URL: http://www.aplextec.com/zh/home.php
ARCDIS-1XXA Series with TB-6029 AD Board User Manual
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARCDIS-112APRG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aplex ARCDIS-112APRG

Summary of Contents for Aplex ARCDIS-112APRG

  • Page 1: User Manual

    Aluminum Die-casting Chassis Display with TB-6029 AD Board User Manual Release Date Revision Dec. 2017 V1.4 ®2017 Aplex Technology, Inc. All Rights Reserved. Published in Taiwan Aplex Technology, Inc. 15F-1, No.186, Jian Yi Road, Zhonghe District, New Taipei City 235, Taiwan Tel: 886-2-82262881 Fax: 886-2-82262883 URL: http://www.aplextec.com/zh/home.php...

  • Page 2: Revision History

    Revision History Reversion Date Description 2017/01/17 For Preliminary Release 2017/03/16 Official Version  2017/04/19 Operating temperature  Power consumption for 119AP/121AP  2017/07/25 Modify IP65 to IP66/IP69K  2017/10/23 Modify IP69K for option  Modify DVI to DVI-D  Modify LCD spec. for 12.1”, 15” ...

  • Page 3: Warning

    This information in this document is subject to change without notice. In no event shall Aplex Technology Inc. be liable for damages of any kind, whether incidental or consequential, arising from either the use or misuse of information in this document or in any related materials.

  • Page 4: Table Of Contents

    Appendix A: Board Dimensions Board Dimensions………………….…………………….……………………………….……52 Appendix B: Panel Mounting and VESA Mounting Panel mounting and VESA mounting……………………………………………………53 Figures Figure 1.1: Dimensions of ARCDIS-112APRG(H)...……………………………..……8 Figure 1.2: Dimensions of ARCDIS-115APRG(H)……..………………………..…….8 Figure 1.3: Dimensions of ARCDIS-116APRG(H)..………………………....9 ARCDIS-1XXA Series with TB-6029 AD Board User Manual...
  • Page 5 Figure 1.4: Dimensions of ARCDIS-117APRG(H)........9 Figure 1.5: Dimensions of ARCDIS-118APRG(H)........10 Figure 1.6: Dimensions of ARCDIS-119APRG(H)........10 Figure 1.7: Dimensions of ARCDIS-121APRG(H)........11 Figure 1.8: Front View of ARCDIS-112APRG(H)…..…………………………….12 Figure 1.9: Rear View of ARCDIS-112APRG(H)..……………………………..12 Figure 1.10: Front View of ARCDIS-115APRG(H).………………………………….13 Figure 1.11: Rear View of ARCDIS-115APRG(H)…………….……….……………13 Figure 1.12: Front View of ARCDIS-116APRG(H)………………….…………..…14...

  • Page 6: Getting Started

    Chapter 1 Getting Started 1.1 Features  Solid aluminum die-casting chassis  Variety of LCD panel size selections  IP66 / IP69K(option) compliant front panel  VGA, DVI-D, HDMI, and DP input  Wide range DC 9~36V power input  High Brightness LCD and Auto Dimming for optional ...

  • Page 7: Arcdis-1Xxa Series With Tb-6029 Ad Board User Manual

    1G / 5~500Hz (Random) / Operation Shock 15G peak acceleration (11 msec. duration) / Operation Certification CE / FCC Class A Power Consumption and Mechanical Specifications  ARCDIS-112APRG(H) ARCDIS-115APRG(H) ARCDIS-116APRG(H) ARCDIS-117APRG(H) Power Consumption Power Consumption MAX: 7.9W(112AR) MAX: 12.5W(115AR) MAX: 12.2W(116AR) MAX: 11.6W(117AR) MAX: 12.8W(112AP)
  • Page 8 170(H) / 165(V) 178(H) / 178(V) Backlight Lifetime 30,000 hrs 50,000 hrs 50,000 hrs 30,000 hrs High Brightness LCD (Option)  ARCDIS-112APRG(H) ARCDIS-115APRG(H) ARCDIS-116APRG(H) Dipslay Display Type 12.1” color TFT LCD 15” color TFT LCD 15.6” color TFT LCD Max. Resolution...

  • Page 9: Dimensions

    170(H) / 160(V) 170(H) / 160(V) 170(H) / 160(V) 178(H) / 178(V) Backlight Lifetime 50,000 hrs 50,000 hrs 50,000 hrs 50,000 hrs 1.3 Dimensions Figure 1.1: Dimensions of ARCDIS-112APRG(H) Figure 1.2: Dimensions of ARCDIS-115APRG(H) ARCDIS-1XXA Series with TB-6029 AD Board User Manual...

  • Page 10: Figure 1.3: Dimensions Of Arcdis-116Aprg(H)

    Figure 1.3: Dimensions of ARCDIS-116APRG(H) Figure 1.4: Dimensions of ARCDIS-117APRG(H) ARCDIS-1XXA Series with TB-6029 AD Board User Manual...

  • Page 11: Figure 1.5: Dimensions Of Arcdis-118Aprg(H)

    Figure 1.5: Dimensions of ARCDIS-118APRG(H) Figure 1.6: Dimensions of ARCDIS-119APRG(H) ARCDIS-1XXA Series with TB-6029 AD Board User Manual...

  • Page 12: Figure 1.7: Dimensions Of Arcdis-121Aprg(H)

    Figure 1.7: Dimensions of ARCDIS-121APRG(H) ARCDIS-1XXA Series with TB-6029 AD Board User Manual...

  • Page 13: Brief Description Of Arcdis-1Xxa Series

    VGA, DVI-D, DP, and HDMI input, and it can be VESA 100 x 100 mounted. ARCDIS-1XXAPRG(H) series has more outstanding features, thus giving the best in monitoring and control applications. Figure 1.8: Front View of ARCDIS-112APRG(H) Figure 1.9: Rear View of ARCDIS-112APRG(H) ARCDIS-1XXA Series with TB-6029 AD Board User Manual...

  • Page 14: Figure 1.10: Front View Of Arcdis-115Aprg(H)

    Figure 1.10: Front View of ARCDIS-115APRG(H) Figure 1.11: Rear View of ARCDIS-115APRG(H) ARCDIS-1XXA Series with TB-6029 AD Board User Manual...

  • Page 15: Figure 1.12: Front View Of Arcdis-116Aprg(H)

    Figure 1.12: Front View of ARCDIS-116APRG(H) Figure 1.13: Rear View of ARCDIS-116APRG(H) ARCDIS-1XXA Series with TB-6029 AD Board User Manual...

  • Page 16: Figure 1.14: Front View Of Arcdis-117Aprg(H)

    Figure 1.14: Front View of ARCDIS-117APRG(H) Figure 1.15: Rear View of ARCDIS-117APRG(H) ARCDIS-1XXA Series with TB-6029 AD Board User Manual...

  • Page 17: Figure 1.16: Front View Of Arcdis-118Aprg(H)

    Figure 1.16: Front View of ARCDIS-118APRG(H) Figure 1.17: Rear View of ARCDIS-118APRG(H) ARCDIS-1XXA Series with TB-6029 AD Board User Manual...

  • Page 18: Figure 1.18: Front View Of Arcdis-119Aprg(H)

    Figure 1.18: Front View of ARCDIS-119APRG(H) Figure 1.19: Rear View of ARCDIS-119APRG(H) ARCDIS-1XXA Series with TB-6029 AD Board User Manual...

  • Page 19: Figure 1.20: Front View Of Arcdis-121Aprg(H)

    Figure 1.20: Front View of ARCDIS-121APRG(H) Figure 1.21: Rear View of ARCDIS-121APRG(H) ARCDIS-1XXA Series with TB-6029 AD Board User Manual...

  • Page 20: Chapter 2 Osd

    Chapter 2 2.1 AD Board OSD Functions Auto Adjust Up/Left Down/Right Power Menu/Entry Power Indicator Power switch: To turn ON or OFF the power Shift the icon to the right side or shift it up Shift the icon to the left side or shift it down Menu: To enter OSD menu for related icon and item.

  • Page 21: Osd Controls

    When the Burn-in Mode is Unable to Eradicate… If the “RGB” is still on the top left corner of the screen, press to enter “Miscellaneous” and choose “Reset”, and then Yes, and press . When the screen goes black, disconnect power and repeat the above steps. If the “RGB”...

  • Page 22: Main Menu

    2.3 Main Menu In the PICTURE, there are the following items:  Backlight  Brightness: Light Sensor: Set auto dimming function Off: Auto dimming off On: Auto dimming on  Contrast  Sharpness  Exit ARCDIS-1XXA Series with TB-6029 AD Board User Manual...
  • Page 23 In the DISPLAY, there are the following items:  AutoAdjustment  H Position  V Position  Pixel Clock  Phase  Exit In the COLOR, there are the following items:  Gamma  Color Temp  Color Effect  Exit ARCDIS-1XXA Series with TB-6029 AD Board User Manual...
  • Page 24 In the ADVANCE, there are the following items:  Aspect Ratio  Exit In the INPUT, there are the following items:  Auto Select  VGA  DP  DVI  Exit ARCDIS-1XXA Series with TB-6029 AD Board User Manual...
  • Page 25 In the AUDIO, there are the following items:  Volume  Mute  Exit In the OTHER, there are the following items:  Reset  Menu Time  OSD H Position  OSD V Position  Language  Transparency  Rotate ...
  • Page 26 Exit part. ARCDIS-1XXA Series with TB-6029 AD Board User Manual...

  • Page 27: Chapter 3 Installation

    Chapter 3 Installation This chapter describes how to install drivers and other software that will allow your touch screen work with different operating systems. 3.1 Windows 7 Universal Driver Installation for PenMount 6000 Series Before installing the Windows 7 driver software, you must have the Windows 7 system installed and running on your computer.
  • Page 28 Step 2. Read the license agreement. Click I Agree to agree the license agreement. Step 3. Choose the folder in which to install PenMount Windows Universal Driver. Click Install to start the installation. ARCDIS-1XXA Series with TB-6029 AD Board User Manual...
  • Page 29 Step 4. Click Yes to continue. Step 5. Click Finish to complete installation. ARCDIS-1XXA Series with TB-6029 AD Board User Manual...
  • Page 30 3.1.2 Installing Software (Projected Capacitive) Step 1. Click Next to continue. Step 2. Select I accept the terms of the license agreement. Click Next. ARCDIS-1XXA Series with TB-6029 AD Board User Manual...
  • Page 31 Step.3. Click Next to continue. Step 4. Click Install RS232 interface driver. ARCDIS-1XXA Series with TB-6029 AD Board User Manual...
  • Page 32 Step 5. Select None. Click Next. Step 6. Click OK. Step 7. Click Support Muti-Monitor System. Click Next. ARCDIS-1XXA Series with TB-6029 AD Board User Manual...
  • Page 33 Step 8. Go to C:\Program Files\eGalaxTouch. Click Next. Step 9. Click Next. ARCDIS-1XXA Series with TB-6029 AD Board User Manual...
  • Page 34 Step 10. Click Create a eGalaxTouch Utility shortcut on desktop. Click Next. Step 11. Wait for installation. Step 12. Click Yes to do 4 point calibration. ARCDIS-1XXA Series with TB-6029 AD Board User Manual...

  • Page 35: Software Functions

    3.2 Software Functions 3.2.1 Software Functions(Resistive Touch) Upon rebooting, the computer automatically finds the new 6000 controller board. The touch screen is connected but not calibrated. Follow the procedures below to carry out calibration. 1. After installation, click the PenMount Monitor icon “PM” in the menu bar. 2.
  • Page 36 Standard Calibration Click this button and arrows appear pointing to red squares. Use your finger or stylus to touch the red squares in sequence. After the fifth red point calibration is complete. To skip, press ‘ESC’. Advanced Calibration Advanced Calibration uses 4, 9, 16 or 25 points to effectively calibrate touch panel linearity of aged touch screens.
  • Page 37 Step 2.Click “Standard Calibration” to start calibration procedure NOTE: The older the touch screen, the more Advanced Mode calibration points you need for an accurate calibration. Use a stylus during Advanced Calibration for greater accuracy. Please follow the step as below: ARCDIS-1XXA Series with TB-6029 AD Board User Manual...
  • Page 38 Step 3. Select Device to calibrate, then you can start to do Advanced Calibration. NOTE: Recommend to use a stylus during Advanced Calibration for greater accuracy. Plot Calibration Data Check this function and a touch panel linearity comparison graph appears when you have finished Advanced Calibration.
  • Page 39 Setting Touch Mode This mode enables and disables the mouse’s ability to drag on-screen icons – useful for configuring POS terminals. Mouse Emulation – Select this mode and the mouse functions as normal and allows dragging of icons. Click on Touch – Select this mode and mouse only provides a click function, and dragging is disables.

  • Page 40: Edge Compensation

    Edge Compensation You can use Edge Compensation to calibrate more subtly. ARCDIS-1XXA Series with TB-6029 AD Board User Manual...
  • Page 41 About This panel displays information about the PenMount controller and driver version. Multiple Monitors Multiple Monitors support from two to six touch screen displays for one system. The PenMount drivers for Windows 7 support Multiple Monitors. This function supports from two to six touch screen displays for one system. Each monitor requires its own PenMount touch screen control board, either installed inside the display or in a central unit.
  • Page 42 to assign touch controllers to displays. 2. When the mapping screen message appears, click OK. 3. Touch each screen as it displays “Please touch this monitor”. Following this sequence and touching each screen is called mapping the touch screens. 4. Touching all screens completes the mapping and the desktop reappears on the monitors.
  • Page 43 6. “Touch this screen to start its calibration” appears on one of the screens. Touch the screen. 7. “Touch the red square” messages appear. Touch the red squares in sequence. 8. Continue calibration for each monitor by clicking Standard Calibration and touching the red squares.
  • Page 44 PenMount Monitor has the following function Control Panel Open Control Panel Windows Beep Setting Beep function for each device Right Button When you select this function, a mouse icon appears in the right-bottom of the screen. Click this icon to switch between Right and Left Button functions.
  • Page 45 3.2.2 Software Functions(Projected Capacitive) General In this window, you can see there is USB Controller. Click OK to continue. Monitor Mapping to adjust touch panel to search for device ARCDIS-1XXA Series with TB-6029 AD Board User Manual...
  • Page 46 Setting Beep Beep On Touch Beep On Release Beep From System Beep Beep From Sound Card Linearization Style 9 points 25 points Double Click Time Shorter Longer Double Click Area Smaller Bigger Normal mode Simulate the mouse mode ARCDIS-1XXA Series with TB-6029 AD Board User Manual...
  • Page 47 Option Function Enable Constant Touch Enable Auto Right Click Enable Touch Enable Cursor Stabilization Constant Touch Area Auto Right Click Time ARCDIS-1XXA Series with TB-6029 AD Board User Manual...
  • Page 48 Tools Click OK to continue the settings. 4 Points Calibration Do 4 points alignment to match display. Clear and Calibrate Clear linearization parameter and do 4 points alignment. Linearization Do 9 points linearization for better touchscreen linearity. Draw Test Do draw test to verify the touch accuracy. ARCDIS-1XXA Series with TB-6029 AD Board User Manual...
  • Page 49 Display In this window, it shows the mode of display. Enable Multiple Monitors. Map to main display if system has only one display monitor Full Screen Lower Screen Left Screen Upper Screen Right Screen ARCDIS-1XXA Series with TB-6029 AD Board User Manual...
  • Page 50 Other Other mode of display. Quarter1~4 and Customized area. Active Area Drag active area to enable Active Area Function. ARCDIS-1XXA Series with TB-6029 AD Board User Manual...
  • Page 51 Hardware Saturn Hardware Configuration ARCDIS-1XXA Series with TB-6029 AD Board User Manual...
  • Page 52 About To display information about eGalaxTouch and its version. ARCDIS-1XXA Series with TB-6029 AD Board User Manual...

  • Page 53: Board Dimensions

    Appendix A: Board Dimensions Figure A: Dimensions of TB-6029 ARCDIS-1XXA Series with TB-6029 AD Board User Manual...

  • Page 54: Appendix B: Panel Mounting And Vesa Mounting

    *Tighten the mounting clips to the specified torque to provide a proper seal and to prevent damage to the product. Aplex assumes no responsibility for water or chemical damage to the product or other equipment within the enclosure due to improper installation.
