Lithium-ion Cordless
Lawn Mower
36V
Instruction Manual
2 Year Replacement Warranty
LML-036
WARNING! Read all safety warnings and all instructions. Failure to follow
the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
0612
www.ozito.com.au
To view the full range visit:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LML-036 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ozito LML-036

Summary of Contents for Ozito LML-036

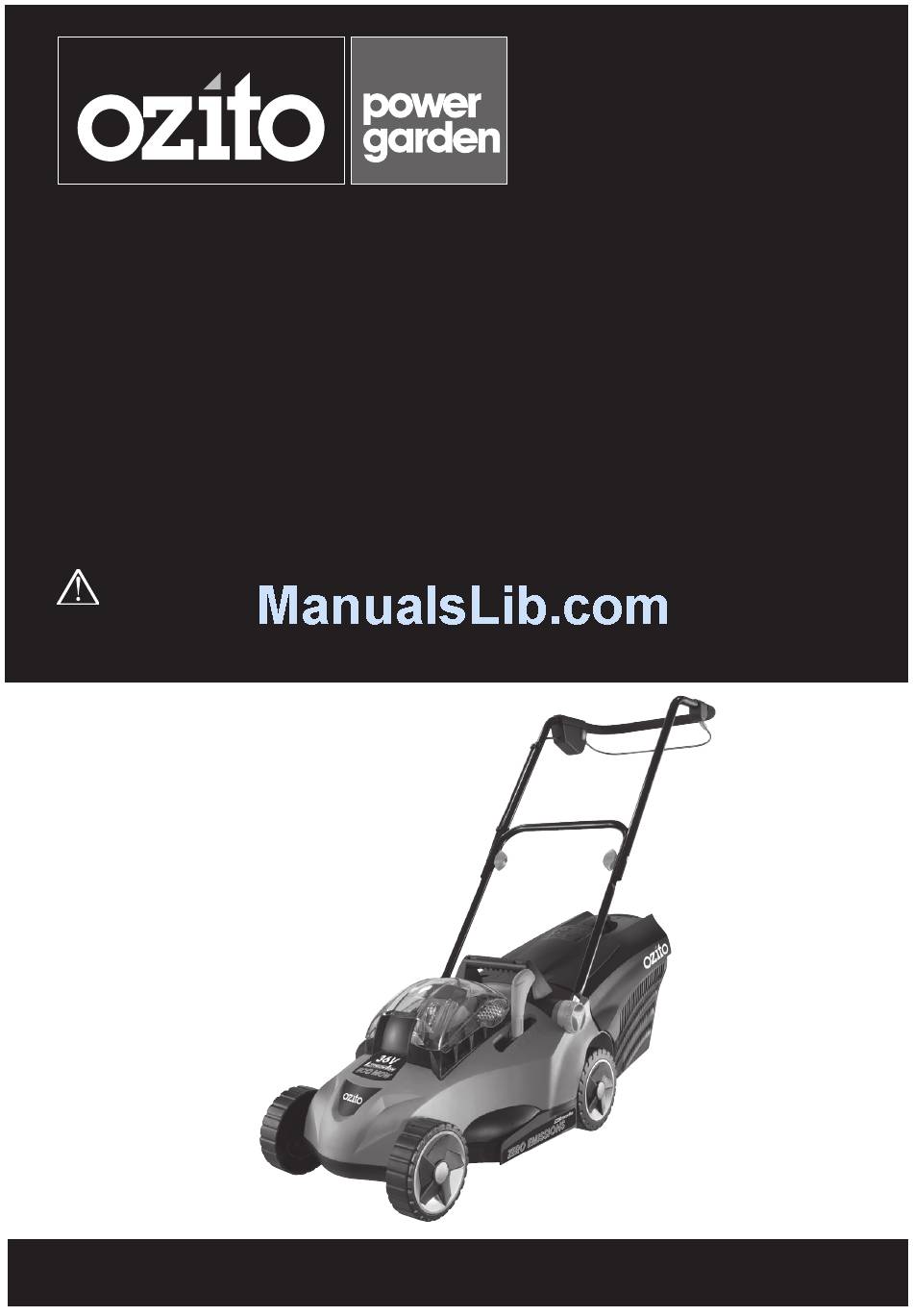

  • Page 1 Lawn Mower Instruction Manual 2 Year Replacement Warranty LML-036 WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

  • Page 2: Specifications

    SpecificationS - model no. lml-036 Battery power: 1 x 36V, 2.6Ah Lithium-ion charge time: 3-5 Hours no load speed: 3800/min cutting diameter: 370mm Height adjustments: cutting heights: 30, 40, 50, 65 & 80mm capacity of catcher: 40 Litres Weight with battery:...

  • Page 3: Table Of Contents

    taBle of contentS SPECIFICATIONS ……………………………………….. Page 1 INTRODUCTION………………………………………… Page 3 ELECTRICAL SAFETY…………….……………………… Page 3 GENERAL POWER TOOL SAFETY WARNINGS……… Page 4 BATTERY & CHARGER SAFETY WARNING…………… Page 6 ADDITIONAL SAFETY WARNINGS FOR LAWN MOWER …………………………………………. Page 8 ASSEMBLY………………………………………………… Page 10 CHARGING THE BATTERY……………………………..

  • Page 4: Introduction

    Lawn Mower. We aim to provide quality tools at an affordable price. We hope you will enjoy using this tool for many years. Your Lithium Ion Cordless Lawn Mower LML-036 has been designed for small to medium size lawns and being cordless, it offers maximum convenience of operation without the need for a connection to the mains power.

  • Page 5: General Power Tool Safety Warnings

    General poWer tool Safety WarninGS WarninG! read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in all of the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
  • Page 6 General poWer tool Safety WarninGS f) dress properly. do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) if devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.

  • Page 7: Battery & Charger Safety Warning

    litHium Battery and cHarGer Safety featureS over charging protection This feature ensures that the battery is never overcharged. When the battery has reached it’s full charge capacity the charger will shut off protecting the internal com- ponents of the battery from being damaged. over discharge protection An internal component of the battery pack is an over discharge protector.
  • Page 8 litHium ion Battery and cHaGer Safety WarninGS WarninG! Do not allow any liquid to get inside charger. Electric shock may result. To facilitate cooling of the battery pack after use, avoid placing the charger or battery pack in a warm environment such as in a metal shed, or an uninsulated trailer.

  • Page 9: Additional Safety Warnings For Lawn Mower

    additional Safety WarninG for laWn moWerS WarninG! If not used properly this lawn mower can be dangerous! This lawn mower can cause serious injury to the operator and others, the warnings and safety instructions must be followed to ensure reasonable safety and efficiency in using this lawn mower.
  • Page 10 additional Safety WarninG for laWn moWerS (cont.) • Switch on the motor according to instructions and with feet well away from the blade(s). • Do not tilt the appliance when switching on the motor, except if the appliance has to be tilted for starting. In this case, do not tilt it more than absolutely neces- sary and lift only the part which is away from the operator.

  • Page 11: Assembly

    aSSemBly Remove the body of the lawn mower from the packag- ing using the lifting handle (11) and place on a flat surface (Fig. 1). Fig. 1 fitting the upper Handle to the lower Handles Pull up and back on the upper handle ( 2) to raise the handles into the operating position.
  • Page 12 aSSemBly (cont.) assembling the Grass catcher Assemble the two halves of the grass catcher (5) together. Align the two halves and push each individual plastic lug into its opposite location. Start at the rear and work your way forward. Ensure that all the plastic lugs engage correctly with a “Click”...

  • Page 13: Charging The Battery

    cHarGinG your litHium ion Battery Battery charging The Lawn Mowers’ battery (9) has been shipped in a low charge condition, and requires charging prior to use. allow several cycles of charging and discharging (through use of the mower) for the battery (9) to reach its optimum performance / runtime.

  • Page 14: Operation

    operation inserting the Battery pack caution: Before inserting the battery (9) ensure the safety key (15) has been removed to prevent accidental starting and serious injury. Lift the securing latch (16) and lift and hold up the battery cover (10) (Fig. 11). Fig.
  • Page 15 operation (cont.) Switching on/off To prevent accidental start up of the motor the mower is fitted with a dual action switch. Press and hold the lock-off button (14) (Fig. 16). Fig. 16 Pull the Start/stop lever (1) towards the handle and then release the lock-off button (14) (Fig 17).

  • Page 16: Maintenance

    If the housing of the mower requires cleaning, do not use solvents but a moist soft cloth and brush only. note: Ozito Industries will not be responsible for any damage or injuries caused by the repair of the tool by an unauthorised person or by mishandling of the tool.
  • Page 17 trouBle SHootinG problem possible cause Solution Mower is not starting Possible clogging Check underneath the mower and clear out as necessary Battery is low in charge Charge battery Battery not inserted Insert battery pack correctly properly Grass to long Raise the cutting height to reduce starting load Safety key not inserted Fit correctly...

  • Page 18: Spare Parts

    Spare partS Limited spare parts are available subject to availability. Please contact your local Bunnings Special Orders Desk to order the required spare parts. most common spare parts listed below Spare part part no. Battery pack (36V Li-Ion) ACCLB-036 Charger ACCLC-036 deScription of SymBolS Read instruction manual...

  • Page 19: Pack Contents

    Reuse of recycled material decreases pollution in the environment. Please recycle packaging where facilities exist. Check with your local council authority for recycling advice. contentS 1 x Cordless Lawn Mower LML-036 1 x Battery (36V Lithium Ion) 1 x Charger 1 x Catcher top...

  • Page 20: Warranty

    If the tool shows signs of damage or defects caused by or resulting from abuse, accidents or alterations. • Failure to perform maintenance as set out within the instruction manual. • If the tool is disassembled or tampered with in any way. oZito Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175 OW10...
