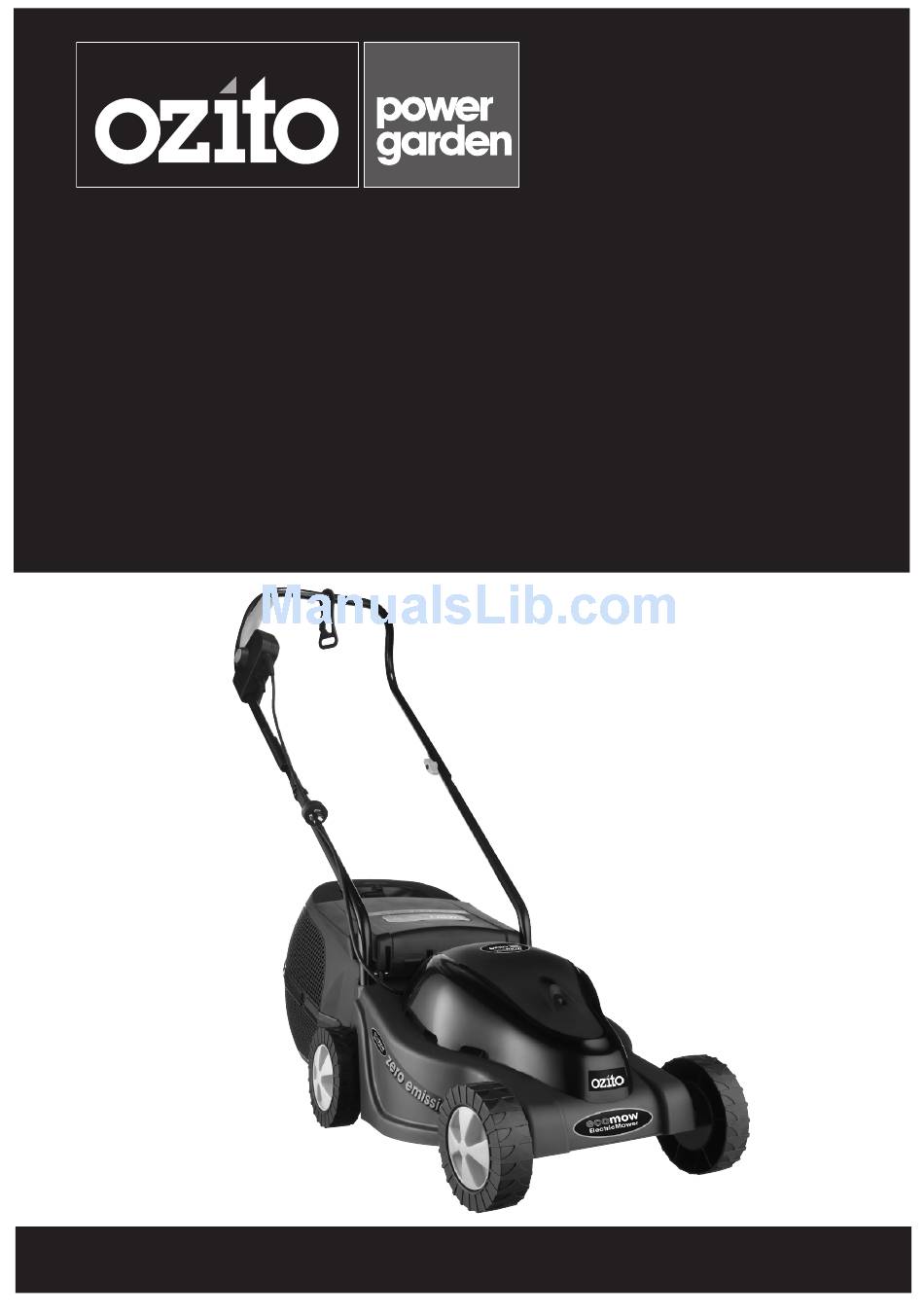

- Page 1 Ecomow Electric Mower 1100 Watt Operation Manual 2 Year Replacement Warranty ECO-320 - Type 1 0509 www.ozito.com.au To view the entire range visit:...
-
Page 2: Specifications - Model No. Eco-320
SPECIFICATIONS - MODEL NO. ECO-320 Motor Size: 1100W Input: 230V ~ 50Hz No Load Speed: 3000 /min Cutting Diameter: 320mm Cutting Heights: 31mm, 47mm, 63mm Type: Features: Height Adjustable Safety Lock off Switch Induction Motor Large Rear Catcher 1. Start/stop lever 7. -
Page 3: Table Of Contents
TABLE OF CONTENTS SPECIFICATIONS - MODEL NO. ECO-320…………… Page 2 TABLE OF CONTENTS…………………………………... Page 3 INTRODUCTION………………………………………… Page 4 SAFETY INSTRUCTIONS……………………………….. Page 4 ASSEMBLY ……………………………………………….. Page 7 FITTING WHEELS………………………………………... Page 7 FITTING LOWER HANDLES…………………………… Page 8 FITTING AND USING CORD RETAINER………………... -
Page 4: Introduction
We aim to provide quality tools at an affordable price. We hope you will enjoy using this tool for many years. Your Ozito Ecomow Electric Mower ECO-320 has been designed for small to medium sized lawns and is for DIY purposes only. - Page 5 ELECTRICAL SAFETY (cont.) 8. Never carry the product by the cord. 9. Never pull on the cord to disconnect any of the plugs. 10. Use only AC mains supply voltage shown on the product rating label. 11. It is recommended that the appliance should by supplied via a residual current device (RCD) with a tripping current of not more than 30 mA.
-
Page 6: Additional Safety Rules For Lawn Mowers
Never use the mower unless the catcher or guards provided by the manufacturer are in the correct position. Explanation of Symbols on the Ecomow Electric Mower - ECO-320 Warning Read the user instructions carefully to make sure you understand all the controls and what they do. -
Page 7: Assembly
ADDITIONAL SAFETY RULES FOR LAWN MOWERS (cont.) Switch Off! Remove plug from mains before adjusting, cleaning or if cable is entangled or damaged. Keep the cable away from the blade. Beware of severing toes or hands. Do not put hands or feet near a rotating blade. -
Page 8: Fitting Lower Handles
ASSEMBLY (cont.) 4. Bend the two ends of each split pin backwards around the axle pin to secure the wheels to the mower body. 5. Insert the caps over the wheels and push them in. This may require a little bit of force. They are properly assembled to the wheels when they click into place. -
Page 9: Fitting And Using Cord Retainer
ASSEMBLY (cont.) Fitting and using the cord retainer • To fit the cord retainer, slide it over the upper handle end (on the switch side) before fixing the upper handle to the lower handles. • The cord retainer prevents the extension lead from being disconnected during use. - Page 10 ASSEMBLY (cont.) Fitting and removing the grass catcher • To fit the grass catcher lift up the rear flap. • Clear out any grass that may be in the grass chute. Whenever clearing out grass from the grass chute, the mower must first be turned off and disconnected from the power supply.
-
Page 11: How To Mow
HOW TO MOW On/Off Switch To prevent accidental start up of the motor the mower is designed with a dual action switch. To start, press the button and pull the lever. The motor automatically stops upon the releasing the lever. Warning! The blade will coast after the switch has been released. -
Page 12: Removing And Fitting The Blade
CUTTING HEIGHT ADJUSTMENT (cont.) To adjust the rear wheel cutting height position (Fig. b) 1. Turn the mower on its side. 2. Pull the rear wheel axle towards the mower's catcher flap. 3. Locate the wheel axle into the desire cutting height adjustment position. -
Page 13: Maintenance
MAINTENANCE 1. Keep all nuts, bolts and screws tight to be sure the lawnmower is in a safe working condition. 2. Check the catcher frequently for wear or deterioration. 3. Replace worn or damaged parts for safety. 4. Only use the replacement blade, blade bolt, and impeller specified for this product. 5. -
Page 14: Contents
Reuse of recycled material decreases pollution in the environment. Please recycle packaging where facilities exist. Check with your local council authority for recycling advice. CONTENTS 1 x Lawnmower ECO-320 1 x Cord retainer 2 x Lower handles 4 x Wheel caps... -
Page 15: Warranty
PURCHASED FROM: ________________________________________________ DATE PURCHASED: ________________________________________________ 2 YEAR REPLACEMENT WARRANTY Your Ozito tool is guaranteed for a period of 24 months from the ORIGINAL date of purchase under the following conditions: Professional, industrial or high frequency use will VOID this warranty.
