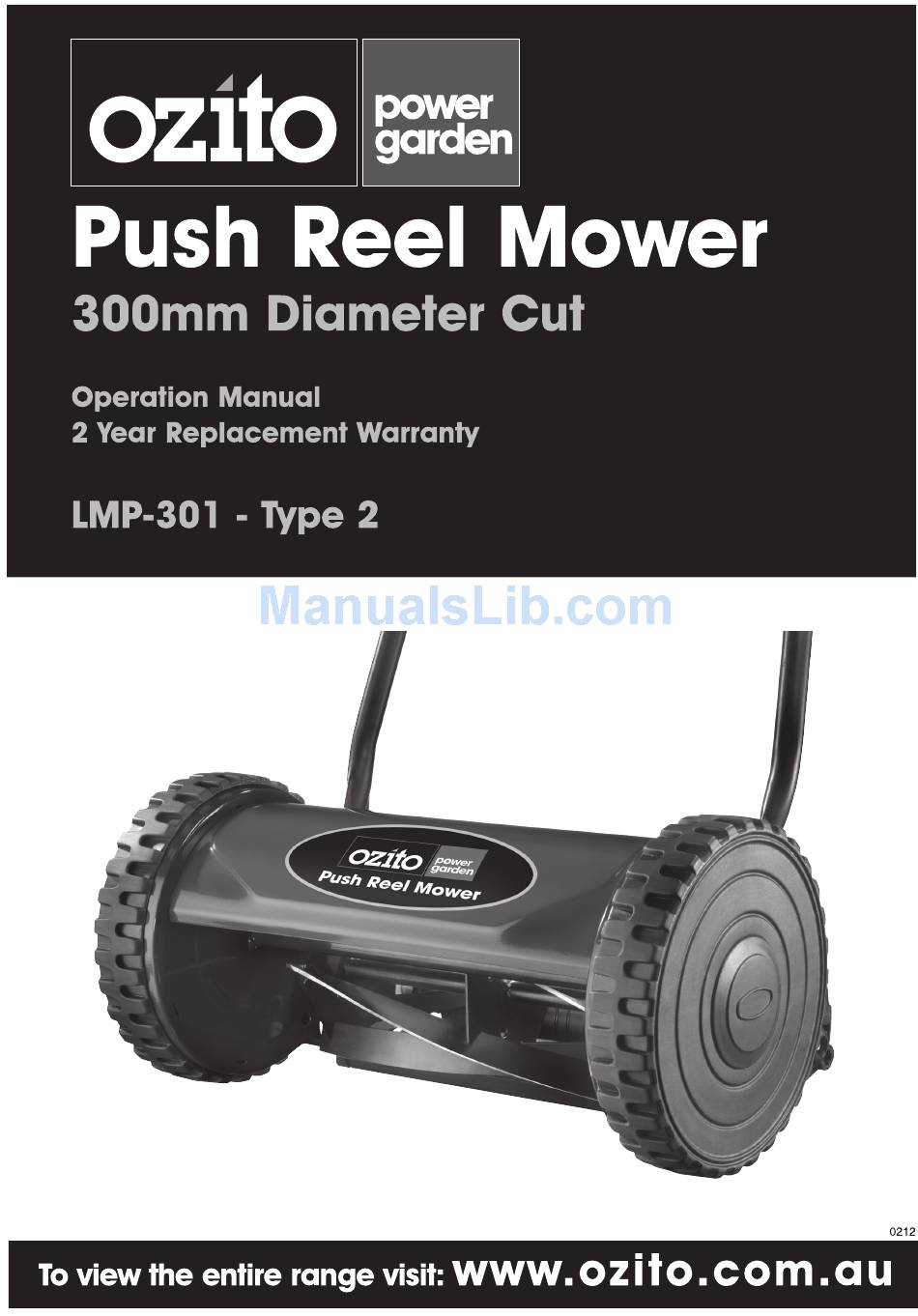

Ozito LMP-301 Operation Manual

Push reel mower 300 mm diameter cut
Hide thumbs Also See for LMP-301:

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LMP-301 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ozito LMP-301

Summary of Contents for Ozito LMP-301

  • Page 2: Specifications

    SPECIFICATIONS - MODEL NO. LMP-301 (TYPE 2) Cutting width: 300mm Cutting height: 15 - 42mm Type: Features Height adjustable Self sharpening blades Quiet operation 1. Wheels 2. Cutting adjustment bar nuts 3. Upper handle 4. Handle uprights 5. Blades 6. Rear roller 7.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS SPECIFICATIONS………………………………………… Page 2 TABLE OF CONTENTS………………………………….. Page 3 INTRODUCTION………………………………………... Page 4 SAFETY INSTRUCTIONS……………………………….. Page 4 ASSEMBLY …………………………………………….. Page 5 MAINTENANCE …………….………………………….. Page 10 CONTENTS ……………………………………………... Page 10 WARRANTY……………………………………………… Page 12...

  • Page 4: Introduction

    We hope you will enjoy using this tool for many years. Your Push Reel Mower LMP-301 has been designed for small to medium sized lawns and is intended for DIY purposes only.

  • Page 5: Assembly

    ASSEMBLY Your Ozito Push Reel Mower comes partly assembled, only the handle requires assembly. To assemble the mower handles you will require a flat-head screwdriver and a 10mm spanner (of shifter). These tools are not included with this product. First select the lower handle and two handle uprights.
  • Page 6 ASSEMBLY (cont.) Fasten handle uprights and upper handle together using two screws and nuts Screw as shown. Upper handle Upright Now the handle is fully assembled and ready to be attached to the mower head. Lower handle To attach the handle to the mower head, locate the two metal lugs found forward of Metal lug the cutting bar adjustment lock nuts.
  • Page 7 ADJUSTMENTS Changing the Cutting Height Changing the cutting height is quick, easy, and requires no tools. Simply loosen the locking knobs on each side of the rear roller. This enables the roller assembly to slide up or down to place the cutting bar at a different height level. Make sure the height is the same on both sides.

  • Page 8: Grass Catcher

    GRASS CATCHER It is possible to purchase a grass catcher for the Ozito Push Reel Mower. This accessory can be purchased through your local Bunnings Warehouse. Accessory model no. ACLMP-001. PREPARATION 1. While using the push reel mower always wear substantial footwear and long trousers.

  • Page 9: Sharpening The Blade

    SHARPENING THE BLADE Before taking the time and effort to sharpen the blades, make sure that it needs sharpening. Most of all issues can be solved by ensuring the blades are properly adjusted (ADJUSTMENTS section). 1. Prop up the push reel mower so that the blade reel can be rotated by turning the wheels.

  • Page 10: Maintenance

    Please recycle packaging where facilities exist. Check with your local council authority for recycling advice. CONTENTS 1 x Mower LMP-301 (Type 2) 6 x Handle screws & nuts 1 x Lower handle 1 x Handle screw & nut (spare set)

  • Page 11: Warranty

    If the tool shows signs of damage or defects caused by or resulting from abuse, accidents or alterations. • Failure to perform maintenance as set out within the instruction manual. • If the tool is disassembled or tampered with in any way. OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175...
