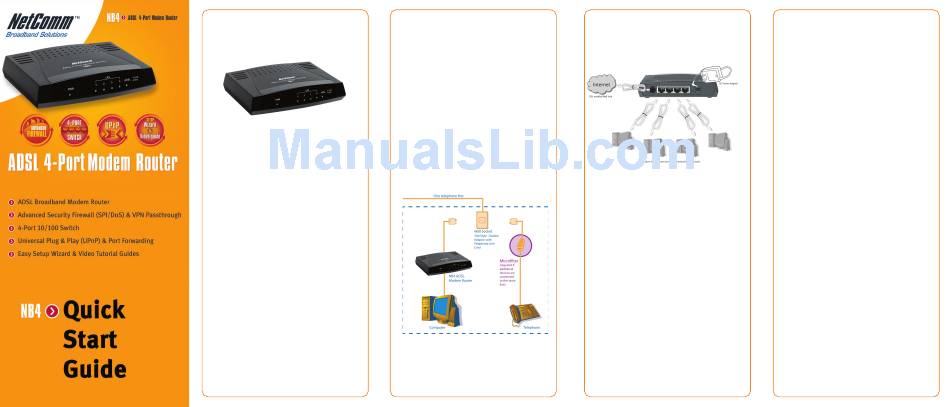

NetComm NB4 Quick Start Manual

START HERE...
This Quick Start provides basic instructions for connecting the
NB4 ADSL Modem Router to a computer and to the Internet.
■
Step 1 - describes setting up the hardware.
■ Step 2- shows you how to configure basic settings on the
NB4 ADSL Modem Router to get your computer
connected to the Internet.
■ Step 3 - describes how to configure Internet properties on
your computer(s).
This Quick Start Guide assumes that you have already
established an ADSL service with your Internet service
provider (ISP). These instructions provide a basic
configuration that should be compatible with your home or
small office setup. Refer to the subsequent chapters in the
comprehensive User Guide on the supplied CD-ROM for
additional configuration instructions.
NOTE: NetComm Technical Support for this product
only covers the basic installation and
features outlined in this Quick Start Guide.
For detailed information regarding the
advanced features of this product, please
refer to the configuring sections in the NB4
User Guide on the supplied CD-ROM.
The NetComm NB4 ADSL Modem Router can be connected
directly to your computer via an Ethernet interface. If your
computer has a network card (NIC) but isn't connected to a
network hub or switch, or another computer, then connect the
NB4 to the network port of your PC. Follow the step-by-
step instructions on the opposite side of this Guide.
Warning: Before you begin, turn the power off for
all devices. These include your
computer(s) and the NB4 ADSL Modem
Router.
1
Do I need to use the Micro filter?
Micro filters are used to prevent common telephone
equipment, such as phones, answering machines and fax
machines, from interfering with your ADSL service. If your
ADSL enabled phone line is being used with any other
equipment other than your NB4 ADSL Modem Router then
you will need to use one Micro filter for each phone device.
Splitters may be installed when your ADSL line is installed or
when your current phone line is upgraded to ADSL. If your
telephone line is already split you will not need to use a
Microfilter - check with your ADSL service provider if you are
unsure.
Each micro filter is connected in-line with your telephone or
fax machine so that all signals pass through it. Telephones
and/or facsimiles in other rooms that are using the same
extension will also require Microfilters. Refer to the
comprehensive User Guide supplied on the CD-ROM for
more information.
NOTE: Do not connect your Microfilter to your
Modem. It should ONLY be connected
to your telephone.
2
Step 1 - Hardware Installation
To connect your modem, follow the step by step instructions
below:
1. Connecting the ADSL cable.
Connect one end of the provided phone cable to the port
labeled DSL on the Rear Panel of the device. Connect the
other end to your wall phone jack.
2. Connecting the Ethernet cable.
Connect one end of the ethernet cable to the network port
on your PC and the other end of the cable to the ethernet
port of the NB4 ADSL Modem Router.
3. Attach the power connector.
Connect the AC power adapter to the Power connector on
the back of the device and plug in the adapter to a wall
outlet or power strip. Switch the power on to the NB4.
4. Power up your systems.
Turn on and boot up your computer.
After completing the above, refer to the appropriate
operating system section to configure your computer.
3
Step 2 - Modem Configuration
In Step 2, you log directly into the configuration page of the
NB4 ADSL Modem Router and configure the basic settings for
your Internet connection. Your ISP should provide you with
the necessary information to complete this step.
The settings that you most likely need to change to access the
internet are grouped onto a single Quick Configuration page.
To configure your NB4 ADSL Modem Router follow the steps
below:
Note: If your computer's Ethernet interface is not
set to use DHCP or you have trouble
accessing/configuring your NB4, see
instructions overleaf " Computer Hardware
Configuration".
1. Insert the NetComm NB4 CD into your CD drive. The
NB4 ADSL Modem Router autorun screen will appear.
Click on Configure NB4.
(Alternatively, if the CD-Rom is not available, you can
open a web browser and type (http://192.168.1.1) in the
location bar to access the NB4's setup screen directly.)
2. The logon page will be displayed. Enter the NB4's
username and password.
The default username is admin.
The default password is password.
Click on OK.
3. The Quick Start - login settings page will be displayed.
4. Under the User ID heading, enter the Username that your
ISP has provided. In the password field, enter the
password that your ISP has given you.
5. Leave the Protocol, VPI and VCI settings as default unless
advised to change them by your ISP.
6. Click on the Connect button to test the settings.
7. If the test was successful, then click "Save Settings". If it
failed, please try again by clicking on the "Connect" button
a second time. Also, check your settings to ensure they are
correct.
8. You should now be able to access the Internet with a web
browser, email client or other Internet application.
4
