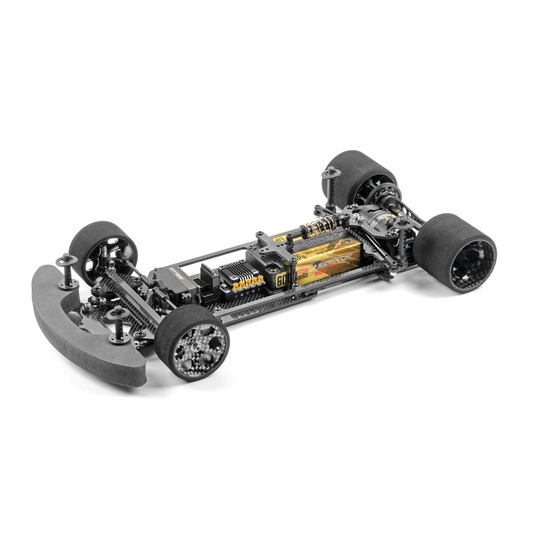

Xray X10 Link Instruction Manual

Xray 1/10-pan car instruction manual
Hide thumbs Also See for X10 Link:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X10 Link and is the answer not in the manual?

Questions and answers

Related Manuals for Xray X10 Link

Summary of Contents for Xray X10 Link

  • Page 2: Before You Start

    Make sure you review this entire manual and examine all details carefully. If for some reason you decide the X10 is not what you wanted or expected, do not continue any further. Your hobby dealer cannot accept your X10 kit for return or exchange after it has been partially or fully assembled.

  • Page 3: Symbols Used

    (here twice) movement EQUIPMENT INCLUDED TOOLS REQUIRED Diff. Grease Allen Wrench 1.5mm Allen Wrench 2.0mm Allen Wrench 2.5mm Socket Driver 5.5mm XRAY Premium (HUDY #111540) (HUDY #112040) (HUDY #112540) (HUDY #170055) (HUDY #106211) Silicone Oil 350cSt (#359235) TOOLS REQUIRED Pliers...
  • Page 4 GRAPHITE PARTS PREPARATION PREPARE All GRAPhitE PARtS To protect and seal edges of graphite parts, sand edges smooth and then apply CA glue. Lightly file edges of battery slots to remove sharp edges. Do not file battery slots too much, or batteries may protrude below the chassis bottom.

  • Page 5: Front Suspension

    371001 X10 LINK CHASSIS - 2.5MM GRAPHITE 372210 COMPOSITE STEERING BLOCK - RIGHT 377220 FRONT UPPER PIVOT PIN 2x31MM (2) 371050 X10 GRAPHITE 2.5MM MOUNTING PLATE RISERS (2) 372220 COMPOSITE STEERING BLOCK - LEFT 371060 X10 GRAPHITE 2.5MM ARM MOUNT PLATE...

  • Page 6: Initial Setting

    NOTE ORIENTATION 3x12 Marked “L“ Lightly tighten setscrews REACtivE CAStER SEttiNG 5.2mm 5.2mm = 2.5° = 5° INITIAL SETTING = 7.5° Use same bushings in left and right sides. ASSEMBLED VIEW ASSEMBLED VIEW NOTE ORIENTATION ASSEMBLED VIEW CASTER CAMBER 902308 902312 901304 SH M3x8...
  • Page 7 Moves freely The number of shims used Marked “L“ affects the ride height of the car, so determine the proper amount of shimming based on your tire diameter. ASSEMBLED VIEW 0.5mm NOTE 0.5mm ORIENTATION 0.2mm (4x) NOTE ORIENTATION 0.2mm The flat of the nut must be PARAllEl to the lower arm. FRONt COil SPRiNGS FRONt RidE hEiGht AdjuStmENt #372180 C=3.5 - GOLD...
  • Page 8 INITIAL SETTING 0.5mm The number of shims used affects the ride height of the car, so determine the proper amount of shimming based on your tire diameter. For initial setting use 3.1x8x0.5 shims (6x) After inserting clips, carefully tighten all M3x4 setscrews so the pins will not move.

  • Page 9: Rear Suspension

    3. REAR SUSPENSION 902258 372650 902306 302654 371190 373541 903306 901308 902306 303120 372650 303241 371071 902306 303123 373072 902306 373090 960031 960031 376300 903306 303122 303122 371090 960031 373590 372651 903308 373065 373090 903310 373030 373581 373010 903310 371190 373590 376361 902308...
  • Page 10 Lightly tighten the screws so there is no free play, but do not overtighten otherwise the ball will not move freely. 3x10 3x10 Ensure free, smooth movement without excessive freeplay. DO NOT TIGHTEN FULLY 903306 903310 902306 960031 903310 SFH M3x6 SFH M3x10 SH M3x6 ALU N M3...
  • Page 11 DO NOT TIGHTEN FULLY, BALLS MUST TURN FREELY. ASSEMBLED VIEW TIGHTEN FULLY 960031 903314 902258 903306 ALU N M3 SFH M3x14 SH M2.5x8 SFH M3x6...
  • Page 12 1.5mm NOTE ORIENTATION 1.0mm 1.0mm 2.0mm "CLICK" 901308 903306 903308 303120 303122 SB M3x8 SFH M3x6 SFH M3x8 SHIM 3x6x1.5 SHIM 3x6x1.0...
  • Page 13 2.0mm 1.0mm 902306 303122 960031 902308 303123 903306 902306 SH M3x6 SHIM 3x6x1.0 ALU N M3 SH M3x8 SHIM 3x6x2 SFH M3x6 SH M3x6...

  • Page 14: Ball Differential

    HEX SCREW SOCKET HEAD CAP M2.5x8 (10) 375010 REAR AXLE SHAFT - GRAPHITE 930130 CARBIDE BALL 3.175MM (12) 375035 X10 ALU REAR WHEEL HUB - RIGHT 930138 CARBIDE BALL-BEARING AXIAL F3-8 3x8x3.5 375045 X10 ALU REAR WHEEL HUB - LEFT 941438 HIGH-SPEED BALL-BEARING 1/4“x3/8“x1/8“...
  • Page 15 Bearing Oil (HUDY #106230) Use additional shims to widen the rear track-width. Use the same shims on both sides. For initial assembly use 6.4x8.4x1mm shims. Bearing Oil (HUDY #106230) Flanged Flanged The axle must have a VERY small amount of Use these Ride Height sideplay.
  • Page 16 3.2mm 3.0mm 8.0mm 7.8mm Diff Grease (HUDY #106211) Diff Grease (HUDY #106211) NOTE ORIENTATION NOTE ORIENTATION Bearing Oil Diff Grease (HUDY #106230) (HUDY #106211) This nut affects the tightness and stiffness of the rear differential. NOTE ORIENTATION Tighten the nut gently so the diff does not slip under power, but do not overtighten or damage Bearing Oil Diff Grease...

  • Page 17: Shock Absorbers

    5. SHOCk ABSORBERS 378110 970050 BAG 05.1 378110 SIDE SHOCK ABSORBER 378160 971022 378010 378120 965015 378010 378010 901303 378050 378060 378170 378080 965015 971022 971022 378030 378030 ShOCk OilS 378020 378092 378110 901303 #359210 100cSt (option) 378010 #359215 150cSt (option) #359220 200cSt (option) #359225...
  • Page 18 BAG 05 CENTER SHOCK ABSORBER Carefully remove the shock piston from the frame, and remove all excess plastic flash Shock Oil Shock Oil ASSEMBLED VIEW 965015 971022 C 1.5 O 2x2...
  • Page 19 dEFAult ShOCk SEttiNG FOR CENtER ShOCk ABSORBER Follow the steps below to set the shock. HALF TIGHTEN TIGHTEN FULLY 100% 350cSt 3~5x UP & DOWN ➐ Keep the shock shaft ➊ ➋ ➌ ➍ ➎ ➏ pushed in the shock body and tighten the shock cap Extend the shock shaft Move the shock shaft up and...
  • Page 20 INITIAL SETTING ASSEMBLED VIEW Press the collar FULLY onto the end of the shock shaft and tighten the M3x3 setscrew. For initial setting, thread fully. SHOCK 901303 SB M3x3...
  • Page 21 BAG 05.1 SIDE SHOCK ABSORBER NOTE S H O Carefully remove the shock piston from the ORIENTATION frame, and remove all excess plastic flash L O N Shock Oil Shock Oil 965015 971022 C 1.5 O 2x2...
  • Page 22 350cSt 350cSt approx. from top Extend the shock shaft 1) Slowly move the shock Extend the shock shaft 1) Install the 5x1 O-ring Fully screw the shock cap completely. Fill the shock shaft up so the shock completely to release the onto the shock shim.

  • Page 23: Downstop Adjustment

    SIDE SHOCK ABSORBER CENTER SHOCK ABSORBER dOWNStOP AdjuStmENt The thickness of the side shock oil directly influences the movement of the rear pod suspension. The thicker the shock oil, the slower the pod moves. The length of the shock absorber affects the amount Thicker shock oil will make the car understeer more and make it easier to drive.

  • Page 24: Final Assembly

    BODY CLIP FOR 6MM BODY POST (4) 376255 X10 ALU SERVO MOUNT (2) 903308 HEX SCREW SFH M3x8 (10) 371040 X10 GRAPHITE 2.5MM FRONT BUMPER & SHIMS - V2 376130 COMPOSITE LiPo BATTERY BACKSTOP (2) 903310 HEX SCREW SFH M3x10 (10) 371225...

  • Page 25: Initial Position

    STANDARD size servo MID size servo STANDARD servo IMPORTANT! Note orientation MID servo of standard vs. For basic set-up use For basic set-up use mid-size servo 3x6x2 composite shims. 3x6x2 composite shims. For MID size servo use the included For STANDARD size servo use the #376255 alu servo mounts.
  • Page 26 NOTE ORIENTATION Note groove position The bodies for 1/10 pan cars are NOTE available in different lengths. ORIENTATION The bumper position depends on the length of the body Note groove position INITIAL POSITION 3x12 3x12 3x12 960031 902310 981212 903308 903312 ACKERMANN SH M 3x10...
  • Page 27 Speed controller (not included) Motor PiNiON GEARS Alu Receiver wire (Not included) hARdCOAtEd Pinion #305968 18T / 64P (option) (Not included) #305969 19T / 64P (option) Receiver #305970 20T / 64P (option) (not included) #305971 21T / 64P (option) #305972 22T / 64P (option) Double-sided tape (not included) #305973 23T / 64P (option)
  • Page 28 ASSEMBLED VIEW Battery Pack (not included) When inserting or removing batteries, remove graphite plate for mounts and antenna holder. Fibre Tape (HUDY #107870) (not included) Rear Wheels & Tires (not included) Front Wheels & Tires (not included) Bearing Oil (HUDY #106230) This kit includes a comprehensive Set-up Book which features the T-bar version of the XII.
  • Page 29 11a. 11b. 2S liPo BAttERY CONFiGuRAtiON: 1S liPo BAttERY CONFiGuRAtiON 1: Rearward Position INITIAL ASSEMBLY BATTERY BATTERY POSITION POSITION 903305 903305 SFH M3x5 SFH M3x5...
  • Page 30 11c. 12a. 1S liPo BAttERY CONFiGuRAtiON 2: Nimh 6-CEll BAttERY CONFiGuRAtiON: Forward Position INITIAL ASSEMBLY BATTERY BATTERY POSITION POSITION 903305 903305 SFH M3x5 SFH M3x5...
  • Page 31 12b. 12c. Nimh 4-CEll BAttERY CONFiGuRAtiON 1: Nimh 4-CEll BAttERY CONFiGuRAtiON 2: Rearward Position Forward Position BATTERY BATTERY POSITION POSITION 903305 903305 SFH M3x5 SFH M3x5...
  • Page 32 5 8 1 7 0 3 9 1 0 7 3 2...
