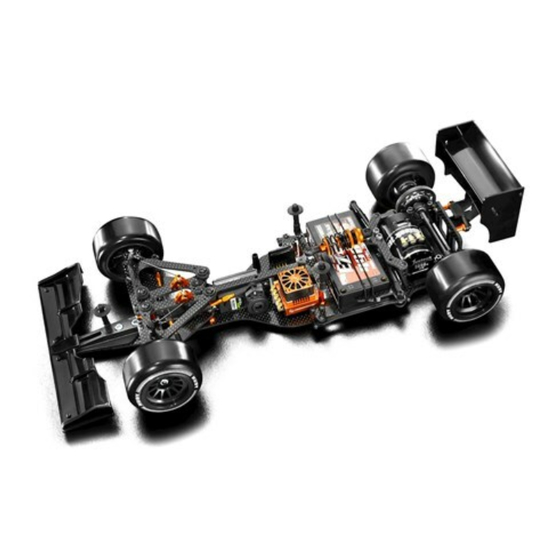

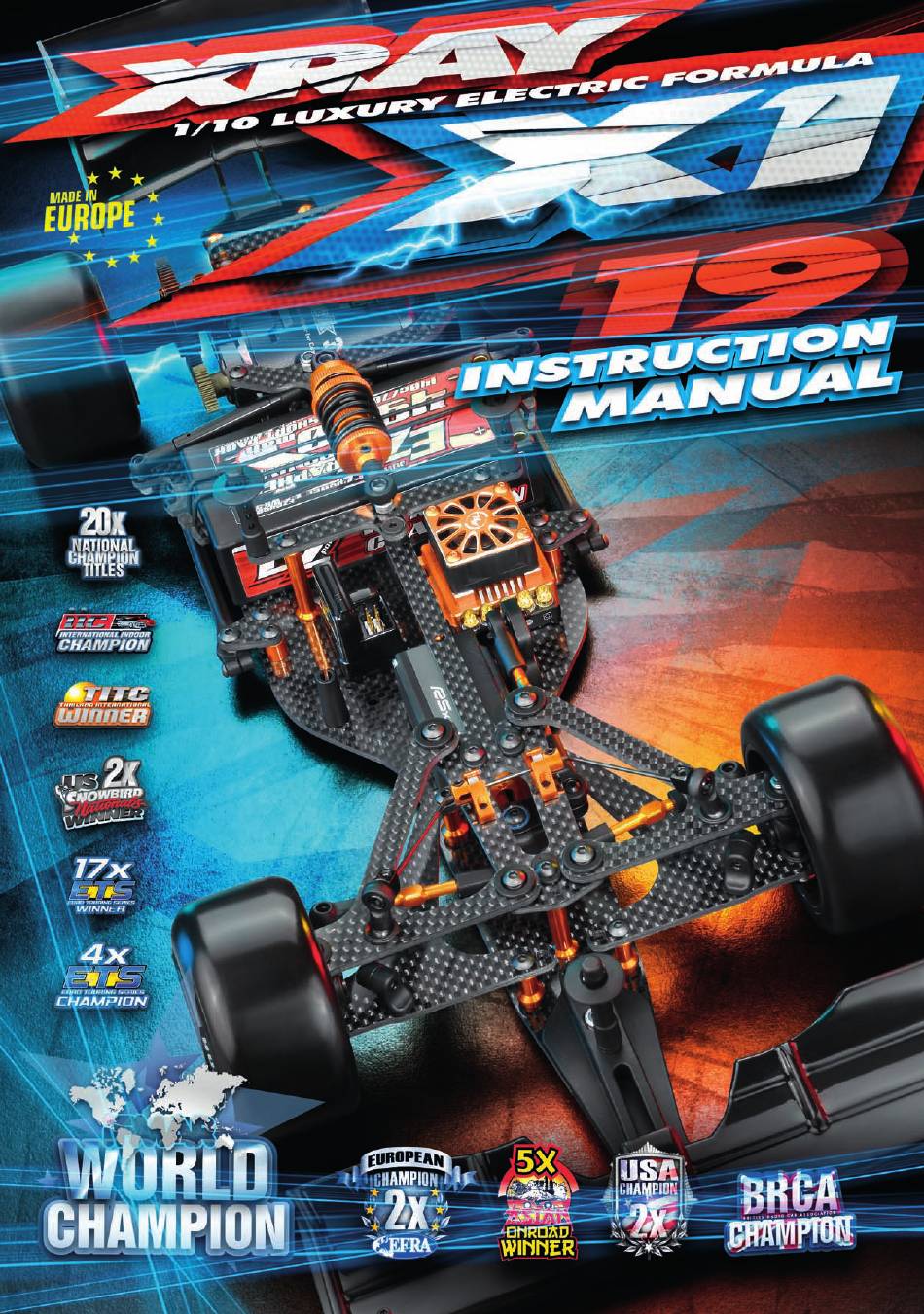

Xray X1 2019 Instruction Manual

1/10 luxury electric formula
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the X1 2019 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Xray X1 2019

Summary of Contents for Xray X1 2019

  • Page 2: Safety Precautions

    We have made every effort to make these instructions as easy to understand as possible. However, if you K Výstavisku 6992 RC America, 2030 Century Center Blvd #15 Irving, have any difficulties, problems, or questions, please do not hesitate to contact the XRAY support team 91101 Trenčín TX 75062 at info@teamxray.com.
  • Page 3 Please support your local hobby shop. We at XRAY Model Racing Cars support all local hobby dealers. Therefore we ask you, if at all possible, to purchase XRAY products at your hobby dealer and give them your support like we do. If you have difficulty finding XRAY products, please check out www.teamxray.com to get advice, or contact us via email at info@teamxray.com, or contact the XRAY distributor in your country.
  • Page 4 (HUDY #181040) (HUDY #183011) NOT INCLUDED EQUIPMENT INCLUDED HUDY Premium Silicone Oils Diff Grease XRAY offers wide range of optional tuning parts SAMPLE OF Oil 600cSt (#106360) (HUDY #106211) which are listed in a table like this. Please refer OPTIONAL PARTS...
  • Page 5 CHASSIS PREPARATION To protect and seal edges of graphite parts, sand edges smooth and then apply CA glue. Make it: this for chassis edges and countersunk holes. DETAIL Fine sandpaper Use fine sandpaper to sand smooth the edges of all graphite parts. IMPORTANT DETAIL Apply only a bit of CA glue in the countersunk holes.
  • Page 6 1. FRONT SUSPENSION FRONT COIL SPRINGS 372492 #372176 C=1.5 GOLD OPTION 902310 #372177 C=2.0 SILVER INCLUDED 372320 #372178 C=2.5 BLACK OPTION 901303 373241 #372179 C=3.0 GREY OPTION 901303 970050 #372180 C=3.5 GOLD OPTION 333452 930407 #372181 C=4.0 SILVER OPTION 962030 372410 303432-O #372182 C=5.0 BLACK OPTION...
  • Page 7 1. FRONT SUSPENSION UPPER ARMS CUTAWAY VIEW DETAIL 970050 O 5x1 6.0mm BALL END COMPOSITE BALL UPPER ARMS INITIAL SETTING DETAIL 19.5mm RC Professional Multi Tool (HUDY #183011) LOWER ARMS DETAIL 970050 O 5x1 Remove excess material CUTAWAY VIEW DETAIL #372115 NOTE ORIENTATION X1 GRAPHITE LOWER...
  • Page 8 1. FRONT SUSPENSION ALTERNATIVE 1 DETAIL STANDARD TRACK-WIDTH 303123-O (INITIAL SETTING) SHIM 3x6x2 INITIAL SETTING Standard track-width setting is used for standard F1 front tires such HUDY, RIDE, HOT RACE. 902306 To make sure that you use the correct setting, SH M3x6 measure the track-width with the tires;...
  • Page 9 1. FRONT SUSPENSION 902306 SH M3x6 903308 SFH M3x8 ALTERNATIVE 1 960030 LONG SHOCK (FORWARD MOUNT POSITION) N M3 For the LONG shock alternative, mount the shock holder on the top deck. ALTERNATIVE 2 SHORT SHOCK (REARWARD MOUNT POSITION) For the SHORT shock alternative, without the adaptor, NOTE ORIENTATION mount the shock holder on the graphite plate for mounts (page 17/ step 2)
  • Page 10 1. FRONT SUSPENSION NOTE ORIENTATION IMPORTANT! DETAIL ECCENTRIC All three bushings MUST have same orientation. 303123-O BUSHINGS These bushings adjust the front CASTER: SHIM 3x6x2 ALTERNATIVE 1 = 3° CASTER 902310 STANDARD TRACK-WIDTH SH M3x10 (INITIAL SETTING) = 6° CASTER INITIAL SETTING 903308 = 9°...
  • Page 11 1. FRONT SUSPENSION 930407 ANTI-ROLL BARS BB 4x7x2.5 #372491 1.1mm OPTION BEARING OIL #372492 1.2mm INCLUDED (HUDY #106230) #372493 1.3mm OPTION #372494 1.4mm OPTION BEARING OIL (HUDY #106230) DETAIL 901303 SB M3x3 CENTER Set the bar into the center, remove the play in the bushings, and tighten the set-screws fully.
  • Page 12 1. FRONT SUSPENSION There are THREE Ackermann positions on the steering block: DETAIL 901304 POSITION 3. SB M3x4 If using less bumpsteer shims on the steering plate and the steering linkage is touching the steering block, use 3x6x1mm composite shim (bag 5). 4mm THREAD 3x6x1mm INITIAL SETTING...
  • Page 13 2. REAR SUSPENSION SIDE SPRINGS #373584 C=0.6 SILVER OPTION 960030 #373585 C=0.9 GOLD INCLUDED 902306 #373586 C=1.2 BLACK OPTION 373548 #373587 C=1.5 SILVER OPTION 378141 #373588 C=1.8 GOLD OPTION 372662 903308 372650 372650 ALU NUTS M3 378153 378153 960030 #296530-B ALU BLUE OPTION 371320 378141...
  • Page 14 2. FRONT SUSPENSION #371148 X1 ALU 2.0mm REAR POD LOWER PLATE 902306 SH M3x6 NOTE ORIENTATION #371149 903306 X1 GRAPHITE 2.0mm REAR POD LOWER PLATE SFH M3x6 NOTE ORIENTATION GRAPHITE PLATE is lighter weight, makes the car rotate faster. ALUMINUM PLATE is heavier weight, makes the car more stable and easier to drive.
  • Page 15 2. REAR SUSPENSION NOTE ORIENTATION 902258 SH M2.5x8 Do not tighten fully, pivotballs must turn freely. NOTE ORIENTATION Do not tighten fully, pivotballs must turn freely. 902305 SH M3x5 903305 SFH M3x5 903306 SFH M3x6 902306 SH M3x6 NOTE ORIENTATION •...
  • Page 16 2. REAR SUSPENSION Make sure both side springs are tightened equally, to avoid unwanted tweak. DETAIL DETAIL 901308 SIDE SPRINGS SB M3x8 #373584 C=0.6 - SILVER OPTION 2.0mm #373585 C=0.9 - GOLD INCLUDED #373586 C=1.2 - BLACK OPTION 960030 #373587 C=1.5 - SILVER OPTION N M3 "CLICK"...
  • Page 17 2. REAR SUSPENSION Thread lock ALU NUTS M3 #296530-B ALU BLUE OPTION 902306 NOTE ORIENTATION #296530-K ALU BLACK OPTION SH M3x6 #296530-O ALU ORANGE OPTION #960030 STEEL SILVER INCLUDED #960031 ALU SILVER OPTION 903308 SFH M3x8 6mm THREAD 960030 N M3 ALTERNATIVE 2 SHORT SHOCK (REARWARD MOUNT POSITION) 902308...
  • Page 18 2. REAR SUSPENSION Add oil in each slot of the COMPOSITE side shock tubes. HUDY OILS NOTE: #106510 10 000cSt INCLUDED Add oil only in the slots, not on the whole tube. #106515 15 000cSt OPTION After assembling the side tubes, check for smooth operation. #106520 20 000cSt OPTION It is very important to re-oil the side tubes, at least once per race day.
  • Page 19 #375014 GRAPHITE REAR GEAR DIFF AXLE SHAFT #930230 CERAMIC BALL 3.175mm (12) #373042 #374901 XRAY GEAR BALL DIFF - SPUR GEARS GEAR DIFF - SPUR GEARS ALU UPPER ECCENTRIC CLAMP DIFFERENTIAL 1/10 #375872 72T / 64P OPTION...
  • Page 20 Use additional shims to widen the rear track-width. Use the same shims on both sides. For initial assembly use 6.4x8.4x1mm shims. 908258 SCH M2.5x8 Bearing Oil Flanged (HUDY #106230) 951438 BB 1/4“x3/8“x1/8“ #374901 XRAY GEAR DIFFERENTIAL 1/10 FORMULA - SET Flanged Bearing Oil (HUDY #106230)
  • Page 21 3. BALL DIFFERENTIAL 930130 B 3.1 3.2mm 930138 3.0mm BA 3x8 8.0mm 7.8mm 941438 DIFF GREASE BB 1/4“x3/8“x1/8“ (HUDY #106211) NOTE NOTE DIFF ORIENTATION ORIENTATION GREASE 960030 DIFF GREASE N M3 (HUDY #106211) NOTE ORIENTATION 963030 NOTE ST 3x8 ORIENTATION BEARING OIL (HUDY #106230) #930230...
  • Page 22 308323 ALU XRAY SHOCK BODY (2) 972030 SILICONE O-RING 3 x 2 (10) 308327-O ALU CAP FOR XRAY SHOCK BODY - ORANGE 308333 COMPOSITE SHOCK PARTS FOR ALU SHOCKS 308353-O ALU SHOCK CAP-NUT WITH VENT HOLE - ORANGE (2) 308274...
  • Page 23 4. CENTER SHOCK 965023 SHOCK PISTON ADJUSTMENT C 2.3 DETAIL 3 HOLES 1.1mm 1.2mm 1.3mm 4 HOLES 1.1mm INITIAL SETTING 1.2mm 1.3mm SHOCK OIL NOTE ORIENTATION DETAIL 972030 O 3x2 SHOCK OIL CUTAWAY VIEW DETAIL 970130 O 13x1.5 SHOCK OIL Be careful not to cross-thread the collar on the shock body.
  • Page 24 4. CENTER SHOCK SHOCK FILLING HUDY SHOCK OILS 600cSt #106310 100cSt SOFTER OIL #106315 150cSt Recommended for bumpy #106320 200cSt and low-traction tracks, #106325 250cSt generates more traction. #106330 300cSt #106335 350cSt HARDER OIL #106340 400cSt Recommend for flat and high-traction tracks, improves #106345 450cSt...
  • Page 25 4. CENTER SHOCK REBOUND ADJUSTMENT REBOUND CHECK RELEASE 2-3 turns TIGHTEN FULLY ➊ ➋ ➌ 100% CHECK REBOUND CHECK: AFTER THE SHOCK IS ASSEMBLED YOU HAVE TO SET THE SHOCK REBOUND: It is very important to push the shock shaft into the shock body slowly otherwise air can come ➊...
  • Page 26 4. CENTER SHOCK NOTE ORIENTATION (Shiny finish side) Install the balls with Professional Multi Tool (HUDY #183011) NOTE ORIENTATION (Shiny finish side) ALTERNATIVE 1 - SHORT SHOCK ALTERNATIVE 2 - LONG SHOCK NOTE ORIENTATION NOTE ORIENTATION DOWNSTOP ADJUSTMENT The length of the shock absorber affects the amount of rear downstop.

  • Page 27: Final Assembly

    X1 COMPOSITE ADJUSTABLE REAR WING - BLACK - ETS APPROVED #371202 X1 COMPOSITE ADJUSTABLE FRONT AERO WING - ETS APPROVED #379702 XRAY X1 1/10 FORMULA BODY – WORLD CHAMPION EDITION #371203-K X1 COMPOSITE ADJUSTABLE FRONT WING - BLACK - ETS APPROVED #803070...
  • Page 28 5. FINAL ASSEMBLY The steering arm has two positions for servo linkage mounting. BEARING OIL 8mm THREAD These shims adjust the bumpsteer. Always use this position (HUDY #106230) 303127-K INITIAL DETAIL 6mm THREAD SHIM 3x6x4 When thicker shims are used here, in- SETTING 3x6x4mm corner steering increases, but the car...
  • Page 29 5. FINAL ASSEMBLY DETAIL 6mm THREAD INITIAL SETTING H = Hitec F = Futaba FROM SERVO K = KO, JR, Airtronics, Sanwa For more in-corner steering and better steering ALU SERVO HORNS - OFFSET HUDY ALU SERVO HORNS response, an aluminum servo horn may be used. In #293491 KO, Sanwa - 23T #293501 KO, Sanwa - 23T this situation, the steering servo saver is NOT used.
  • Page 30 5. FINAL ASSEMBLY STEERING LINK STEERING LINK NOTE ORIENTATION SERVO LINK NOTE NOTE ORIENTATION ORIENTATION RIGHT THREAD LEFT THREAD 63mm Adjust servo link to fit your servo NOTE ORIENTATION (Shiny finish side) NOTE ORIENTATION (Shiny finish side)
  • Page 31 5. FINAL ASSEMBLY 306219 SHIM 3x6x2 902310 3x6x2mm SH M3x10 981210 P 2x10 #371203 & 371203-K #371290 #371202 X1 COMPOSITE ADJUSTABLE FRONT WING (BLACK or WHITE) - ETS APPROVED X1 ALU BODY POST PLATE X1 COMPOSITE ADJUSTABLE FRONT 903412 AERO WING - ETS APPROVED SFH M4x12 960040 N M4...
  • Page 32 5. FINAL ASSEMBLY 902306 SH M3x6 These positions adjust the HEIGHT of the rear wing. DETAIL HIGHER wing: more rear traction, more stability LOWER wing: higher top speed, improved steering response INITIAL SETTING #373511-K X1 COMPOSITE REAR WING - BLACK 906206 SFP 2.2x6 #373513-K...
  • Page 33 5. FINAL ASSEMBLY 902310 SH M3x10 306219 SHIM 3x6x2 3x6x2mm Receiver Wire Speed Controller (NOT INCLUDED) 903308 SFH M3x8 Receiver (NOT INCLUDED) Double-sided Tape HUDY #107875 (NOT INCLUDED)
  • Page 34 5. FINAL ASSEMBLY LiPo BATTERY CONFIGURATION 1 CROSS-CHASSIS ALIGNMENT INITIAL ASSEMBLY Easier to drive, decreases traction rolling. Recommended for high-traction carpet tracks. Battery Pack (NOT INCLUDED) The battery pack has to be angled when 203063 installing or removing it from the car. O 63x1.8 NOTE ORIENTATION...
  • Page 35 When you have finished cutting, peel off the external protective films. ➌ ➑ Body BODY REAMER (HUDY #107600) 2x front wings BODY #379701 XRAY INCLUDED #379702 WORLD CHAMPION EDITION OPTION 2x front wings FRONT WING TRACK-WIDTH ADJUSTMENT SHIMS #338584 5x7x0.2mm...
