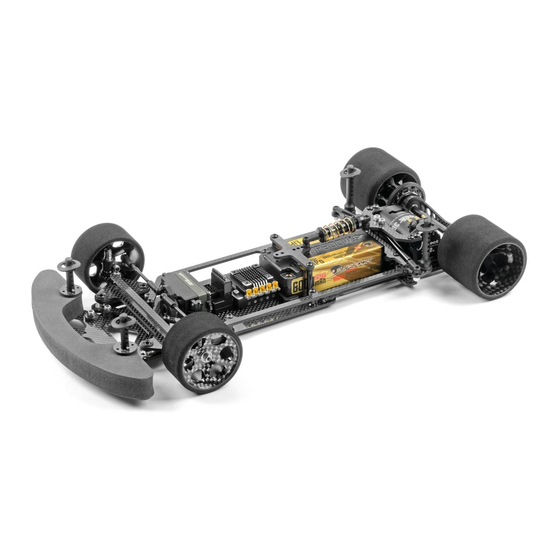

Summary of Contents for Xray X10

  • Page 2: Customer Support

    Fax: (214) 744-2401 of our customers. E-mail: info@teamxray.com E-mail: xray@rcamerica.com You can join thousands of XRAY fans and enthusiasts in our online community at: www.teamxray.com FAILURE TO FOLLOW THESE INSTRUCTIONS WILL BE CONSIDERED AS ABUSE AND/OR NEGLECT. SAFETY PRECAUTIONS Contains: reference, even after completing the assembly.

  • Page 3: Warranty

    Therefore we ask you, if at all possible, to purchase • For the best performance, it is very important that great care is taken to XRAY products at your hobby dealer and give them your support like we do. ensure the free movement of all parts.

  • Page 4: Tools Required

    The Tech Tips videos that you can scan in this instruction manual and watch are for X12. Therefore, it is important to use these videos for X10 as information and as an extra aid to understand the correct settings, but you must not take it completely into detail.
  • Page 5 COLOR INDICATIONS At the beginning of each section is an exploded view of the parts to be assembled. STYLE A - indicates parts that are included in the bag marked for the section. 371068 There is also a list of all the parts and part numbers that are related to the assembly of that section.

  • Page 6: Front Suspension

    HEX SCREW SFH M3x12 (10) 372224 COMPOSITE STEERING BLOCK FOR 4MM KING PIN - LEFT - GRAPHITE 960030 NUT M3 (10) 372288 X10 KING PIN 4MM - 1.5° (2) 960032 NUT M3 (10) 372292 STEEL SHIM 0.2MM - SILVER (2) 962042 WASHER S 4x6x0.1 (10)
  • Page 7 1. FRONT SUSPENSION NOTE 970050 ORIENTATION O 5x1 CUTAWAY VIEW DETAIL Install the balls with Professional Multi-Tool (HUDY #183011) NOTE ORIENTATION 903312 SFH M3x12 960030 N M3 CASTER ADJUSTMENT SETTING Caster is adjusted by the shims placed under front ball. 303120 Please see the table beneath the to understand how to set NOTE...
  • Page 8 M3x3 #901303 (NOT INCLUDED) FORWARD POSITION (INITIAL SETTING) Initial setting for most tracks provides a neutral steering feel similar to that of the old X10. Provides a good balance between initial response and cornering speed. REARWARD POSITION STEERING BLOCK Makes the car freer because of increased Ackermann...
  • Page 9 1. FRONT SUSPENSION 960032 N M3 NOTE ORIENTATION must be oriented towards OUTSIDE. NOTE ORIENTATION must be oriented towards OUTSIDE. CAMBER - KING PIN AXLE #372287 1º 3 DOTS OPTION #372288 1.5º 1 DOT INCLUDED #372289 2º 2 DOTS OPTION CAMBER ADJUSTMENT The car features 1.5°...
  • Page 10 You cannot change the roll center at the front S 4x6x0.1 of the X10’22 because there is no upper arm. Adding shims under the steering block – which raises the steering block – will raise the front axle height, and at the same time will decrease bump steer.

  • Page 11: Rear Suspension

    ALU CHASSIS PIVOT HOLDER - SWISS 7075 T6 960032 NUT M3 (10) 373096 ALU POD PLATE PIVOT HOLDER - SWISS 7075 T6 373097 COMPOSITE PIVOT BRACE BUSHING 371161 X10’22 GRAPHITE REAR POD LOWER PLATE 2.5MM 373553 RAPHITE REAR POD UPPER PLATE 2.5MM...
  • Page 12 2. REAR SUSPENSION NOTE ORIENTATION 903306 SFH M3x6 VIDEO TECH TIP ▶ REAR POD BUILD 902305 SH M3x5 NOTE ORIENTATION 303122 SHIM 3x6x1 8mm THREAD 903305 SFH M3x5 The amount of shims has a direct effect on the pivot mounting position. Please see: PAGE 13 INITIAL SETTING - rear pivot position...
  • Page 13 2. REAR SUSPENSION Ensure free, 902256 smooth movement SH M2.5x6 Tighten the screw enough to remove excess play, while ensuring that the pod plate can turn freely. THREAD LOCK PIVOT MOUNTING ALTERNATIVE REARWARD: FORWARD: (INITIAL SETTING) Pivot mounted in rearward chassis holes, and 1mm shim used under the pivot ball. Pivot mounted in forward chassis holes, with 3mm shims under the pivot ball.
  • Page 14 2. REAR SUSPENSION POD LINKAGE POSITION DETAIL OUTER POSITION - (INITIAL SETTING) 903306 LESS ANGLED side links make the car SFH M3x6 easier to drive. INNER POSITION MORE ANGLED side links give increased in-corner steering. DETAIL Tighten the screws enough to remove excess play, while ensuring that the pod plate can move freely.
  • Page 15 2. REAR SUSPENSION 902306 SH M3x6 903306 SFH M3x6 6mm THREAD 306219 SHIM 3x6x2 NOTE ORIENTATION SHORT SHOCK ANGLE The shim thickness under the ball stud LONG have a direct effect on shock angle. See PAGE 21 960030 N M3 6mm THREAD 902306 SH M3x6...
  • Page 16 2. REAR SUSPENSION The shim thickness under the ball stud has a direct effect on shock angle. See page 21. 303129 SHIM 3x6x1 6mm THREAD 902306 SH M3x6 903306 SFH M3x6 960032 N M3 Add oil in each slot of the COMPOSITE side tubes.

  • Page 17: Ball Differential

    #375884 84T / 64P OPTION #375792 92T / 64P OPTION #375888 88T / 64P OPTION #375892 92T / 64P OPTION #375002 #375896 96T / 64P INCLUDED XRAY SOLID AXLE 1/10 PAN CAR-SET #930238 CERAMIC AXIAL THRUSTBEARING F3-8 3x8x3.5mm 960030 930138...
  • Page 18 3. BALL DIFFERENTIAL FLANGED These eccentric bushings adjust the RIDE HEIGHT of the rear pod. Make sure to use the SAME eccentric bushings on BOTH sides. BEARING OIL INITIAL SETTING (HUDY #106230) 951438 0.5 - ORIENTATION BB 1/4“x3/8“x1/8“ ORIENTATION LOWER FLANGED 0.5 - ORIENTATION LEFT = RIGHT...

  • Page 19: Shock Absorber

    4. SHOCK ABSORBER SHOCK SPRINGS #378092 C=1.5 SILVER OPTION #378093 C=1.8 GOLD INCLUDED 378050-K #378094 C=2.1 BLACK OPTION #378095 C=1.4-1.9 BLACK OPTION 378080 #378096 C=2.0-2.5 BLACK 2 DOTS OPTION 378011 #378097 C=2.8 BLACK 3 DOTS OPTION 378011 378060 #378098 C=3.1 BLACK 4 DOTS OPTION 965015 965015...
  • Page 20 4. SHOCK ABSORBER 971022 O 2x2 Shock Oil VIDEO TECH TIP ▶ Shock Oil HOW TO BUILD CENTER SHOCK DEFAULT SHOCK SETTING FOR CENTER SHOCK ABSORBER Follow the steps below to set the shock. HALF TIGHTEN TIGHTEN FULLY 100% 700cSt 3~5x UP &...
  • Page 21 4. SHOCK ABSORBER ALTERNATIVE 1 - SHORT SHOCK ALTERNATIVE 2 - LONG SHOCK (INITIAL SETTING) 901303 901303 SB M3x3 SB M3x3 For the LONG shock alternative, use the shock adaptor. For initial setting, For initial setting, thread fully. thread fully. ADAPTOR SHORT SHOCK: LONG SHOCK:...

  • Page 22: Final Assembly

    5. FINAL ASSEMBLY 306200-K Servo 371325 Speed Controller (NOT INCLUDED) 371349 (NOT INCLUDED) 902308 903306 371325 Screw from servo Receiver (NOT INCLUDED) (NOT INCLUDED) 2S LiPo Battery Pack 372503 981212 (NOT INCLUDED) 309402 371345 371225 371325 376130 309402 903305 960030 371040 981212 371325...
  • Page 23 5. FINAL ASSEMBLY ALTERNATIVE 2 ALTERNATIVE 1 - MID size servo - STANDARD size servo (OPTIONAL) (INITIAL SETTING) 306219 SHIM 3x6x1 OPTIONAL INCLUDED STANDARD size servo MID size servo (NOT INCLUDED) (NOT INCLUDED) 306219 SHIM 3x6x2 306219 SHIM 3x6x3 For MID size servo use the For STANDARD size servo use the OPTIONAL #376255-O alu servo mounts.
  • Page 24 5. FINAL ASSEMBLY MID size servo 903306 (NOT INCLUDED) SFH M3x6 STANDARD size servo (NOT INCLUDED) 34mm 34mm STEERING LINKS FOR FORWARD HOLE ON STEERING BLOCK (INITIAL SETTING) STEERING BLOCK STEERING BLOCK 29mm 29mm STEERING LINKS FOR REARWARD HOLE ON STEERING BLOCK NOTE ORIENTATION The square is oriented towards steering block.
  • Page 25 5. FINAL ASSEMBLY 902310 SH M3x10 981212 P 2x12 903308 SFH M3x8 The bodies for 1/10 pan cars are available in different lengths. The bumper position depends 903312 on the length of the body. SFH M3x12 INITIAL SETTING 960030 N M3 3x12mm 3x8mm 3x12mm...
  • Page 26 5. FINAL ASSEMBLY 902306 SH M3x6 3x10mm 3x6mm 902310 SH M3x10 3x6mm 903306 SFH M3x6 3x6mm 960030 N M3 CHASSIS FLEX ADJUSTMENT STIFF (INITIAL SETTING) MEDIUM-STIFF MEDIUM SOFT (NO BRACES) Braces installed, attached at all positions. Braces installed, attached at middle-front, Braces installed, attached at middle &...
  • Page 27 5. FINAL ASSEMBLY Motor (NOT INCLUDED) Screw (NOT INCLUDED) Pinion (NOT INCLUDED) PINION GEARS ALU HARDCOATED #294130 30T / 64P OPTION #294143 43T / 64P OPTION #305968 18T / 64P OPTION #294131 31T / 64P OPTION #294144 44T / 64P OPTION #305969 19T / 64P...
  • Page 28 5. FINAL ASSEMBLY ELECTRONICS CONFIGURATION: REARWARD POSITION INITIAL POSITION) 903305 When inserting or removing the battery pack, SFH M3x5 Battery Pack remove the forward shock mount graphite plate. (NOT INCLUDED) Receiver Speed Controller (NOT INCLUDED) (NOT INCLUDED) Double-sided Tape (HUDY #107875) (NOT INCLUDED) ELECTRONICS CONFIGURATION: FORWARD POSITION...
  • Page 29 5. FINAL ASSEMBLY 372290 SHIM 3.2x4.8x0.5 375390 ALU SCH M3x8 951851 BB 1/8“x5/16“x9/64“ 960030 N M3 Rear Wheels & Tires (NOT INCLUDED) Front Wheels & Tires (NOT INCLUDED) Fibre Tape (HUDY #107870) (NOT INCLUDED) Gently tighten the wheel nuts so the wheel turns freely, but without excessive axial play.
  • Page 30 RC AMERICA, 2030 Century Center Blvd #15, Irving, TX 75062, USA PHONE: 214-744-2400, FAX: 214-744-2401, xray@rcamerica.com...
