Xray X12 Series Instruction Manual

1/12 luxury pan car
Hide thumbs Also See for X12 Series:
Table of Contents

Advertisement

Quick Links

Download this manual

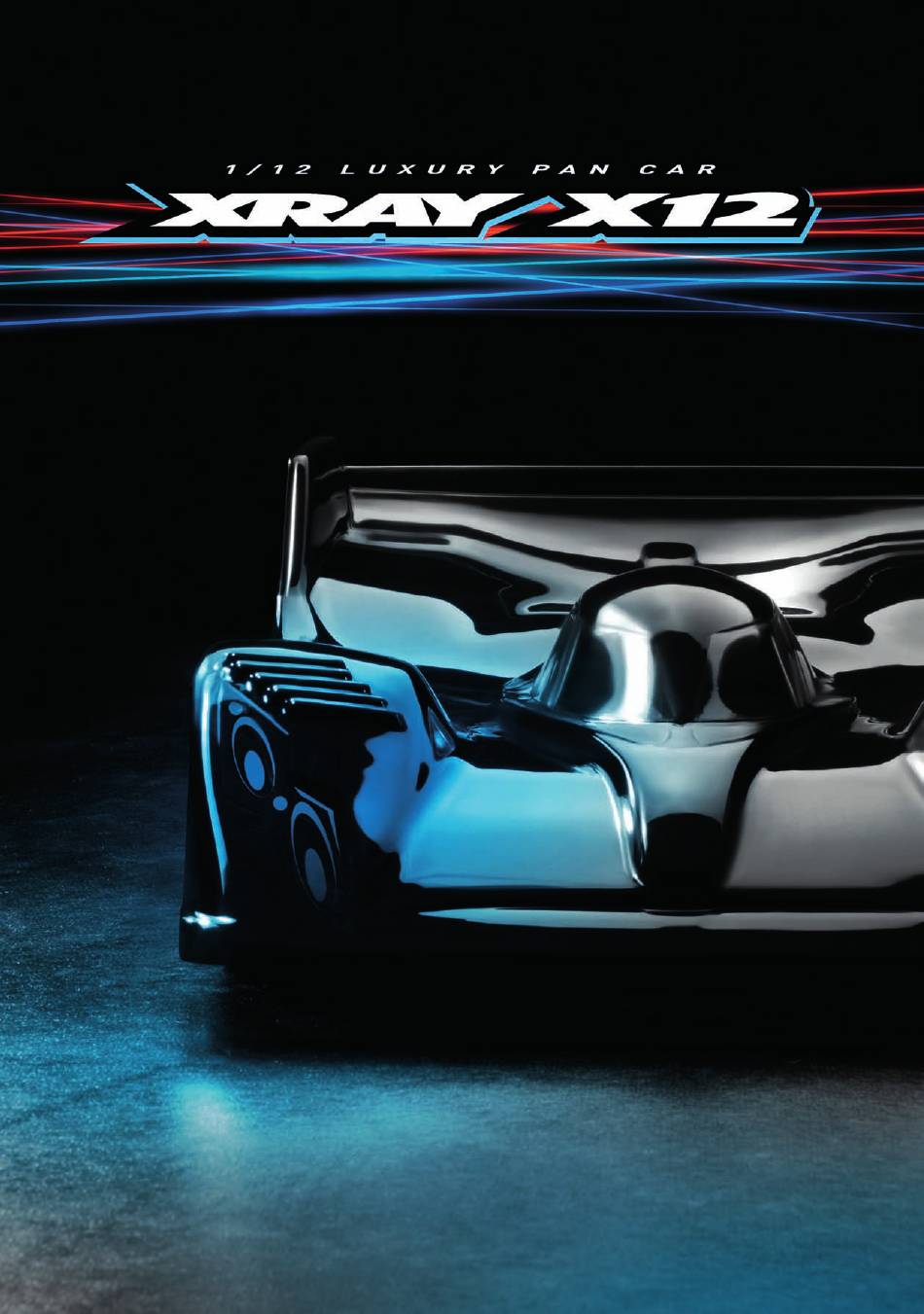

I N S T R U C T I O N M A N U A L
FOR X12 '2 0 EU & US EDITION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X12 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Xray X12 Series

Summary of Contents for Xray X12 Series

  • Page 1 I N S T R U C T I O N M A N U A L FOR X12 '2 0 EU & US EDITION...

  • Page 2: Customer Support

    However, if you have any difficulties, problems, or questions, please do not hesitate to 91101 Trenčín Irving, TX 75062 contact the XRAY support team at info@teamxray.com. Also, please visit our Web site at Slovakia, EUROPE www.teamxray.com to find the latest updates, set-up information, option parts, and many...

  • Page 3: Warranty

    Therefore we ask you, if at all possible, to purchase • For the best performance, it is very important that great care is taken to ensure XRAY products at your hobby dealer and give them your support like we do. If the free movement of all parts.

  • Page 4: Symbols Used

    NOT INCLUDED XRAY offers wide range of optional tuning parts which To ensure that you always have access to the most up-to-date version of the XRAY Set-up Book, SAMPLE OF XRAY will now be offering only the digital online version at our website at www.teamxray.com. By are listed in a table like this.
  • Page 5 GRAPHITE PART PREPARATION PREPARE ALL GRAPHITE PARTS To protect and seal edges of graphite parts, sand edges smooth and then apply CA glue. Fine sandpaper Use fine sandpaper to sand smooth the edges of all graphite parts. Apply CA glue to all adges of the graphite parts.

  • Page 6: Front Suspension

    1. FRONT SUSPENSION 371113 372290 372012 965019 372211 372280 377220 901304 372131-G 372113 902310 373240 372150 903312 902312 960031 372650 372620 372315 372022 903308 373120-O 372316-O 371211 902305 303123-O 372290 303122-O 372123 964032 372088 303121-O 372221 960031 375220 903310 372292 372293 965019 372294...
  • Page 7 1. FRONT SUSPENSION Tighten gently UPPER ARM POSITION ADJUSTMENT SHIMS The shims influence the camber gain change. 303121-O 901304 SHIM 3x6x0.5 SB M3x4 MORE shims = less camber gain, reduced initial steering, reduced steering sensitivity (less twitchy). 3x10mm 5.3x7.8x0.5mm LESS shims = more camber gain, increased initial 3x12mm steering, increased steering sensitivity.
  • Page 8 1. FRONT SUSPENSION 902305 SH M3x5 7.2mm 7.2mm DETAIL NOTE ORIENTATION NOTE ORIENTATION STEEL BALL FRONT UPPER ARM #372130 MEDIUM OPTION #372131 HARD OPTION #372131-G GRAPHITE INCLUDED CAMBER 1+0.5mm If the arm does not have enough play, remove the clips and thin the clips slightly with sandpaper. 901304 The arms must have free movement and not bind.
  • Page 9 1. FRONT SUSPENSION The thickness of shims changes the steering linkage ALU NUTS M3 angle. Thicker shims gives decreased in-corner #296530-B BLUE OPTION steering, but car becomes easier to drive. 303122-O #296530-K BLACK OPTION SHIM 3x6x1 3x6x1mm Use 3mm bump steer as INITIAL SETTING.
  • Page 10 1. FRONT SUSPENSION 372012 372290 372211 965019 372280 372124 377220 902308 901304 372131-G 373240 371115 902310 372150 960031 902306 372620 372650 903306 372315 372022 372330-O 373120-O 903306 372320 303123-O 372290 303122-O 964032 372221 371211 303121-O 970050 372125 902308 960031 375220 903310 372310-O 372293...
  • Page 11 1. FRONT SUSPENSION 903310 SFH M3x10 960031 ALU N M3 ALU NUTS M3 #296530-B BLUE OPTION #296530-K BLACK OPTION #296530-O ORANGE OPTION #960031 SILVER INCLUDED CUTAWAY VIEW NOTE ORIENTATION DETAIL 970050 O 5x1 DETAIL NOTE ORIENTATION COMPOSITE BALL 903306 SFH M3x6 NOTE ORIENTATION 303121-O UPPER ARM POSITION ADJUSTMENT SHIMS...
  • Page 12 1. FRONT SUSPENSION The X12 has adjustable front track-width. There are 3 different bushings - 0mm centric (included in kit), or 0.5mm or 1.0mm eccentric (optional). Use the same bushing in front and rear, and also use the same (mirrored) orientation of the bushing on both right and left sides. 902306 SH M3x6 Use the proper matching bushings to achieve the desired...
  • Page 13 1. FRONT SUSPENSION NOTE ORIENTATION STEEL BALL 7.2mm 7.2mm DETAIL NOTE FRONT UPPER ARM ORIENTATION #372130 MEDIUM OPTION #372131 HARD OPTION #372131-G GRAPHITE INCLUDED CAMBER DETAIL Make sure that arm moves freely. 1+0.5mm DETAIL Moves freely Fully Tighten If the arm does not have enough play, remove the clips and thin the clips slightly with sandpaper.
  • Page 14 1. FRONT SUSPENSION Marked "R" The thickness of shims changes the steering linkage 303122-O angle. Thicker shims gives decreased in-corner SHIM 3x6x1 steering, but car becomes easier to drive. 3x6x1mm Use 3mm bump steer as INITIAL SETTING. 3x6x2mm 303123-O SHIM 3x6x2 Marked "L"...

  • Page 15: Rear Suspension

    3. REAR SUSPENSION ALU NUTS M3 SIDE SPRINGS #296530-B BLUE OPTION #373584 C=0.6 SILVER OPTION 960031 #296530-K BLACK OPTION 372650 902306 #373585 C=0.9 GOLD INCLUDED #296530-O ORANGE OPTION 306219 #373586 C=1.2 BLACK OPTION #960031 SILVER INCLUDED 373551 #373587 C=1.5 SILVER OPTION 372662 #373588 C=1.8 GOLD OPTION...
  • Page 16 3. REAR SUSPENSION 902306 NOTE SH M3x6 ORIENTATION 903306 SFH M3x6 Lightly tighten the screws so there is no free play, but do not overtighten otherwise the pivotball will not move freely. 902306 DETAIL SH M3x6 Ensure free, smooth movement without excessive freeplay.
  • Page 17 3. REAR SUSPENSION 902258 SH M2.5x8 Do not tighten fully, pivotballs must turn freely. Do not tighten fully, pivotballs must turn freely. 902305 SH M3x5 903305 SFH M3x5 Ensure free, smooth movement DETAIL 902306 SH M3x6 TIGHTEN FULLY 903306 SFH M3x6 POD Linkage position DETAIL OUTER POSITION - (INITIAL SETTING)
  • Page 18 3. REAR SUSPENSION 0.5mm DETAIL 901308 SB M3x8 "CLICK" 902306 SH M3x6 For battery backstop adjustment check page 26 / step 2. 960031 ALU N M3 INITIAL SETTING NOTE ORIENTATION ALU NUTS M3 #296530-B BLUE OPTION #296530-K BLACK OPTION #296530-O ORANGE OPTION #960031 SILVER INCLUDED 902306...
  • Page 19 3. REAR SUSPENSION HUDY OILS 50ml #106410 1000cSt #106420 2000cSt #106430 3000cSt #106440 3000cSt #106450 5000cSt Add oil in each slot of the COMPOSITE #106460 6000cSt side tubes. #106470 7000cSt NOTE: #106480 8000cSt Add oil only in the slots, not on the whole tube. #106510 10000cSt After assembling the side tubes, check for smooth operation.

  • Page 20: Ball Differential

    303143 #930238 CERAMIC BALL-BEARING AXIAL F3-8 3x8x3.5 372072 375093-O 375040 #375000 XRAY SOLID AXLE 1/12 PAN CAR - SET #375012 STEEL REAR AXLE SHAFT - HUDY SPRING STEEL™ #373042 #374900 SPUR GEARS GEAR DIFF - SPUR GEARS ALU UPPER ECCENTRIC CLAMP...
  • Page 21 4. BALL DIFFERENTIAL #373042 The thickness of shims used affects ALU UPPER ECCENTRIC CLAMP the ride height of the car, so 303142-O NOTE determine the proper amount of SHIM 3x5x0.5 ORIENTATION A SHORTER car rotates harder in slow corners and has improved forward traction. shimming based on tire diameter.

  • Page 22: Shock Absorber

    5. SHOCK ABSORBER SHOCK SPRINGS #378092 C=1.5 SILVER OPTION #378093 C=1.8 GOLD INCLUDED 378011 #378094 C=2.1 BLACK OPTION 965015 #378095 C=1.4~1.9 BLACK OPTION 378050-O #378096 C=2.0~2.5 BLACK 2 DOTS OPTION 378061 378080 378011 971022 378030-O HUDY SHOCK OILS - 100ml 378020 #106311 100cSt...
  • Page 23 5. SHOCK ABSORBER 971022 O 2x2 Shock Oil Shock Oil DEFAULT SHOCK SETTING FOR CENTER SHOCK ABSORBER Follow the steps below to set the shock. HALF TIGHTEN TIGHTEN FULLY 100% 700cSt 3~5x UP & DOWN ➐ Keep the shock shaft ➊...

  • Page 24: Final Assembly

    6. FINAL ASSEMBLY ALU NUTS M3 378001 203052 #296530-B BLUE OPTION #296530-K BLACK OPTION #296530-O ORANGE OPTION #960031 SILVER INCLUDED LiPo Battery (NOT INCLUDED) 376310 (OPTION) 372650 376130 306219 960031 903305 901303 376132 Receiver 903308 (NOT INCLUDED) or 903310 902308 301159-O 902308 903310...
  • Page 25 6. FINAL ASSEMBLY We recommend using a servo for 1/12 pan cars. NOTE ORIENTATION STANDARD SERVO MICRO SERVO POSITION POSITION 306219 SHIM 3x6x1 3x6x1mm 903310 SFH M3x10 Do not use for basic set up. ACKERMANN SERVO SAVER Futaba Hitec KO Propo NOTE ORIENTATION Use the adapter that matches the steering servo.
  • Page 26 6. FINAL ASSEMBLY ALTERNATIVE 1 ALTERNATIVE 2 LONG SHOCK SHORT SHOCK - FORWARD MOUNT POSITION - REARWARD MOUNT POSITION (INITIAL SETTING) 306219 SHIM 3x6x2 3x6x2mm 3x6x2mm DETAIL 960032 "SHORT SHOCK" N M3 "LONG SHOCK" INITIAL SETTING BLACK nut M3 BLACK nut M3 The position of the servo depends on the weight of the electronics.
  • Page 27 6. FINAL ASSEMBLY 27.2mm 27.2mm Left thread Left thread ACKERMANN NOTE ORIENTATION 306219 SHIM 3x6x3 3x6x3mm 902310 SH M3x10 980210 P 2x10...
  • Page 28 6. FINAL ASSEMBLY 903308 SFH M3x8 980210 P 2x10 Motor PINION GEARS ALU HARDCOATED (NOT INCLUDED) #305968 18T / 64P OPTION #305969 19T / 64P OPTION #305970 20T / 64P OPTION #305971 21T / 64P OPTION #305972 22T / 64P OPTION #305973 23T / 64P...

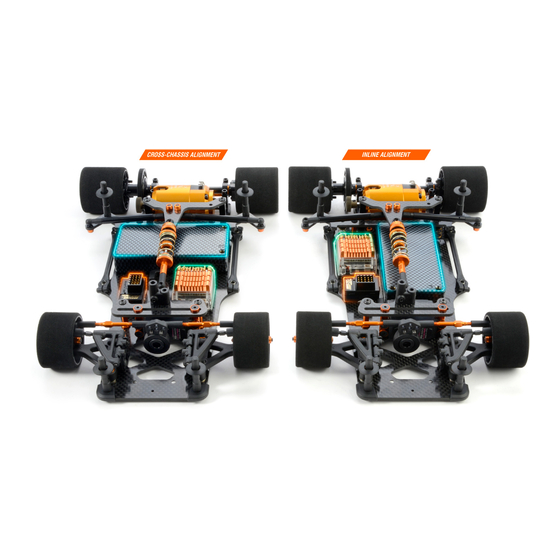

  • Page 29 6. FINAL ASSEMBLY There are two alternative battery positions: CROSS-CHASSIS ALIGNMENT (INITIAL SETTING), or inline alignment. Positioning of electronics depends on the battery Receiver Wire position. (NOT INCLUDED) #376310 ANTENNA ROD DETAIL (OPTION) See page 26 step 2 or page 27 step 1. Receiver (NOT INCLUDED) After inserting the antenna rod, fully...
  • Page 30 6. FINAL ASSEMBLY LIPO BATTERY CONFIGURATION 2 INLINE ALIGNMENT: Inline battery alignment improves cornering speed and reduces the chance that the rear of the car will “diff out.“ Recommended for high-traction conditions. 903305 SFH M3x5 Battery Pack (NOT INCLUDED) Receiver Fibre Tape (NOT INCLUDED) (HUDY #107870)
  • Page 31 X12’20 SET-UP SHEET VER.1 ©XRAY RACE TRACK NAME DATE TEMPERATURE AIR TEMPERATURE TRACK RACE LENGTH BEST LAP TIME /min /sec QUALIFYING POSITION FINAL POSITION TRACK TRACK SURFACE CARPET ASPHALT TRACK LAYOUT TECHNICAL MIXED FAST TRACTION MEDIUM HIGH CENTER SHOCK ABSORBER...
  • Page 32 RC AMERICA, 2030 Century Center Blvd #15, Irving, TX 75062, USA PHONE: 214-744-2400, FAX: 214-744-2401, xray@rcamerica.com...
