Summary of Contents for Solo 444
- Page 1 444 / 451 Instruction manual Mistblower Original instructions Important! Read this instruction manual carefully before first operation and strictly observe the safety regulations! 9 451 100 ENGLISH 08/2010...
- Page 2 Your emission control system includes parts such as the carburetor, the ignition system, and the exhaust Type plate system. Where a warrantable condition exists, Solo will repair your small non-road power equipment engine at no cost to you including diagnosis, parts, and labor. Manufacturers Warranty Coverage Solo's small non-road power equipment engines are warranted for a period of two years.
-
Page 3: Table Of Contents
13. Workshop service, replacement parts and guarantee ..............16 13.1 Maintenance and repair 13.2 Replacement parts 13.3 Guarantee 13.4 Parts subject to tear and wear Please obtain the following practical accessories from your SOLO Dealer: Accessories Part No. ULV-Nozzle with ULV dosage selector for application of minute ULV-nozzle... -
Page 4: Important Components

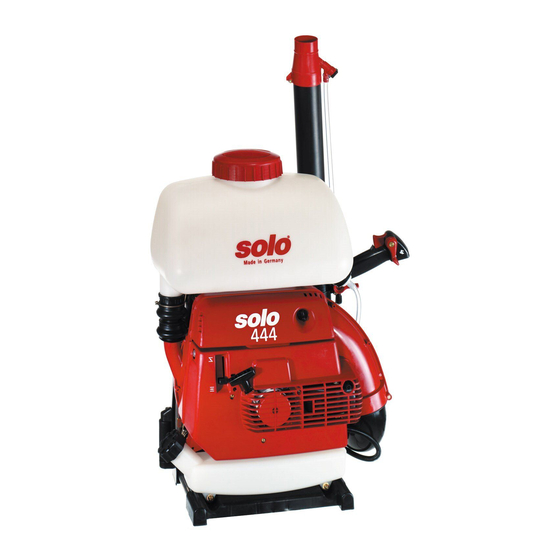

Important Components 2. Important Components Fig. 1a, Type 444 Tank lid / Filler basket with filter Primer Formula tank Shoulder strap – quickcoupling Formula outlet Formula On-off tap Spark plug Spray tube Carburetor adjustment screws Spray nozzle Muffler Dosage sleeve... -
Page 5: Safety Regulations
Important Components ; Safety regulations Fig. 1b, Type 451 3. Safety regulations 3.1 Correct use / Application The machine may only be used for the following areas of application: The blower is suitable for applying pesticides approved by the national regulatory authorities. Closely observe the instructions provided by the pesticide manufacturer. -
Page 6: General Safety Instructions
Safety regulations 3.2 General safety instructions Some parts on the machine have been removed for transport purposes. Prior to first use, the mistblower has to be completely assembled. This mistblower may only be started and used when completely assembled. Read the operating instructions carefully before placing in service and keep them in a safe place. First time users should be instructed by the seller or an expert. -
Page 7: Technical Specifications
Technical Specifications 4. Technical Specifications Mistblower Engine type SOLO single cylinder two-stroke engine Engine capacity 40.2 66.5 Bore / stroke 40 / 32 46 / 40 Max Engine power (ISO 8893) kW at rpm 1.5 / 6500 2.1 / 5750 Max. -
Page 8: Maintenance And Care
(mountains or low lying areas), the carburettor damage! may require readjustment. Fig. 2a, Fig. 2b, Type 444 Type 451 The carburettor has 3 adjusting screws (Fig. 1 - 5): Idling end-stop screw "T" Low speed mixture screw "L"... -
Page 9: Air Filter Maintenance
If engine rpm's tend to drop although the carburettor adjustments are perfectly set, the air filter cartridge is clogged and must be replaced by a new one (Type 444: Order-Nr. 20 48 282) (Type 451: Order-Nr. 20 48 280). ENGLISH 9... -
Page 10: Assembly
Assembly ; Adjustment of shoulder straps 6. Assembly Completely assembly the mistblower before its first use: Fig. 4 Assembly of misting equipment Attach the blower elbow (1) to the blower housing and secure with both screws (Fig.4D; A+B). Ensure the elbow can swivel easily. -
Page 11: Fuel Information
We recommend a mixing ratio of 50 parts fuel to 1 part of oil (1:50 – 2%) with the use of special 2- cycle oil “SOLO Profi 2T Oil”. When using other - cycle oils we recommend a mixture ratio of 1:25 ... -
Page 12: Starting / Stopping The Engine
(OFF) formula on/off tap . throttle lever or move throttle lock lever down to Move throttle lock lever to ”Start” position. ”min” position. Fig. 7aType 444 Starting with warm engine after short stop Leave choke in ”open” position and start engine. -
Page 13: Operation Hints
When spraying predominantly upwards (tall trees) we recommend using the liquid pump offered as an accessory (part no.: type 444 44 00 114, type 451 44 00 235) 11.2 Spraying Misting Output Guide Type 444... -
Page 14: Residual Spray Medium
11.4 Strainer for accessory sets When using the liquid pump (accessory part no.: type 444 44 00 114, type 451 44 00 235) or the ULV accessory (part no.: 49 00 479), a strainer is integrated into the tank connector. -
Page 15: Draining And Cleaning The Tank
Operation hints 11.6 Draining and cleaning the tank Fig. 13 For cleaning purposes, the tank can be fully drained into a suitable container via the supply hose. For this, the engine must be cooled down. Position the equipment onto a stable higher support, so that the spray medium can drain into a suitable container below. -
Page 16: Maintenance Plan
Thus SOLO recommends that you have a specialized SOLO workshop carry out all work that is not described in these operating instructions. Your SOLO specialist has the required training, experience, and equipment at his disposal to provide you with the most cost-effective solution and can help you in many ways with advice and service. -
Page 17: Replacement Parts
• Damages caused by overheating due to dirt build up on the ventilator casing. • Intervention by non-specialized persons, or improper repair attempts. • The use of unsuitable replacement parts or parts other than SOLO original parts to the extent that they cause damage. - Page 18 Made in Germany SOLO SOLO Postfach 60 01 52 P.O.Box 60 01 52 D 71050 Sindelfingen D 71050 Sindelfingen Germany Tel. 07031-301-0 Phone+49-7031-301-0 Fax 07031-301-130 +49-7031-301-149 info@solo-germany.com export@solo-germany.com...
