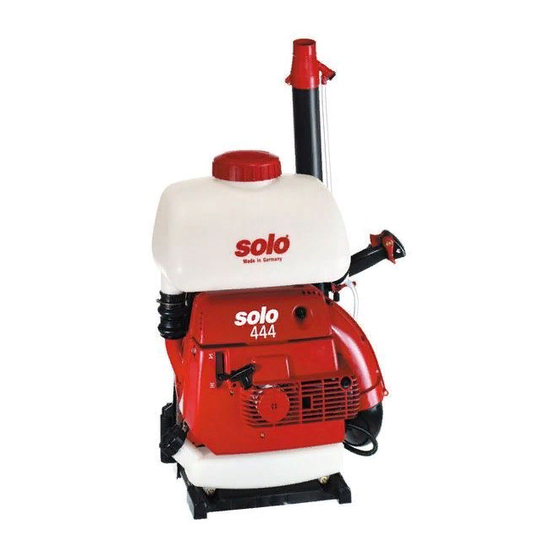

Solo MISTBLOWER 444 Operating Manual

Solo chainsaw user manual
Hide thumbs Also See for MISTBLOWER 444:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual
444 / 450
Operating manual
Mistblower
Important:
Read this instruction manual carefully before
putting the chain saw into operation and
strictly observe the safety regulations!
9 450 110 english
01/2008

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MISTBLOWER 444 and is the answer not in the manual?

Questions and answers

Related Manuals for Solo MISTBLOWER 444

Summary of Contents for Solo MISTBLOWER 444

  • Page 1 444 / 450 Operating manual Mistblower Important: Read this instruction manual carefully before putting the chain saw into operation and strictly observe the safety regulations! 9 450 110 english 01/2008...

  • Page 2: Parts Subject To Wear And Tear

    Preface Dear Customer, We congratulate you on your new SOLO Mistblower and hope that you will be satisfied with this modern tool. A state-of-the-art single cylinder two-cycle engine with Nikasil coated cylinder bore combined with renowned SOLO technology of high performance with low fuel consumption will guarantee a high degree of application value of this product.

  • Page 3: Table Of Contents

    1. Important Components / Type plate ... 4 2. Technical Specifications ... 6 3. Safety regulations ... 7 Correct use / Notes for General Use General safety instructions Personal protective equipment for your safety Protection of Environment Operating Hints 4. Maintenance and Care ... 8 General Maintenance Hints Fuel-Information Spark Plug...

  • Page 4: Important Components / Type Plate

    Important Components Fig. 1a, Type 444 Type plate: ENGLISH 1. Important Components / Type plate a: Type designation b: Serial number c: Build year (08 2008)
  • Page 5 Fig. 1b, Type 450 Tank lid / Filler basket with filter Formula tank Formula outlet Spark plug Carburetor adjustment screws Muffler Starter handle Air filter cover Fuel tank cap Choke Primer Shoulder strap – quickcoupling Formula On-off tap Spray tube Spray nozzle Dosage sleeve Throttle lever...

  • Page 6: Technical Specifications

    Technical Specifications Mistblower Engine type Engine capacity Bore / stroke Fuel tank capacity Fuel mix ratio: Carburettor Air filter cartridge Ignition Total Formula Tank Capacity Nominal Formula Tank Capacity Strain funneled mesh size Residual volume which the equipment cannoot properly apply Strainer for accessory sets mesh size Max.

  • Page 7: Personal Protective Equipment For Your Safety

    3.1 Correct use / Notes for General Use • The mistblower is suitable for the application of crop protection products which have been approved by the responsible, local Registration Authority. The output quantity can depend on the position of the spray tube. •...

  • Page 8: General Maintenance Hints

    Maintenance and Care 4. Maintenance and Care 4.1 General Maintenance Hints After a running in period of approx. 5 hours, all accessible screws and nuts (except for carburetor mixture adjustment needles) have to be checked and re-tightened if required. Any service jobs, other than those described in this manual, should only be carried out by an authorized service center.

  • Page 9: Preparation For Storage

    4.3 Spark Plug The correct spark plug with thermal range 200 is available under the following brands: BOSCH CHAMPION RCJ-6Y or similar The correct electrode gap is 0.5 mm. Check the plug after every 50 operating hours and replace if electrodes are worn. 4.4 Preparation for Storage Store the motorized mistblower in a dry room.

  • Page 10: Air Filter Maintenance

    4.6 Air Filter Maintenance The air filter separates and retains dirt before the air reaches the combustion chamber. This reduces engine wear. Fig. 3a, Type 444 Fig. 3b, Type 450 Regular maintenance increases engine life. Clogged air filters cause performance loss and increased fuel consumption.

  • Page 11: Assembly Of Handle, Spray Tube And Spray Nozzle

    Assembly 5. Assembly Fig. 4 Completely assembly the mistblower before its first use: 5.1 Assembly of misting equipment Attach the blower elbow (1) to the blower housing and secure with both screws (Fig.4D; A+B). Ensure the elbow can swivel easily. Push pleated hose onto blower elbow and secure with clamp (4). 5.2 Assembly of handle, spray tube and spray nozzle Push handle (5) onto spray tube (start from the front) and fix in the required position (Fig.4C).

  • Page 12: Starting / Stopping The Engine

    6. Starting / Stopping the engine Starting with cold engine Fig. 5 • Switch ignition switch to ”I” position and close (OFF) formula on/off tap . • Move throttle lock lever to ”Start” position. Fig. 6a, Type 444 Fig. 6b, Type 450 ENGLISH •...

  • Page 13: Adjustment Of Shoulder Straps

    7. Operating Hints Before every use and before every start of the mistblower check and ensure the machine is in good and safe condition. (throttle operation, ignition switch, safety devices, shoulder strap and check for fuel leaks). • During the starting procedure and while operating the mistblower, the operator must have secure footing and have a safe body position.

  • Page 14: Checking The Spray Medium Flow Rate

    Wide-range nozzle (7): Fig. 9 When spraying plants and trees we recommend fixing the wide-range nozzle (7) onto the red standard nozzle (4). This ensures that a large area can be sprayed at one time. Push the wide-range nozzle onto the standard nozzle, until the bead engages.

  • Page 15: Draining And Cleaning The Tank

    Should the actual value be too high, the metering body may be worn or damaged. In that case, replace the metering body with a new one (part no.:40 74 165). When using accessory sets (liquid pump part no.: type 444 44 00 114, type 450 accessory, part no.: 49 00 479) a strainer will be integrated into the tank connector.

  • Page 16: Maintenance Plan

    The following information is based on standard operating conditions. For special conditions, such as prolonged daily use, the recommended maintenance intervals should be reduced accordingly. Implement all maintenance jobs regularly. If required, authorise a specialist service centre to maintain the machine for you. The owner of the machine is responsible for: •...

  • Page 17: For Usa Only: Ecw Statement / Manufacturers Warranty Coverage

    Contact Information for Authorized Service Center Locations, Replacement Parts, Warranty and Technical Information Warranty repairs must be completed by a SOLO Authorized Service Center. SOLO USA, Inc. 5100 Chestnut Avenu techserv@solousa.com Newport News, VA 23605 9. Motorised sprayer - accessories...

  • Page 18: Made In Germany

    SOLO SOLO Postfach 60 01 52 P.O.Box 60 01 52 D 71050 Sindelfingen D 71050 Sindelfingen Germany Tel. 07031-301-0 Phone+49-7031-301-0 Fax 07031-301-130 +49-7031-301-149 info@solo-germany.com export@solo-germany.com Made in Germany...

This manual is also suitable for:

Mistblower 450
