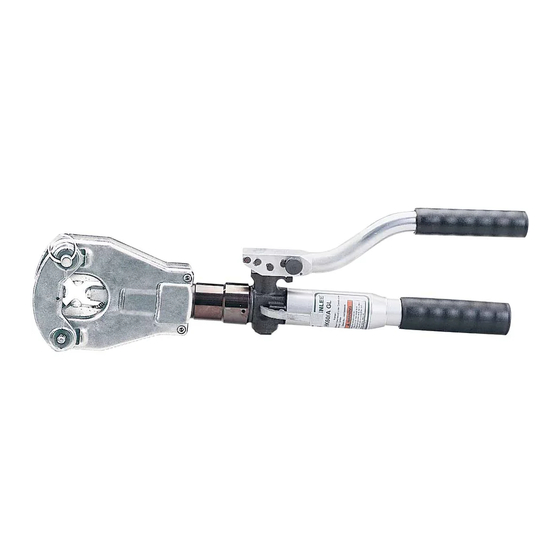

- Page 1 INSTRUCTION MANUAL HK06FT Hydraulic Crimping Tool Read and understand all of the instructions and safety information in this manual before operating or servicing this tool. Register this product at www.greenlee.com 99930927 © 2011 Greenlee Textron Inc. IM 1371 REV 7 9/11...
-
Page 2: Table Of Contents
All specifications are nominal and may change as design improvements occur. Greenlee Textron Inc. shall not be liable for damages resulting from misapplication or misuse of its products. Blackburn is a registered trademark of Thomas & Betts. -
Page 3: Important Safety Information
HK06FT Hydraulic Crimping Tool IMPORTANT SAFETY INFORMATION SAFETY ALERT Electric shock hazard: This tool is not insulated. When using SYMBOL this unit on or near energized electri- cal lines, use proper personal protec- tive equipment. This symbol is used to call your attention to hazards... -
Page 4: Greenlee / A Textron Company
HK06FT Hydraulic Crimping Tool IMPORTANT SAFETY INFORMATION An incomplete crimp can cause a fire. Use proper • This tool is intended for two-handed operation. connector and cable combinations. Maintain a firm grip on both handles during opera- tion. Using this tool in any other manner can result •... -
Page 5: Identification
HK06FT Hydraulic Crimping Tool Identification HK06FT 4. Handle Release 1. Crimping Head 5. Decal 2. Flip Top 6. Decal 3. Release Lever Specifications Crimping Tool Length ....................535 mm (21.06") Width ....................191 mm (7.5") Height ....................63.5 mm (2.5") Mass/Weight ..................4.1 kg (9 lb) Hydraulic Oil ............ -
Page 6: Operation
HK06FT Hydraulic Crimping Tool Operation 1. Follow the lug manufacturer’s instructions for appro- priate cable strip length and surface preparation. 2. Insert cable fully into connector. Electric shock hazard: 3. Pull the latch pin and open the latch. Insert the con- This tool is not insulated. -
Page 7: Connector Selection
Send the crimping Testing the Crimping Tool tool to an authorized Greenlee service center. 1. Center a test slug between the nibs. • If the test slug fits into the GO slot, the pressure 2. -
Page 8: Illustrations And Parts List
HK06FT Hydraulic Crimping Tool Illustration Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... - Page 9 HK06FT Hydraulic Crimping Tool Illustration Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
- Page 10 HK06FT Hydraulic Crimping Tool Illustration Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
-
Page 11: Parts List
HK06FT Hydraulic Crimping Tool Parts List Part No. Description 50063847 Pump body....................1 50063456 Pump piston ....................1 50063464 Sleeve ....................... 1 50063480 Ram ......................1 50063499 Screw plug ....................1 52046669 Release pin ....................1 50063553 Release lever ..................... 1 50058827 Filter adapter ..................... - Page 12 4455 Boeing Drive • Rockford, IL 61109-2988 • USA • 815-397-7070 USA Tel: 800-435-0786 Canada Tel: 800-435-0786 International Tel: +1-815-397-7070 An ISO 9001 Company • Fax: 800-451-2632 Fax: 800-524-2853 Fax: +1-815-397-9247 Greenlee Textron Inc. is a subsidiary of Textron Inc. www.greenlee.com...
