- Page 1 INSTRUCTION MANUAL H4910A Pole Puller Read and understand all of the instructions and safety information in this manual before operating or servicing this tool. Register this product at www.greenlee.com 99912619 REV 4 © 2010 Greenlee Textron Inc. 8/10...
-
Page 2: Table Of Contents

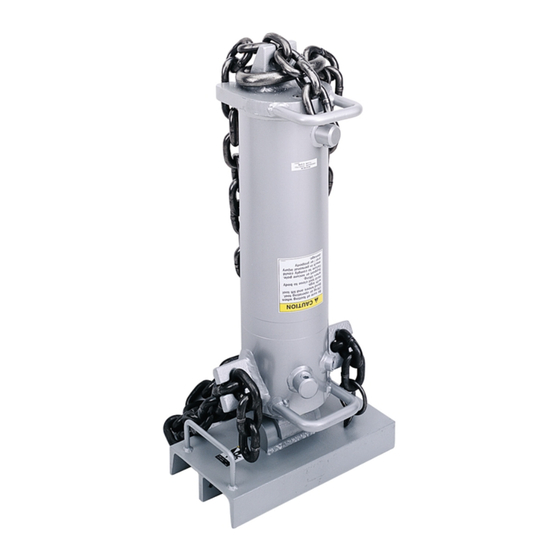

H4910A Pole Puller Table of Contents Description Description ..............2 The Greenlee Utility H4910A Pole Puller is a heavy-duty, portable, hydraulic-powered tool that can be used to Safety ................2 pull poles in confined areas, next to buildings, or out in Purpose of this Manual .......... -
Page 3: Important Safety Information
Failure to observe this warning could result in severe injury or death. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... - Page 4 Do not disconnect tool, hoses, or fittings while the power source is running or if the hydraulic fluid is hot. Hot hydraulic fluid can cause serious burns. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
-
Page 5: Identification
2. Base 7. Handles 3. Upper Chain 8. Pressure Port P 4. Lower Chain 9. Return Port T 5. Upper Chain Lug 10. Serial Number Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... -
Page 6: Specifications
Chains are furnished with the tool. Replacement chains * 13.8 bar (200 psi) is the maximum agreed stan- are available from Greenlee Utility as repair parts. dard back pressure for the HTMA (Hydraulic Tool Contact an authorized Greenlee Utility service center. -
Page 7: Hoses And Fittings
Installation and Maintenance Refer to publication 99930323, SAE J1273 (Hose and Hose Assemblies). FILTER (10 micron) TOOL Replacement Refer to a Greenlee Utility catalog or publication RELIEF COOLER 99910322, Low Pressure Quick Couplers, Adapters, and VALVE 138 bar Hoses. RESERVOIR... -
Page 8: Operation
Failure to observe these warnings could result in severe injury or death. 6. Stop power source. Remove upper and lower chains from pole. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... -
Page 9: Maintenance
Annually Some organizations require an annual inspection. Have the tool inspected by an authorized Greenlee Utility service center. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... -
Page 10: Troubleshooting
• If the known working tool does not operate, the problem is in the power source. Refer to your power source operator’s manual for troubleshooting. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... - Page 11 Check hoses for proper flow. Hydraulic pressure and return lines Disconnect hoses. Reverse couplers. connected to opposite tool ports. Reconnect hoses to proper tool ports. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
-
Page 12: Disassembly
Complete disassembly of the tool is seldom necessary. If a complete overhaul is necessary, return the tool to Disassemble only the area(s) necessary to correct the your nearest authorized Greenlee Utility distributor or to problem. Refer to the Illustrations and Parts Lists for Greenlee. -
Page 13: Inspection
6. Locknut (6): Check for damaged threads. If damaged, replace locknut. H4910A Pole Puller (138578 Cylinder) 7. O-rings and Seals: Always replace O-rings and 1. Install U-cup (13) and rod wiper (15) into bore of seals in components that have been disassembled gland (3). -
Page 14: Illustrations And Parts Lists
H4910A Pole Puller Illustration and Parts List—H4910A Pole Puller UPC No. 78-3310- Part No. Description 44058 50440586 Cylinder (refer to separate breakdown)........1 41547 50415471 Decal, Greenlee Utility ............1 44059 50440594 Decal, “Caution – Be Sure of Footing” ........1... - Page 15 Backup washer ..............1 U-cup ..................1 Square retaining ring .............. 1 Rod wiper ................1 42064 50420642 Packing kit (includes items marked with an asterisk) .... 1 Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
- Page 16 800-435-0786 Fax: 800-451-2632 815-397-7070 Fax: 815-397-1865 Canada 800-435-0786 Fax: 800-524-2853 International +1-815-397-7070 Fax: +1-815-397-9247 4455 Boeing Drive • Rockford, IL 61109-2988 • USA • 815-397-7070 • An ISO 9001 Company Greenlee Textron Inc. is a subsidiary of Textron Inc. www.greenlee.com...
