2: Hardware Overview

Back Panel Connectors

Mouse
connector
Keyboard
connector
18
Table 2-3 provides a summary of the LEDs on the power supply.
Table 2-3 Power Supply LED State Summary
LED Normal Status During Use
LED
Green LED lit
Amber LED LED lit when AC cord plugged in, amber
LED turns off when AC rocker switch
turned on

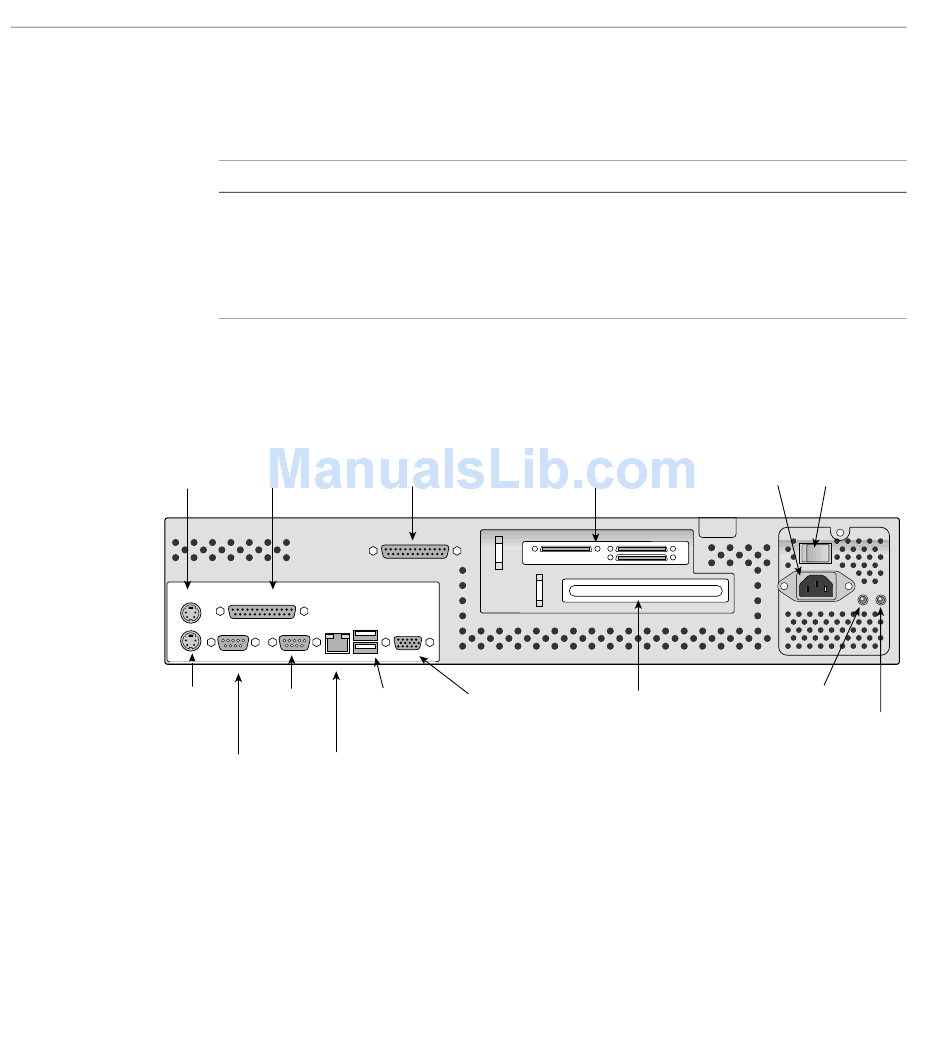

Figure 2-11 shows the SGI 1200 server backpanel.
Parallel port Optional external
connector SCSI connector
COM1 USB
connector connectors
COM2/EMP Network
connector connector
Figure 2-11 Connectors on the SGI 1200 Server Back Panel
Problem Indication
Green LED does not light after power
switched on
Amber LED remains lit after power
switched on
Optional PCI board
(RAID controller board shown)
Video Additional optional
connector PCI board slot
AC power AC on/off
connector rocker switch
Green LED
Amber LED
007-4248-001
