No revisions or updates are applicable at this time. 6/2007 Reissue entire manual to correct model name. 10/2007 Corrected P/N for KDL-32SL130 ETC-Inverter MT Board. Replaced Page 93. Added Battery Cover P/N. Replaced Page 125. LCD DIGITAL COLOR TELEVISION 9-883-752-03...
Page 2

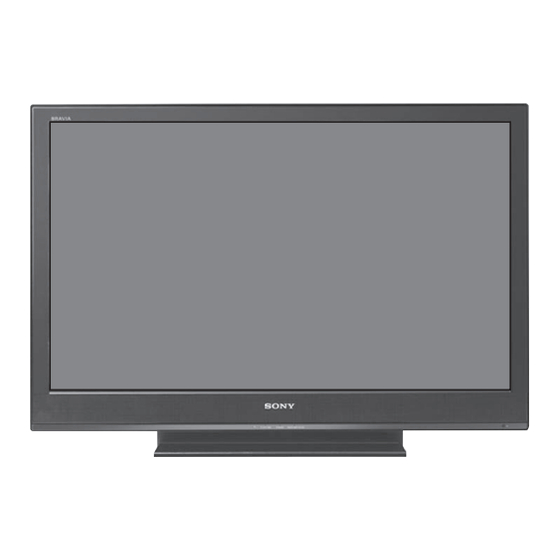

Self Diagnosis Supported model WAX3 SERVICE MANUAL CHASSIS MODEL NAME REMOTE COMMANDER DESTINATION KDL-32SL130 RM-YD018 KDL-40SL130 RM-YD018 KDL-40SL130 RM-YD018 LCD DIGITAL COLOR TELEVISION 9-883-752-03...
Trademark Information “BRAVIA” and , S-Force, BRAVIA Theatre Sync, and DMe trademarks or registered marks of Sony Corporation. Blu-ray Disc is a trademark. “XMB”, “XrossMediaBar” and “PS3” are trademarks of Sony Corporation and/or Sony Computer Entertainment Inc. This TV incorporates High-Definition Multimedia Interface (HDMI™) technology.
Page 5
Headphones Plug Adapter Panel System Connecting Cables LCD (Liquid Crystal Display) Panel Wall-Mount Bracket SU-WL500 Display Resolution (horizontal x vertical): TV Stand 1,366 dots x 768 lines RHT-G800 Screen Size (measured diagonally) 31.5 inches (KDL-32SL130 Only) 40 inches (KDL-40SL130 Only) KDL-32SL130/40SL130...
Les composants identifi es par une trame et par une marque ! sur les schemas de principe, les vues explosees et les listes de pieces sont d’une importance critique pour la securite du fonctionnement. Ne les remplacer que par des composants Sony dont le numero de piece est indique dans le present manuel ou dans des supplements publies par Sony.
KDL-32SL130/40SL130 SAFETY-RELATED COMPONENT WARNING There are critical components used in LCD color TVs that are important for safety. These components are identifi ed with shading and mark on the schematic diagrams and the electrical parts list. It is essential that these critical parts be replaced only with the part number specifi...
Page 8
Due to the higher melting point of Lead Free Solder the soldering iron tip temperature needs to be set to 370 degrees centigrade. This requires soldering equipment capable of accurate temperature control coupled with a good heat recovery characteristics. For more information on the use of Lead Free Solder, please refer to http://www.sony-training.com KDL-32SL130/40SL130...
KDL-32SL130/40SL130 SAFETY CHECK-OUT The AC leakage from any exposed metal part to earth ground and After correcting the original service problem, perform the following from all exposed metal parts to any exposed metal part having a safety checks before releasing the set to the customer: return to chassis, must not exceed 0.5 mA (500 microamperes).
KDL-32SL130/40SL130 Self Diagnosis SELF-DIAGNOSTIC FUNCTION Supported model The units in this manual contain a self-diagnostic function. If an error occurs, the STANDBY LED indicator will automatically begin to fl ash. The number of times the LED fl ashes translates to a probable source of the problem. A defi nition of the STANDBY LED fl ash indicators is listed in the instruction manual for the user’s knowledge and reference.
Page 11
KDL-32SL130/40SL130 Viewing the Self Check Diagnostic List 1. TV must be in standby mode. (Power off). 2. Press the following buttons on the Remote Commander within a second of each other: Channel 5 Volume - TV POWER . DISPLAY The Self Check list displays.
KDL-32SL130/40SL130 1-3. STAND ASSEMBLY AND VESA ARM ASSEMBLY REMOVAL (KDL-32SL130 ONLY) Remove 2 screws from bottom of Arms, +PSW M5X16 Remove 3 screws from bottom bracket and Stand, +PSW M5X16 VESA Arm Assembly Stand Assembly Under Cover Bottom Bracket 1-4. STAND ASSEMBLY AND VESA ARM ASSEMBLY REMOVAL (KDL-40SL130 ONLY)
KDL-32SL130/40SL130 1-5. U1 BOARD, SIDE TERMINAL AND SIDE JACK HOLDER REMOVAL Disconnect one connector Remove one screw, +BVTP 3X12 TYPE2 IT-3 Release hooks and remove U1 Board. Remove Side Terminal from Bezel. Release hooks to remove Side Jack Holder from BU1 bottom shield.
KDL-32SL130/40SL130 1-13. LCD PANEL, LED AND GUIDE LIGHT REMOVAL (KDL-40SL130 ONLY) Remove 2 screws from Bezel and Top Brackets, +BVTP2 4X16 Remove 4 screws from Top Brackets, +PSW M5X8 Remove 4 screws from Bottom Brackets, + PSW M5X12 Remove 4 screws from Stand Holders, +PSW M5X16...
KDL-32SL130/40SL130 1-14. INVERTER BOARD REMOVAL CAUTION: Be sure to identify the inverter cover screws before proceeding. DO NOT remove the screws securing the plastic strip holding the lamp sockets. Remove screws securing the inverter cover. Remove screws securing the inverter board...
KDL-32SL130/40SL130 WIRE DRESSING KDL-32SL130 ONLY OVERALL VIEW KDL-32SL130/40SL130...
Page 22
Align top of UL tape with "Score Line" on Panel and center of "Circle" on Panel Frame. Make sure 1st tape is below himelon tape on panel edge. Use boss and SONY emblem hole on bezel to align UL tape on harness. KDL-32SL130/40SL130...
Page 23
KDL-32SL130/40SL130 KDL-32SL130 ONLY H4 BOARD OPERATION PROCESS 1. Install H4-Bd BEFORE Installing the speakers/baffles. 2. Apply LCD Tape on SIDE of the magnet on Rt. Speaker to hold the H4 Cables. 3. MAKE SURE there is slack in the cable between the H4 Connector and LCD Tape.
Page 24
KDL-32SL130/40SL130 KDL-32SL130 ONLY H4 BOARD AND RIGHT SPEAKER OPERATION PROCESS Wire Dress Rt. Speaker wires and H4 cables in G-Bracket clips (x3) Dress BOTH H4/Speaker Cables in 3 plastic NOTE: Rt. Spkr. Wires are NOT dressed clips on G-Bracket. in far LEFT G-Bracket clip! NOTE: Speaker cables are NOT dressed inside far left clip on G-Bracket.
Page 25
KDL-32SL130/40SL130 KDL-32SL130 ONLY H4 BOARD AND RIGHT SPEAKER (CONTINUED) OPERATION PROCESS 1. Wire Dress Right Speaker wires and H4 NOTE BOTH H4-Bd and Rt. Speaker cables cables in side clamp (white) and G3-Bd are dressed UNDER AC Inlet and in G-Brkt bracket clip (black).
Page 26
KDL-32SL130/40SL130 KDL-32SL130 ONLY CORE BLOCK HARNESS OPERATION PROCESS Route/Dress Harnesses connected to Core Block as Shown NOTE Order & Direction of Cables in plastic Clip on Shield Case. DRESS CABLES 1st DRESS CABLES LAST ON TOP ALL CABLES. DRESS CABLES 3rd...
Page 27
KDL-32SL130/40SL130 KDL-32SL130 ONLY CORE BLOCK HARNESS (CONTINUED) OPERATION PROCESS Route/Dress Core-Block cables as shown Put Attention on DIRECTION of cables in G-Bracket. Put Attention on the position of the Sheet Core C and routing of the Cables between Core Block and G1-Bracket.
Page 28
KDL-32SL130/40SL130 KDL-32SL130 ONLY G1H BOARD OPERATION PROCESS Install/Wire Dress Harnesses as shown. CAUTION: Make sure INVERTER CONN. is Fully LOCKED!! G1H- NOTE: NEW G-Bracket Change! Inverter wire is NOT dressed in 1st clip. Inverter wires are dressed in cut-out on...
Page 29
KDL-32SL130/40SL130 KDL-32SL130 ONLY SPEAKER HARNESS OPERATION PROCESS 1. Wire Dress Speaker Cables as shown. 2. BOTH R/L cables are dressed in FGC-3 conductive clip. 3. Apply LCD TAPE to BOTH H4-Bd AND Right Speaker Wires. TORQUE SPECIFICATION TORQUE: 6kg.cm (+-1.0kg.cm) Apply Sheet Core C to BOTH H4/H3 AND Right Speaker Wires.
Page 30
KDL-32SL130/40SL130 KDL-32SL130 ONLY LEFT SPEAKER HARNESS OPERATION PROCESS Dress LEFT speaker harness as shown PUSH SIDE CLAMP THIS DIRECTION TO LOCK!! Side Clamp Installed by SBC PLANT! KDL-32SL130/40SL130...
Page 31
KDL-32SL130/40SL130 KDL-32SL130 ONLY U1 BOARD OPERATION PROCESS 1. Apply Sheet Core A to Panel in location where U1 bracket is to be installed (Use edges of panel as guide) 2. Make sure DTT Shield has Sheet Core C installed as per diagram.
Page 32
KDL-32SL130/40SL130 KDL-32SL130 ONLY U1 BOARD (CONTINUED) OPERATION PROCESS 1. Wire route ESD GND wire as shown (NOTE: Actual Part will have RED insulation) 2. Use 3x12mm screw to fix ring terminal in U1 Bracket TORQUE SPECIFICATION 3mm TORQUE: 6.0kg-cm (+-1.0kg-cm)
Page 33
KDL-32SL130/40SL130 KDL-32SL130 ONLY H1 BOARD OPERATION PROCESS 1. Dress/Route H1-Bd harness as shown on photo. 2. NOTE: Put attention on SLACK of cable. Between Connector on H1 and tape there is slack in wire. Plastic Side Clamp. Between tape/clamp there is slack.
Page 34
KDL-32SL130/40SL130 KDL-32SL130 ONLY LVDS CABLE OPERATION PROCESS 1. Route 40P LVDS Cable between BU-Bd and TCON as shown. 2. Apply 3x8mm Screw (2-places) to ground LVDS cable. NOTE: LVDS Cable is UNDER G1/U-Bd cables Put Attention on Routing of Cable.
Page 35
KDL-32SL130/40SL130 KDL-32SL130 ONLY LVDS CABLE (CONTINUED) OPERATION PROCESS Route LVDS Harness from BU-Board (CN4500) as shown. CAUTION: Keep LVDS Wires AWAY from Memory IC and JIG Connectors! CAUTION: Keep LVDS Cables AWAY from JIG Connectors and Memory IC. KDL-32SL130/40SL130...
Page 36
KDL-32SL130/40SL130 KDL-32SL130 ONLY VESA BRACKET GROUND WIRE OPERATION PROCESS 3x5mm Attach ESD Grounding wire as shown Install screw to GND Tab shown. on panel above BH-Bd Shield Case. NOTE: 3x8mm AND 3x5mm Screws are used!! TORQUE SPECIFICATION TORQUE: 6.0kg.cm (+-1.0kg.cm)
KDL-32SL130/40SL130 KDL-40SL130 ONLY OVERALL VIEW × KDL-32SL130/40SL130...
Page 38
KDL-32SL130/40SL130 KDL-40SL130 ONLY H3 BOARD HARNESS OPERATION PROCESS 1. Apply Sheet Core C to edge of Panel to cover sharp edge of panel. Use ribs on bezel (w/o screw boss) as a guide to center tape. Use H3/H4 Harness "Split" as reference for top of Cushion D Position 2.
Page 39
KDL-32SL130/40SL130 KDL-40SL130 ONLY H4 BOARD OPERATION PROCESS 1. H4-Bd should be installed BEFORE the speaker/baffles are installed 2. Be careful to align Plastic clip at left side of bezel with notch in PWB. 3. PRESS FIRMLY on PWB next to clip to seat H4-Bd.
Page 40
KDL-32SL130/40SL130 KDL-40SL130 ONLY H4 BOARD AND RIGHT SPEAKER OPERATION PROCESS Wire Dress Right Speaker wires and H4 cables in side clamp (white) and G3-Bd bracket clips (black). NOTE: ALL Wires are dressed in far left G-Bracket clip! NOTE: Keep H4 cables AWAY From INVERTER BOARD AREA! NOTE: H4-Bd/Rt.
Page 41
KDL-32SL130/40SL130 KDL-40SL130 ONLY H4 BOARD AND RIGHT SPEAKER (CONTINUED) OPERATION PROCESS NOTE BOTH H4-Bd and Rt. Speaker cables 1. Dress H4/Rt. Speaker cables in white are dressed UNDER AC Inlet side clips. 2. Dress AC Inlet Cables in Plastic clip on the G-Bracket as shown.
Page 42
KDL-32SL130/40SL130 KDL-40SL130 ONLY CORE BLOCK HARNESS OPERATION PROCESS Route/Dress Harnesses connected to Core Block as Shown NOTE Order & Direction of Cables in plastic Clip on Shield Case. Route 1st Route 3rd Route LAST Keep Cables BELOW level of Shield Case (Pinch Points)
Page 43
KDL-32SL130/40SL130 KDL-40SL130 ONLY CORE BLOCK HARNESS (CONTINUED) OPERATION PROCESS Route/Dress Core-Block cables as shown Put Attention on the position of Sheet Core C and the routing of the cables between G3-Bd and Core Block. Apply Sheet Core C to dress cables.
Page 44
KDL-32SL130/40SL130 KDL-40SL130 ONLY INVERTER BOARD AND D1 BOARD OPERATION PROCESS INVERTER INVERTER CAUTION MAKE SURE BLACK INSULATION O.K. N.G. TUBING DOES NOT TOUCH CONN BEFORE INSTALLING 2P MD CONN. AFTER INSTALLING CONNECTOR, TUBE INSULATION CAN TOUCH CONNECTOR! INSTALL INVERTER SIDE 1ST INSTALL D1-Bd SIDE 2ND O.K.
Page 45
KDL-32SL130/40SL130 KDL-40SL130 ONLY INVERTER BOARD AND D1 BOARD (CONTINUED) OPERATION PROCESS INVERTE CAUTION: MAKE SURE WHITE/PINK WIRES DO NOT CROSS CHECK INVERTER SIDE WIRES CHECK D1-Bd SIDE WIRES CAUTION: Make Sure Inverter Connector DOES NOT CROSS WHITE/PINK WIRES! CHECK BOTH SIDES OF HARNESS!
Page 46
KDL-32SL130/40SL130 KDL-40SL130 ONLY G3 BOARD AND D1 BOARD OPERATION PROCESS Install/Wire Dress Harnesses as shown. NOTE: Ferrite Core and Sheet Core A CAUTION: Make sure INVERTER CONN. Applied by SBC Plants. is Fully LOCKED!! CAUTION: Make Sure Inverter Connector is Fully LOCKED!
Page 47
KDL-32SL130/40SL130 KDL-40SL130 ONLY D1 BOARD AND INVERTER BOARD CAUTION OPERATION PROCESS MAKE SURE COLOR of UL tape is the correct color (YELLOW) for harness. Confirm wires are dressed properly in clips. Confirm 2P BD Connectors are FULLY LOCKED by pressing on BOTH locking tabs (RED ARROWS).
Page 48
KDL-32SL130/40SL130 KDL-40SL130 ONLY SPEAKER CABLES OPERATION PROCESS 1. Wire Dress Speaker Cables as shown. Lft. Speaker cable is dressed in side clamp (white plastic). 2. BOTH R/L cables are dressed in FGC-3 conductive clip. TORQUE SPECIFICATION TORQUE: 6kg.cm (+-1.0kg.cm) Lft. SPEAKER Cables...
Page 49
KDL-32SL130/40SL130 KDL-40SL130 ONLY LEFT SPEAKER HARNESS OPERATION PROCESS Dress LEFT speaker harness as shown Side Clamp Installed by Vendor. PUSH SIDE CLAMP THIS DIRECTION TO LOCK!! Side Clamp Installed by SBC PLANT! KDL-32SL130/40SL130...
Page 50
KDL-32SL130/40SL130 KDL-40SL130 ONLY U1 BOARD OPERATION PROCESS 1. Apply Sheet Core A to Panel in location where U2 bracket is to be installed (Use plastic ribs on bezel as guide) 2. Make sure DTT Shield has Sheet Core C Align with center of circles on Install Sheet Core C on "dimple"...
Page 51
KDL-32SL130/40SL130 KDL-40SL130 ONLY U1 BOARD (CONTINUED) OPERATION PROCESS 1. Wire route ESD GND wire as shown (NOTE: Actual Part will have BLUE insulation) 2. Use 3x12mm screw to fix ring terminal in U1 Bracket 3. Apply Sheet Core C to hold cable on panel.
Page 52
KDL-32SL130/40SL130 KDL-40SL130 ONLY H1 BOARD OPERATION PROCESS 1. Dress/Route H1-Bd harness as shown on photo. 2. NOTE: Put attention on SLACK of cable. Between Connector on H1 and tape there is slack in wire. Between tapes there is a little slack.
Page 53
KDL-32SL130/40SL130 KDL-40SL130 ONLY LVDS CABLE OPERATION PROCESS 1. Route 40P LVDS Cable between BU-Bd and TCON as shown. 2. Apply 3x8mm Screw (2-places) to ground LVDS cable. G1 to BU cables are on TOP of LVDS. H3-Bd cables are UNDER LVDS.
Page 54
KDL-32SL130/40SL130 KDL-40SL130 ONLY LVDS CABLE (CONTINUED) OPERATION PROCESS Route LVDS Harness from BU-Board (CN4500) as shown. CAUTION: Keep LVDS Wires AWAY from Memory IC and JIG Connectors! CAUTION: Keep LVDS Cables AWAY from JIG Connectors and Memory IC. KDL-32SL130/40SL130...
KDL-32SL130/40SL130 SECTION 2: SERVICE ADJUSTMENTS 2-1. USING THE REMOTE COMMANDER 2-3. VIEWING THE SERVICE MENUS FOR ELECTRICAL ADJUSTMENTS Use the Remote Commander to view the BE and Digital service menus options. To adjust various set features, use the Remote Commander to put the set into service mode to display the service menus and categories.
KDL-32SL130/40SL130 2-4. USING THE REMOTE COMMANDER TO 1. Access Service Adjustment Mode and select the Service Menu that contains the Category with the Adjustment Item you want to change. VIEW SERVICE DATA 2. To change the Category, press 2 or 5 on the Remote Commander.
KDL-32SL130/40SL130 2-5. VERIFYING SERVICE DATA CHANGES 1. After completing all adjustments turn the set off with the Remote Commander and then proceed to the next step. 2. Press the following buttons on the Remote Commander within a second of each other:...
KDL-32SL130/40SL130 3-2. PRINTED WIRING BOARDS AND Terminal name of semiconductors in silk screen SCHEMATIC DIAGRAMS INFORMATION printed circuit ( All capacitors are in μF unless otherwise noted. pF : μμF 50WV or Circuit Device Printed symbol Terminal name Collector less are not indicated except for electrolytics and tantalums.
KDL-32SL130/40SL130 3-3. BLOCK DIAGRAM SIGNAL FLOW DIAGRAM Audio Audio Audio Audio HDMI HDMI HDMI HDMI for PC for PC for DVI for DVI UART 8bit Multiplex BUS 4M x 32bit BE Micro MB91305 Flash Panel NAND NAND Flash Flash DDR2...
KDL-32SL130/40SL130 3-4. SCHEMATICS AND SUPPORTING INFORMATION BU1 BOARD SCHEMATIC DIAGRAM (1 OF 12) A _V 1_IN_C,A _V 1_IN_S2SW,A _V 1_IN_SSW,A _V 1_IN_V ,A _V 1_IN_Y R 1003 1/16W CHIP A_V 1_IN_Y R 1001 R 1002 R 1000 C 1000 0 . 0 1...
KDL-32SL130/40SL130 BU1 BOARD SCHEMATIC DIAGRAM (2 OF 12) A_HP_OUT_R A_HP_OUT_L AUDIO_9V A_SP_OUT_R MUTE_AU13V A_SP_OUT_L PQ200WNA1ZPH — A_LINE_OUT_R I C 2005 AU_13V A_LINE_OUT_L AUDIO_13V TAS ANALOG 3.3V R 2202 L 2016 F 2000 22uH 1/16W C 2123 CHIP D3.3V D2014 C 2121 C 2159 0.
KDL-32SL130/40SL130 BU1 BOARD SCHEMATIC DIAGRAM (3 OF 12) << ST B Y 3.3V >> ST B Y 3.3V M24256-BWMN6TP(A) RESET R 3167 I C 3005 X 3009 1/16W EEPROM 32. 768kH z R 3144 — 2 . 2 k CHIP...
KDL-32SL130/40SL130 BU1 BOARD SCHEMATIC DIAGRAM (4 OF 12) JL 4508 TMDS_RX0- Y_G1 R X 0- TO HDMI JL 4509 TMDS_RX0+ PB_B1 RX0+ JL 4510 •¡ SV P-PX P DDR & CPU I/F, POWE R & GND PB_R1 TMDS_RX1- — R X 1-...
KDL-32SL130/40SL130 BU1 BOARD SCHEMATIC DIAGRAM (7 OF 12) ST B Y 3.3V R 4048 FB 4011 1/10W L FB K 1608HS601 RN-CP 0.5% FB 4005 D3.3V R 4047 — STBY 3.3V 2 . 2 k DIMMER DIMMER 1/16W FB 4009...
KDL-32SL130/40SL130 BU1 BOARD SCHEMATIC DIAGRAM (8 OF 12) D2.5V — C 7077 1608 R 7047 C 7047 2 . 2 k 220p 1/16W RN-CP 0.5% R 7059 REG12V — 1/16W CHIP R 7035 R 7041 R 7048 R 7055 3 . 3 k...
KDL-32SL130/40SL130 BU1 BOARD SCHEMATIC DIAGRAM (9 OF 12) X IL L EON242 GROUND BAL L S ASIC CORE POWER D2.5V _A T I D1.0V D3.3V _A T I COR E _1.0V (NE E D <50mV NOI SE ) — FB 7200...
KDL-32SL130/40SL130 BU1 BOARD SCHEMATIC DIAGRAM (10 OF 12) — MEMORY CONFIGURATION VDDR_MEM DDR _1.8V DRAM_IF DDR2 SDRAM WAX 3 L 7431 MEM_DQA0 I C 7400 R 24 * C 7430 C 7431 DQA_0 HY B 18T C512160B F-2.5 0 . 1...
KDL-32SL130/40SL130 BU1 BOARD SCHEMATIC DIAGRAM (11 OF 12) DIGITAL GR APHICS OUT (DDR ) — GRAPHICS DDR->SDR LATCH EGPHSI EGPHSI D3.3V FB 7601 DV I_IF EGPV SI EGPV SI C 7611 — DVIDATA0 EGPPCI EGPPCI T C74V CX 162374(E L ,F...
KDL-32SL130/40SL130 BU1 BOARD SCHEMATIC DIAGRAM (12 OF 12) V IDEO_IF FRONT_END_IF — R 7712 R 7710 1/16W V I _I N0 CHIP R 7706 1/16W * C 7818 L 7801 C 7828 V I _I N1 C 7821 C 7823...
KDL-32SL130/40SL130 G1H BOARD SCHEMATIC DIAGRAM (POWER SUPPLY) (KDL-32SL130 ONLY) This board is manufactured by a 3rd party. Component level repair information is not available. [POWER SUPPLY] PWB IS NOT AVAILABLE KDL-32SL130/40SL130...
KDL-32SL130/40SL130 H1 BOARD SCHEMATIC DIAGRAM POWER — H1 BOARD S101 USER CONTROL — HOME INPUT SEL VOL+ VOL- MENU TO BU1 WEGAGATE POWER INT CN3008 KEY1 — R107 R102 CN101 S104 S107 S106 S105 S103 S102 — R104 R101 R105 R103 1 .
Page 83
KDL-32SL130/40SL130 [USER CONTROL] COMPONENT SIDE VOL+ R102 S104 VOL- VIA G[CV OK S105 R103 INPUT SEL S103 R108 S106 R101 R107 S107 R104 S101 POWER S102 HOME 1-872-981-11 A-1220- MENU C103 (172841011) WEGAGATE [USER CONTROL] CONDUCTOR SIDE CN102 CN101 JL101...
REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES] REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES] (Please review the Sony Electronics Service Information website for any additional service information.) 3-097-972-01 COVER, REAR (32) A-1273-109-A STAND (M_WS)ASSEMBLY [7-8] (KDL-32SL130 ONLY) (KDL-32SL130 ONLY) 7-685-648-79...
See Appendix A: Encryption Key Components in the back of this manual. 4-2. CHASSIS (Please review the Sony Electronics Service Information website for any additional service information.) 2-580-640-01 SCREW, +BVTP2 4X16 2-580-629-01...
See Appendix A: Encryption Key Components in the back of this manual. 4-3. BEZEL ASSEMBLY AND LCD PANEL (Please review the Sony Electronics Service Information website for any additional service information.) 2-580-640-01 SCREW, +BVTP2 4X16 REF. NO.
See Appendix A: Encryption Key Components in the back of this manual. 4-5. CONNECTORS (KDL-32SL130 ONLY) (Please review the Sony Electronics Service Information website for any additional service information.) REF.
See Appendix A: Encryption Key Components in the back of this manual. 4-6. CONNECTORS (KDL-40SL130 ONLY) (Please review the Sony Electronics Service Information website for any additional service information.) REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES] REF.
See Appendix A: Encryption Key Components in the back of this manual. 4-7. SPEAKERS (Please review the Sony Electronics Service Information website for any additional service information.) 2-580-640-01 SCREW, +BVTP2 4X16 2-580-600-01...
Page 104
KDL-32SL130/40SL130 NOTE: Les composants identifi es per un trame et une NOTE: The components identifi ed by shading marque sont critiques pour la securite. Ne les remplacer mark are critical for safety. Replace only que par une piece portant le numero specifi e.
Page 105
KDL-32SL130/40SL130 NOTE: Les composants identifi es per un trame et une NOTE: The components identifi ed by shading marque sont critiques pour la securite. Ne les remplacer mark are critical for safety. Replace only que par une piece portant le numero specifi e.
Page 106
KDL-32SL130/40SL130 NOTE: Les composants identifi es per un trame et une NOTE: The components identifi ed by shading marque sont critiques pour la securite. Ne les remplacer mark are critical for safety. Replace only que par une piece portant le numero specifi e.
Page 107
KDL-32SL130/40SL130 NOTE: Les composants identifi es per un trame et une NOTE: The components identifi ed by shading marque sont critiques pour la securite. Ne les remplacer mark are critical for safety. Replace only que par une piece portant le numero specifi e.
Page 118
KDL-32SL130/40SL130 NOTE: Les composants identifi es per un trame et une NOTE: The components identifi ed by shading marque sont critiques pour la securite. Ne les remplacer mark are critical for safety. Replace only que par une piece portant le numero specifi e.
Page 119
C6157 1-112-231-21 ELECT 2200μF 1-474-052-11 G1H BOARD, COMPLETE (POWER SUPPLY) C6160 1-162-970-11 CERAMIC CHIP 0.01μF (KDL-32SL130 ONLY) C6170 1-112-231-21 ELECT 2200μF This board is manufactured by a 3rd party. C6200 1-107-826-11 CERAMIC CHIP 0.1μF Component level repair information is not available.
Page 120
KDL-32SL130/40SL130 NOTE: Les composants identifi es per un trame et une NOTE: The components identifi ed by shading marque sont critiques pour la securite. Ne les remplacer mark are critical for safety. Replace only que par une piece portant le numero specifi e.
Page 121
KDL-32SL130/40SL130 NOTE: Les composants identifi es per un trame et une NOTE: The components identifi ed by shading marque sont critiques pour la securite. Ne les remplacer mark are critical for safety. Replace only que par une piece portant le numero specifi e.
Page 122
KDL-32SL130/40SL130 NOTE: Les composants identifi es per un trame et une NOTE: The components identifi ed by shading marque sont critiques pour la securite. Ne les remplacer mark are critical for safety. Replace only que par une piece portant le numero specifi e.
Page 123
KDL-32SL130/40SL130 NOTE: Les composants identifi es per un trame et une NOTE: The components identifi ed by shading marque sont critiques pour la securite. Ne les remplacer mark are critical for safety. Replace only H1 H3 que par une piece portant le numero specifi e.
MUST BE RETURNED to Sony. b) and if the core charge is NOT covered under the product warranty, the defective un-repaired or modifi...
Page 127
In an effort to reduce the size of this pdf fi le the tiled schematics are not attached to this Service Manual. To receive a complete set of the tiled schematics for this manual please submit a request to the Service Promotion Department at Service_Promotion@am.sony.com.
