INTRODUCTION

HOW TO USE THIS MANUAL

As you read this manual, you'll find figures and diagrams
to help you understand and visualize what you're reading.
You'll also find icons that flag important information or warn
you against improper or potentially harmful activities. These
icons include:
NOTE
A identifies an important or useful
piece of information relating to the topic
under discussion.
TIP
A offers a helpful tip relevant to the topic
at hand.
A CAUTION gives notice that an action can
!
have serious consequences and could cause
harm to equipment or personnel, delays, or other
problems.
INTRODUCING THE UPM-1P AND UPM-2P
LOUDSPEAKERS
Meyer Sound's UPM-1P ultra-compact wide coverage and
UPM-2P ultra-compact narrow coverage loudspeakers are
self-powered professional sound reinforcement loudspeak-
ers made for applications that require a small, inconspicu-
ous system capable of high sound pressure levels.

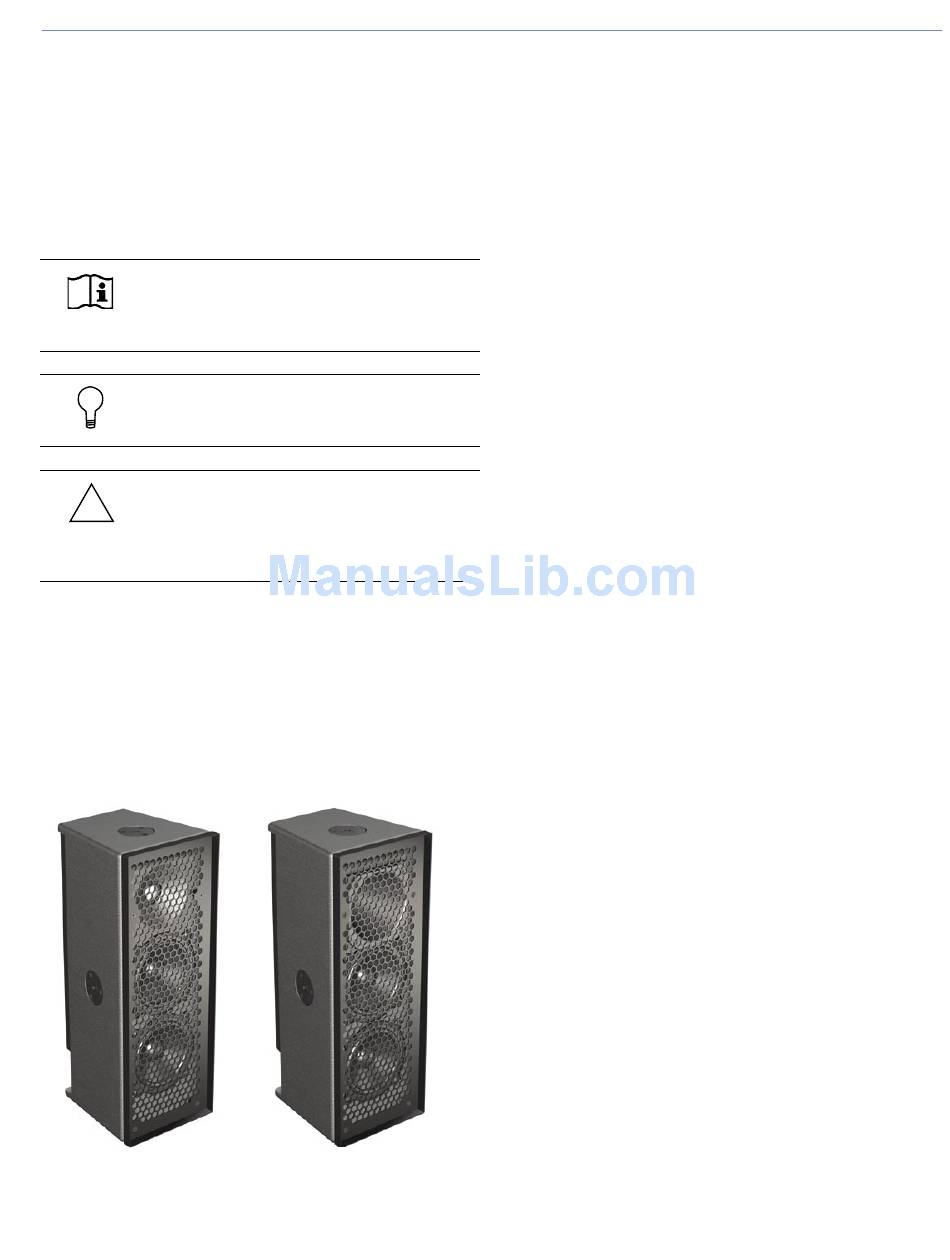

Figure i.1. UPM-1P ultra-compact wide coverage loudspeaker and the
UPM-2P ultra-compact narrow coverage loudspeaker
In standalone under-balcony, front- or side-fill applications,
UPM-1P and UPM-2P loudspeakers can provide vocal
range reinforcement as a small PA system, while a full-range
system can be created with the addition of a separate sub-
woofer. Other features include:
■ Extremely low distortion
■ Uniform directional control on both the horizontal and
vertical axes
■ Dual 5-inch low-mid transducers
■ 1-inch metal dome high-frequency driver on constant
directivity symmetrical horns
■ Two-channel power amplifier
■ Proprietary phase-corrected active processing circuitry
Both the UPM-1P and UPM-2P use a 1-inch metal dome
tweeter on a symmetrical constant-directivity high-fre-
quency horn. With its 45-degree beamwidth, the UPM-2P
loudspeaker produces a narrow, symmetrical pattern for
precise coverage control, while the UPM-1P loudspeaker
offers a wider 100-degree symmetrical coverage pattern for
broad listening areas.

Optimized Control Electronics

Like all Meyer Sound self-powered loudspeakers, the UPM-
1P and UPM-2P exhibit superior performance across virtu-
ally all parameters. Because the amplifiers and control elec-
tronics are precisely optimized for each driver, the overall
system is able to produce more power with flatter response
and lower distortion. Self-powering also means simplifying
installation by eliminating amplifier racks and external drive
processing — allowing configuration of extensive distrib-
uted systems free from the signal losses imposed by long
loudspeaker cable runs or 70/100-volt wiring schemes. The
UPM-1P and UPM-2P loudspeakers also include a laser-
trimmed differential input stage for high common mode
rejection, and can be equipped with Meyer Sound's RMS™
remote monitoring system.
