2. When prompted to insert the disc, insert the Driver CD that
came with the card, into your CD/DVD drive and Windows will
automatically proceed to search the CD.
3. If a Windows Security dialog window appears, click the "Install this
driver software anyway" option to proceed.
4. Once the driver is installed, click the Close button.

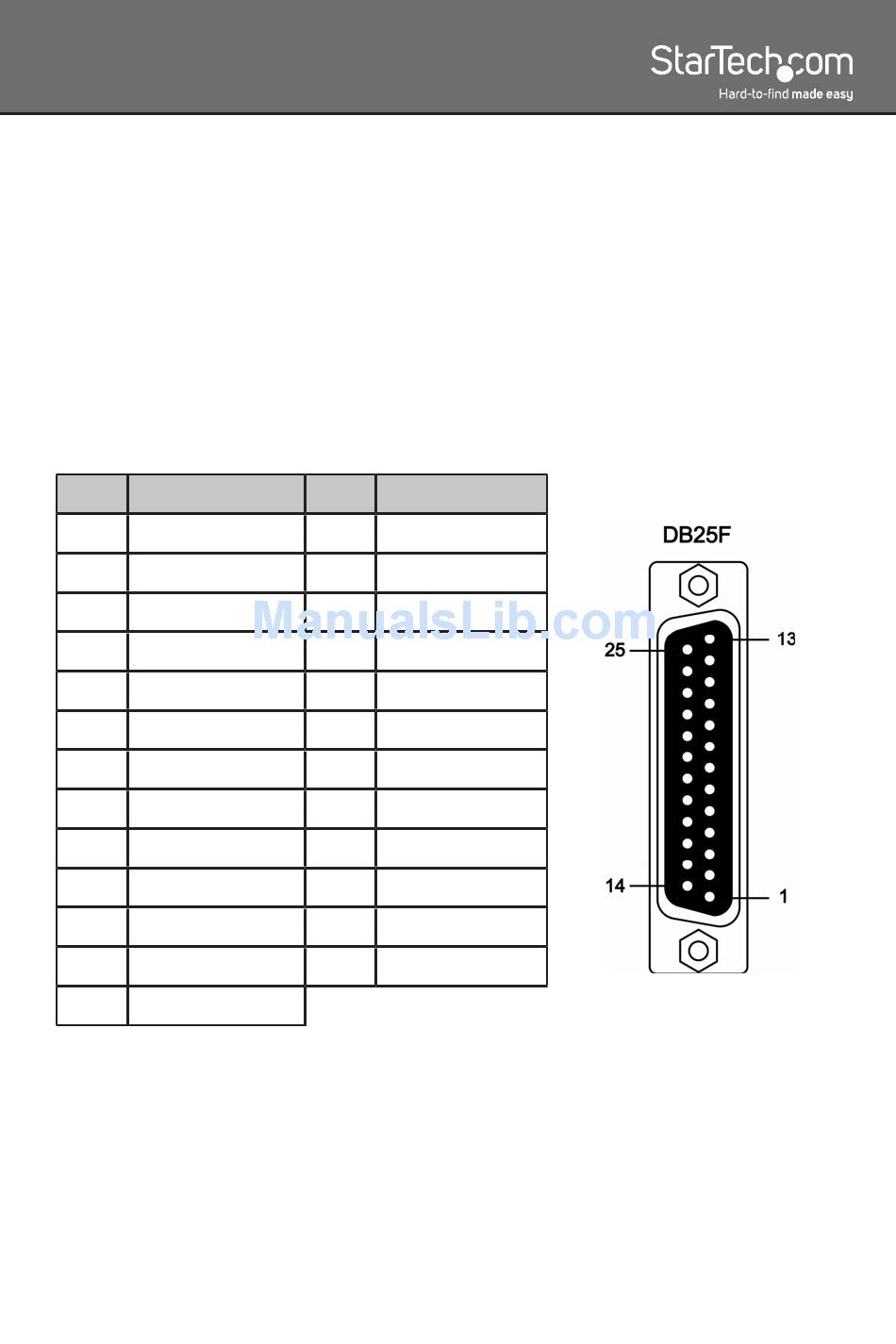

Pinout

Pin Signal
1 STROBE
2 DATA0
3 DATA1
4 DATA2
5 DATA3
6 DATA4
7 DATA5
8 DATA6
9 DATA7
10 ACKNOWLEDGE
11 BUSY
12 PAPER EMPTY
13 SELECT
Pin Signal
14 AUTO FEED
15 ERROR
16 INT
17 SELECT INPUT
18 GND
19 GND
20 GND
21 GND
22 GND
23 GND
24 GND
25 GND
