StarTech.com PCI1PECP Spec Sheet

1 Port PCI Parallel Adapter Card
StarTech ID: PCI1PECP

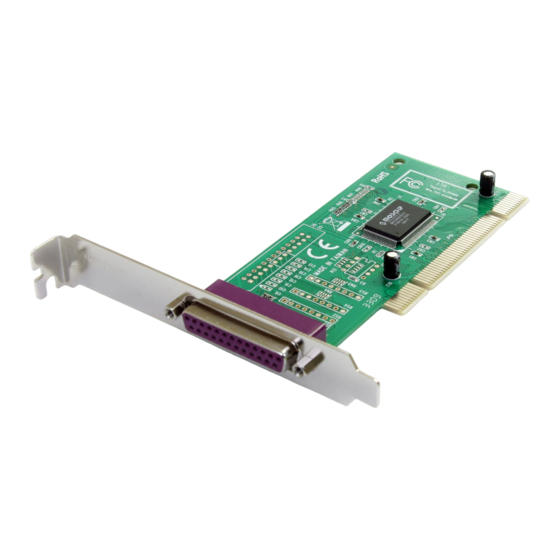

This high performance PCI based EPP/ECP parallel adapter card can be installed in a computer PCI slot to add
one IEEE 1284 parallel port to your PC. A cost-effective way to connect parallel devices to the computer, with data
transfer speeds of up to 1.5 Mbps (up to 3 times faster than on-board parallel ports).
The adapter card supports EPP, ECP, SPP and BPP parallel communications, and is simple to install in virtually
any PC. The card supports Windows® Vista, XP, ME, 2000, 98, 95, NT4, DOS® and Linux®, plus IRQ sharing and
plug and play capabilities guarantee convenient, hassle-free connections to any parallel peripheral.
A complete dual profile solution, the PCI parallel adapter card provides both standard bracket and low profile/half-
height brackets for adapting to slimline or small form factor system applications.
Backed by a StarTech.com Lifetime warranty and free lifetime technical support.
Applications
Connects any parallel peripheral including printers, scanners, CD-R/RWs, Zip® drives, and memory card
readers
Features
Supports EPP, ECP, SPP and BPP
Standard and low profile bracket included
Data transfer rates of up to 1.5 Mbps
IRQ sharing eliminates conflicts between multiple cards
Easy plug and play installation
Installation scripts available for Linux RedHat 7.2, SuSE 7.3 and Mandrake 8.2
