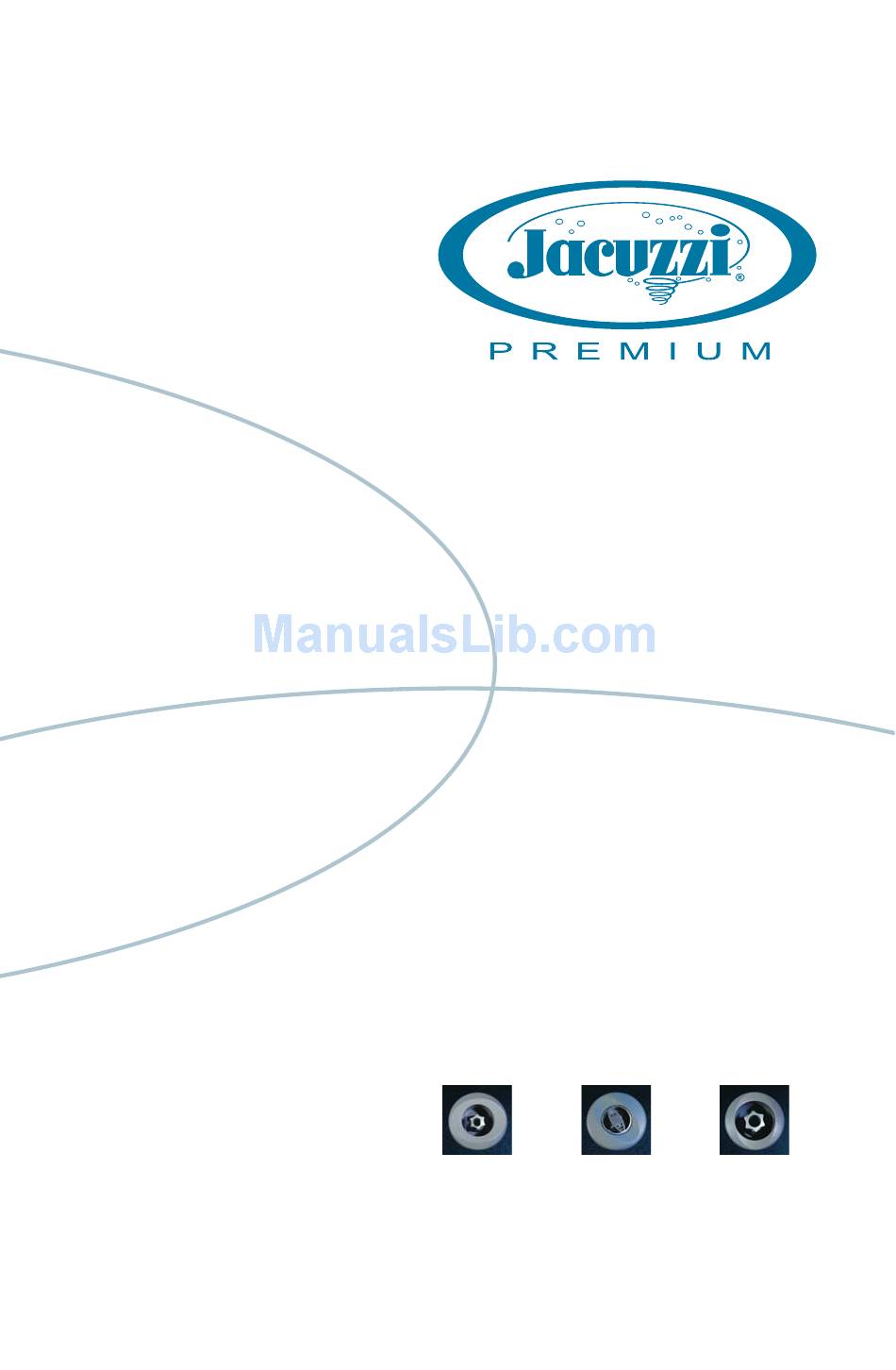

- Page 1 ProTech LCD Series Owner’s Manual...
-
Page 3: Table Of Contents
9.4 Activate Pump 1...16 9.5 Activate Pump 2/Pump 3...16 9.6 Selecting Desired Massage Action ...16 9.7 Adjusting Individual Jet Flow...1 7 9.8 Adjusting PowerPro Jets ...1 7 9.9 Waterfall Feature...1 7 9.10 Air Controls...1 7 9.1 1 Optional Jacuzzi Premium Audio System...1 7... - Page 4 10.0 Automatic Filtration Cycles ...26 10.1 Standard Filtration Mode ...26 10.2 Economy Filtration Mode...26 10.3 Selecting The Filtration Mode...26 10.4 Preset Filter Cycles...27 10.5 Clean-Up Cycles ...27 1 1.0 Programming Instructions...28 1 1.1 Adjusting Time of Day...28 1 1.2 Changing Filter Cycles ...28 1 1.3 Programming Circulation Pump Run Time...29 1 1.4 Locking Filter Cycles ...30 1 1.5 Panel Lock...30...
-
Page 5: Important Spa Owner Information
Jacuzzi Premium insulating cover in place at all times when the spa is not in use. Read and carefully follow the requirements for your spa’s support base found in section 4.0 titled, “Choosing a Location”... -
Page 6: Important Safety Instructions
3.0 IMPORTANT SAFETY INSTRUCTIONS When installing and using this electrical equipment, basic safety pre- cautions should always be followed, including: READ AND FOLLOW ALL INSTRUCTIONS BEFORE OPERATING THE SPA! 2. WARNING: To reduce the risk of injury, do not permit children to use this product unless they are closely supervised at all times. -
Page 7: Important Csa Safety Instructions
B. Since excessive water temperatures have a high potential for causing fetal damage during the early months of pregnancy, pregnant or possibly preg- nant women should limit spa water temperatures to 100 °F (38 °C). If pregnant, please consult your physician before using a spa. C. -
Page 8: Hyperthermia
C. WARNING: People with infectious diseases should not use a spa. D. WARNING: To avoid injury, exercise care when entering or exiting the spa. WARNING: Do not use drugs or alcohol before or during the use of a spa to avoid unconsciousness and possible drowning. WARNING: Pregnant or possibly pregnant women should consult a physician before using a spa. -
Page 9: General Electrical Safety Instructions
3.4 GENERAL ELECTRICAL SAFETY INSTRUCTIONS Your new Jacuzzi Premium spa is equipped with a "state-of-the-art" equip- ment system. It contains the most advanced safety and self-protective equip- ment in the industry. Nonetheless, this spa must be installed properly to insure dependable usage. -
Page 10: Choosing A Location
When the spa is in use, considerable amounts of moisture will escape. This can damage certain surfaces over time. If you have any questions regarding the placement or installation of your spa, consult your authorized Jacuzzi Premium dealer. Page 6... -
Page 11: Power Requirements
Jacuzzi Premium spas are designed to provide optimum performance and flexibility of use when connected to the maximum electrical service as listed in the tables below. If you prefer, your Jacuzzi Premium dealer can perform a minor circuit board modification to allow the spa to accept different electri- cal service. - Page 12 Export J-350/J-360/J-370 Models (50Hz) Voltage: Number of Wires Frequency: Current Draw: Circuit Breaker: Important Information: In 40A configuration, the heater will operate while both jets pumps are running in high speed. This is the factory setting. ** In 30A configuration, the heater will not operate when both jets pumps are running in high speed.
-
Page 13: Electrical Wiring Instructions
6.0 Electrical Wiring Instructions IMPORTANT NOTICE: The electrical wiring of this spa must meet the requirements of the National Electrical Code (NEC) and any applicable state or local codes. The electrical circuit must be installed by a qualified electrician and approved by a local build- ing/electrical inspection authority. - Page 14 Note: Pump Locations Vary by Model 1. Control Box 2. Power Supply Entrance(s) 3. 2-Speed Pump #1 4. Heater 5. Spa Drain Valve 6. Pump Drain Plug(s) 1. Terminal Block 2. Bonding Lug 3. Grounding Terminal Figure-C Green US/Canada J-350 / J-360 / J-370 / J-380 Models: 240 VAC, 3-Wire Connection (60Hz) Page 10 Figure-A...
-
Page 15: Start-Up Instructions 1
Congratulations! You are now all set to get your new spa ready to use. Simply follow this step-by-step procedure and, before long, you will be enjoying your first glorious experience in your Jacuzzi Premium spa. For best results, read each step in its entirety before proceeding with that step. -
Page 16: Adding Start-Up Chemicals
7.5 Add Start-Up Chemicals Add the spa water chemicals as recommended by your Jacuzzi Premium Dealer. Refer to section 13.0 (Page 36) for general guidance. 7.6 Place Cover On Spa Keeping the insulating cover in place anytime the spa is not in use will reduce the time required for heating, thereby minimizing operating costs. -
Page 17: Lcd Display
8.2 LCD Display A. Lock Symbol indicates panel, set temperature, or filter cycle programming is locked. B. Heat Symbol: indicates heater is on (Sec. 9.1, Page 15). C. Ozone Symbol indicates the optional CD Ozonator is on Sec. 13.3, Page 37). D. -
Page 18: Spa Features And Controls
8.3 Spa Features And Controls J-370 model illustrated - Location of Features Varies by Model Control Panel 2. Air Controls 3. Filter/Skimmer Cover 4. Diverter Valve #2 5. Maxx PowerPro Jets 6. PowerPro Jets/Mini- PowerPro Jets 7. Diverter Valve #1 8. -
Page 19: Operating Instructions
(Page 14). These con- trols let you operate many of the special functions of your Jacuzzi Premium spa. By familiarizing yourself with the following information, you will be able to gain the full benefit afforded by the various functions of your spa. -
Page 20: Activate Pump 1
9.6 Selecting Desired Massage Action Your Jacuzzi Premium spa is equipped to allow you to customize the massage action you desire. Each model incorporates a diverter valve that allow you to... -
Page 21: Adjusting Individual Jet Flow
9.1 1 Optional Jacuzzi Premium Audio System Spas equipped with the optional Jacuzzi Premium Stereo System offer enhanced spa enjoyment. These models include an integrated AM/FM/CD receiver with two high-quality marine speakers for unsurpassed sound quality and long-life. - Page 22 the latch tabs together at the top of each speaker enclosure to unlatch it’s “pop-up” mechanism. To retract each speaker before covering spa, gently press downward on each enclosure until you feel a slight “click”, then release. CAUTION: Never step or sit on a speaker enclosure! This type of misuse will damage the speaker enclosure latching and track mechanism.
- Page 23 D. Adjust Treble Press blue SEL button two times to select treble mode. Then press blue or VOL range from -7 to +7. E. Adjust Bass Press blue SEL button three times to select bass mode. Then press blue VOL button to adjust bass range from -7 to +7.
- Page 24 H. Bass Boost Press grey LOUD button to increase the bass output. LOUD appears on the display. I. Set Clock Press and hold grey DISP button for 3-seconds until time display flashes. Within 3 seconds, press blue + or - button to set displayed hours and minutes.
- Page 25 B. Select a Radio Station 1. Slow Scan: Press blue + button or - button for less than one second to advance radio frequency up or down one step. 2. Quick Scan: Press blue + button or - button for more than one second to quickly scan radio frequencies.
- Page 26 D. Recall a Station Preset 1. Press grey BAND button to select desired radio band, if necessary. 2. Press green PRESET button to recall station preset. E. Automatically Store Stations Function selects 6 strongest stations and stores them in current band. 1.
- Page 27 Optional Stereo Receiver - CD Player Operation A. Insert and Eject CD 1. Press orange OPEN button on front flip-over panel. Gently push a CD into slot and flip panel up to close. The CD will begin to play. 2. Press orange OPEN button on front flip-over panel, then flip-open panel.
- Page 28 E. Shuffle Play All Tracks Press green SHF button to play all tracks on CD in random order one time. Press again to stop shuffle play. F. Scan (Preview) All Tracks Press green SCN button to play first ten seconds of each track on current CD.
- Page 29 Stereo Receiver Specifications Optional Stereo Receiver Specifications CD Player Signal/noise ratio ........>86 dB Frequency response .
-
Page 30: Automatic Filtration Cycles
10.0 Automatic Filtration Cycles Your Jacuzzi Premium controls have been designed to provide maximum convenience, as well as economy of operation. By selecting the appropriate filtration mode, you can ensure that your spa will be ready to use anytime with the lowest possible energy consumption. -
Page 31: Preset Filter Cycles
Summer Logic: In warm weather, the water temperature in the spa may exceed the set temperature. This condition may occur due to heat trans- ference from the main pump and 24-hour circulation pump. If the water temperature is higher than 95°F (35°C) and rises two degrees above the set temperature, a “Summer Logic”... -
Page 32: 1.0 Programming Instructions
11.0 Programming Instructions 1 1.1 Adjusting Time of Day The control system remembers the time of day even in the event of a prolonged power outage. However, it may occasionally be necessary to reset the time of day. For example: if you are not in the Pacific Time Zone you will want to reset the time for your own time zone. -
Page 33: 1.3 Programming Circulation Pump Run Time
large four-digit display. Press WARMER ( + ) or COOLER ( - ) to adjust duration in increments of 15 minutes. 4. Press DISPLAY to make the filter cycle programming characters disap- pear from the screen and the main display return to showing the water temperature. -
Page 34: 1.4 Locking Filter Cycles
To unlock the temperature setting so that it can be adjusted, simply follow the instructions above under “To Unlock The Panel.” 12.0 Spa Maintenance Proper and regular maintenance of your spa will help it retain its beauty and performance. Your authorized Jacuzzi Premium dealer can supply you with all Page 30 LOCKED LOCKED... -
Page 35: Cleaning The Filters
12.1 Cleaning The Filters Your Jacuzzi Premium spa is equipped with high-performance filter cartridges located inside the filter skimmer. Fine debris is filtered by the circulation pump drawing water through the circulation pump cartridge. Larger debris is also filtered by the 2-speed pump drawing water through the main pump cartridge during normal operation and at each filter cycle. -
Page 36: Draining And Refilling
(Step E), followed by soaking the filter overnight in a plastic con- tainer filled with a solution of water and a specially formulated filter cleanser available from your Jacuzzi Premium dealer. We also recommend switching your two filter cartridges during each cleaning to maximize life. The average life expectancy of each filter cartridges is approximately two years with prop- er care, rotation, and water quality maintenance. -
Page 37: Cleaning The Spa Interior
This could cause severe sudsing when the spa is refilled. Your Jacuzzi Premium dealer offers a specially formulated surface sealant which aids in cleaning the spa surface and adds a protective coating to enhance the luster of the surface. -
Page 38: Maintaining The Cover
12.5 Maintaining the Cover Using the Jacuzzi Premium insulating spa cover anytime the spa is not in use will significantly reduce your operating costs, heat-up time and maintenance require- ments. To prolong the life of the cover, handle it with care and clean it regularly using mild soap and water. -
Page 39: Restarting Your Spa In Cold Weather
7. Re-install cabinet side panels and cover spa so that no casual moisture can enter into it. Consult your Authorized Jacuzzi Premium dealer if you have any questions regarding winter use or winterizing. 12.8 Restarting Your Spa in Cold Weather... -
Page 40: Water Quality Maintenance
Some are necessary to compensate for out-of-balance water, some aid in cosmetic water treatment and others simply alter the feel or smell of the water. Your Authorized Jacuzzi Premium dealer can advise you on the use of these additives. CAUTION: Do not use chlorine tablets (Trichlor) in your spa. This chemical can have an extremely corrosive effect on certain materials in the spa. -
Page 41: Optional Cd Ozone Water Maintenance System
13.3 Optional CD Ozone Water Maintenance System If you have elected to have your spa equipped with the optional Jacuzzi Premium CD Ozone water purification system you will find that your water stays fresh and clear with significantly less chemical sanitizer usage. You will also probably be able to go longer between complete spa drainings. - Page 42 *NOTE: THIS MESSAGE CAN ALSO APPEAR IF THE PUMP HAS NOT REGAINED PRIME AFTER THE SPA HAS BEEN DRAINED AND REFILLED. IF YOU SUSPECT THAT THIS IS THE CASE, SEE THE INSTRUCTIONS ON PAGE 40 UNDER “PUMP DOES NOT OPERATE...” Page 38 If the spa water is more than 20 °F (-7 °C) cooler than the temperature setpoint, the low speed...
-
Page 43: Troubleshooting - Procedures
15.0 Troubleshooting - Procedures In the unlikely event your spa is not working the way you believe it should, please first review all installation and operating instructions in this manual and check the message on the panel display; second, if you are still not satisfied it is working properly, please follow the appropriate troubleshooting instruc- tions. - Page 44 PUMP DOES NOT OPERATE BUT LIGHT DOES Pump Priming Instructions: TURN SPA OFF! Remove waterfall side filter cartridge and insert end of garden hose into its fitting. Seal-off pipe opening around hose using a large, clean rag and turn on maximum water flow through the hose. After about 30 seconds, turn off water, remove hose and rag, reinstall filter and activate pump #1 on high speed.
