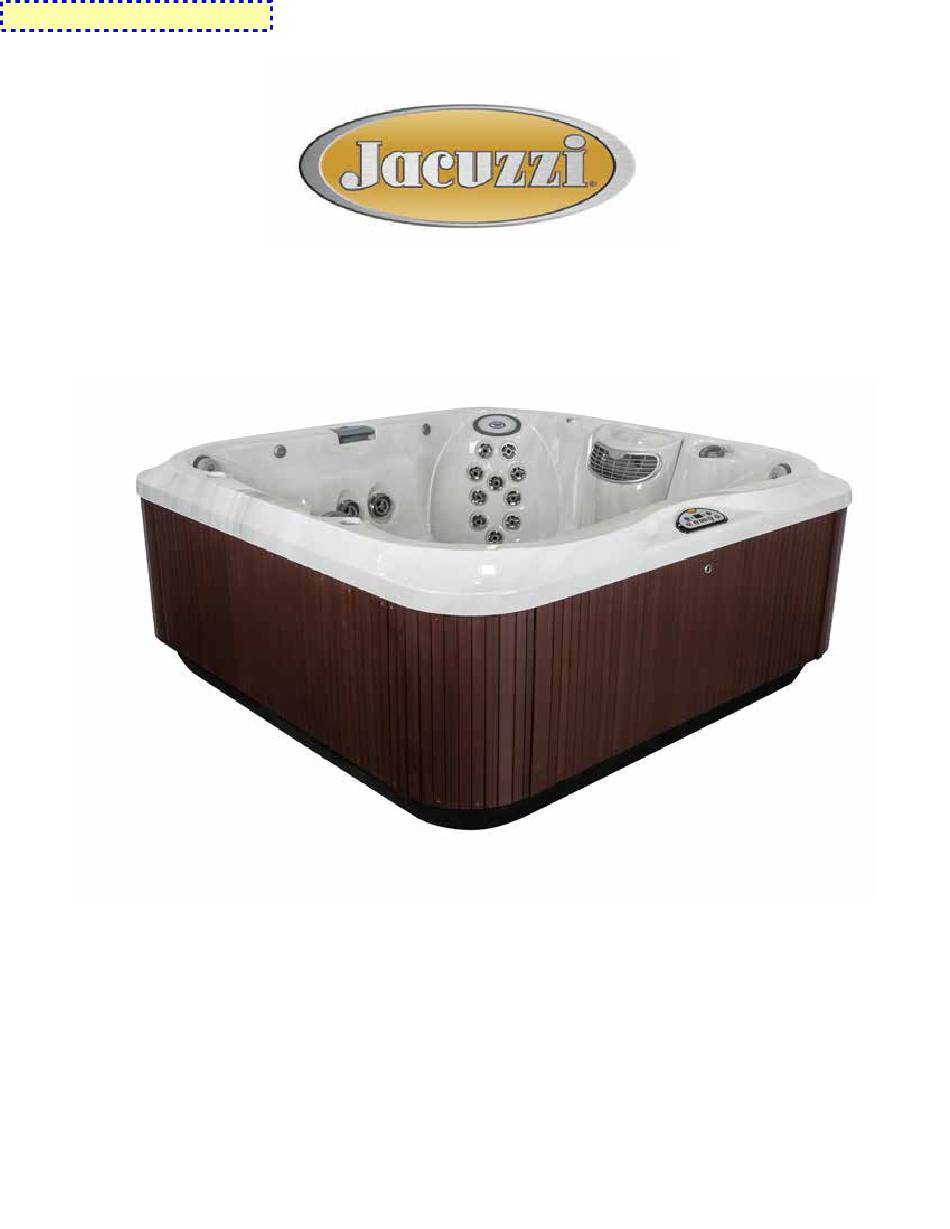

- Page 1 Guillen's Enterprises, inc www.guillens.com - (800) 222-7855 jacuzziparts.com 800-222-7855 STANDARD TROUBLESHOOTING APPROACH S.T.A. MANUAL 2014+ LED SERIES...
- Page 2 The following symbol is placed throughout this manual for your protection. Always use extreme cau- tion whenever performing repairs to electrical control system components of any kind! DANGER: Electrical Shock Hazard Exists! High Voltage Present on Circuit Board. Use Extreme Caution while Servicing Circuit Board.
-
Page 3: Table Of Contents
Table of Contents Standard Troubleshooting Approach (S.T.A.) ................1 Why a Standard Troubleshooting Approach? ......................1 How to Use the S.T.A..............................1 Professional Customer Service ...........................1 Before Leaving the Shop .............................1 Fixing the Hot Tub................................1 Before Calling Technical Support ..........................1 Before Leaving the Customer ............................1 Satisfying the Customer...............................2 Electro Static Discharge (E.S.D.) .................... - Page 4 Troubleshooting without The Control Panel ................17 8.1A No Heat or Not Enough Heat (All Models) .........................17 8.1B No Heat or Not Enough Heat (All Models) .........................18 8.1C No Heat or Not Enough Heat (All Models) .........................19 8.1D No Heat or Not Enough Heat (All Models) .........................20 8.1E No Heat or Not Enough Heat (All Models) .........................21 Intermittent Heating ..............................22 Nothing Works ................................22...
-
Page 5: Standard Troubleshooting Approach (S.t.a.)
1.0 Standard Troubleshooting Approach (S.T.A.) 1.1 Why a Standard Troubleshooting Approach? Service prices are basically set by local industry and geographic region. Stiff competition in the ser- vice industry has made it difficult to raise the price of a service contract; or charge more for time and materials than the competitive shop down the street. -
Page 6: Satisfying The Customer
1.8 Satisfying the Customer Most customers do not care what work you have done or what parts you have replaced, but they always care whether or not their problem goes away. When you are done, show them that their problem is gone. If they ask how you did it, take a few minutes to explain. -
Page 7: Electro Static Discharge (E.s.d.)
• The customer loses use of the hot tub. You lose money because you must go back to make it right. Jacuzzi loses its reputation for quality. 2.2 Avoiding E.S.D. Damage We can’t prevent static charges from building up within our bodies as we go about our jobs, so we must do three things to protect circuit boards from getting zapped: 1. -
Page 8: Main Control Panel Functions
3.0 Main Control Panel Functions 3.1 J-300 Control Panel (2014+) 2-pump J-335, J-345, J-355, J-365, J-375 and J-385 1-pump J-315 and J-325 2-Pump Control Panel Shown 1-Pump Control Panel Shown A. 2014+ P/N 6600-715 SMT panel A. 2014+ P/N 6600-713 SMT panel Display shown for example purposes only, actual water tem- perature display will vary. -
Page 9: Control Panel Functions
4.0 Control Panel Functions 4.1 Setting Water Temperature Press either the Warmer ( ) or Cooler ( ) button to adjust the current temperature setting. The current set temperature reading will blink once to indicate that the system is ready to accept changes. Press the Warmer or Cooler button to adjust the temperature to a desired setting. -
Page 10: Jets
Simply press any air control button Jacuzzi logo side down to open or press the opposite side of button to close. Note: To minimize heat loss, close all air controls (Jacuzzi logo up) when spa is not in use. -
Page 11: Standard Programming Functions
5.0 Standard Programming Functions 5.1 Menu Programs Button • Follow the steps below to access the programming menus. Menu button LED display Menu name Menu Function Allows access to the programming menu for the primary filtration that uses the circulation Primary Filtration pump. -
Page 12: Primary Filtration Program
5.2 Primary Filtration Program • Follow the steps below to access the program. Included within the Primary Filtration Menu, is the Change Filter feature. • Two methods for setting the filter cycle start time are possible: Turn power on to the hot tub two minutes prior to the desired filter cycle start time, or Press and hold the WARMER, COOLER and JETS Pump 1 buttons at the same time, to reset the control panel and start the power-up sequence. -
Page 13: Change Filter Timer Program
ting should not be altered. Running the circulation pump less than the factory recommended time will result in issues with water quality maintenance. Note: The 24-hour primary filtration system also supplies heated water to the spa when the heater turns on. 5.3 Change Filter Timer Program •... -
Page 14: Clearray Program
5.5 CLEARRAY Program • To make changes to the CLEARRAY bulb replacement timer or to reset it , follow the steps below to access the program. Menu button Action Result To access the CLEARRAY Menu. The LED will display “U.” Press 3x Activates the system for changes. -
Page 15: Lock Mode
5.7 Lock Mode • Follow the steps below to access the program. • The Lock menu gives you the option to lock specific features of the spa. There are three locking modes, L1, L2 and L3. Normal operation The jets pumps and heater are deactivated. This mode can be used when replacing or cleaning the spa filters. -
Page 16: Understanding Circuit Board Pin Assignments
6.0 Understanding Circuit Board Pin Assignments 6.1 Circuit Board Jumpers (All North American 60Hz 2-Pump Models) All North American 2-pump circuit boards can be configured for either 40, 50A, or 60A operation. Refer to jumper pin table and circuit board diagram below for specific system details (factory jumper settings shown): Circuit Board #6600-293;... -
Page 17: Circuit Board Jumpers (All Export 50 Hz 1-Pump Models)
6.4 Circuit Board Jumpers (All Export 50 Hz 1-Pump Models) These circuit boards can be configured for 20A or 30A logic. Each mode affects overall energy con- sumption and heater performance. Pins 1-2: Jumper ON Enables 20A logic; forces heater off when jets pump 1 is running in high speed. -
Page 18: Troubleshooting Using The Control Panel
“CF” and the water temperature. The countdown timer for the Change Filter feature needs to be reset. New filters can be purchased from a local Jacuzzi dealer. Nonfunctional Hi-limit Sensor (All Models) Open or shorted hi-limit sensor. Heater is deactivated. Refer to test steps 1-2 below: 1. - Page 19 FL1 & FL2 Water Flow Problem (All Models) • FL1: flow switch not closed when circulation pump is running. Heater is deactivat- ed. Proper water flow is inhibited or flow switch may be obstructed, misaligned, or defective. Refer to troubleshooting steps 1-5 below: 1.
-
Page 20: Testing Flow
“- - -” Watchdog (All Models) Water temperature has reached 118°F (48°C). DO NOT ENTER HOT TUB WATER! The entire system is disabled. Refer to test steps 1-4 below: 1. Check hi-limit and temperature sensor resistance values. Both sensors should measure close in resistance to each other (e.g. -
Page 21: Troubleshooting Without The Control Panel
8.0 Troubleshooting without The Control Panel • Diagnostic Tools for Sections 8.1A-8.1E: Clamp-on ammeter, voltmeter, and ohmmeter • Suggested Spare Parts for Sections 8.1A-8.1E: Circuit board, control panel, temperature sensor, thermal switch, flow switch, heater assembly. 8.1A No Heat or Not Enough Heat (All Models) •... -
Page 22: B No Heat Or Not Enough Heat (All Models)
8.1B No Heat or Not Enough Heat (All Models) • Symptoms: Circulation pump (heating pump) not turning, panel heat indicator not lit, panel is flashing FL2. Standard Troubleshooting Approach Replace circuit Is wire shorted? Turn power off. Disconnect board. flow switch wire from board (Fig. -
Page 23: C No Heat Or Not Enough Heat (All Models)
8.1C No Heat or Not Enough Heat (All Models) • Symptoms: Circulation pump (heating pump) not turning, panel heat indicator not lit, panel is flashing FL1. Standard Troubleshooting Approach Call an electrician. Is there correct voltage coming to the hot tub at TB1? Test point 1 and 2. See page 43-46 240 VAC, ±... -
Page 24: D No Heat Or Not Enough Heat (All Models)
8.1D No Heat or Not Enough Heat (All Models) • Symptoms: Circulation pump (heating pump) is turning, panel heat indicator not lit, panel is flashing FL1. Standard Troubleshooting Approach Is the circulation pump 1. Remove filter and See Section 8.12 (pg. 31) (Heat Pump) moving allow air to bleed water? -
Page 25: E No Heat Or Not Enough Heat (All Models)
8.1E No Heat or Not Enough Heat (All Models) • Symptoms: Circulation pump (heating pump) is turning, panel heat indicator not lit, panel is NOT flashing FL1. Standard Troubleshooting Approach Replace circuit board. Jump out flow switch pins at Put hot tub in primary board. -
Page 26: Intermittent Heating
8.2 Intermittent Heating As with all intermittent problems, routine measurements and display panel error messages are not trustworthy. The following procedure will eliminate the most probable causes. It is important to explain to the customer how difficult intermittent problems are to locate. You will be doing a series of things to eliminate the problem. -
Page 27: Hot Tub Doesn't Come On For Filter Cycle
Nothing Works (Panel Dead) 1. All Models - Check for proper power to the hot tub on the main TB1 terminal block (page 36) as follows: • 120V Convertible North American Models: 120 VAC ±10% (3-wire). • 240V North American Models: 240 VAC ± 10%. 2. -
Page 28: A J-300 Collection Dcu Unit
8.6A J-300 Collection DCU Unit 2014+ DCU Diagram DCU wires splice into the yellow transformer wires. To location J1 on the Board To “Power” connection on the DCU Unit 3.82 DCU Unit TRANSFORMER Mini-Din Cable provides constant 12 VAC from yellow transformer wires Red Wire 12vAC Constant Voltage... -
Page 29: C Hot Tub Light Will Not Come On
8.6C Hot Tub Light Will Not Come On Diagnostic Tools: Voltmeter Suggested Spare Parts: Circuit board, DCU, Lights Standard Troubleshooting Approach (Light has a two hour time out) Do any of the Plug in spare con- Is there correct Replace trans- lights work? trol panel. -
Page 30: No Jets
8.7 No Jets This is a condition of constant zero water pressure. The first step in diagnosing the prob- lem is to determine if the pump is actually turning. Once this determination is made, follow the appropriate portion of the S.T.A. Diagnostic Tools: Voltmeter Suggested Spare Parts: Control Panel, Circuit Board, Jets Pump 1 Pump Is Turning (Checking for A Flow Problem) -
Page 31: Ozonator Not Working (Optional)
8.8 Ozonator Not Working (Optional) Diagnostic Tools: Clamp-on Ammeter, Voltmeter Suggested Spare Parts: Ozonator, Circuit Board, Control Panel Standard Troubleshooting Approach Refer to pages 43-46 for testing points. Replace circuit board Turn power off, plug in spare control panel, Turn power to hot tub off and on. then turn power on. -
Page 32: Clearray Not Working
Not Working CLEARRAY Verify that the CLEARRAY system should be running before proceeding (no error message, not in summer logic. Note: CLEARRAY turns off when either jets button is pressed and will remain off for 5 minutes after function ends. Diagnostic Tools: Clamp-on Ammeter, Voltmeter Suggested Spare Parts: CLEARRAY ballast, UV bulb, circuit board, control panel Standard Troubleshooting Approach. -
Page 33: Weak Or Surging Jets
8.10 Weak or Surging Jets Weak or surging jets are usually caused by an insufficient water supply to the pump or a clogged or broken pump impeller. The water level may simply be low, or there may be an obstruction in the water flow path to the pump or in the pump’s impeller. Before making a service call, ask customer to verify all jets are open. -
Page 34: Jets Pump Runs And Quits During Jet Mode
8.11 Jets Pump Runs and Quits During Jet Mode This is usually a problem of pump overheating. The pump motor incorporates a thermal cutout switch that triggers when the motor gets too hot. There is no reset for this condi- tion. -
Page 35: Circulation Pump Not Working
8.12 Circulation Pump Not Working The circulation pump works as follows: • 2014+ J335/J345/J355/J365/J375/J385 circ pump runs 8 hrs (default) • 2014+ J315/J325 24 hrs (default) Note: See Service Bulletin page 33 The circulation pump should be running unless “summer logic” is activated. Verify “summer logic” is not activated before starting. -
Page 36: Troubleshooting A Thermal Pump Cutout
8.13 Troubleshooting A Thermal Pump Cutout 1. Verify voltage to hot tub is 240 VAC ±10% (or 120 VAC ±10% for convertible models). An insufficient voltage supply can cause the motor to pull too much current and overheat. The situation must be corrected. 2. -
Page 37: Service Bulletin: 2014 J-300 Summer Logic Upgrade (July 29, 2014)
8.15 SERVICE BULLETIN: 2014 J-300 Summer Logic Upgrade (July 29, 2014) We have recently discovered a glitch in the summer logic code of the 2014 J-300 software. The issue will result in the circulation pump turning off and on repeatedly at the summer logic threshold. For example, if the spa is set for 100°F and reaches 102°F (two degrees above the set temp), the pump will cycle off and on as long as the primary cycle is engaged and water temperature remains two degrees above the set temp. -
Page 38: Microchip Replacement Procedure
8.16 MicroChip Replacement Procedure MicroChip Replacement Procedure This instuction sheet outlines the procedure for replacing LED Circuit Board MicroChips. Required Materials A. Replacement MicroChip B. IC Chip Puller #6000-190 CAUTION: To prevent static damage to the spa circuit board, always wear a grounded anti-static wrist strap or touch the metal grounding lug on the spa load box to drain static from your body before accessing the circuit board. -
Page 39: Frame Jet Pump Change
8.17 48 Frame Jet Pump Change 48-Frame Jet Pump Change In July of 2014, the primary supplier for 48-frame jet pumps was changed. Our new pumps offer the same output, quality, and reliability standards as our older (OEM) 48-frame jet pumps. -
Page 40: Appendix
APPENDIX... -
Page 41: A1 Checking Voltage To Hot Tub
Checking Voltage to Hot Tub Correct supply voltage wiring to the hot tub is essential for safe/proper operation. The first step in troubleshooting a new installation should be to take voltage readings at the terminal block TB1. Do not trust wire colors. Electricians make mistakes and electrons are color-blind. A low line voltage or incorrectly wired hot tub will result in either of the following symptoms: A) Strange or intermittent symptoms, B) Displays with indications that simply cannot be correct Many of the most perplexing problems in the past have been wiring errors and voltage drop prob-... -
Page 42: A2 Checking Current Consumption Of Devices
Verify All 240 VAC Models power connections are as follows: North American 240 VAC/60 Hz, Fig. D: • Hot to Hot: Measure across test points 1 and 2 for 240 VAC. • Hot to Ground: Measure across test points 1 and 23 for 120 VAC; then across 2 and 23 for 120 VAC. -
Page 43: A3 Checking Voltages To Devices
Checking Voltages to Devices Device voltages are often measured at the circuit board to determine whether the board or device is bad. If the circuit board delivers voltage when device operation is called, the circuit board is prob- ably good and the problem lies with the device or the wiring to the device. The following voltage chart shows operating voltages for all major hot tub components. -
Page 44: A4 Testing Flow Switch
Testing Flow Switch When the “FL1 or FL2” message appears, it means the flow switch contacts have failed to close when the pump was turned on, or failed to open when the pump was turned off. This could be caused by an excessively dirty filter, an obstruction in the flow path or by a bad switch. -
Page 45: A6 The Watchdog
The Watchdog “- - -” Three horizontal dashes with no other control panel indicators illuminated is a result of the watchdog circuitry detecting a potential destructive condition within the hot tub. There are many conditions that can cause a watchdog error message. Except for a runaway heat condition, most are caused by a faulty circuit board, bad hi-limit sensor, or temperature sensor. -
Page 46: A8 Understanding Ph
Understanding pH Keeping hot tub water clean and clear involves a very complex set of chemical reactions. Most impor- tantly, the hot tub must be sanitized. Bacteria, algae, and other single-cell life forms that may find their way into the hot tub must be killed. Three chemical elements, chlorine, bromine, and ozone are all good sanitizing agents. -
Page 47: North American 60 Hz 120V/240V Convertible 1-Pump Models
North American 60 Hz 120V/240V Convertible 1-Pump Models • Board is shown with 2013+ DCU with minidin connectors. • This is a generic diagram actual connections and components may vary. Light DCU Ports 1-10 power spa lights, waterfall lights and step lights on applicable models... -
Page 48: A10 North American 60 Hz 240V 2-Pumps Models
A10 North American 60 Hz 240V 2-Pumps Models • Board is shown with 2013+ DCU with minidin connectors. • This is a generic diagram actual connections and components may vary. -
Page 49: A11 Export 50 Hz 230V 1-Pump Models
A11 Export 50 Hz 230V 1-Pump Models • Board is shown with 2013+ DCU with minidin connectors. • This is a generic diagram actual connections and components may vary. -
Page 50: A12 Export 50 Hz 230V 1- Or 2-Pump Models
A12 Export 50 Hz 230V 1- or 2-Pump Models • Board is shown with 2013+ DCU with minidin connectors. • This is a generic diagram actual connections and components may vary. -
Page 51: A13 Load Box Connection Diagrams A - D (North American 60 Hz)
A13 Load Box Connection Diagrams A - D (North American 60 Hz) 2-Pole Circuit Breaker with 2-Wire Grounded Load Connection (3 Wires to Hot Tub, 2-Hot, 1-Ground) Hot Tub 240 VAC Load Box White 2-Pole Black GFCI Breaker Main Service Black Ground Panel... - Page 52 Main Panel with Secondary GFCI Shut-Off Box Using a 2-Pole GFCI Breaker with 2-Wire Grounded Connection (3 Wires to Hot Tub, 2-Hot, 1-Ground) Hot Tub Load Box Main Panel* GFCI Sub Panel* 2-Pole Red (Hot) GFCI Black (Hot) Breaker Black Ground Green White (Neutral)
-
Page 53: A14 Temperature Sensor/Hi-Limit Sensor Resistance Chart
A14 Temperature Sensor/Hi-Limit Sensor Resistance Chart Fahrenheit (°F) Celsius (°C) Ohms (Ω) 59.0......15 ..................48840 60.8......16 ..................46200 62.6......17 ..................44610 64.4......18 ..................42630 66.2......19 ..................40770 68.0......20 ..................39000 69.8......21 ..................37290 71.6......22 ..................35400 73.4......23 ..................34170 75.2......24 ..................32700 77.0......25 .................. -
Page 54: A15 Flow Switch Illustration
A15 Flow Switch Illustration Flow Switch #6560-852 6560-852 • J315, J-325 Models Connection: This flow switch style has spade connectors at top for easy cable removal for electronic troubleshooting. Flow Switch #2560-040 • 2014+ J300 (except J-315 and J-325) Connection: This flow switch style has cable with curled finger connectors that can be re- moved from plug for electronic troubleshooting. -
Page 55: A17 Transformer Test
A17 Transformer Test To Test Transformer: 1. Leave transformer connector J4 plugged into the circuit board. 2. Set your Voltmeter to the 500 VAC range. 3. Place Voltmeter probes directly into backside (wire side) of J4 connector and test as follows: 120 VAC/240 VAC Convertible Models* North American 60 Hz... -
Page 56: A18 Troubleshooting The Optional Stereo System
A18 Troubleshooting The Optional Stereo System The optional Stereo System provides a stereo receiver with high quality hot tub engineered speakers for superior sound quality. If the stereo deck does not turn on, refer to the following test procedure. I. BLUEWAVE stereo diagram (follow the testing procedures for the Aquatic stereo) AUDIO MODE DIR-... - Page 57 A. Testing the fuses 1. Turn power to the spa OFF. 2. Locate the red fuse wire on the stereo wiring harness ( ), Figure K. 3. Open the black casing that encloses the fuse and remove the 15A fuse. 4.
-
Page 58: A20 Glossary Of Terms
A20 Glossary of Terms Circuit Board: Printed circuit board assembly that distributes voltage to selected compo- nents. Control Panel: Component that allows user to access functions provided by the circuit board. Ammeter: Device which measures electrical current conducted through a wire or electrical device. -
Page 59: Troubleshooting Data Collection Form
A21 Troubleshooting Data Collection Form Troubleshooting Data Collection Form Customer Name ___________________________________________________________ Address _________________________________________ Phone ( ) _______________ B e f o r e t r o u b l e s h o o t i n g , c o l l e c t t h e f o l l o w i n g : 1. - Page 60 Jacuzzi Hot Tubs 14525 Monte Vista Ave, Chino, CA 91710 Phone: (909) 606-7733, Fax: (909) 606-0195, Website: http://www.Jacuzzi.com (B-12/14) © 2014 Jacuzzi, Inc. Printed in U.S.A.
