Select Series
Whirlpool Spa
Owner's Manual

Advertisement

Table of Contents
loading

Related Manuals for Jacuzzi Select Series

Summary of Contents for Jacuzzi Select Series

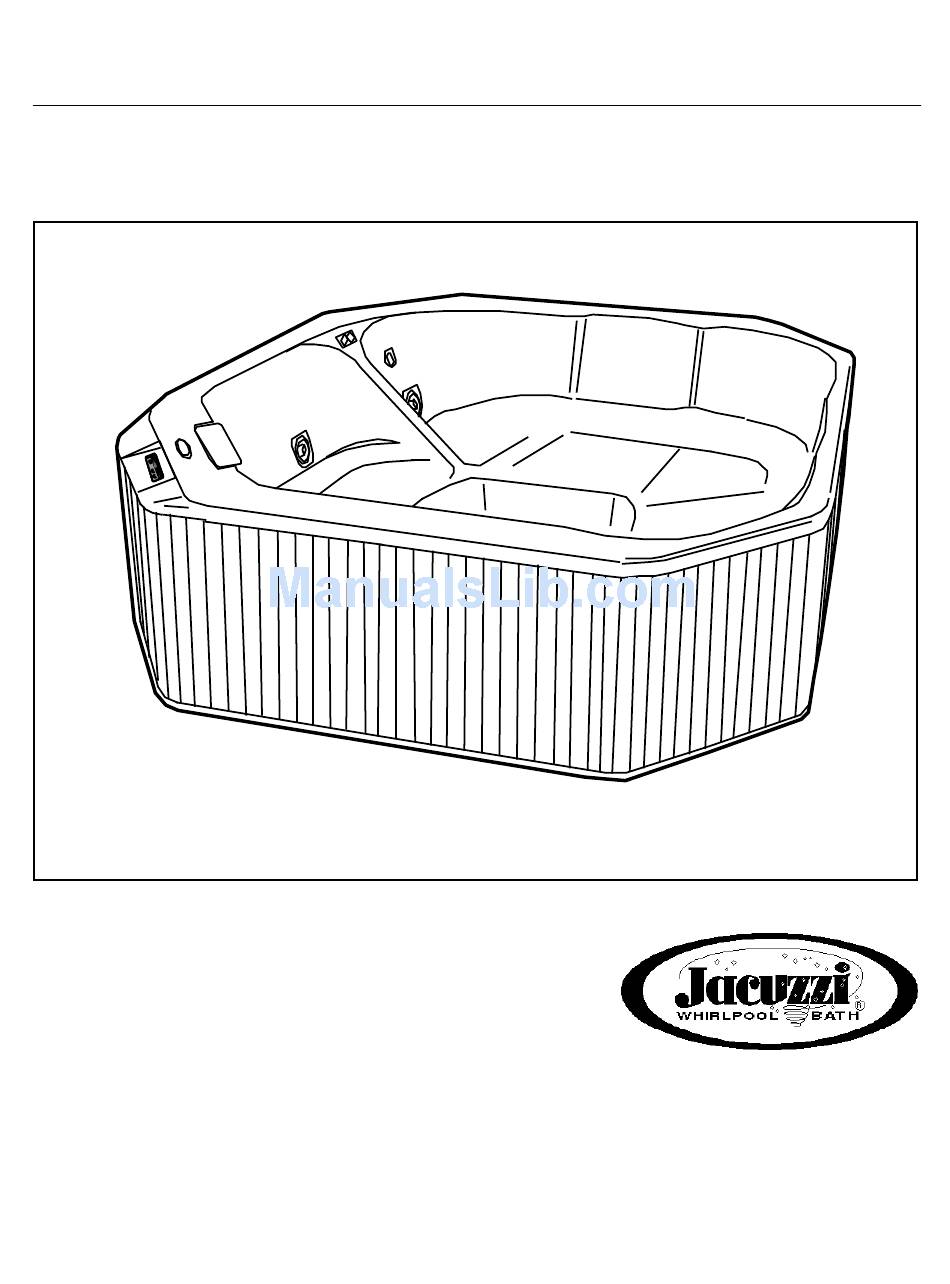

  • Page 1 Select Series Whirlpool Spa Owner's Manual...

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION READ AND FOLLOW ALL INSTRUCTIONS Warning — Risk of injury: Children, the elderly, and the Warning: A wire connector is provided at the electrical cabinet infirm should not use the spa unless they are supervised at all on this spa to connect a minimum No.

  • Page 3: Table Of Contents

    Select Series Whirlpool Spa OWNER’S MANUAL Contents Installation ......................2 Inspection and Shipping Claim................2 Positioning Your Spa ....................2 Electrical Requirements ..................2 Electrical Precautions .....................3 Outdoor Installation ....................3 Drainage........................3 Indoor Installations ....................3 Equipment Set-Up....................4 Operation ....................... 5 Operating Instructions .....................5 Control Panel ......................6 Display Messages ....................7...

  • Page 4: Installation

    INSTALLATION Inspection and Shipping Claim Check for shipping damage upon receipt of the spa. Jacuzzi Whirlpool Bath is not responsible for damage to the spa sustained during shipment. If damage is evident before unpacking, refer to instructions regarding shipping claims on the outside of the carton and immediately file a claim with the carrier.

  • Page 5: Electrical Precautions

    Providing natural or forced ventilation of the room will shown below.) help maintain comfort and minimize moisture damage to the building. Jacuzzi Whirlpool Bath is not respon- sible for damages resulting from excess moisture or water spillage. Consult an architect or engineer for aid in designing your indoor installation.

  • Page 6: Equipment Set-Up

    7. On initial start-up, it is necessary to purge and sanitize All Jacuzzi Whirlpool Bath spas are factory tested for the system as stated below. proper operation and water tight connections prior to shipment.

  • Page 7: Operation

    Besides being a beautiful addition to your indoor decor or outdoor landscaping, your Jacuzzi Whirlpool Bath spa will provide you with the ultimate in spa pleasure. Familiarize yourself with the operation of the electronic control panel, as described on page 6 of this manual.

  • Page 8: Control Panel

    OPERATION The spa will automatically begin to operate when electrical power is applied. There is no ON/OFF switch for the spa system. The control system has been designed so that by connecting the spa to its properly grounded power source, the spa's set temperature is preset to 100°F.

  • Page 9: Display Messages

    OPERATION Automatic Filter Cycles Your spa will automatically filter itself for 2 hours twice each day. The first filter cycle will begin 1 minute after the spa is energized. The second filter cycle will begin twelve hours after the start of the first cycle. The low-speed jets will constantly run during the filter times (unless the high-speed jets are on) and the heater will be enabled.

  • Page 10: Normal Operation/Whirlpool System

    OPERATION Normal Operation/Whirlpool System You can enjoy the spa with or without activating the whirlpool. Either way, bathing in your spa can be pleasurable, as well as therapeutic. After a busy, stressful day, you can look forward to soaking in your spa in still water with no turbulence—only the gentle warmth of the soothing and relaxing water.

  • Page 11: Maintenance

    Jacuzzi Whirlpool Bath dealer. Such ming pools, as water quality maintenance of spas and of conditions include the following: swimming pools is very different.

  • Page 12: Disinfecting

    MAINTENANCE Water Chemistry (Continued) Disinfecting Balancing pH When filling the spa for the first time, follow the For good hygiene and equipment longevity, main- purge/sanitizing instructions in the Equipment Set-Up tain the pH of your spa water according to the instruc- procedure of the Installation Instructions.

  • Page 13: Water Level/Drain

    (available from your Jacuzzi Whirlpool Bath dealer or CAUTION: Ensure replacement of the suction cover most pool supply stores). Follow the manufacturer’s immediately after cleaning.

  • Page 14: Automatic Filtration/Maintenance

    MAINTENANCE Automatic Filtration/Maintenance If you plan to be away, minimum water quality will be maintained by running the filter system. If you will be away for an extended period, however, we recommend that you drain the spa (following the procedure described under Winterizing on this page), as long periods without maintenance of water quality could be detrimental to the spa.

  • Page 15: Spa Light

    An optional spa cover for your spa is available from Two filters , one blue and one red, are provided with your Jacuzzi Whirlpool Bath dealer. Use of this cover will your spa. To change the filter, simply snap the colored help to reduce energy costs by minimizing heat loss and filters in place on top of the normal lens.

  • Page 16: Troubleshooting Guide

    E. GFCI tripped. E. Reset GFCI. F. Faulty pump or motor. F. * *NOTE: The skills and tools necessary for the safe repair of this spa require the services of qualified service personnel. Contact your Jacuzzi Whirlpool Bath dealer.
  • Page 17 *Note. B. Consult electrician to correct B. Inadequate supply wiring. wiring to unit. *NOTE: The skills and tools necessary for the safe repair of this spa require the services of qualified service personnel. Contact your Jacuzzi Whirlpool Bath dealer.

  • Page 18: Alternate Use Of Water Rainbow

    ® Alternate Use of Water Rainbow as Fill Spout You can use your Water Rainbow as a fill spout by permanently plumbing it to a fresh water supply if local codes permit. Local plumbing codes may require the use of an anti-siphon valve for such a connection. Do not interconnect water supply with recirculating system of the spa.
  • Page 19 USE INSTALLATION INSTRUCTIONS SUPPLIED WITH PRODUCT. Jacuzzi Whirlpool Bath has obtained applicable code (standards) listings generally available on a national basis for products of this type. It is the responsibility of the installer/owner to determine specific local code compliance prior to installation of this product. Jacuzzi Whirlpool Bath makes no representation or warranty regarding, and will not be responsible for any code compliance.
