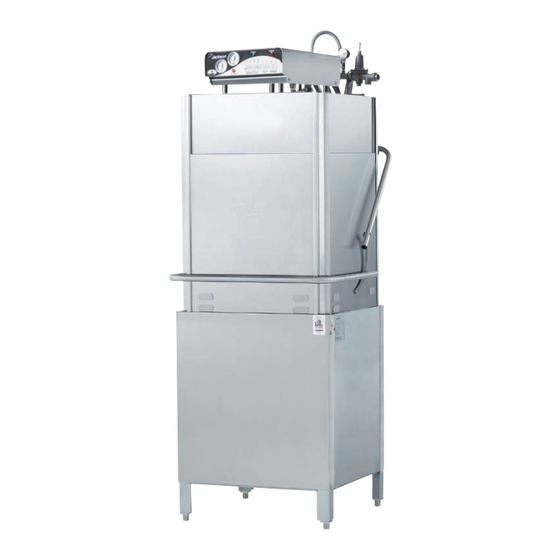

Jackson TempStar Door type Dishmachine TempStar b Specification Sheet

TempStar™ HH
Models
TempStar™ HH (70°F-rise Booster)
Specifications
U s e s 1 . 3 6 g a l l o n s ( 5 l i t e r s ) o f 1 8 0
(82˚C)
w a t e r p e r r a c k
T o t a l a u t o m a t i c ( n o r m a l ) c y c l e - 6 2
s e c o n d s
5 3 r a c k s p e r h o u r n o r m a l c y c l e
2 H P w a s h p u m p m o t o r
SHIPPING ADDRESS MAILING ADDRESS
6209 North U.S. Highway 25E
P. O. Box 1060
Gray, KY 40734 Barbourville, KY 40906
TempStar™ HH (40°F-rise Booster)
Standard Features
• Sani-Sure™ feature assures proper rinse
water temperature
• Multi-cycle timer (Extra Heavy, Heavy,
Medium, Normal)
• Extended 15 sec. high-temperature rinse
provides superior coverage and rapid
drying
• 20 3/4" (527 mm) wide x 27" (686 mm)
high opening accommodates 18" (457)
X 26" (660 mm) sheet pans and 60-quart
mixing bowls
• Auto- ll / auto-start
• Safety door switch
• Delime/manual wash switch
• Low-watt density electric wash tank
heater
• Hi-limit thermostat and low-water pro-
tection
• Adjustable bullet feet
• Uses standard 20" x 20" (508 mm x 508
mm) racks
• Front dress panel
• Detergent/rinse additive signal connec-
tion fuse box
• Built-in 70˚F(21˚C)-rise booster heater is
part of Sani-Sure™ feature and standard
• Lower counterrotating wash arms and
upper wash arm provide optimum spray
coverage and superior cleaning action
• Self-draining stainless steel pump
• Split-door design accommodates instal-
lations with low ceilings
Large scrap tray
•
S i n g l e - p o i n t c o n n e c t i o n s f o r a l l u t i l i t i e s
˚F
B u i l t - i n w a t e r
g a u g e
F i e l d c o n v e r t i b l e f r o m s t r a i g h t - t h r o u g h
t o c o r n e r o p e r a t i o n s
H e a v y d u t y s t a i n l e s s s t e e l c o n s t r u c t i o n
www.jacksonmsc.com
Tel: 606-523-9795
Tel: 1-888-800-5672
E-mail: customerservice@jacksonmsc.com
Fax: 606-523-1799 07610-002-66-60B (11/08)
Project
Item
Quantity
CSI Section 11400
Approval
Date
TempStar™ HH with No Booster
Mandatory Specs
Specify voltage
Specify booster size
Specify electric or steam
Optional Features
40˚F- (4.5˚C- ) rise booster
heater available at no
additional cost if speci ed
at time of order
With no booster heater
Drain quench system
Scaltrol
Flanged feet
Water hammer arrestor
Accessories
36" (914 mm) compartment
rack 4 1/6" (4 mm) tall
36" (914 mm) compartment
rack 5 5/8" (16 mm) tall
36" (914 mm) compartment
rack 7" (178 mm) tall
Combination rack
Peg rack
Sheet pan rack (18" x 26"/
457 mm x 660 mm baking
pans)
p r e s s u r e r e g u l a t o r a n d
