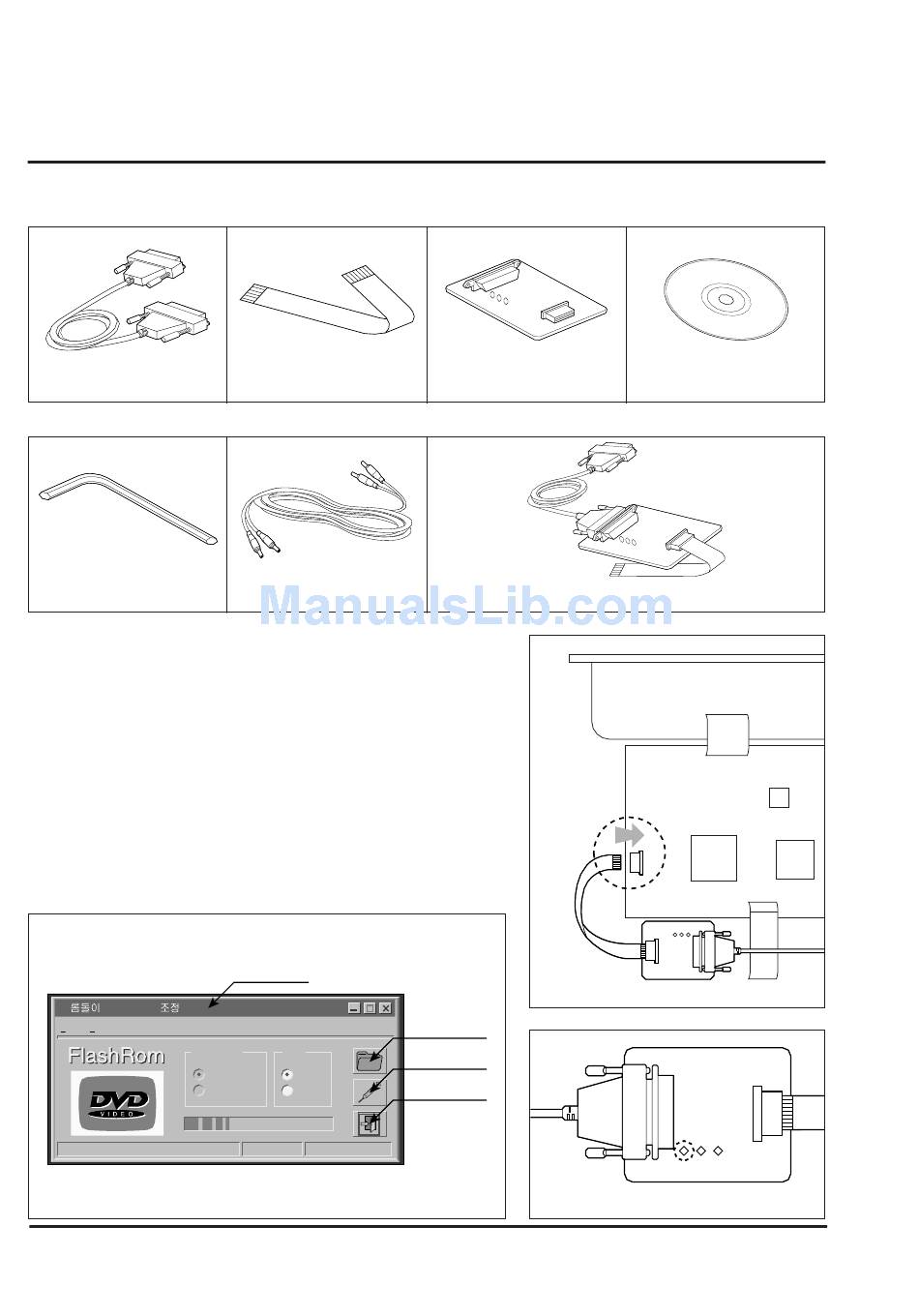

DECK MECHANISM ADJUSTMENT
1. Tools and Fixtures for SVC
¥ For SVC Program Down-Load
Not spare parts
Fig.1. Printer Cable
¥ For T -Skew and R-Skew Adjustment
Not spare parts
Fig.5. L-Wrench(3mm)
2. Install Process
1. Connect Fig. 1, 2, 3 as Fig. 7.
2. Plug out the Power cord of DVD set.
3. Connect FFC Cable(Fig.2) to the Connector on DVD Set(Fig.8)
4. Connect Printer Cable(Fig.1) to the P .C.Printer Port (LPT1).
5. Plug in the DVD Power cord.
6. Press the Menu key on Remocon.
7. Confirm No.1 LED(RED Color) of Jig board is ON. (Fig.9)
8. Perform The S/W for Down-load at P .C.
9. Open the Program File for Adjusting(Fig.10)
10. Click the Down-load Icon and perform Program Down-load.
11. Displayed remaining time.
12. Confirm LED No.1(RED) and No.2(RED) is ON.
13. Plug out the DVD Set Power cord.
14. Disconnect the FFC Cable.
md
_bas_ntsc.bin
File
Help
Rom Size
Fig.10. Adjusting Program File Open
Included in <Jig board>
Fig.2. FFC Cable (15 pin)
Not spare parts
Fig.6. RCA Jack
FILE NAME
Port
16MBit
LPT1
6M Bit
LPT2
Manual
953826Bytes
PART NO.*DV3100JIG
Fig.3. Jig Board
Fig.7. Connecting Method
Fig.8. FFC Cable Connecting
OPEN
DOWN LOAD
CLOSE
Fig.9. Jig Board LED Condition
2-6
Fig.4. Deviation Disc (0.8mm)
REAR PANEL
