Marantz VC5200 Service Manual page 54

DECK MECHANISM DISASSEMBLY
3. Frame Assembly Up/Down(Fig. 4-3)
1) Release Screw(S5).
3-1. PCB Assembly Junction
1)Unconnect the 5 Connectors(C5), (C6).
2)Release 2 Screws(S6).
3-2. Base Assembly Sled Damper
Note
• Put the Base Assembly Main on original position(Top side)
GEAR MIDDLE
GEAR ASSEMBLY RACK
RUBBER DAMPER
(S7)
PICK UP
ASSEMBLY
GENERAL
GAER ASSEMBLY RACK
GEAR MIDDLE
GEAR ASSEMBLY FEED
GEAR UP/DOWN
(A)
(B)
FRAME UP/DOWN
PCB ASSEMBLY JUNCTION
(L3)
GEAR ASSEMBLY FEED
(S7)
RUBBER REAR
(S8)
(S7)
BASE PU(OUTSERT)
(S7)
(C7)
RUBBER DAMPER
PICK UP ASSEMBLY GENERAL
MOTOR ASSEMBLY SPINDLE
(S5)
FRAME UP/DOWN
(S6)
(S6)
(C6)

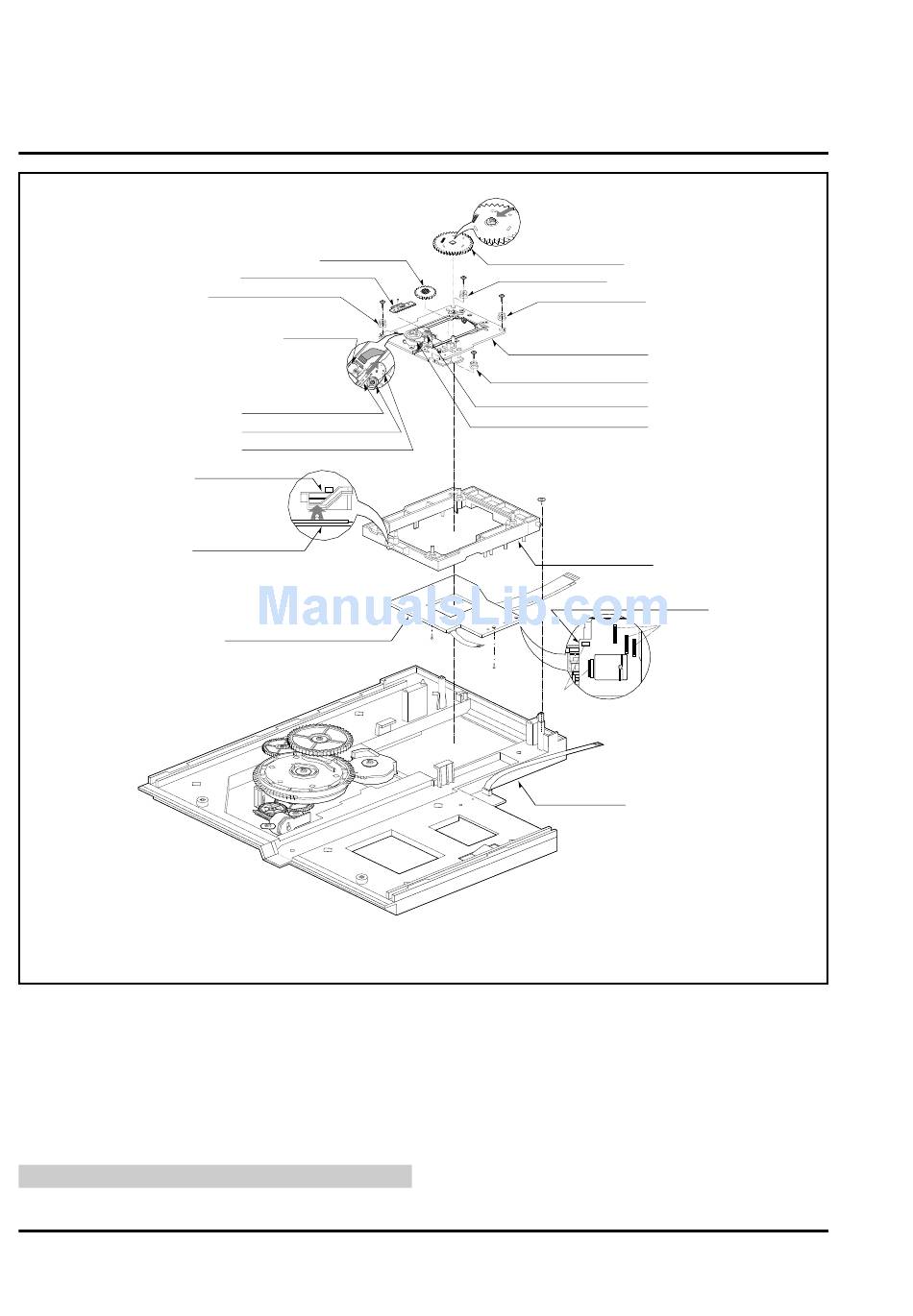

Fig. 4-3
1) Release 4 Screws(S7).
2) Disconnect the Connector(C7).
3-2-1. Gear Assembly Feed
1) Look the Locking Tab(L3) in direction of arrow.
3-2-2. Gear Assembly Middle
3-2-3. Gear Assembly Rack
1) Release the Screw(S8).
3-3. Rubber Damper
3-4. Frame Up/Down
2-4
RUBBER REAR
PCB ASSEMBLY JUNCTION
(C5)
BASE MAIN
