DigiDoc-It Imaging System

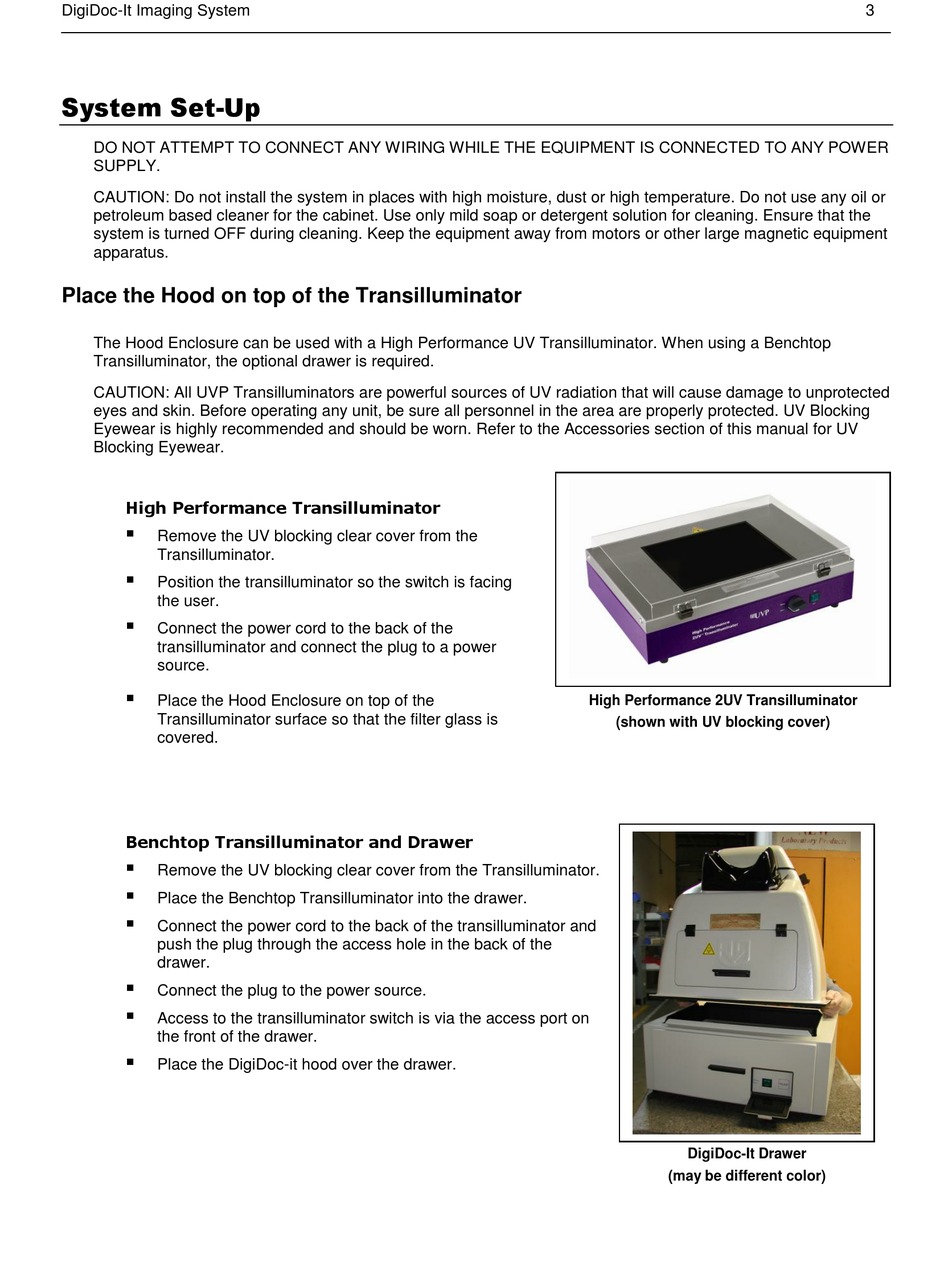

System Set-Up
DO NOT ATTEMPT TO CONNECT ANY WIRING WHILE THE EQUIPMENT IS CONNECTED TO ANY POWER
SUPPLY.
CAUTION: Do not install the system in places with high moisture, dust or high temperature. Do not use any oil or
petroleum based cleaner for the cabinet. Use only mild soap or detergent solution for cleaning. Ensure that the
system is turned OFF during cleaning. Keep the equipment away from motors or other large magnetic equipment
apparatus.
Place the Hood on top of the Transilluminator
The Hood Enclosure can be used with a High Performance UV Transilluminator. When using a Benchtop
Transilluminator, the optional drawer is required.
CAUTION: All UVP Transilluminators are powerful sources of UV radiation that will cause damage to unprotected
eyes and skin. Before operating any unit, be sure all personnel in the area are properly protected. UV Blocking
Eyewear is highly recommended and should be worn. Refer to the Accessories section of this manual for UV
Blocking Eyewear.
High Performance Transilluminator

Remove the UV blocking clear cover from the
Transilluminator.

Position the transilluminator so the switch is facing
the user.

Connect the power cord to the back of the
transilluminator and connect the plug to a power
source.

Place the Hood Enclosure on top of the
Transilluminator surface so that the filter glass is
covered.
Benchtop Transilluminator and Drawer

Remove the UV blocking clear cover from the Transilluminator.

Place the Benchtop Transilluminator into the drawer.

Connect the power cord to the back of the transilluminator and
push the plug through the access hole in the back of the
drawer.

Connect the plug to the power source.

Access to the transilluminator switch is via the access port on
the front of the drawer.

Place the DigiDoc-it hood over the drawer.
High Performance 2UV Transilluminator
(shown with UV blocking cover)
DigiDoc-It Drawer
(may be different color)
