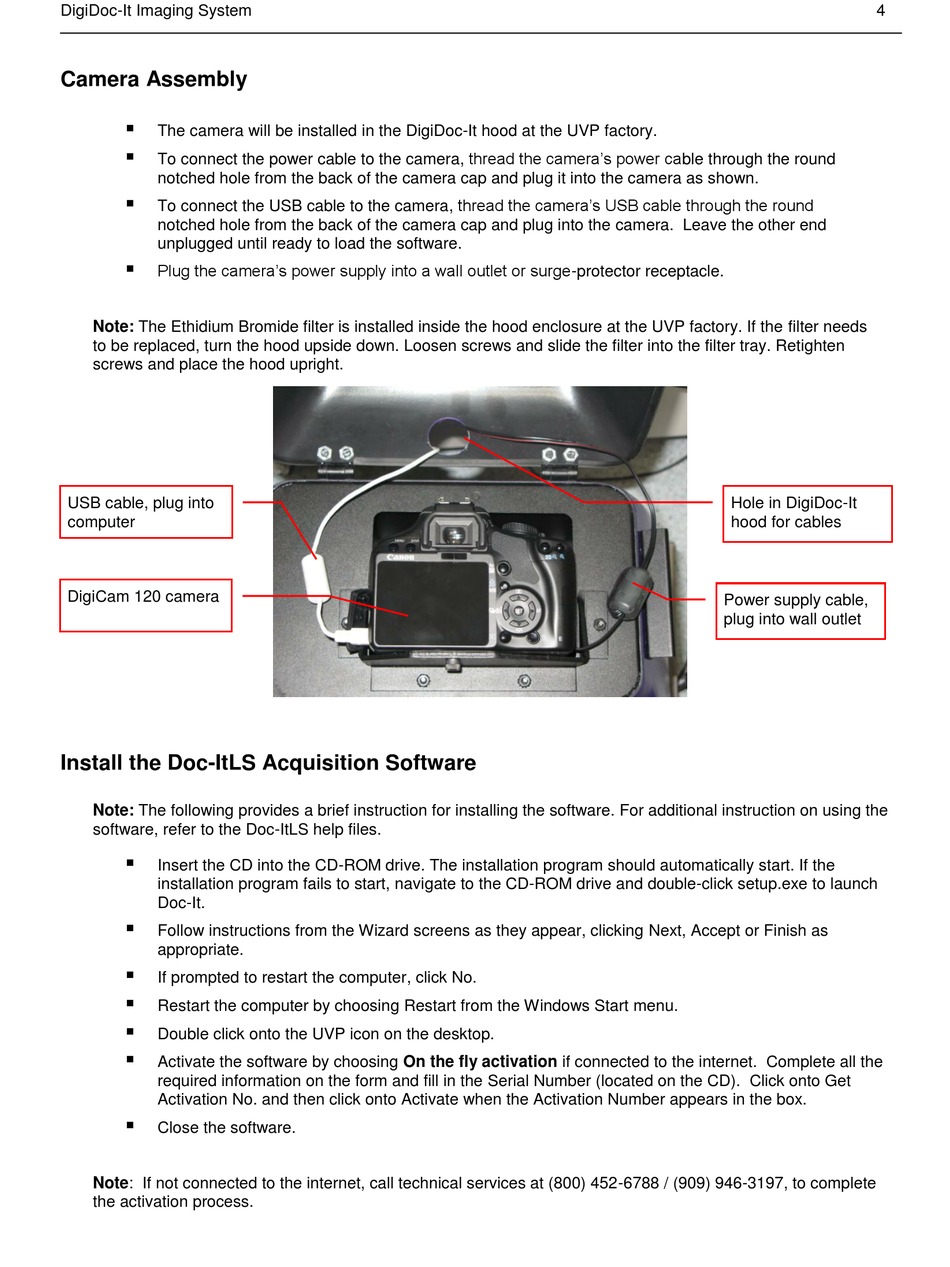

Camera Assembly - UVP DigiDoc-It Set Up And Operating Instructions Manual

DigiDoc-It Imaging System

Camera Assembly


The camera will be installed in the DigiDoc-It hood at the UVP factory.

To connect the power cable to the camera, thread the camera's power cable through the round
notched hole from the back of the camera cap and plug it into the camera as shown.

To connect the USB cable to the camera, thread the camera's USB cable through the round
notched hole from the back of the camera cap and plug into the camera. Leave the other end
unplugged until ready to load the software.

Plug the camera's power supply into a wall outlet or surge-protector receptacle.
Note: The Ethidium Bromide filter is installed inside the hood enclosure at the UVP factory. If the filter needs
to be replaced, turn the hood upside down. Loosen screws and slide the filter into the filter tray. Retighten
screws and place the hood upright.
USB cable, plug into
computer
DigiCam 120 camera
Install the Doc-ItLS Acquisition Software
Note: The following provides a brief instruction for installing the software. For additional instruction on using the
software, refer to the Doc-ItLS help files.

Insert the CD into the CD-ROM drive. The installation program should automatically start. If the
installation program fails to start, navigate to the CD-ROM drive and double-click setup.exe to launch
Doc-It.

Follow instructions from the Wizard screens as they appear, clicking Next, Accept or Finish as
appropriate.

If prompted to restart the computer, click No.

Restart the computer by choosing Restart from the Windows Start menu.

Double click onto the UVP icon on the desktop.

Activate the software by choosing On the fly activation if connected to the internet. Complete all the
required information on the form and fill in the Serial Number (located on the CD). Click onto Get
Activation No. and then click onto Activate when the Activation Number appears in the box.

Close the software.
Note: If not connected to the internet, call technical services at (800) 452-6788 / (909) 946-3197, to complete
the activation process.
4
Hole in DigiDoc-It
hood for cables
Power supply cable,
plug into wall outlet
