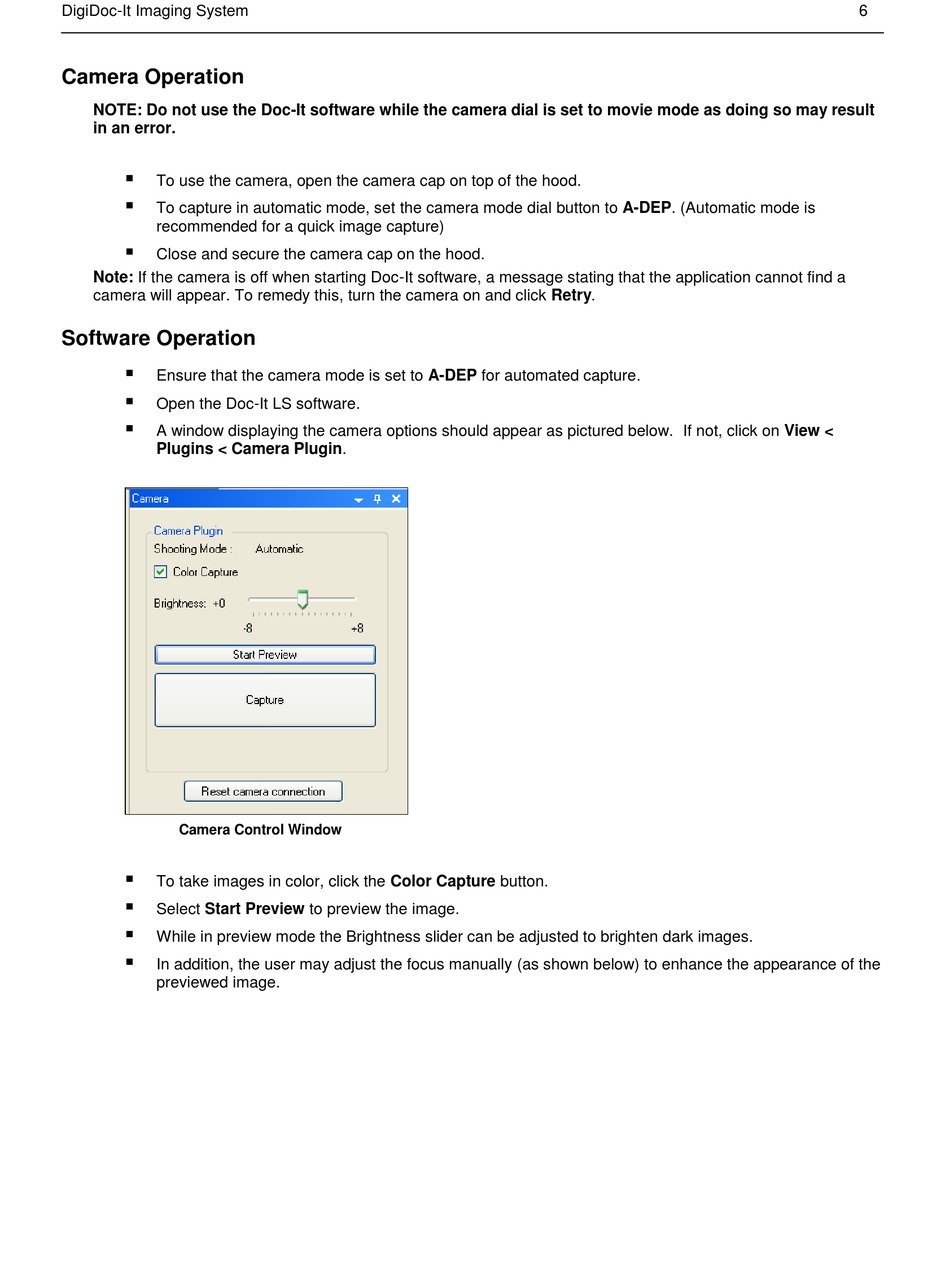

DigiDoc-It Imaging System

Camera Operation

NOTE: Do not use the Doc-It software while the camera dial is set to movie mode as doing so may result
in an error.

To use the camera, open the camera cap on top of the hood.

To capture in automatic mode, set the camera mode dial button to A-DEP. (Automatic mode is
recommended for a quick image capture)

Close and secure the camera cap on the hood.
Note: If the camera is off when starting Doc-It software, a message stating that the application cannot find a
camera will appear. To remedy this, turn the camera on and click Retry.

Software Operation


Ensure that the camera mode is set to A-DEP for automated capture.

Open the Doc-It LS software.

A window displaying the camera options should appear as pictured below. If not, click on View <
Plugins < Camera Plugin.
Camera Control Window

To take images in color, click the Color Capture button.

Select Start Preview to preview the image.

While in preview mode the Brightness slider can be adjusted to brighten dark images.

In addition, the user may adjust the focus manually (as shown below) to enhance the appearance of the
previewed image.
6
