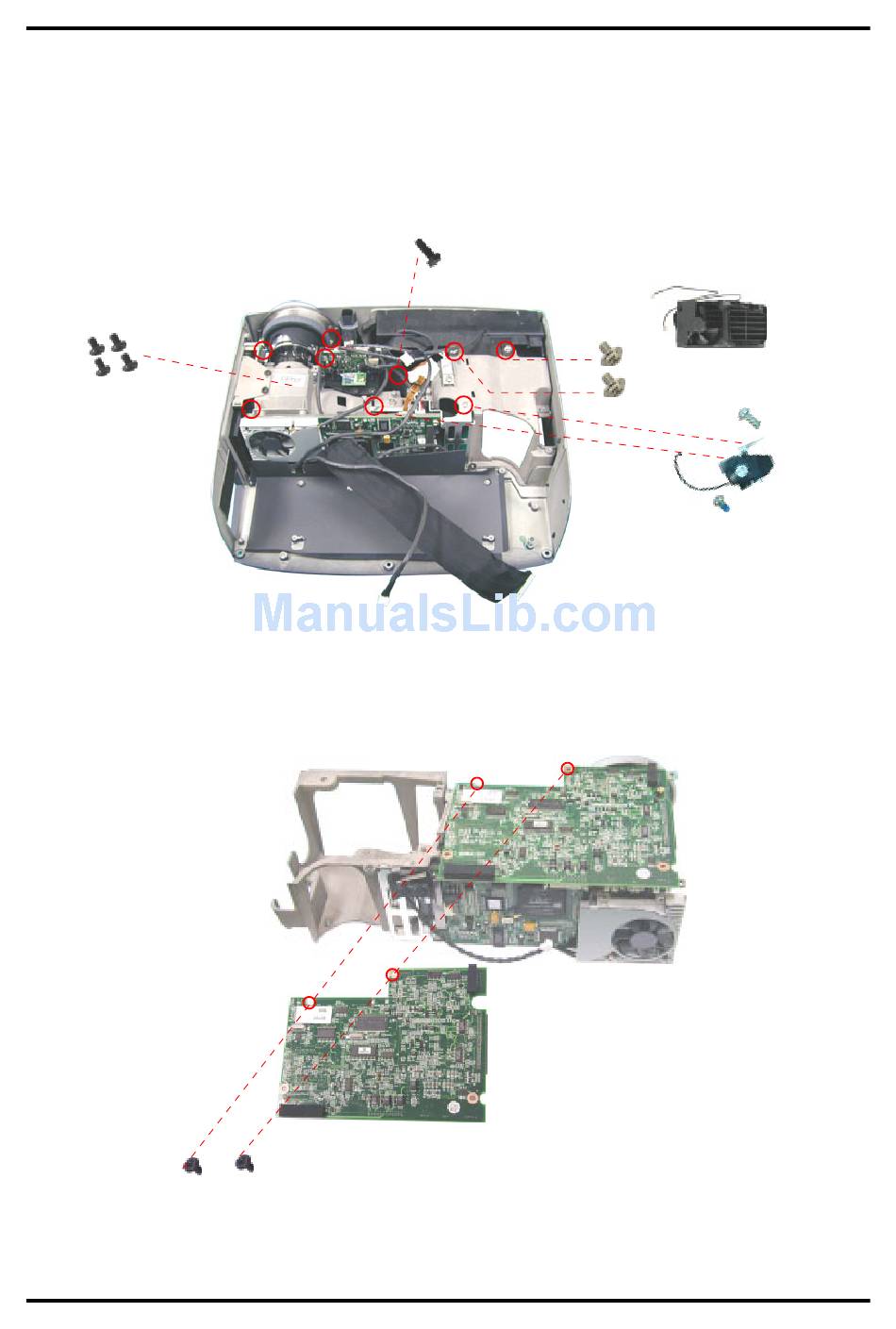

Removing Fan Module and Front End Board

1.

Remove two screws from Fan Module and take off it.

2.

Unscrew four screws and one long screw of Engine Module.

3.

Unscrew two screws to remove Fan Module.

4.

Unscrew two screws to remove Front End Board from Engine.

23

Front End Board

Fan

Chapter 3
