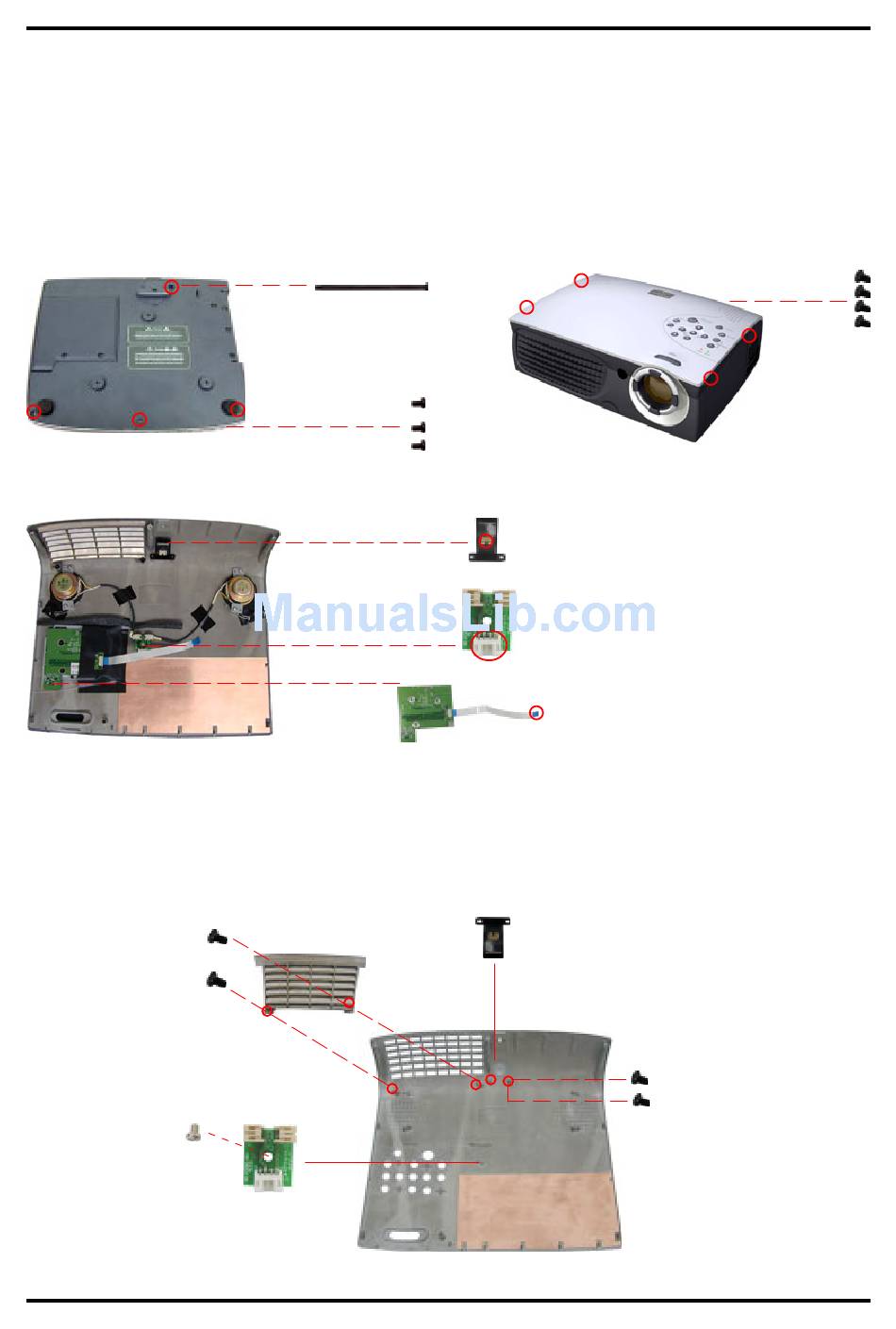

Removing Top Cover Module, Keypad Board and Speaker

Remove three screws and one long screw from Bottom Housing.

Remove four screws beside Top Housing.

Lift up Top Housing and unplug three wires to Thermal Board, IR Cover Module and

Speaker Board.

Bottom Housing

Unscrew one screw to remove Speaker Board

Unscrew four screws to remove IR Cover Module, Vent.

Chapter 3

Vent

Speaker Board

Top Housing

IR Cover Module

Speaker Board

Keypad Board

IR Cover Module
