Operating Manual

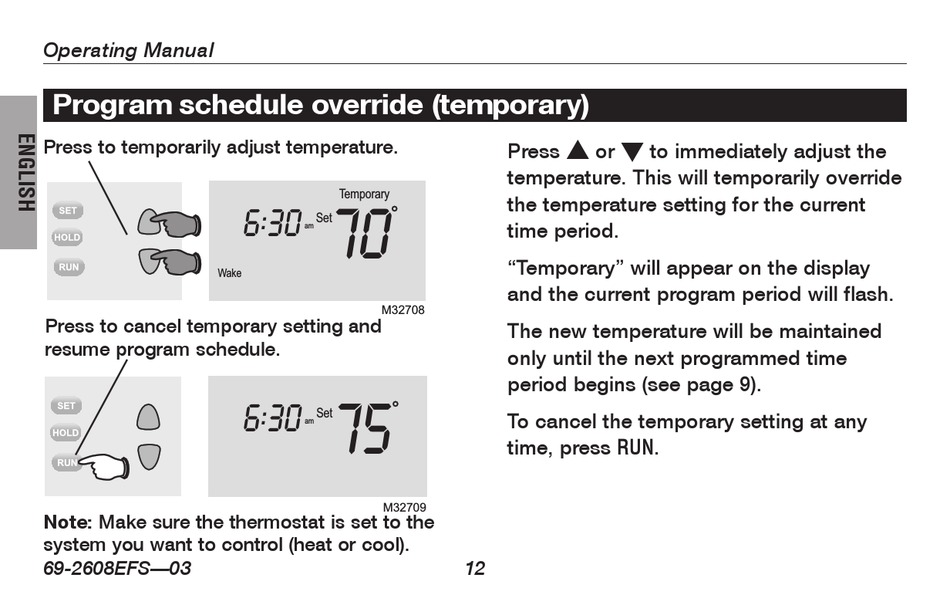

Program schedule override (temporary)
Press to temporarily adjust temperature.
Wake
Press to cancel temporary setting and
resume program schedule.
Note: Make sure the thermostat is set to the
system you want to control (heat or cool).
69-2608EFS—03
Temporary
6 : 30
70
Set
am
M32708
6 : 30
75
Set
am
M32709
Press
s
or
t
temperature. This will temporarily override
the temperature setting for the current
time period.
"Temporary" will appear on the display
and the current program period will flash.
The new temperature will be maintained
only until the next programmed time
period begins (see page 9).
To cancel the temporary setting at any
time, press RUN.
12
to immediately adjust the
