IBASE Technology FWA6504 User Manual

1u 19” network appliance
Hide thumbs Also See for FWA6504:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
FWA6504
1U 19" Network Appliance
Users Manual
Version A1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FWA6504 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IBASE Technology FWA6504

Summary of Contents for IBASE Technology FWA6504

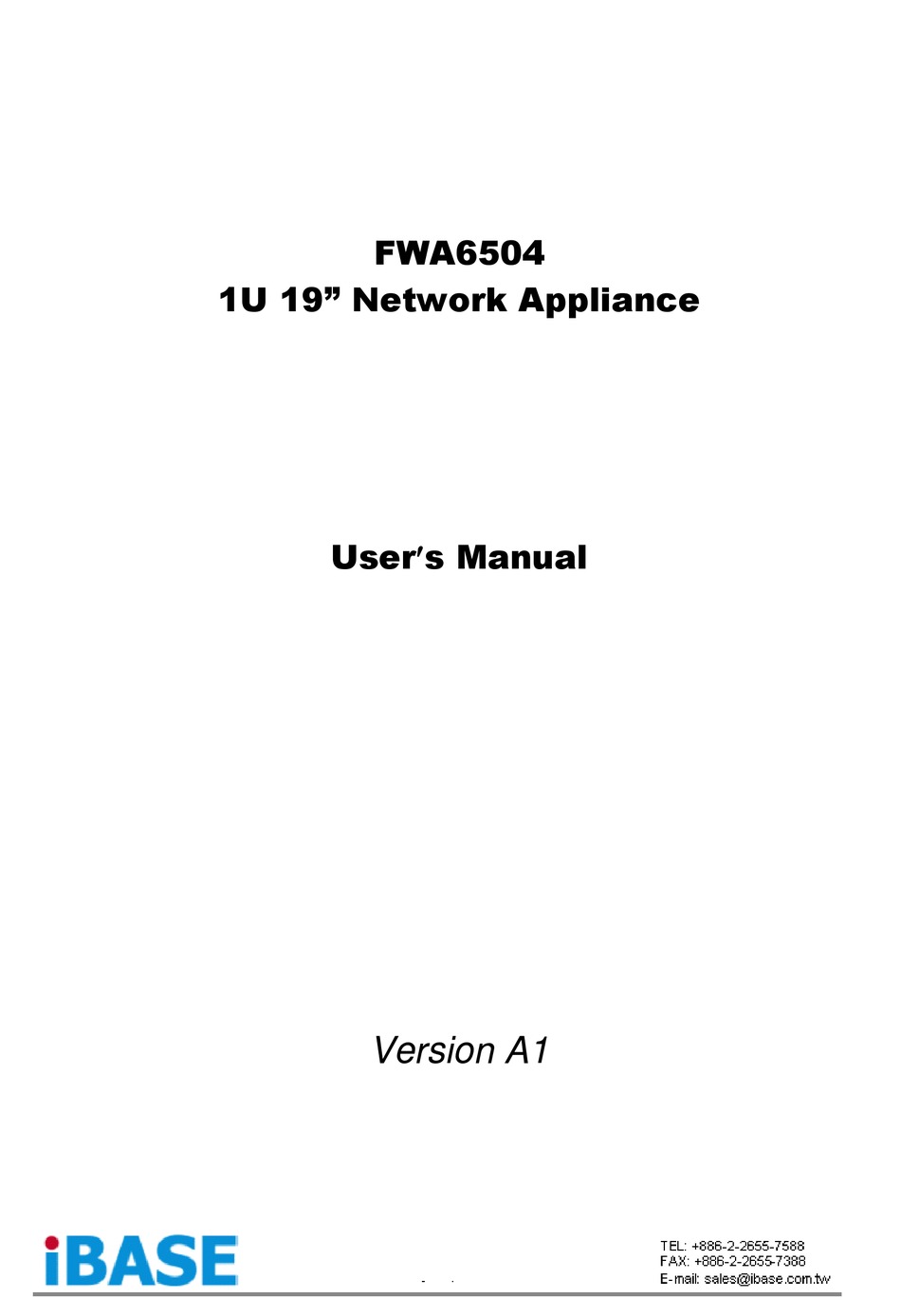

  • Page 1 FWA6504 1U 19” Network Appliance Users Manual Version A1...

  • Page 2: Table Of Contents

    Console Mode Information ..................... 10 Chapter 5 Opening the Chassis ..................... 12 Chapter 6 Installing CompactFlash Card ..................12 Chapter 7 Installing Memory Module ....................12 Installing 2.5” SSD ......................13 Chapter 8 Chapter 9 Installing Mini PCI-e Module ..................14 FWA6504 User’s Manual...
  • Page 3 4. Do not operate the processor without a thermal solution. Damage to the processor can occur in seconds. 5. Do not block air vents at least minimum 1/2-inch clearance required. 6. In case explosion, you should change battery with same specification. FWA6504 User’s Manual...

  • Page 4: Chapter 1 Introduction

    Chapter 1 Introduction The FWA6504 was specifically designed for the network security & management market. Network Security Applications: • Firewall • Virtual Private Network • Proxy Server • Caching Server Network Management Applications: • Load balancing • Quality of Service •...

  • Page 5: System Specification

    Chapter 2 System Specification Product Description ® FWA6504 incorporates Intel NM10 chipset. Currently, it is available in the following model: Model Intel® Atom Dual Core CPU Watchdog Timer FWA6504 Atom D2550 1.86 GHz FWA6504 Features  Supports four intel® 10/100/1000 LAN ports ...

  • Page 6: Chapter 3 Hardware Configuration

    Chapter 3 Hardware Configuration Motherboard (MB837-1U) Layout FWA6504 User’s Manual...
  • Page 7 Open Super IO GP54 GP54 Active: or setting in Low: Bypass BIOS. High: Normal 2-3 Closed ** Note that the Bypass setting in BIOS is only working when JP4 & JP5 are set as this configuration. FWA6504 User’s Manual...
  • Page 8 The SATA SSD dock combines a SATA power connector and a SATA interface connector. Signal Name Pin # Pin # Signal Name +3.3V +3.3V +3.3V +12V +12V +12V J1: SO-DIMM DDR3 Socket J2: Mini PCI-e Connector (USB signal only) J3: SPI Debug Port (Factory use only) FWA6504 User’s Manual...
  • Page 9 J9 is a DC-in internal connector supporting +12V. Pin # Signal Name +12V Ground Note: Do not connect J9 and J11 at the same time. J10: USB Header Signal Name Pin # Pin # Signal Name Ground USB1- USB2+ USB1+ USB2- Ground FWA6504 User’s Manual...
  • Page 10 Pin # PWR LED+ PWR LED- ALARM LED+ SIO GPIO55 STATUS LED+ SIO GPIO56 SW3: Software Reset Button Signal Name Signal Name Pin # Pin # PCH GPIO7 Note: SW3 is controlled by GPIO only. JP3: Mini-PCI Connector FWA6504 User’s Manual...

  • Page 11: Chapter 4 Console Mode Information

    Chapter 4 Console Mode Information FWA6504 supports output information via Console in BIOS level. Prepare a computer as client loaded with an existing OS such Windows XP. Connect client computer and FWA6504 with NULL Modem cable. Follow the steps below to configure the Windows Hyper Terminal application setting: 1.
  • Page 12 4. Please make the port settings to Baud rate 115200, Parity None, Data bits 8, Stop bits 1 5. Power up FWA6504 and the screen will display the BIOS information. 6. Press <Tab> key to enter BIOS setup screen in Console mode.

  • Page 13: Opening The Chassis

    Fig. 6-1 Insert Compact Flash Card Fig. 6-2 Push Compact Flash Card into the CF interface Chapter 7 Installing Memory Module Fig. 7-1 Insert DDR3 SO-DIMM memory module Fig. 7-2 Press down the memory module into socket FWA6504 User’s Manual...

  • Page 14: Installing 2.5" Ssd

    Fig. 8-1 Loosen two screws to remove left & Fig. 8-2 Fasten brackets on SSD with four right side brackets screws Fig. 8-3 Fasten both brackets on SSD with four Fig. 8-4 Fix SSD & brackets with two screws screws FWA6504 User’s Manual...

  • Page 15: Chapter 9 Installing Mini Pci-E Module

    Chapter 9 Installing Mini PCI-e Module Fig. 9-1 Insert Mini PCI-e module Fig. 9-2 Push down the module into socket (Supports USB signal only) Fig. 9-3 Release two clips to remove module FWA6504 User’s Manual...
