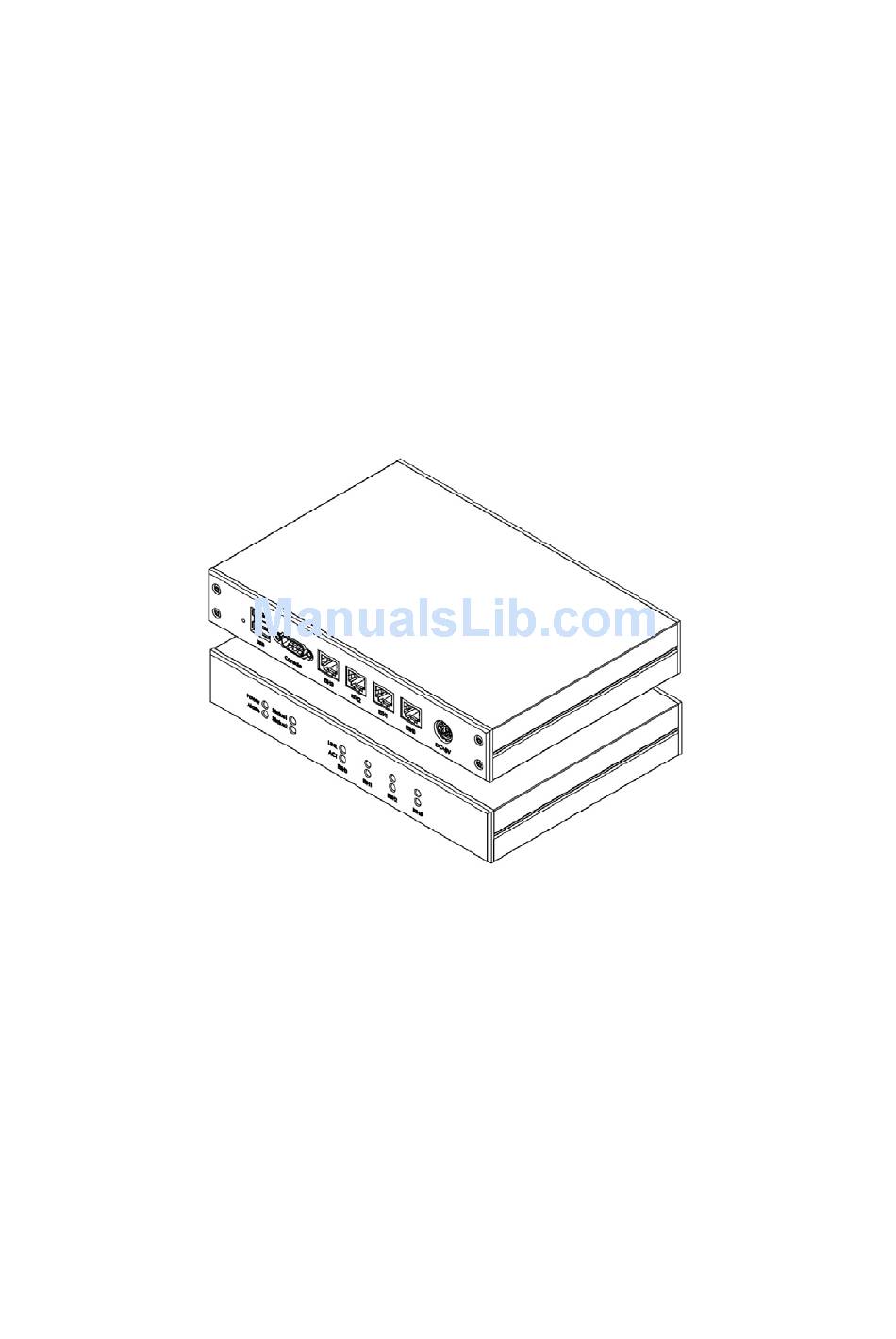

Page 1: User Manual
FWA-7304G User Manual 2009 December V1.0... - Page 2 Copyright © 2009 IBASE Technology INC. All Rights Reserved. No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of IBASE Technology INC.
-
Page 3: Table Of Contents
Table of Contents Accessories ......................6 Components ......................7 Front View ........................7 Rear View ........................8 Specification ......................9 Exploded view of the FWA-7304G assembly ............10 Parts description ......................10 Driver Installation ....................11 BIOS Setup ......................11... -
Page 4: Safety Information
Safety Information Your FWA-7304G is designed and tested to meet the latest standards of safety for information technology equipment. However, to ensure your safety, it is important that you read the following safety instructions. Setting up your system • Read and follow all instructions in the documentation before you operate your system. - Page 5 The system was dropped or the cabinet is damaged. Lithium-Ion Battery Warning CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions. NO DISASSEMBLY The warranty does not apply to the products that have been disassembled by users...
-
Page 6: Accessories
Accessories Power Cord x 1 Driver & M/B Manual CD x 1 Power Adapter x 1 Rubber Foot x 4... -
Page 7: Components
Components Front View Refer to the diagram below to identify the components on this side of the system. Power The power LED illuminated when system been power on. Alarm There are user programmable indicators. Each indicator can be program to specify status indicator. -
Page 8: Rear View
Rear View Refer to the diagram below to identify the components on this side of the system. DC+5V The supplied power adapter converts AC power to DC power for use with this jack. Power supplied through this jack supplies power to the system. To prevent damage to the system, always use the supplied power adapter. -
Page 9: Specification
Specification System Mainboard IB792F Construction Aluminum Chassis Color Gray Storage 2.5” SATA HDD x 1(Optional) Mounting Desktop Dimensions 225(W) x 35.8 (H) x 156(D)mm / (8.65” x 1.4” x 6.14”) Power Supply 25W power adapter Operating Temperature 0°C ~ 45°C (32°F ~ 113°F) still air Storage Temperature -20°C ~ 70°C Relative Humidity... -
Page 10: Exploded View Of The Fwa-7304G Assembly
Exploded view of the FWA-7304G assembly Parts description Part NO. Description Part NO. Description 1 Top Cover 2 2.5” SATA HDD 3 HDD Bracket 4 HDD Bracket Boss Lower 5 HDD Bracket Boss 6 IB792F 7 Front Plate 8 Rear Plate... -
Page 11: Driver Installation
Driver Installation Please refer correspond mainboard user manual to install the driver properly. BIOS Setup Please refer correspond mainboard user manual to configure BIOS setting.
