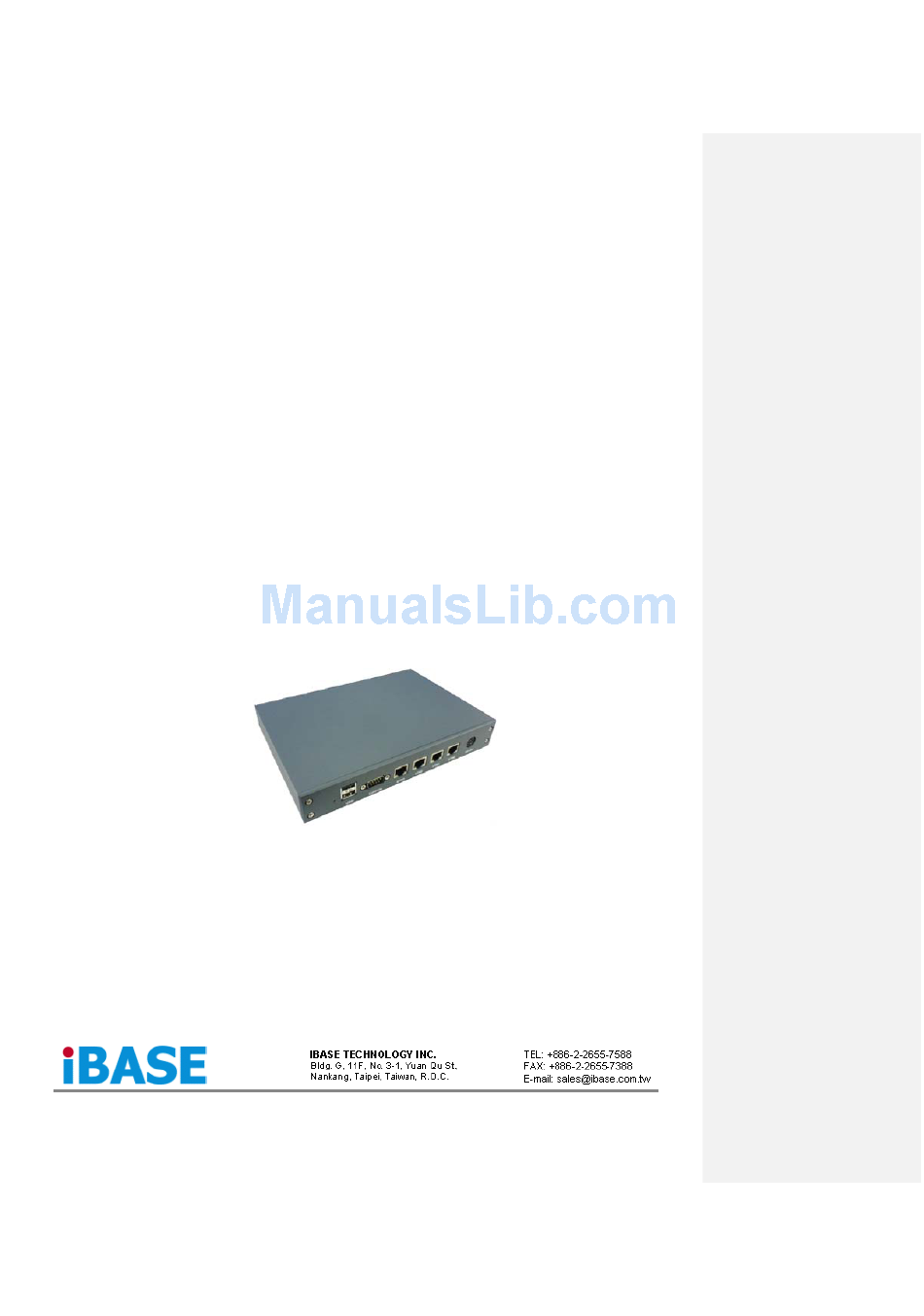

- Page 1 FWA7304 Series Network Appliance User′s Manual Version: 1.0...
-
Page 2: Table Of Contents
Opening the chassis ....................8 Chapter 6 Removing and Installing CompactFlash Card ............9 Chapter 7 Installing the Mini-PCI card ..................10 Chapter 8 Installing the 2.5” HDD ....................11 Chapter 9 System Architecture ....................12 FWA7304 Series User’s Manual... - Page 3 4. Do not operate the processor without a thermal solution. Damage to the processor can occur in seconds. 5. Do not block air vents at least minimum 1/2-inch clearance required. In case explosion, you should change battery with same specification. FWA7304 Series User’s Manual...
-
Page 4: Chapter 1 Introduction
Chapter 1 Introduction The FWA7304 series was specifically designed for the network security & management market. Network Security Applications: • Firewall • Virtual Private Network • Proxy Server • Caching Server Network Management Applications: • Load balancing • Quality of Service •... -
Page 5: Chapter 2 System Specification
Status LED (GPO) x 2 , Alarm LED (GPO) x 2 , Voltage, Temperature, fan Hardware Monitor DC == 5V, 4A Input Rating Power Supply 20W power adaptor. 100-240V, 50-60Hz Dimensions 225mm (D) x 156mm (W) x 35mm (H) FWA7304 Series User’s Manual... -
Page 6: Chapter 3 Hardware Configuration
JP3: HDD UDMA Selection Setting Function Pin 1-2 BIOS Detect Short Pin 1-3 Upper Short UDMA33 Pin 2-4 UDMA33 Only Short (Default) JP4: CF Card Master / Slave Selection Setting Function Pin 1-2 Master Short Pin 1-2 Slave Open FWA7304 Series User’s Manual... -
Page 7: Chapter 4 Console Mode Information
2. Customize your name for the new connection. 3. Choose the COM port on the client computer for the connection. 4. Please make the port settings to Baud rate 19200, Parity None, Data bits 8, Stop bits 1 FWA7304 Series User’s Manual... - Page 8 5. Power up the FWA7304, and the screen will display the following information. 6. Press <Tab> key to enter BIOS setup screen in Console mode. Press <Del> key to enter BIOS setup screen in mode. FWA7304 Series User’s Manual...
-
Page 9: Chapter 5 Opening The Chassis
Fig. 5-1 Loosen the four screws of the chassis on Fig. 5-2 The top lead (Fig. 5-2) can be removed the back to remove the top lead. from the base stand (Fig. 5-3). 格式化: 項目符號及編號 Fig. 5-3 The base stand FWA7304 Series User’s Manual... -
Page 10: Chapter 6 Removing And Installing Compactflash Card
Chapter 6 Removing and Installing CompactFlash Card 格式化: 項目符號及編號 Fig. 6-1 Compact Flash Card Fig. 6-2 Insert Compact Flash Card into the CF interface FWA7304 Series User’s Manual... -
Page 11: Chapter 7 Installing The Mini-Pci Card
Chapter 7 Installing Mini-PCI Card Fig. 7-1 Mini-PCI card. Fig. 7-2 Install the Mini-PCI card. FWA7304 Series User’s Manual... -
Page 12: Chapter 8 Installing The 2.5" Hdd
Fig. 8-2 Fasten the four stands-off to lock IB798. and bracket together. Blue portion for long stands-off. portion for short stands-off. Fig. 8-3 Connect IDE cable between 3.5” HDD Fig. 8-4 Fix all four screws back and IB798. FWA7304 Series User’s Manual... -
Page 13: Chapter 9 System Architecture
Chapter 9 System Architecture The following block diagram illustrates a basic design reference of IB798, a highly integrated system solution. FWA7304 Series User’s Manual...
