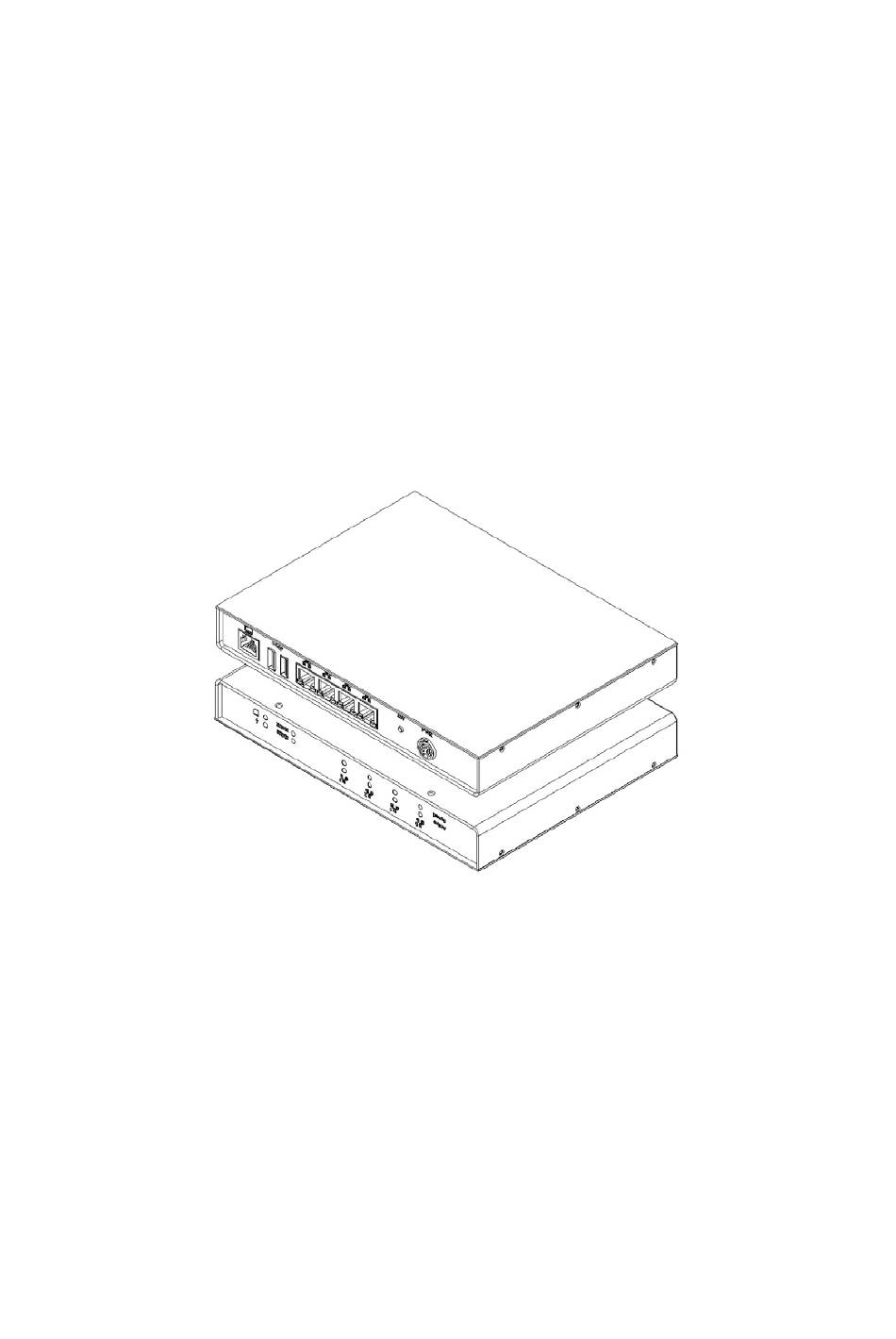

FWA-6104
User Manual
2009 May V1.0

Advertisement

Table of Contents
loading

Summary of Contents for IBASE Technology FWA-6104

  • Page 1 FWA-6104 User Manual 2009 May V1.0...
  • Page 2 Copyright © 2008 IBASE Technology INC. All Rights Reserved. No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of IBASE Technology INC.
  • Page 3: Table Of Contents

    Table of Contents Accessories ......................6 Components ......................7 Front View ........................7 Rear View ........................8 Specification ......................9 Exploded view of the FWA-6104 assembly ............10 Parts description ......................10 Driver Installation ....................11 BIOS Setup ......................11...
  • Page 4 Safety Information Your FWA-6104 is designed and tested to meet the latest standards of safety for information technology equipment. However, to ensure your safety, it is important that you read the following safety instructions. Setting up your system • Read and follow all instructions in the documentation before you operate your system.
  • Page 5  The system was dropped or the cabinet is damaged. Lithium-Ion Battery Warning CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions. NO DISASSEMBLY The warranty does not apply to the products that have been disassembled by users...
  • Page 6: Accessories

    Accessories Power Cord x 1 M/B Manual x 1 Driver CD x 1 Console converter cable x 1 Power Adapter x 1 Rubber Foot x 5...
  • Page 7: Components

    Components Front View Refer to the diagram below to identify the components on this side of the system. Active The LED illuminated when corresponding LAN port transmitted or received data. Speed The orange color shows corresponding LAN port connected with Giga-speed. The Green color shows corresponding LAN port connected with 100-Base-T speed.
  • Page 8: Rear View

    Rear View Refer to the diagram below to identify the components on this side of the system. The supplied power adapter converts AC power to DC power for use with this jack. Power supplied through this jack supplies power to the system. To prevent damage to the system, always use the supplied power adapter.
  • Page 9: Specification

    Specification System Mainboard MB836 Construction Steel & Aluminum Chassis Color Computer light gray Storage 2.5” SATA HDD x 1(Optional) Mounting Desktop / Rack mount (Optional) Dimensions 207.6(W) x 28.5(H) x 157.5(D)mm / (8.17” x 1.12” x 6.2”) Power Supply 30W power adapter Operating Temperature 0°C ~ 45°C (32°F ~ 113°F) still air Storage Temperature -20°C ~ 70°C...
  • Page 10: Exploded View Of The Fwa-6104 Assembly

    Exploded view of the FWA-6104 assembly Parts description Part NO. Description Part NO. Description 1 Top Cover 2 HDD Bracket 3 Base Chassis 4 Front Bracket 5 Front Silkscreen Plate 6 MB836 7 2.5” SATA HDD 8 HDD Handle 9 Rear I/O Silkscreen Plate...
  • Page 11: Driver Installation

    Driver Installation Please refer correspond mainboard user manual to install the driver properly. BIOS Setup Please refer correspond mainboard user manual to configure BIOS setting.
