PVM OPeraTiOn
Portable Video Monitor Option

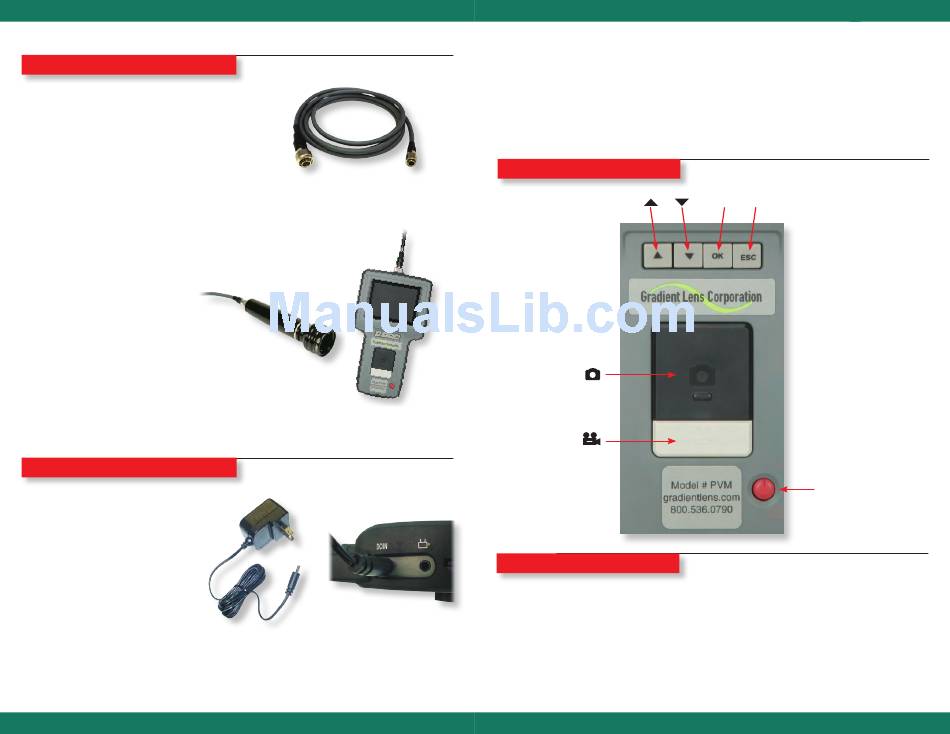

If the Portable Video (PVM-DV) viewing option is
chosen, the included cable will have a circular
connector at each end, one 6-pin and one 12-pin.
Connect the 6-pin end to the Luxxor
®
Portable Camera and the 12-pin end
to the PVM. The camera is powered
from the PVM's battery for completely
portable use.
Charging the PVM
To charge the PVM, connect the
charger lead to the jack labeled DCIN
on the PVM. Then plug the charger
into a 100-240 V, 50/60 Hz outlet. Full
charge takes about 2 hours. The PVM
will not operate with the charger
plugged in when the battery is nearly
fully charged.
note: There is no charging indicator
light. The battery status indicator
will appear in the display when
booting up.
12 Phone: 800.536.0790 fax 585.235.6645 gradientlens.com info@gradientlens.com
Luxxor Portable Video Camera User Guide
®
12-Pin 6-Pin
6
LPC
Luxxor Portable Video Camera User Guide
®
PVM Operation
The PVM displays live video and captured still or video images on its built in LCD display.
It can output live video to an external monitor via a composite signal connector and the
included cable. Stored images can be downloaded to a computer via the USB port and
included cable, or through the removable SD memory card. (Details are on next page.)
Main Controls
10
12
PVM
Power On / OFF
Turn the PVM's power on by pressing and holding the power button for 2-5 seconds.
The Gradient Lens logo will appear. Then the word CAMERA and the battery and
memory status indicators will appear for a few seconds.
When these indicators disappear the unit is in Normal Mode, displaying a live image
from the camera.
To turn the unit off, push and hold the power button for 1-2 seconds until it turns off.
Phone: 800.536.0790 fax 585.235.6645 gradientlens.com info@gradientlens.com
PVM OPeraTiOn
OK esC
Power
13
