PVM OPeraTiOn

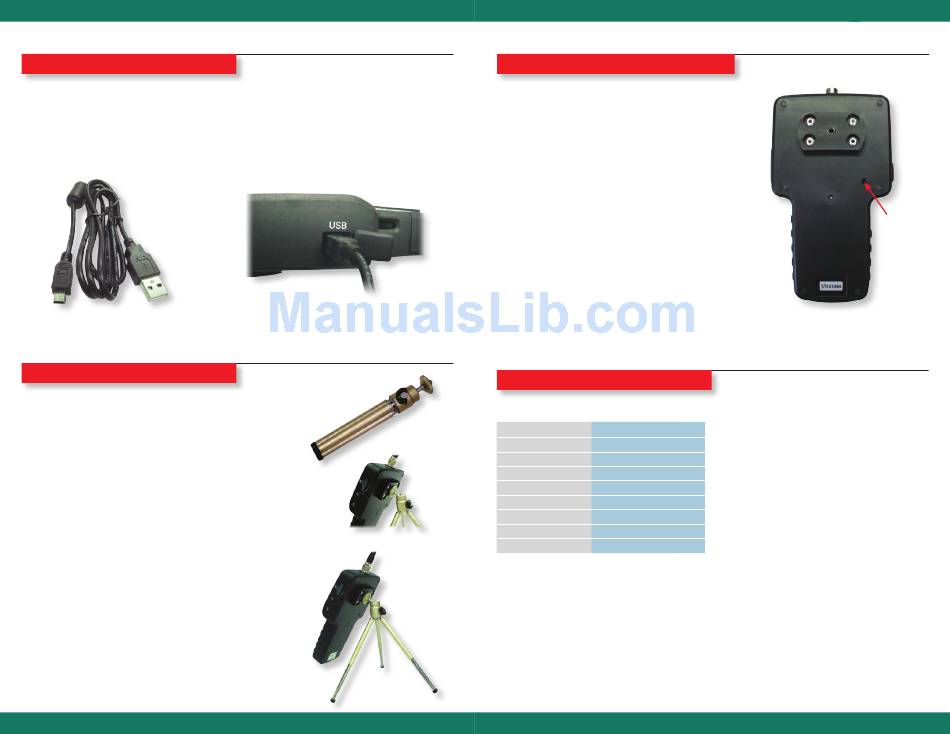

Transferring image Files to a PC
The PVM can download saved images through its USB port. Plug in the Mini USB 1.1
connector of the included USB cable into the USB port on the PVM. Then plug the other end
into a USB port on your PC and open the drive associated with the chosen port. The stored
images are contained in the location X:\DCIM\100MEDIA where X is the drive letter. JPGs can
be viewed with Windows Picture Viewer, and .ASF video files play in Windows Media Player.
usB Cable
Alternatively, the SD memory card may be removed from the PVM and inserted into
your computer's card reader.
Tripod stand
A compact tripod stand for the PVM is included to
enable one-handed operation of the Rigid Video
Borescope.
Attach the tripod stand to the threaded socket on
the back of the PVM.
Adjust the tripod head and legs to allow the PVM to
stand on a firm surface.
20 Phone: 800.536.0790 fax 585.235.6645 gradientlens.com info@gradientlens.com
Luxxor Portable Video Camera User Guide
®
Luxxor Portable Video Camera User Guide
®
PVM Troubleshooting Tips
nothing on LCD screen: Battery power too low.
Recharge the battery.
no image – but words and status symbols on LCD
display: Insertion tube is not connected securely.
Reattach the insertion tube.
Cannot capture photos or video: No SD Card inserted.
shut down: Battery has discharged below operating
threshold. Recharge battery.
!!! no functions working!!! If all functions freeze or fail,
first try to power the unit off and restart. If the unit does
not recover, insert a non-conducting probe, such as a
toothpick, into the hole on the back of the PVM and use it
to press the internal reset button to perform a
system reset.
LPC specifications
Sensor 1/4" CCD
Effective Pixels 768 x 494
Scanning 2 : 1 Interlace
Resolution 520 TV Lines
Output Composite
Output Format NTSC
Length 6.25" (159 mm)
Max Diameter 1.74" (44.2 mm)
Weight 6.3 oz. (178.6 gm)
Phone: 800.536.0790 fax 585.235.6645 gradientlens.com info@gradientlens.com
TrOuBLesHOOTing / sPeCiFiCaTiOns
reset
