User Guide
LXC
Luxxor
®
Video Camera
Getting Started
®
The Luxxor
computer running Windows 10 or 7 via a USB 3.0 connection, or
through an external monitor via an HDMI connection.
Configuration Switches:

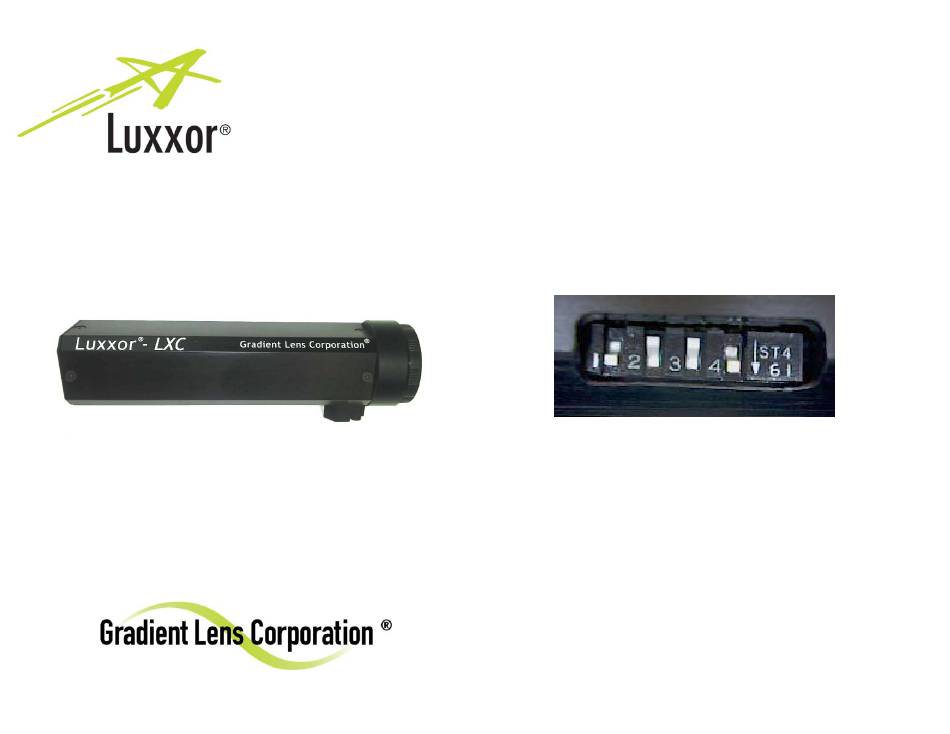

There are four configuration switches located on the bottom of the
®
Luxxor
LXC. The factory default setting for switches 1 to 4 is
DOWN, UP, UP, DOWN, as shown below.
Switch functions:
Switch 1:
Switch 2:
Switch 3:
Switch 4:
V1.0
2
LXC may be configured to display images through a
Up – HDMI Output
Down – USB Output
Up – LED and shutter speed auto exposure
Down – Shutter speed only auto exposure
Up – Normal Auto Exposure Setpoint
Down – Lower Auto Exposure Setpoint
Up – Fixed Integration Time (shutter speed)
Down – Auto Exposure On
Advertisement
Related Manuals for Gradient Lens Luxxor LXC
Summary of Contents for Gradient Lens Luxxor LXC
- Page 1 Getting Started User Guide ® The Luxxor LXC may be configured to display images through a computer running Windows 10 or 7 via a USB 3.0 connection, or through an external monitor via an HDMI connection. Configuration Switches: Luxxor ® There are four configuration switches located on the bottom of the ®...
- Page 2 The factory default switch configuration is set to: onnect the other end to a USB 3.0 port on the computer. USB output LED Based Auto Exposure (used with optional LXC-LED) Normal Auto Exposure Setpoint Auto Exposure On Note: Switch settings are implemented when the LXC is powered on.
- Page 3 Using the Luxxor ® LXC with an HDMI monitor: Using the Luxxor ® LXC with a borescope: Set configuration switch 1 UP to enable HDMI output. To use the LXC with a borescope, a coupler lens must first be attached to the camera. Connect the USB cable to the camera as described above.
- Page 4 Using the Luxxor ® LXC with the LXC-LED: Switch Settings and Exposure Control: To use the optional LXC-LED light source with a Hawkeye ® borescope: (It may fit other borescopes with similar light stubs.) Switch 2: When using the LXC-LED, configuration switch 2 should be set in the UP position.
-
Page 5: Customer Service
Luxxor ® LXC Specifications Customer Service: Should service of the equipment be required: Call Gradient Lens Sensor ……………..…..1/2.9”, 1.4mp with IMX6 Image Processor Corporation to obtain a return material authorization (RMA) number and shipping directions. Effective Pixels ………..…………………………….…..1280 x 1084 Telephone: 585.235.2620... - Page 6 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 207 Tremont Street, Rochester, New York 14608 800.536.0790 Fax: 585.235.6645...
